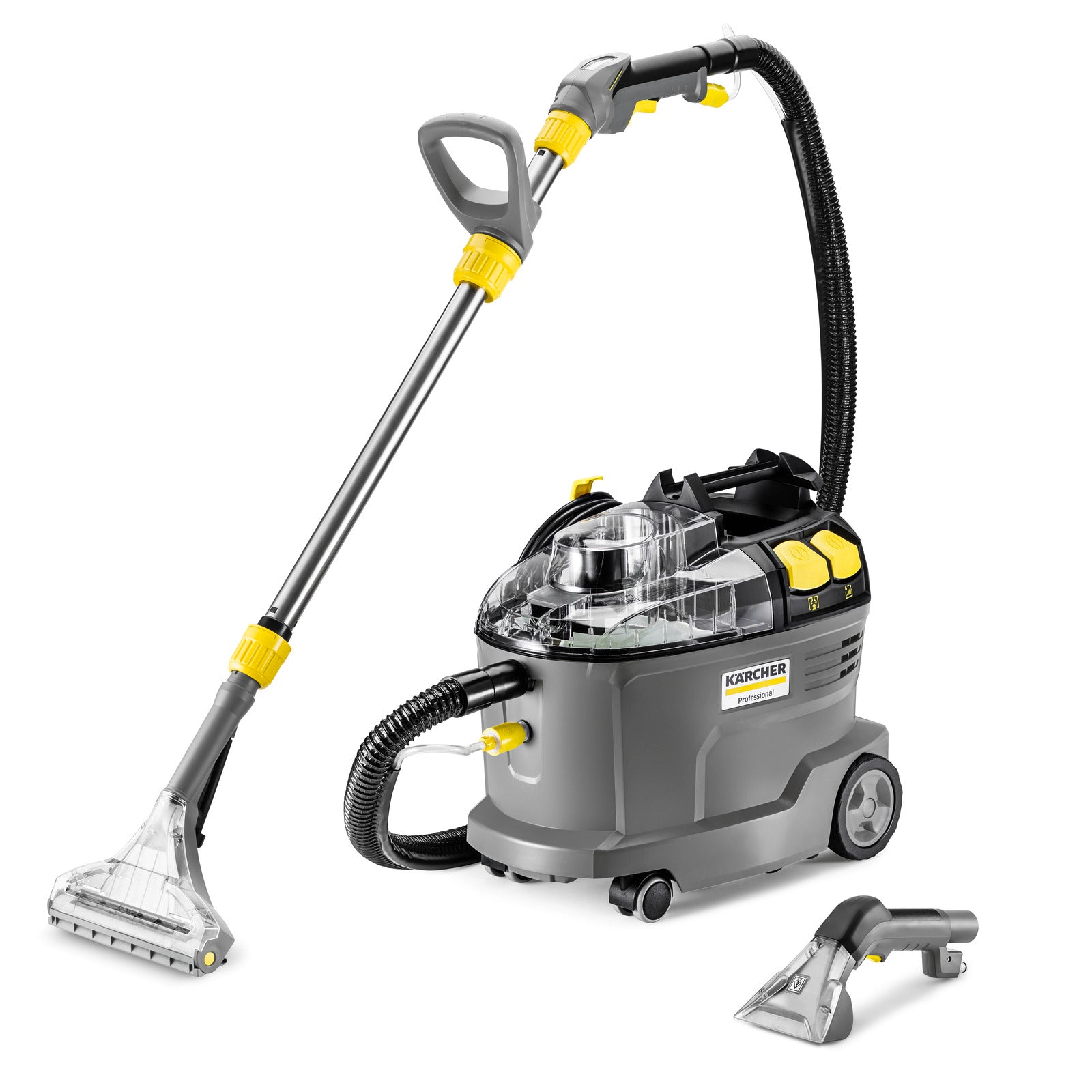

Textile care machine Puzzi 8/1 C with floor nozzle
Carpet nozzle and a short upholstery nozzle as standard Puzzi 8/1 Adv is a spray extraction machine designed for particularly fast and thorough cleaning of textile furniture and carpeted surfaces.
Thanks to its excellent suction power, the professional Puzzi 8/1 Adv from Kärcher provides a very good and hygienic cleaning result, while textile surfaces are quickly ready for use again. The machine sprays the cleaning solution deep into the textile fibers and then sucks it up together with the dissolved dirt - perfect for cleaning furniture, carpets and other textile surfaces. The robust and compact design provides a long service life and high cost-effectiveness - ideal for cleaning companies, the hotel and restaurant industry or for cleaning vehicle interiors, for example. The machine's lid, furniture nozzle and floor nozzle are transparent to provide better visibility into the dirty water. An inspection window in the handle provides additional control options. Puzzi The 8/1 Adv is lightweight and has an ergonomic carrying handle that makes it easy to carry with one hand. Large buttons that can be operated with hand or foot further increase user-friendliness.
Features and benefits
Outstanding cleaning capacity
Perfect deep cleaning of textile and carpeted surfaces Short drying time thanks to high absorbency means that the surfaces can be used again quickly Perfect cleaning results with visible before/after effect
Ergonomic design and extra compact hand nozzle
Handle and buttons can be used with just one hand Practical heel allows for working in different positions Red spray nozzle provides a perfect spreading result
Extensive range of textile cleaning accessories
Flexible squeegee for maximum suction power and excellent drying results 240mm wide floor nozzle with integrated spray/suction tube Ergonomic two-hand grip for extra comfort when usingLightweight and compact, robust design
- Convenient to move, even with one hand, up stairs and the like
- Designed for extended use without tiring the user
- Long engine life provides high efficiency
Removable smart 2-in-1 container
- Easy and quick refilling of clean water
- Convenient and easy emptying of dirty water
- Quick-start for easy operation
Easy to operate thanks to two large push buttons
- No need to bend down, can be turned on/off with your foot
- Quick 1-step method: Combined spray and suction in one go
- 2-step method: Spray the textile surface and let it work - then vacuum dry
Large rear wheels and flexible rotating steering wheels
- Easy maneuvering even on uneven surfaces
- Very flexible use
Foldable cord hook
- For safe storage of cord
- Practical and protects the cable
- The machine is easy and convenient to transport and store.
Large opening for clean water
- Convenient, safe and fast refilling of clean water
- Clear indication of maximum fill level
- No spillage when moving the machine
Integrated storage for upholstery nozzle and carpet nozzle
- Thanks to the holder, the hand nozzle is always available
- Integrated holder for suction hose and floor nozzle in the carrying handle
Specifications
Technical data
| Max. surface capacity (m²/h) | 12 - 18 |
| Airflow (l/s) | 71 |
| Vacuuming (mbar/kPa) | 270 / 27 |
| Spray volume (l/min) | 1 |
| Spray pressure (bar) | 1 |
| Clean/dirty water tank (l) | 8 / 7 |
| Turbine power (W) | 1200 |
| Pump capacity (W) | 40 |
| Mains voltage (Ph/V/ Hz ) | 1 / 220 - 240 / 50 - 60 |
| Cable length (m) | 7.5 |
| Paint | anthracite |
| Weight without accessories (kg) | 8.6 |
| Weight incl. packaging (kg) | 14 |
| Dimensions (L × W × H) (mm) | 524 x 332 x 442 |
The following is included
- Short furniture nozzle with handle
- Spray and suction hose: 2.5 m
- Cable hook
- Floor nozzle: 240 mm
- Spray gun
- D-handle for spray/suction tube
- Removable 2-in-1 container
- Steam suction hose: 1 Part(s)
Standard equipment
- Integrated accessory storage for furniture and crevice nozzle
- Integrated accessory storage for floor nozzle
Download
Instructions for use, including safety information
Areas of use
- For intensive deep cleaning of textile surfaces and furniture
- For periodic cleaning and spot cleaning of carpets
- For cleaning all textile surfaces - including car interiors
- For deep cleaning of textile fibers
- For deep spot cleaning of smaller textile floor surfaces
- For cleaning furniture and textile surfaces in hygiene-sensitive environments
- For deep cleaning of carpets and textile floors
