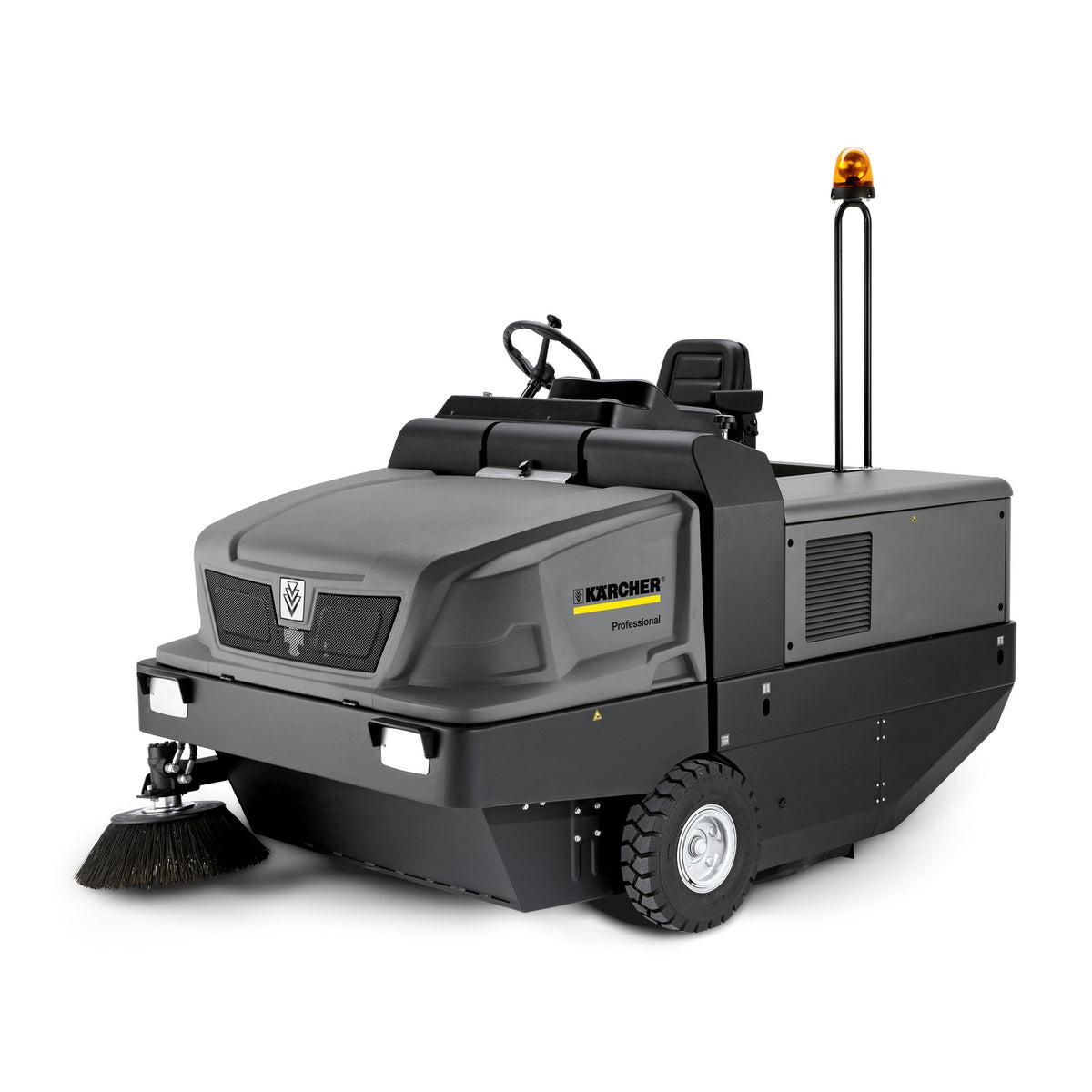

Kärcher Sweeper KM 150/500 R Bp Pack
Couldn't load pickup availability
Fully hydraulic industrial sweeper in a robust design for the most demanding tasks, e.g. in the construction and metal industries, foundries and similar sectors.
The battery-powered KM 150/500 R Bp Pack with three wheels and rear-wheel steering is quiet and emits no exhaust fumes. The forward sweeping principle safely sucks up fine debris and coarse dirt. The waste container closes automatically during transport. The brush roller automatically adapts to uneven surfaces and can be replaced quickly without tools. A redesigned sweeping system reduces wear. Two horizontally mounted flat filters guarantee clean air even in very dusty environments. Filter cleaning is carried out with a highly efficient double scraper at the touch of a button. The filter is easily accessible and can be replaced without tools. Simple selection of basic functions with one and the same control with the EASY concept.
Features and benefits
Efficient filter system
Flat filter with 7 m² filter surface. Effective filter cleaning with double scraper.
Comfortable workplace
All controls are clearly arranged and easy to access. Fully clear displays.
Easy to use, maintain and service
Simple technology with proven components: fully hydraulic drive, electric rather than electronic. Easily accessible motor for easy maintenance. Main sweeping roller and flat filter can be replaced without tools.Optional four-wheel chassis
- Improves grip on slippery and uneven surfaces
- Increases ride comfort and driving safety
- Optimal for use on sensitive surfaces thanks to low surface pressure.
Specifications
Technical data
| Drive | Electrical |
| Drive motor | DC motor |
| Operation – current (V/kW) | 48 / 10 |
| Max. surface capacity (m²/h) | 12000 |
| Working width (mm) | 1200 |
| Working width with one side brush (mm) | 1500 |
| Working width with 2 side brushes (mm) | 1800 |
| Battery capacity (Ah) | 700 |
| Battery voltage (V) | 48 |
| Operating time (h) | Max. 2.5 |
| Waste container (l) | 500 |
| Max. slope (%) | 12 |
| Working speed (km/h) | 8 |
| Filter area (m²) | 7 |
| Weight (with accessories) (kg) | 2690 |
| Weight, ready for operation (kg) | 2690 |
| Dimensions (L × W × H) (mm) | 2439 x 1720 x 2197 |
The following is included
- Battery and built-in charger included
- Wheels, all rubber
Standard equipment
- Manual filter cleaning
- Adjustable main sweeper roller
- Power steering
- Dustpan technology
- Drive motor, forward
- Drive motor, rear
- Suction
- Hydraulic high hopper emptying
- Outdoor use
- Indoor use
- Battery display
- Hour meter
