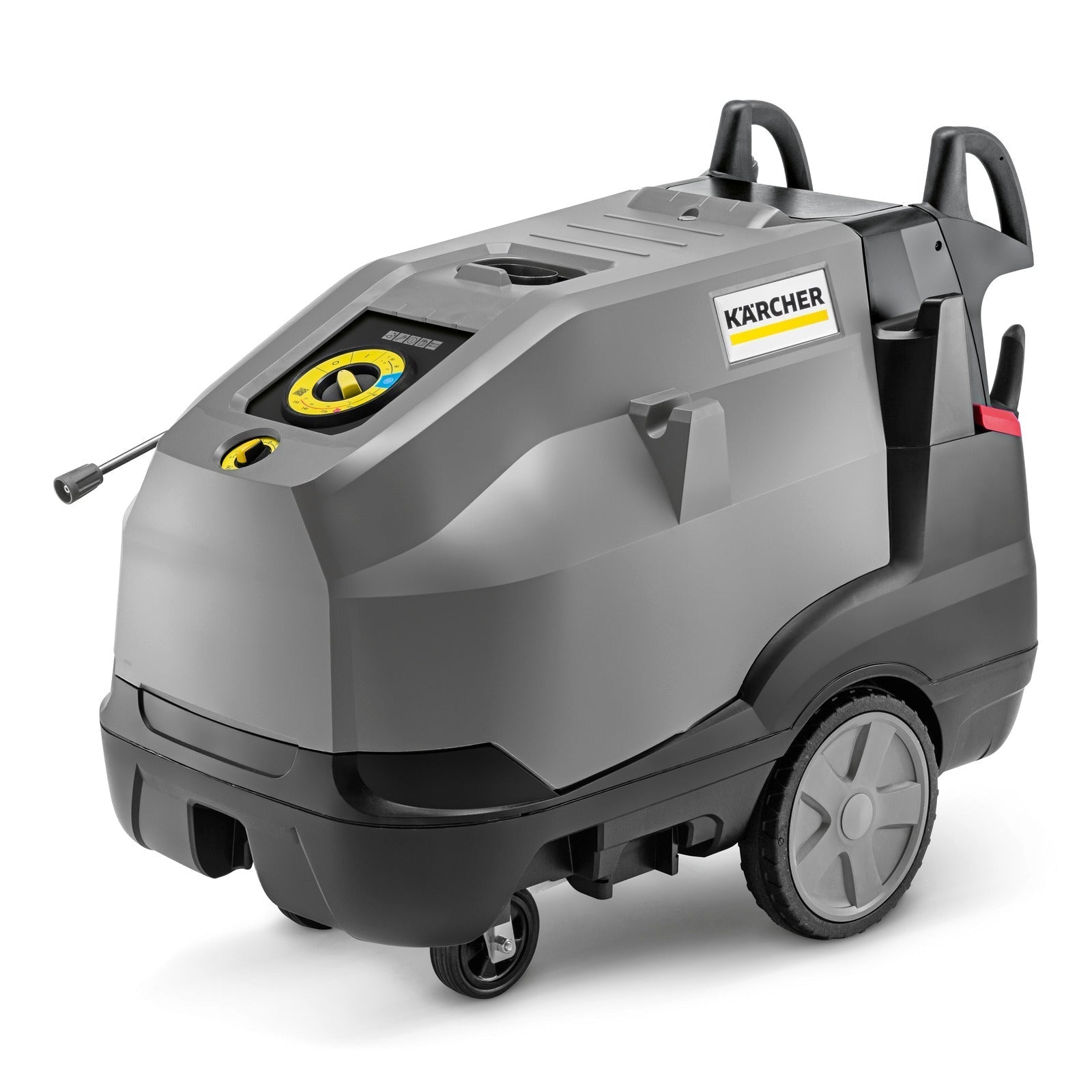

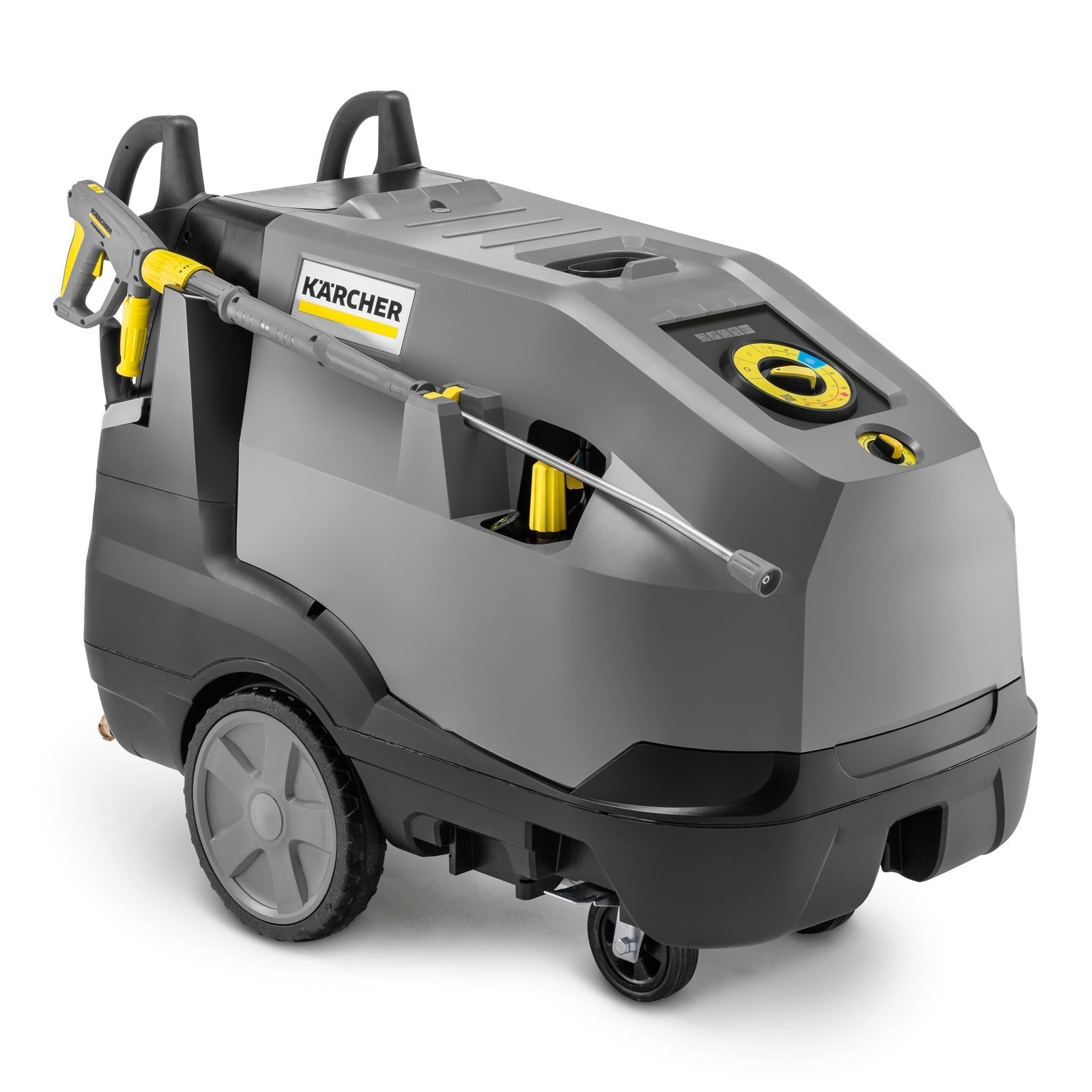

Kärcher High-pressure washer HDS 13/20-4 S
Couldn't load pickup availability
BESKRIVNING
For maximum performance under the toughest conditions: super-class hot water cleaners with 4-pole, water-cooled electric motor and robust 3-piston axial pump.
As one of the most powerful machines in Kärcher's super class, the HDS 13/20-4 S hot water cleaner impresses with the best cleaning results under the toughest operating conditions. High-quality components such as the low-speed, 4-pole, water-cooled electric motor and the robust 3-piston axial pump with ceramic piston pump ensure maximum quality, while the economical The eco!efficiency mode ensures maximum efficiency. Very easy to use and maintain, ergonomically designed and easy to transport, the HDS 13/20-4 S also scores high marks for user-friendliness. This is underlined not least by the energy-saving EASY!Force spray gun with servo control and the 1050 millimetre long spray lance with patented nozzle technology. The optimised burner technology, two cleaning agent tanks, comprehensive safety technology, time-saving EASY!Lock Quick-release attachments and sophisticated accessory storage options round out the machine's generous equipment package.
Features and benefits
High efficiency
IN In eco!efficiency mode, the machine is adjusted to the most cost-effective temperature (60°C) with full water flow. The burner is optimized to reduce fuel consumption by 20% compared to maximum capacity.
Maximum efficiency

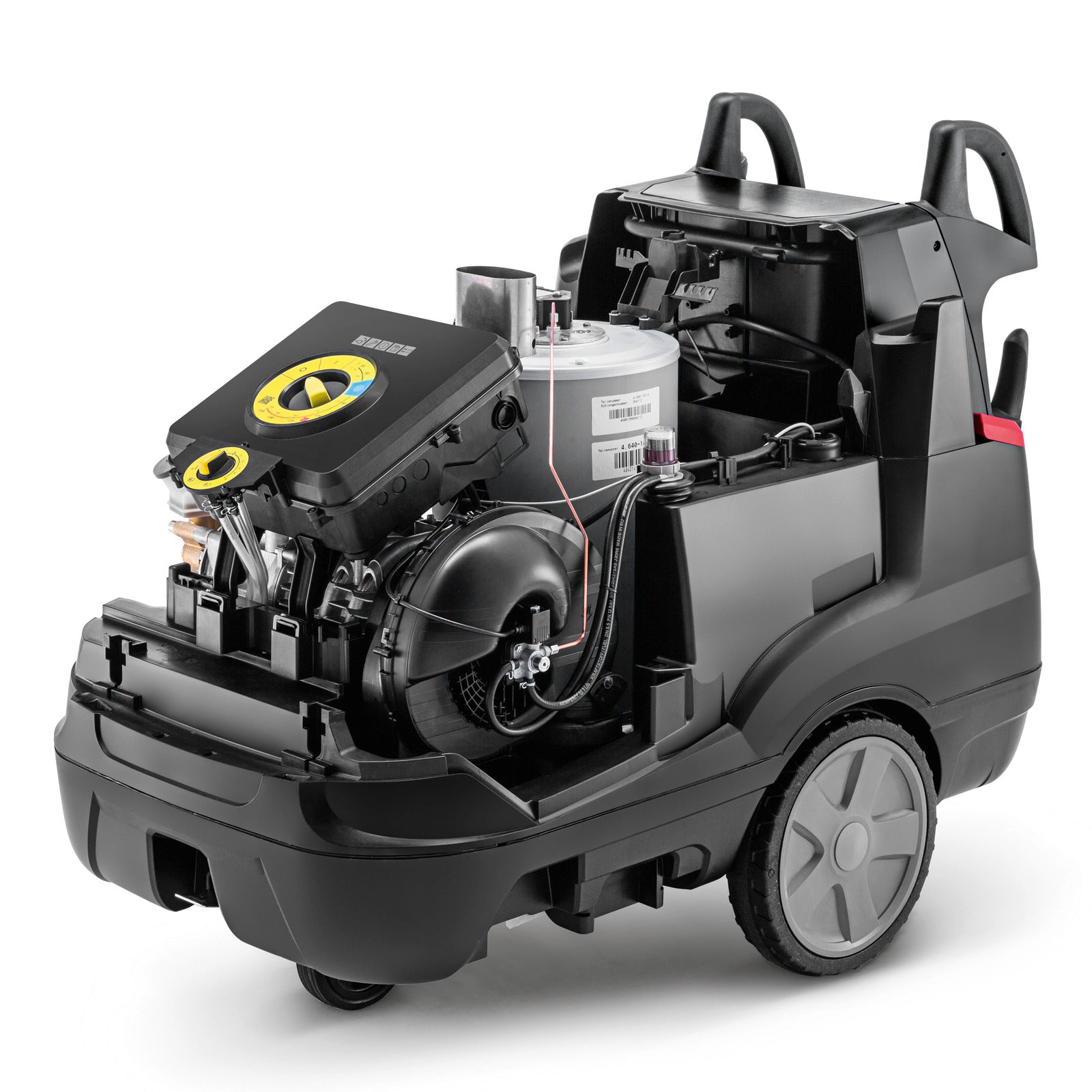

Highly efficient and proven "Made in Germany" burner technology 4-pole electric motor Water-cooled motor for high performance and durability.

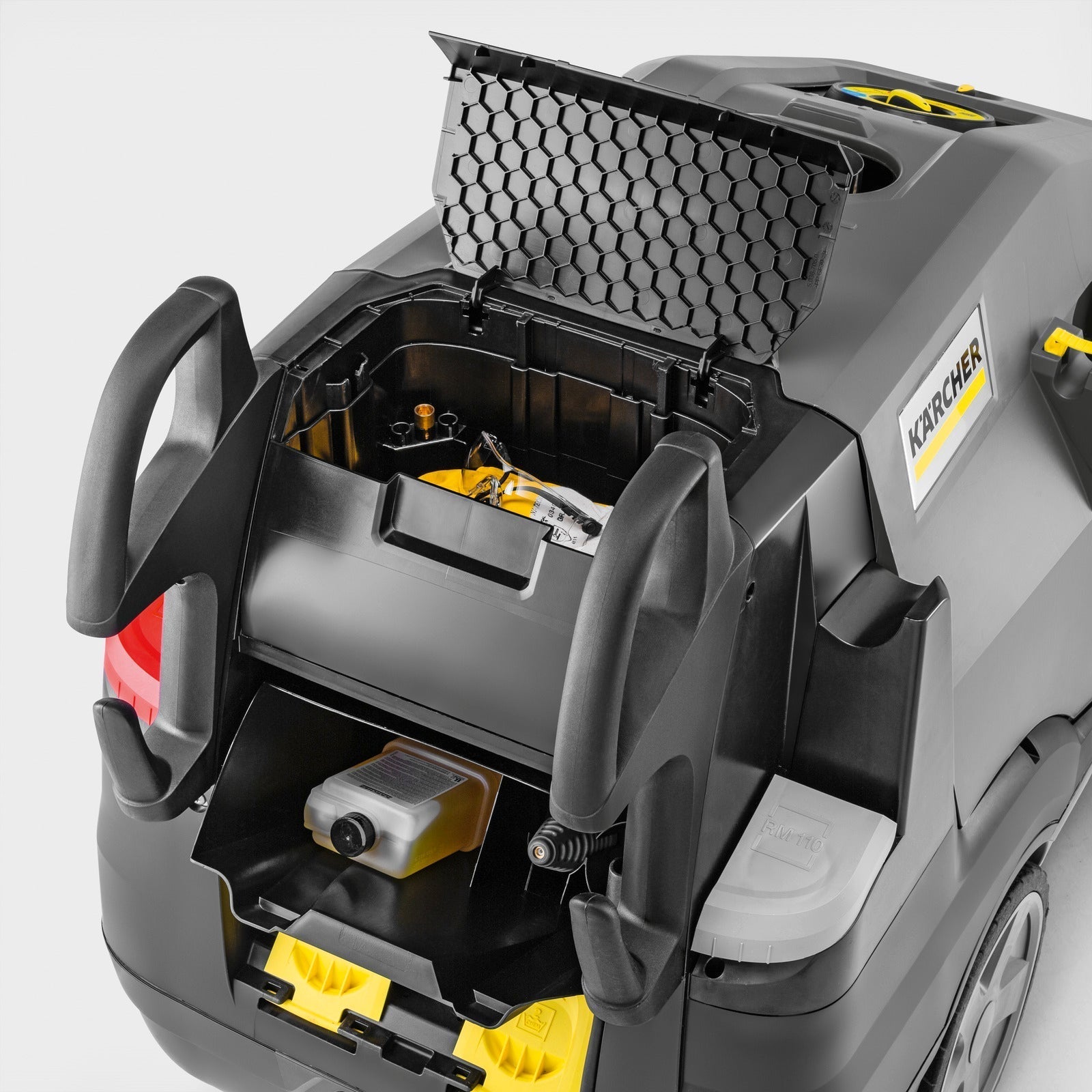

Many storage options for accessories integrated into the machine
Built-in storage for a wide range of accessories. Includes two hooks for suction hose and power cable. Spacious storage space for cleaning agents, gloves or tools.Operational reliability

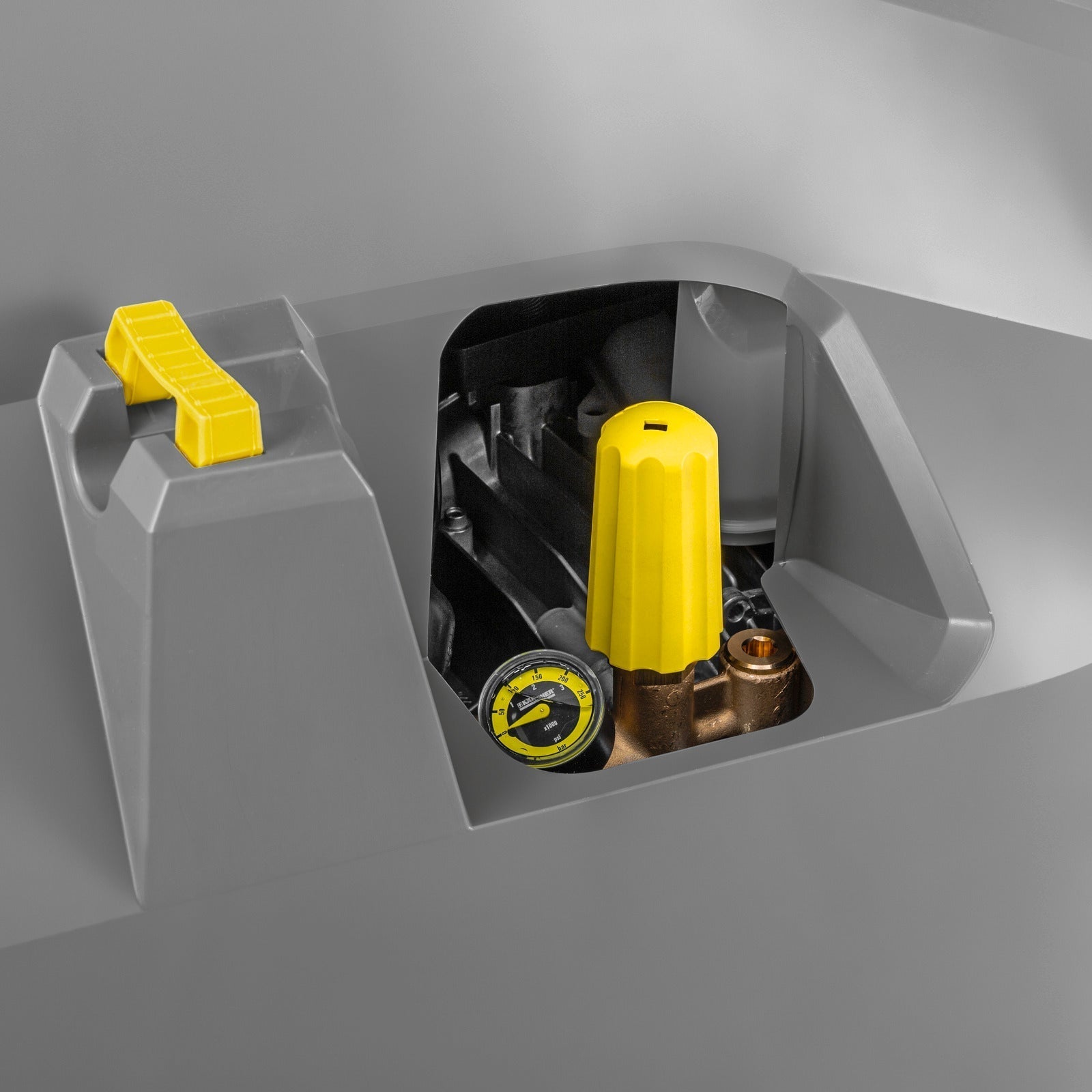

- Easily accessible water filter protects the pump from dirt particles in the water
- Safety valves and protection against water or fuel shortage ensure operational safety of the machine
- The SDS system compensates for vibrations and pressure surges in the high-pressure system.
Wide range of accessories with EASY!Lock
- EASY!Force Advanced for working without strain from gripping the handle
- Water pressure and flow can be adjusted with the Servo Control knob located between the lance and the gun.
- Rotating 1050mm stainless steel lance

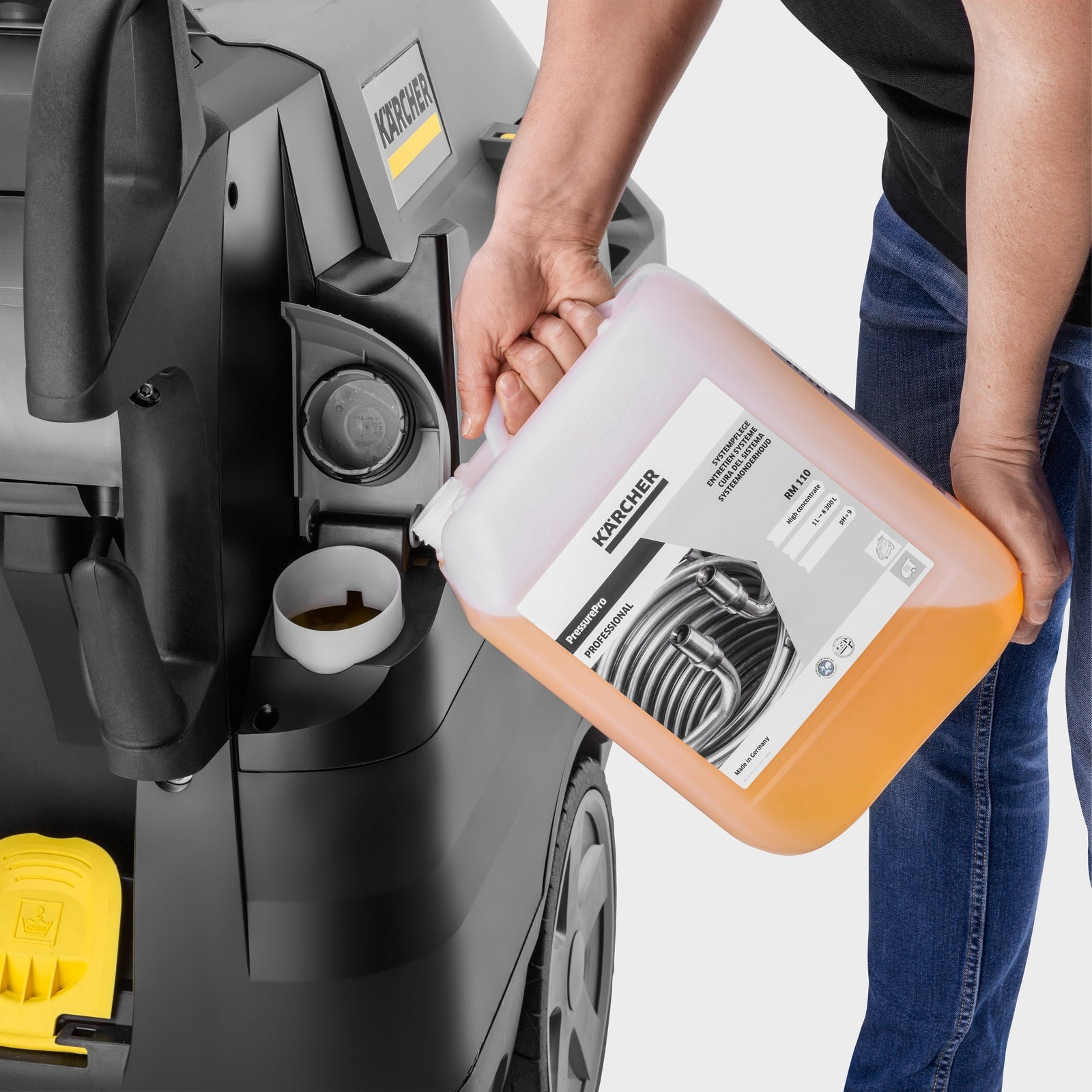

Dosing of cleaning agents
- Easy switching of cleaning agent between tanks 1 and 2.
- Precise dosing of detergent with rinse function.

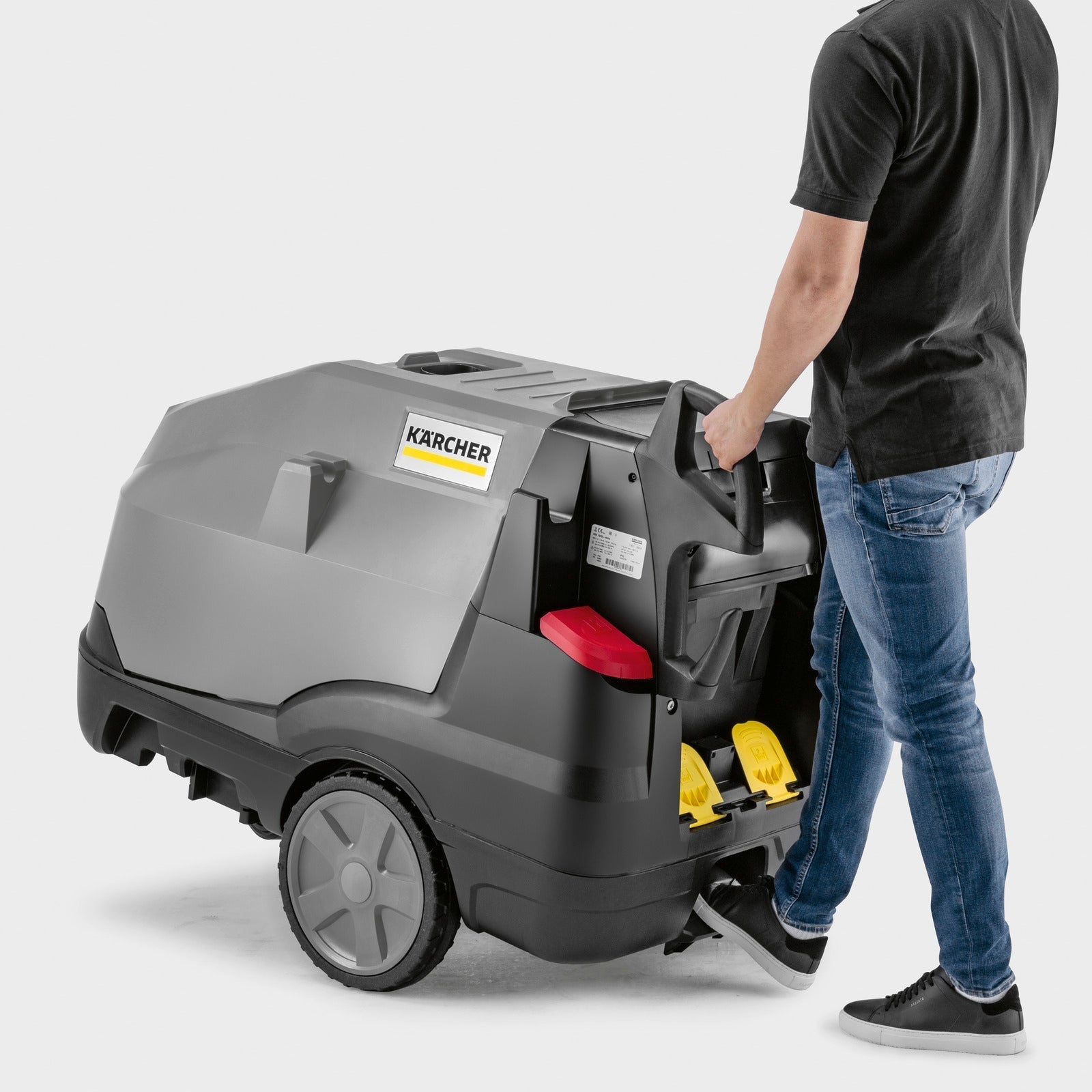

Mobility
- New design with large wheels.
- User-friendly with a low center of gravity and large wheels to easily get over steps and curbs.
- Push handle for easy transport and maneuverability.

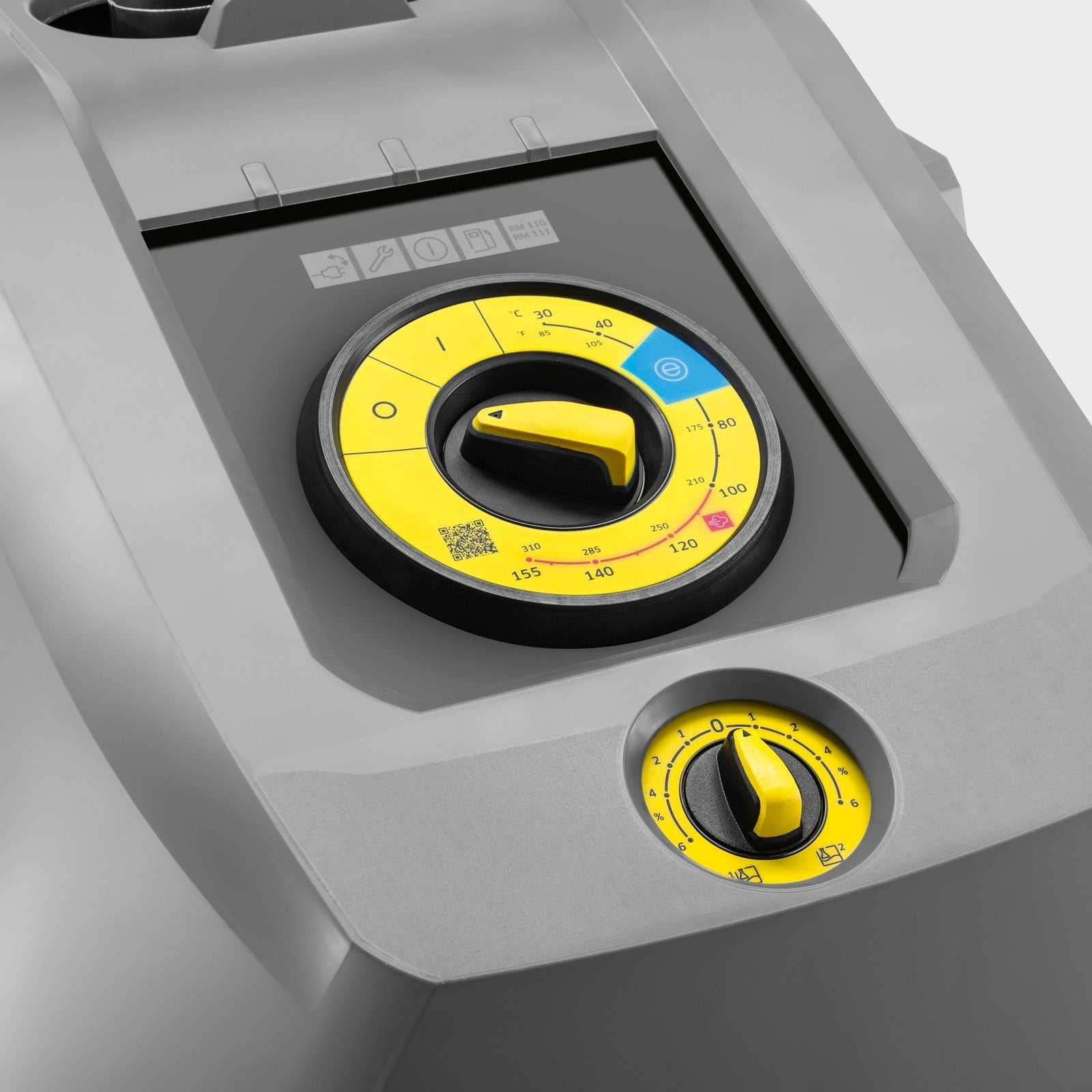

User-friendly controls
- A wrath for all functions
Specifications
Technical data
| Mains voltage (Ph/V/ Hz ) | 3 / 400 / 50 |
| Flow rate (l/h) | 600 - 1300 |
| Working pressure (bar/MPa) | 30 - 200 / 3 - 20 |
| Temperature (input 12° C) (°C) | min. 80 - max. 155 |
| Consumption of heating oil or fuel, full load (kg/h) | 9.5 |
| Fuel oil consumption, eco-efficiency (kg/h) | 7.6 |
| Power (kW) | 9.5 |
| Power cable (m) | 5 |
| Fuel tank (l) | 25 |
| Weight (with accessories) (kg) | 206 |
| Weight incl. packaging (kg) | 215.9 |
| Dimensions (L × W × H) (mm) | 1330 x 750 x 1060 |
The following is included
- Flush handle: EASY!Force Advanced
- High pressure hose length: 10 m
- High pressure hose type: Longlife
- High pressure hose specification: DN 8, 400 bar
- Flush pipe: 1050 mm
- Power nozzle
- Servo Control
Standard equipment
- Automatic start/stop
- For two operators (optional)
- Phase inverter contact (three-phase)
- SDS System
- 2 detergent tanks
- Dry running protection

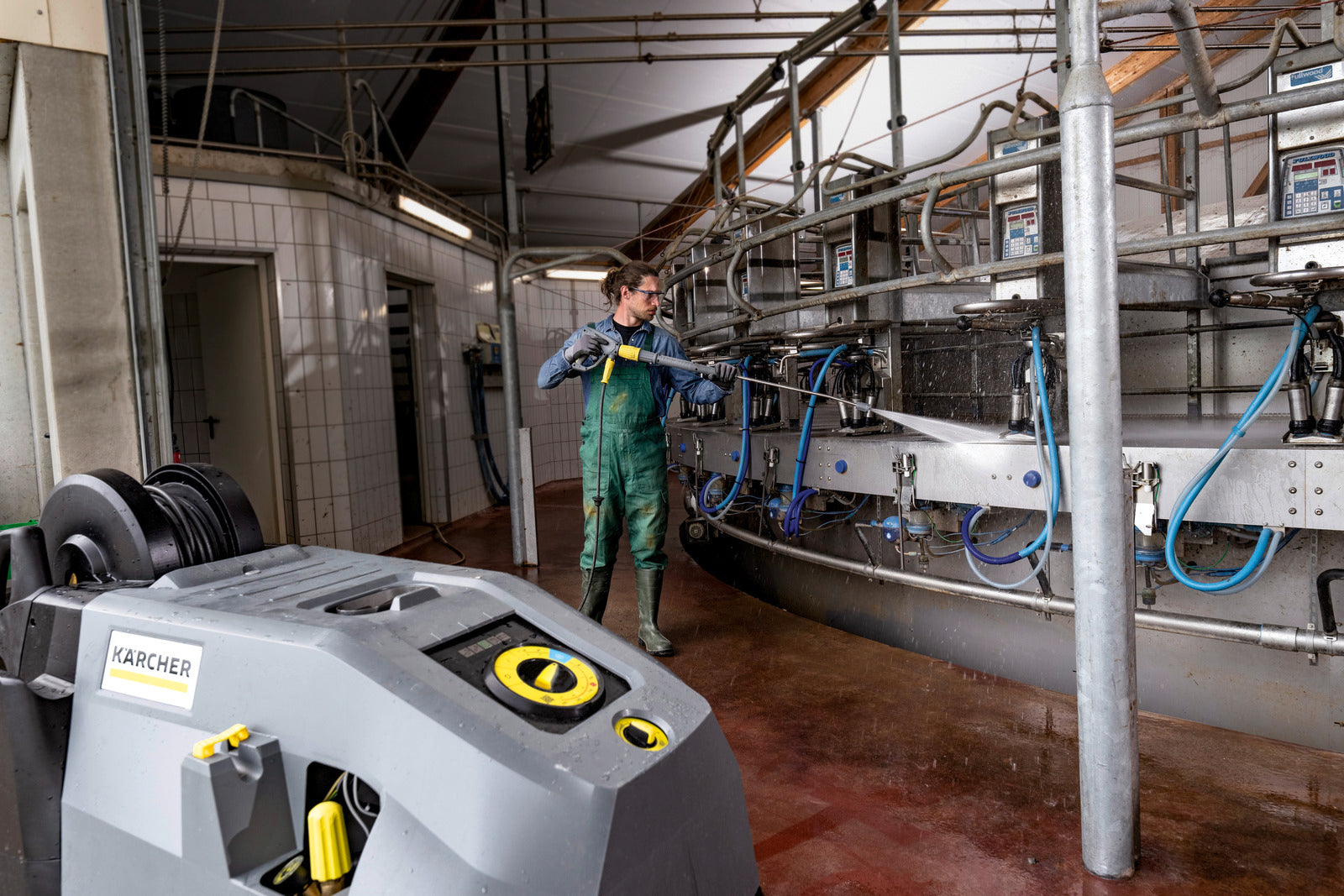

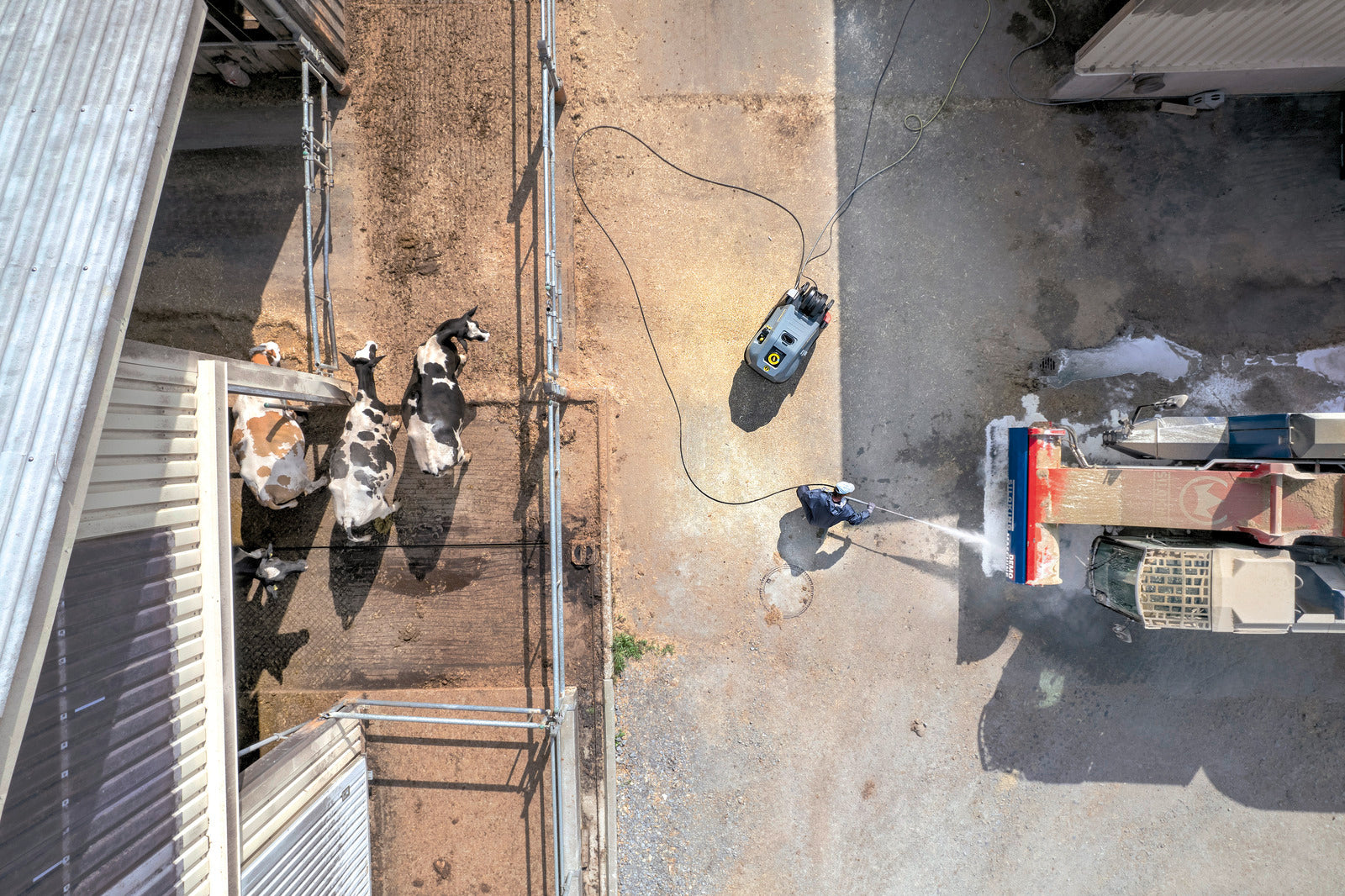

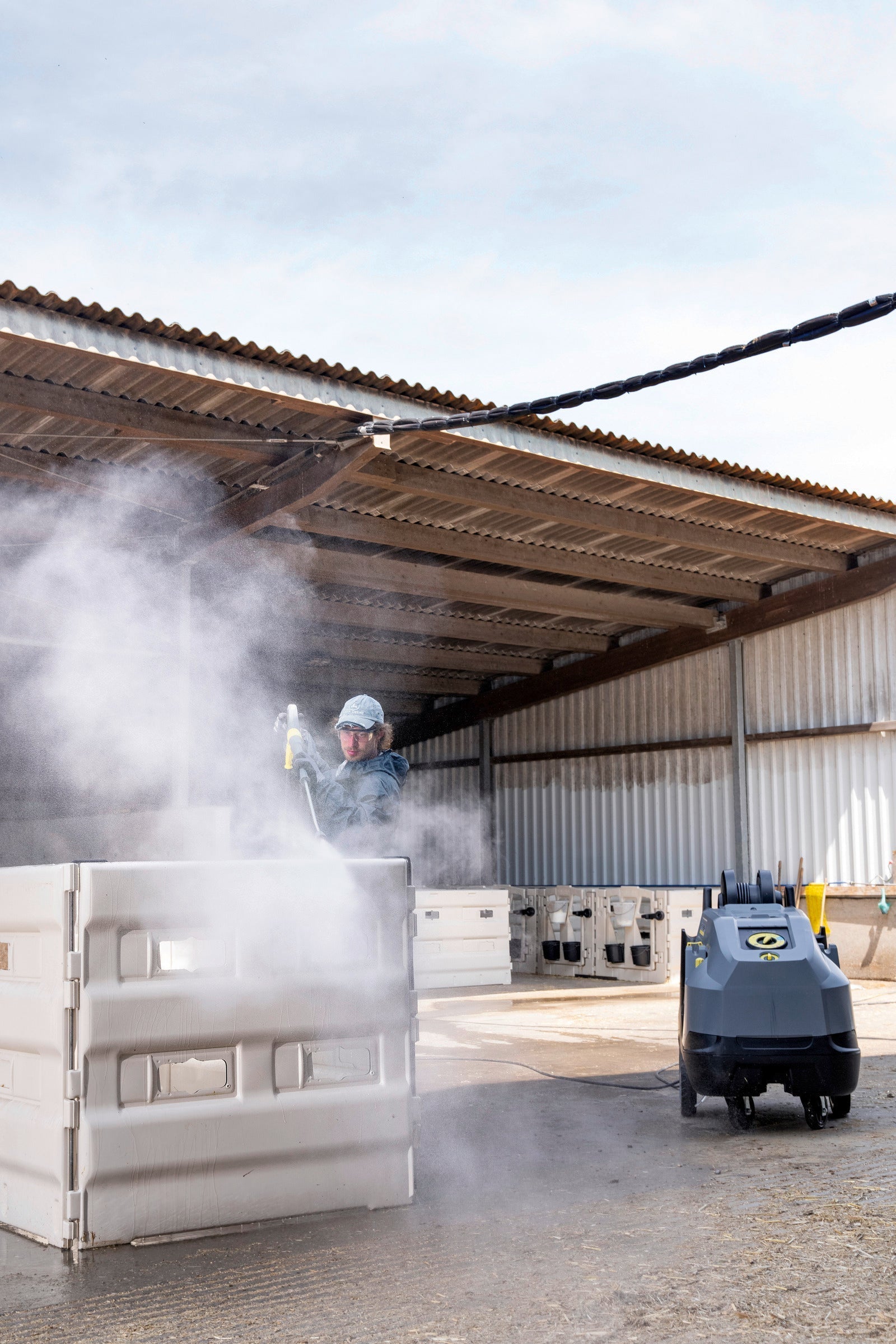

Areas of use

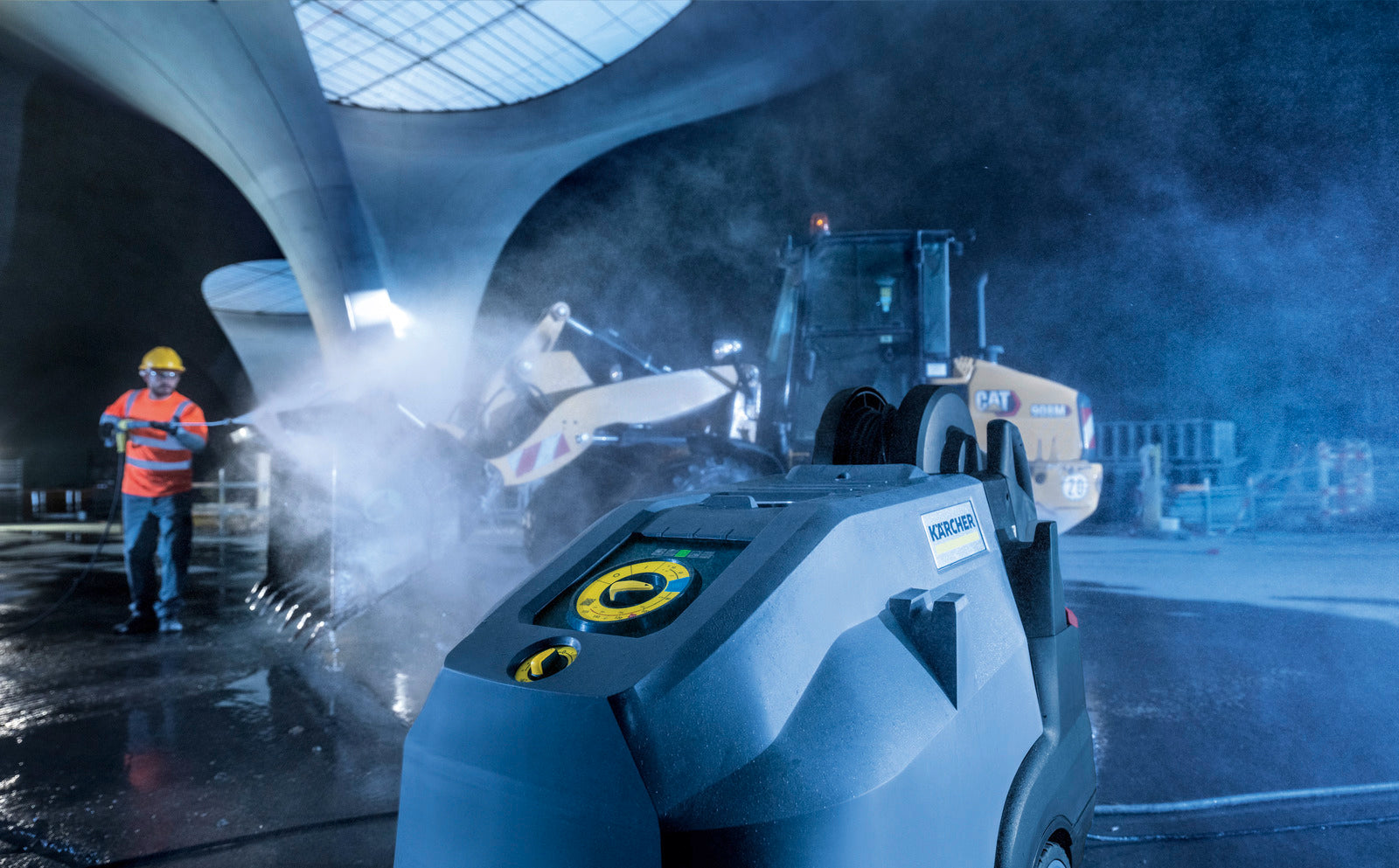

- Vehicle cleaning
- Equipment and machine cleaning
- Workshop cleaning
- Cleaning of outdoor areas
- Cleaning of service stations
- Facade cleaning
- Swimming pool cleaning
- Cleaning of sports halls
- Cleaning of production processes
- Cleaning of production systems
