SKU: 10719600

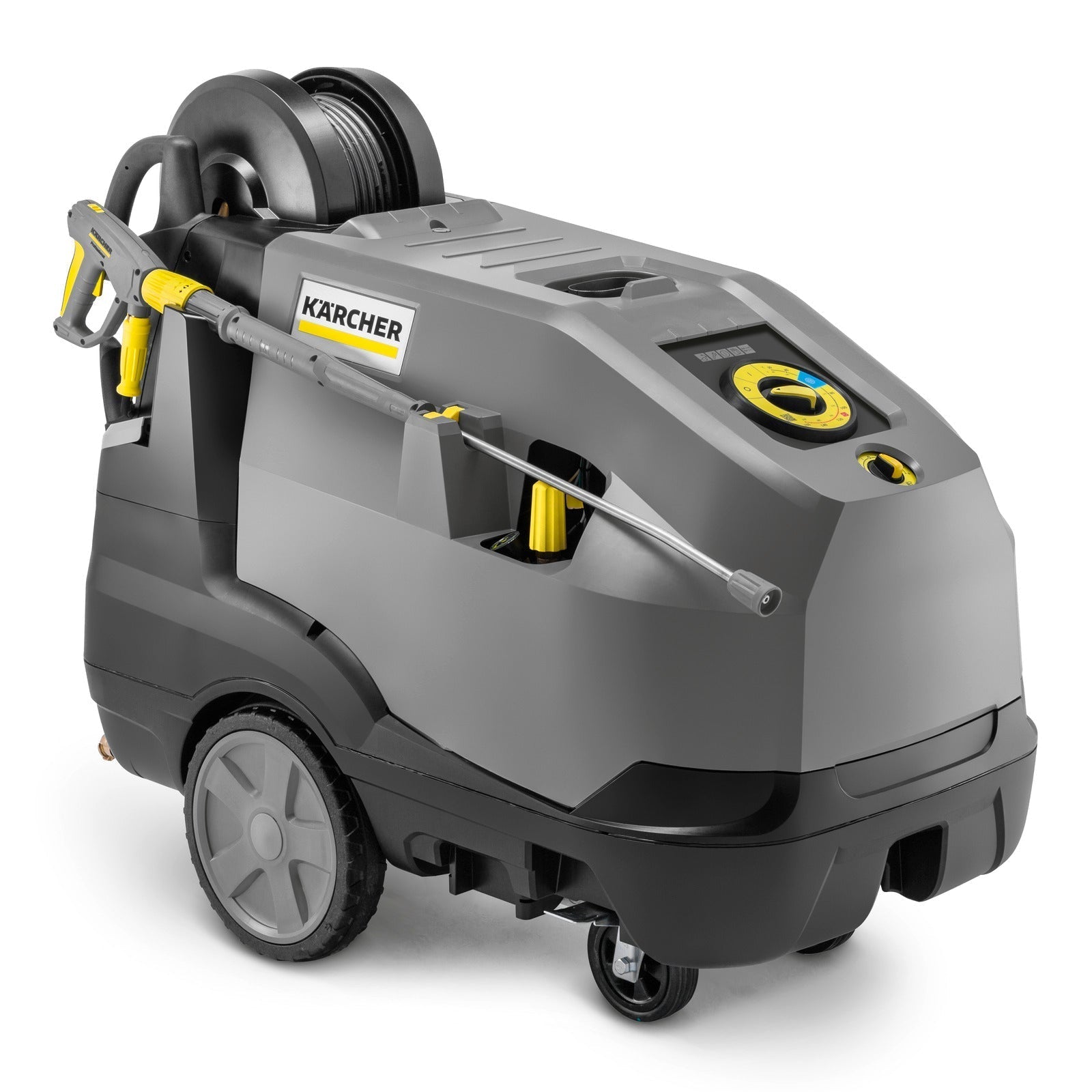

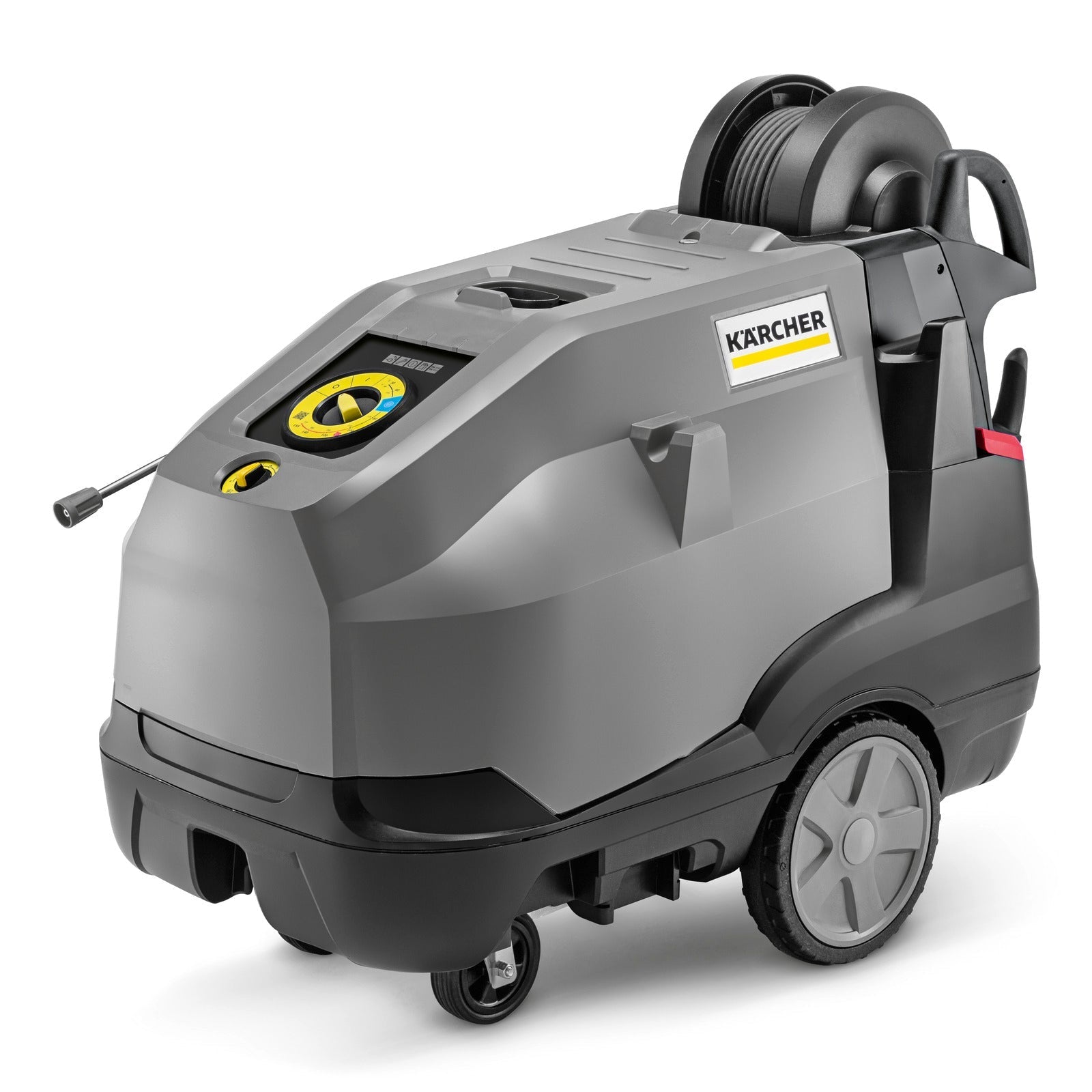

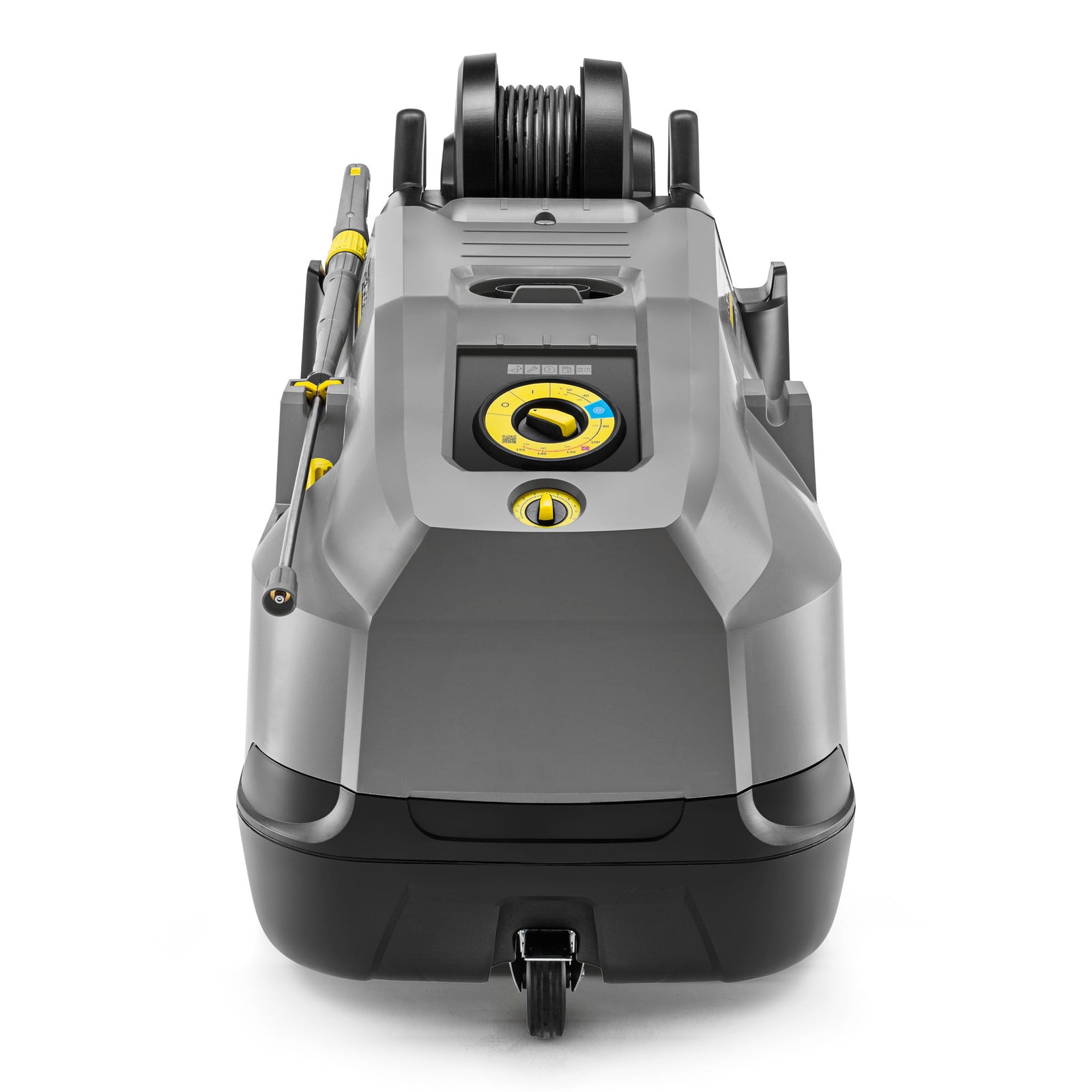

Kärcher High-pressure washer HDS 12/18-4 SXA

Regular price 98,990.00 kr

BESKRIVNING

The hot water cleaner in Kärcher's Super class impresses with its high flow rate and sophisticated equipment features, such as the automatic hose reel with 20 m UltraGuard high-pressure hose.

For up to 50 percent faster installation and very ergonomic work: the HDS 12/18-4 SXA hot water high-pressure cleaner from Kärcher's super class has an integrated automatic hose reel including Ultra Guard high-pressure hose. This solution makes it possible to roll up and roll out the 20-meter long, Teflon-coated hose at an angle of up to 45°. A low-speed, water-cooled, 4-pole electric motor and the robust 3-piston axial pump with ceramic piston column ensure reliable and safe operation. In addition, the economical eco!efficiency mode and optimized burner technology for maximum economy. Thanks to intuitive one-button operation and energy saving EASY!Force Advanced HP spray gun with 1050 millimetre long spray lance, servo control and patented nozzle technology also offer the HDS 12/18-4 SXA maximum ease of use. A smart mobility concept, 2 detergent tanks with precise dosing, descaling options, proven safety technology, high maintainability and ergonomic storage of accessories complete the machine's comprehensive overall package.

Features and benefits
High-pressure washer HDS 12/18-4 SXA: Automatic hose reel

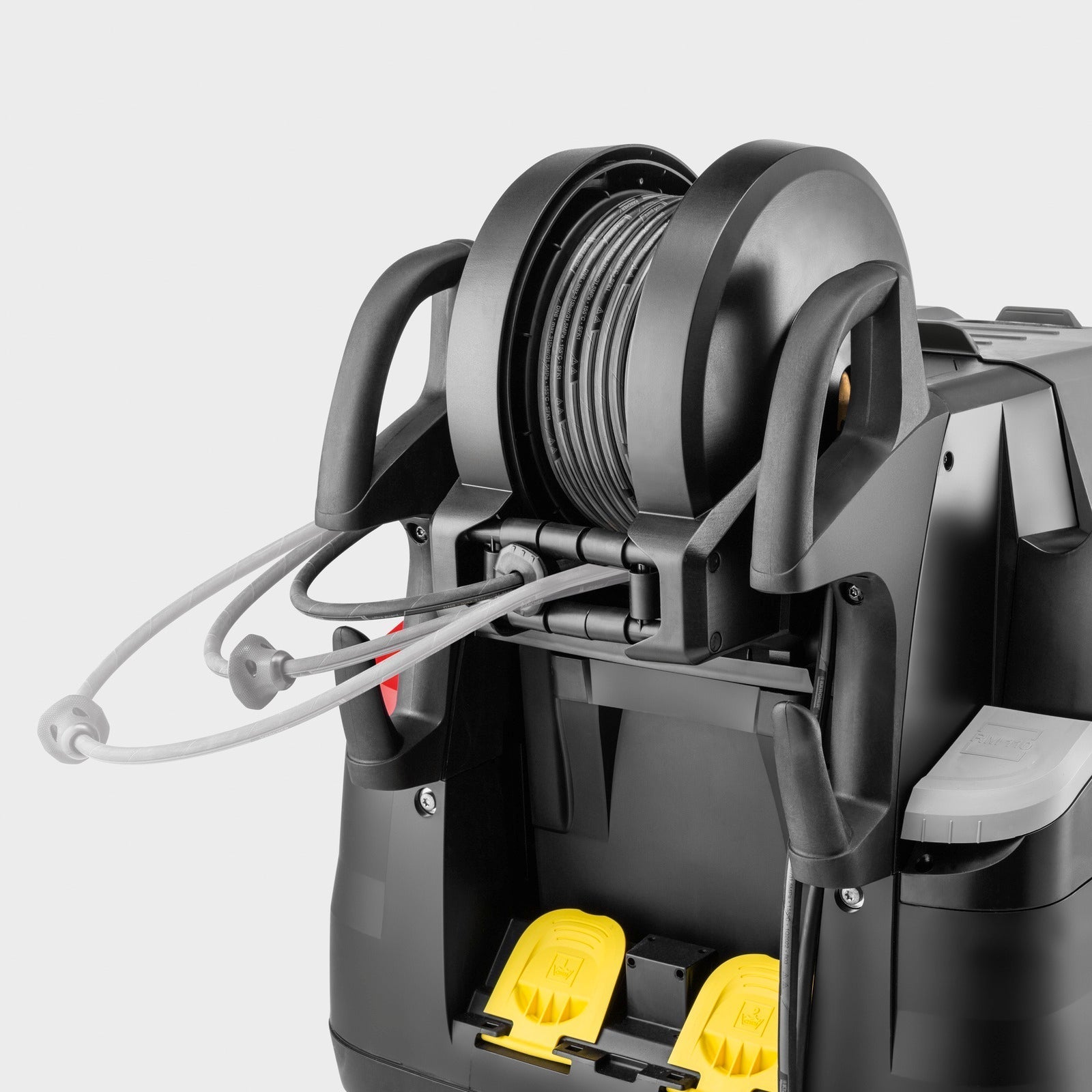

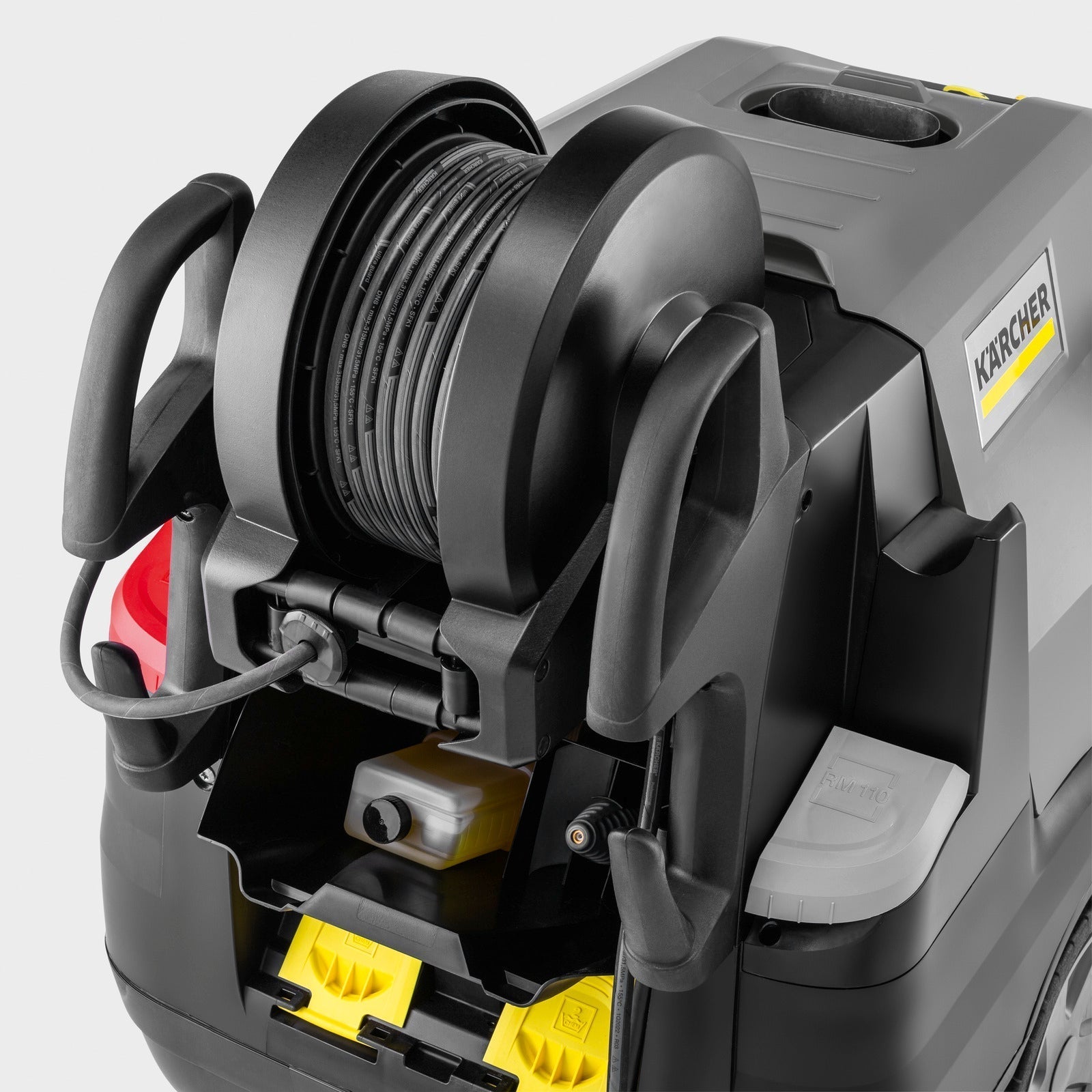

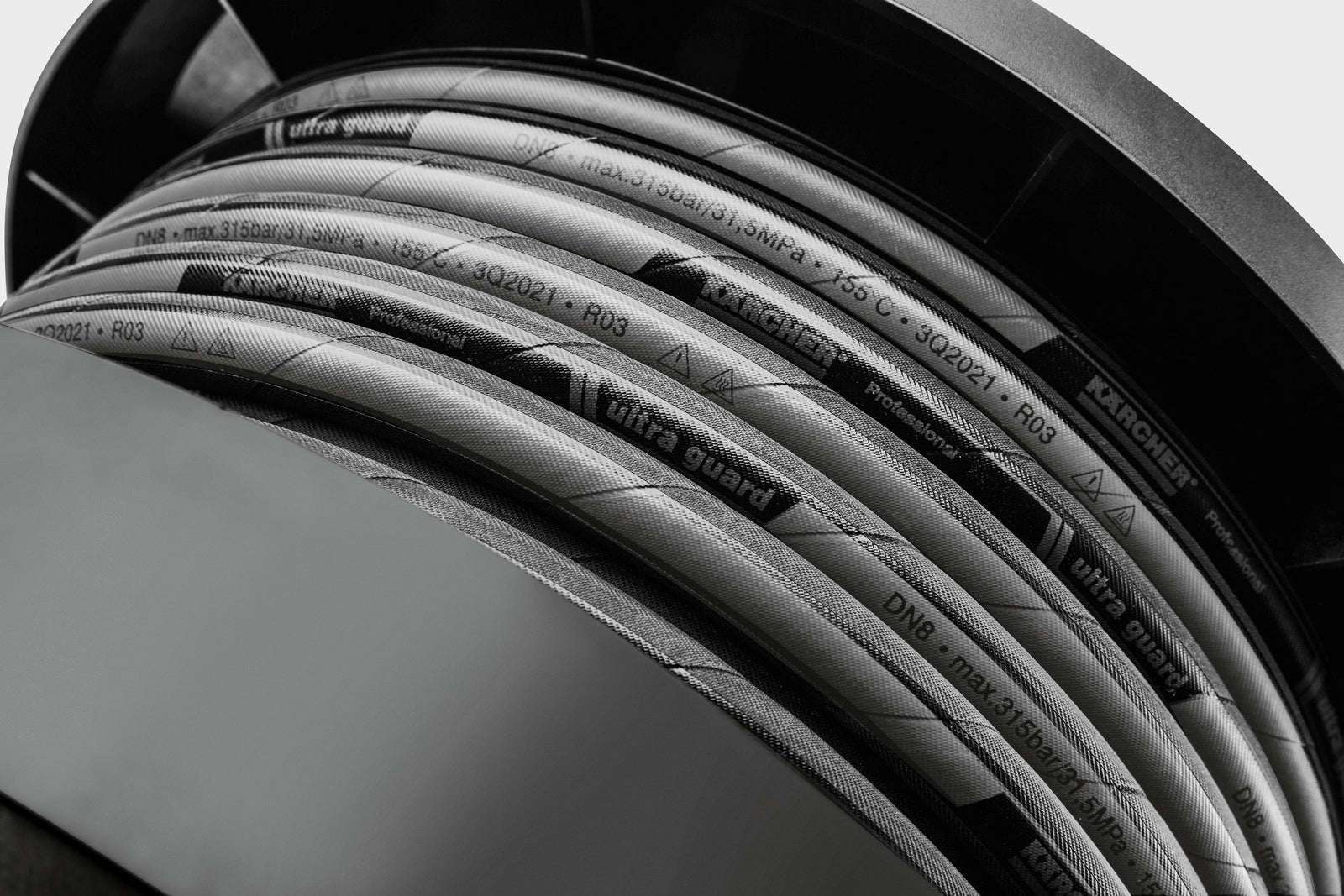

Automatic hose reel
Enables machine start-up time to be reduced by over 50% Ensures that the hose can be wound up and folded at an angle of 45° even under pressure
High-pressure washer HDS 12/18-4 SXA: High efficiency
High efficiency
IN In eco!efficiency mode, the machine is adjusted to the most cost-effective temperature (60°C) with full water flow. The burner is optimized to reduce fuel consumption by 20% compared to maximum capacity.
High-pressure washer HDS 12/18-4 SXA: Maximum efficiency
Maximum efficiency
Highly efficient and proven "Made in Germany" burner technology 4-pole electric motor Water-cooled motor for high performance and durability.
Wide range of accessories with EASY!Lock
  • EASY!Force Advanced for working without strain from gripping the handle
  • Water pressure and flow can be adjusted with the Servo Control knob located between the lance and the gun.
  • Rotating 1050mm stainless steel lance
Operational reliability
  • Easily accessible water filter protects the pump from dirt particles in the water
  • Safety valves and protection against water or fuel shortage ensure operational safety of the machine
  • The SDS system compensates for vibrations and pressure surges in the high-pressure system.
Many storage options for accessories integrated into the machine
  • Built-in storage for a wide range of accessories. Includes two hooks for suction hose and power cable
  • Spacious storage space for cleaning products, gloves or tools.

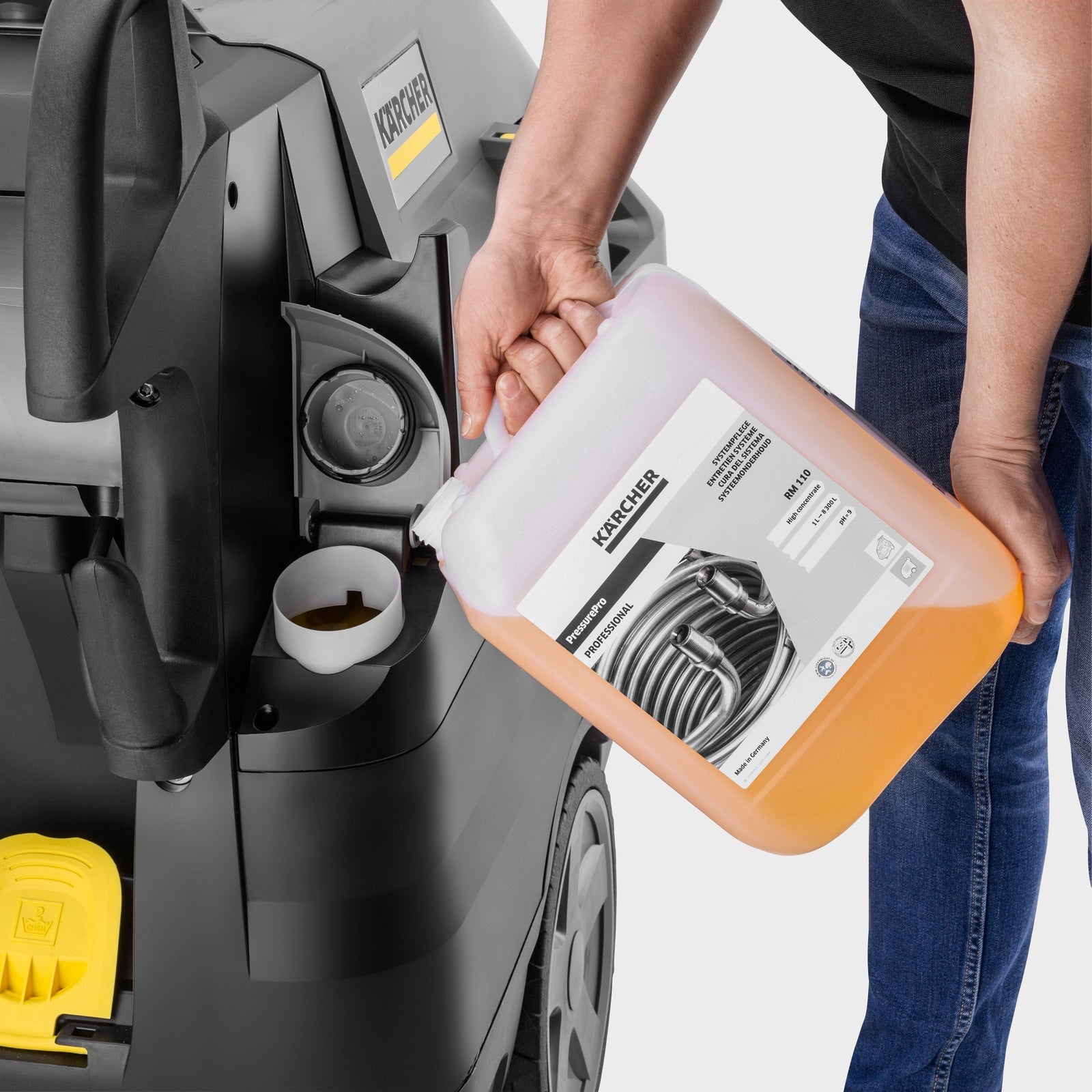

Dosing of cleaning agents
  • Easy switching of cleaning agent between tanks 1 and 2.
  • Precise dosing of detergent with rinse function.
  • Precise dosing valve provides low consumption

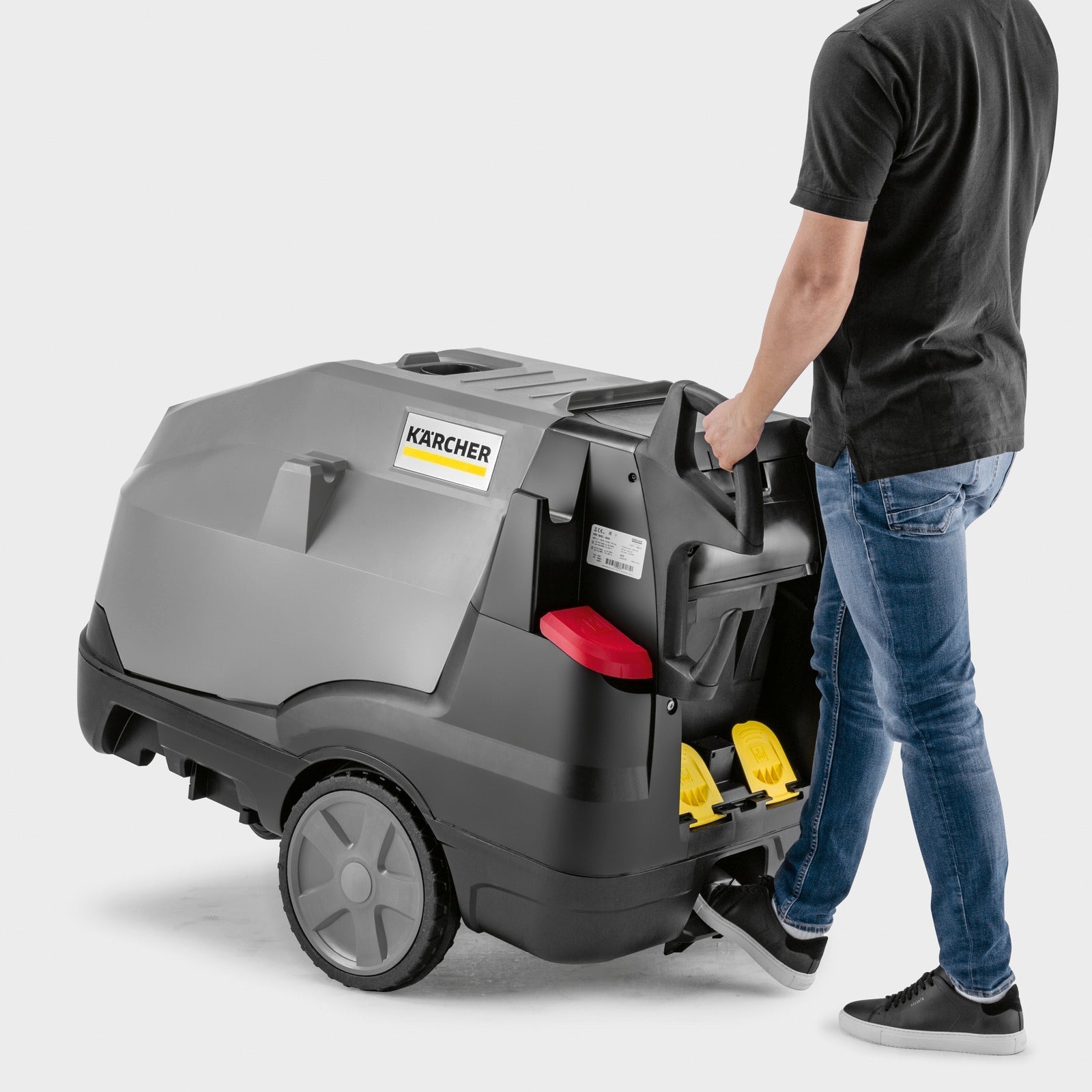

Mobility
  • New design with large wheels.
  • User-friendly with a low center of gravity and large wheels to easily get over steps and curbs.
  • Push handle for easy transport and maneuverability.

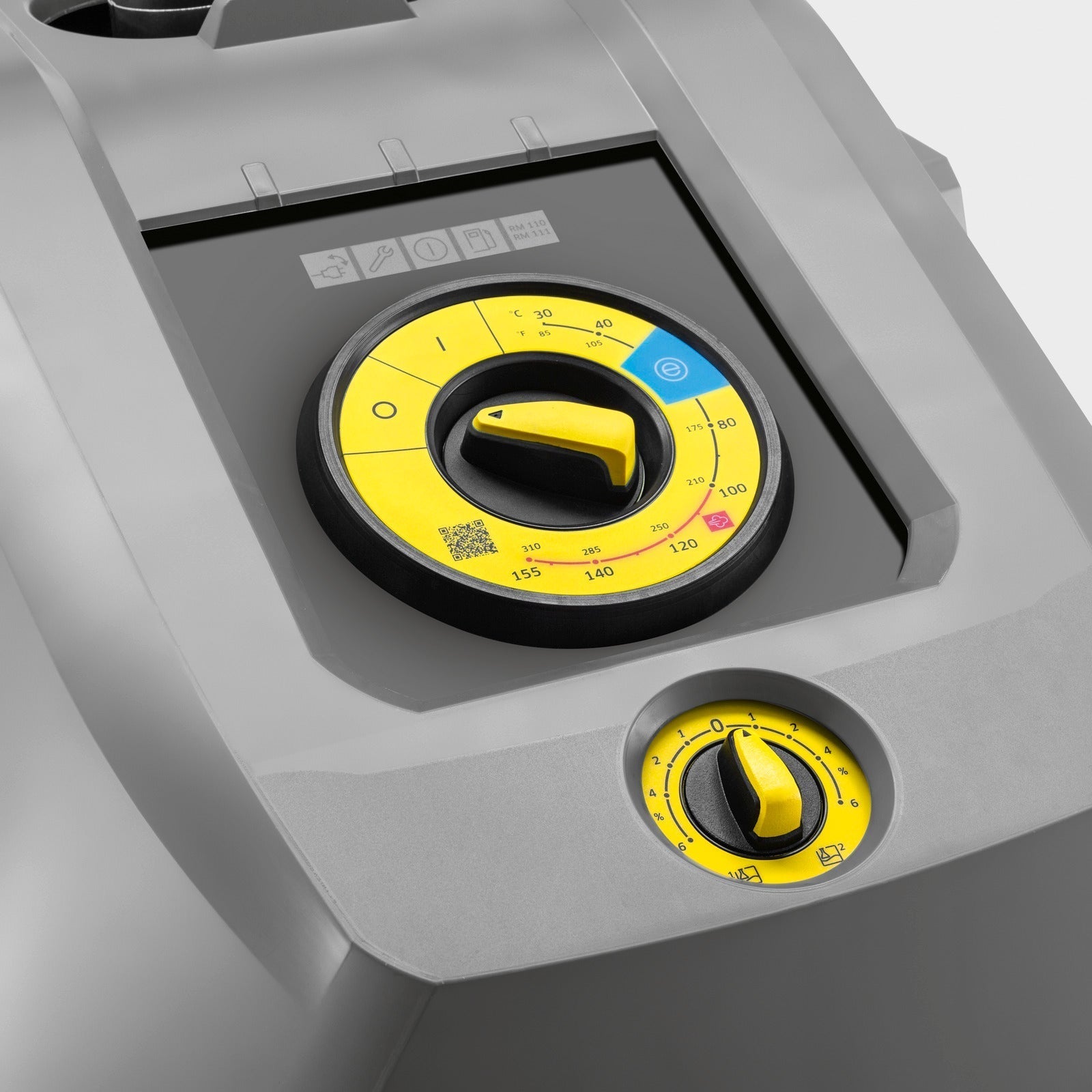

User-friendly controls
  • Steam level can be selected by adjusting water pressure/quantity at the pump
  • Simple and intuitive 1-button operation
Specifications

Technical data

Mains voltage (Ph/V/ Hz ) 3 / 400 / 50
Flow rate (l/h) 500 - 1200
Working pressure (bar/MPa) 30 - 180 / 3 - 18
Temperature (input 12° C) (°C) min. 80 - max. 155
Consumption of heating oil or fuel, full load (kg/h) 7.7
Fuel oil consumption, eco-efficiency (g/h) 6.1
Power (kW) 8
Power cable (m) 5
Fuel tank (l) 25
Weight (with accessories) (kg) 198
Weight incl. packaging (kg) 210.2
Dimensions (L × W × H) (mm) 1330 x 750 x 1210

The following is included

  • Flush handle: EASY!Force Advanced
  • High pressure hose length: 20 m
  • High pressure hose specification: DN 8, 315 bar
  • Flush pipe: 1050 mm
  • Power nozzle
  • Servo Control

Standard equipment

  • built-in automatic hose reel
  • Automatic start/stop
  • For two operators (optional)
  • Phase inverter contact (three-phase)
  • SDS System
  • 2 detergent tanks
  • Dry running protection
High-pressure washer HDS 12/18-4 SXAHigh-pressure washer HDS 12/18-4 SXAHigh-pressure washer HDS 12/18-4 SXA
High-pressure washer HDS 12/18-4 SXAHigh-pressure washer HDS 12/18-4 SXAHigh-pressure washer HDS 12/18-4 SXA
High-pressure washer HDS 12/18-4 SXAHigh-pressure washer HDS 12/18-4 SXAHigh-pressure washer HDS 12/18-4 SXA
High-pressure washer HDS 12/18-4 SXAHigh-pressure washer HDS 12/18-4 SXAHigh-pressure washer HDS 12/18-4 SXA
High-pressure washer HDS 12/18-4 SXAHigh-pressure washer HDS 12/18-4 SXAHigh-pressure washer HDS 12/18-4 SXA
High-pressure washer HDS 12/18-4 SXA
Download
Product information
Product information
Instructions for use, including safety information
Instructions for use, including safety information
Instructions for use, including safety information
Instructions for use, including safety information
Instructions for use, including safety information
Instructions for use, including safety information

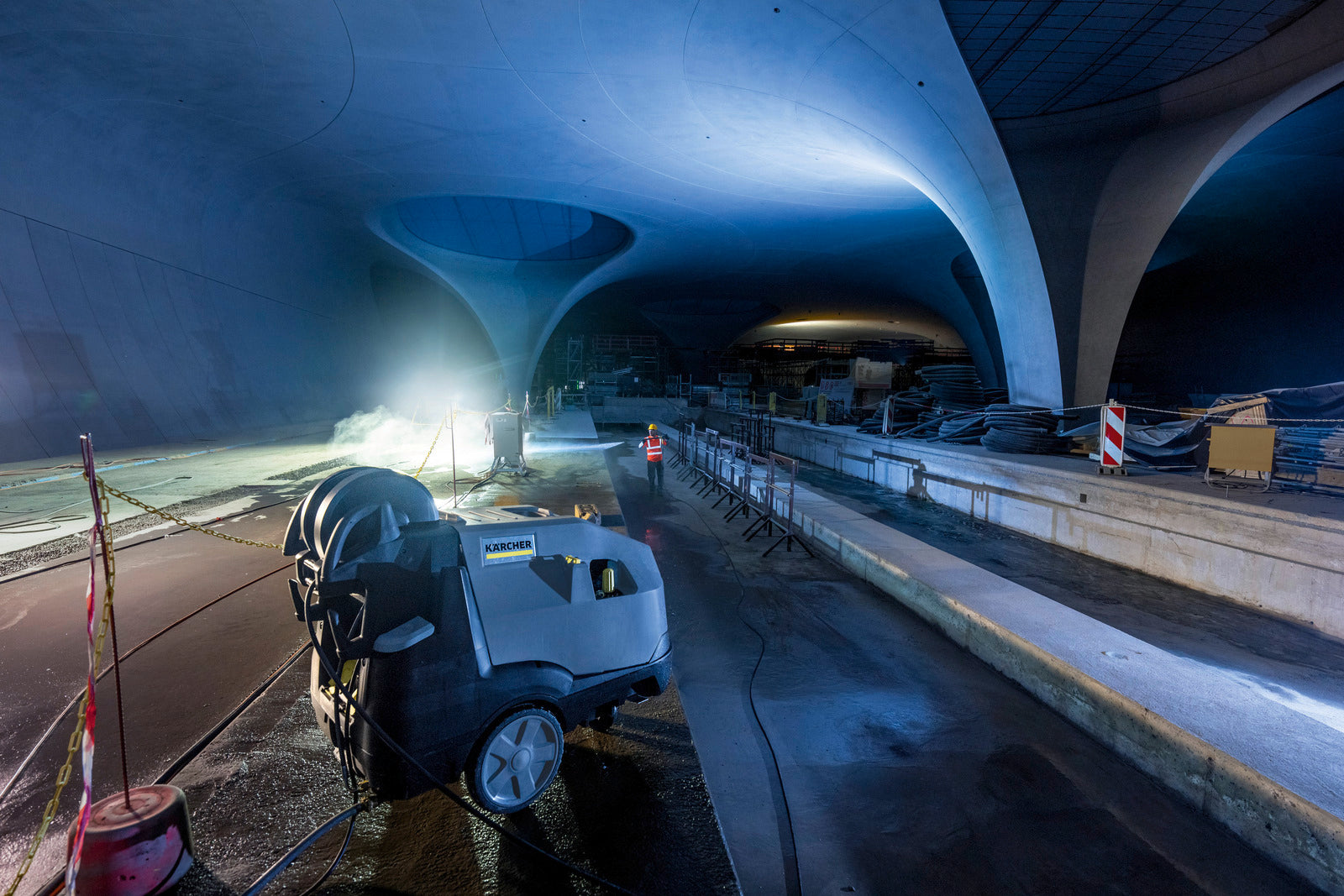

Areas of use
  • Vehicle cleaning
  • Equipment and machine cleaning
  • Workshop cleaning
  • Cleaning of outdoor areas
  • Cleaning of service stations
  • Facade cleaning
  • Swimming pool cleaning
  • Cleaning of sports halls
  • Cleaning of production processes
  • Cleaning of production systems
