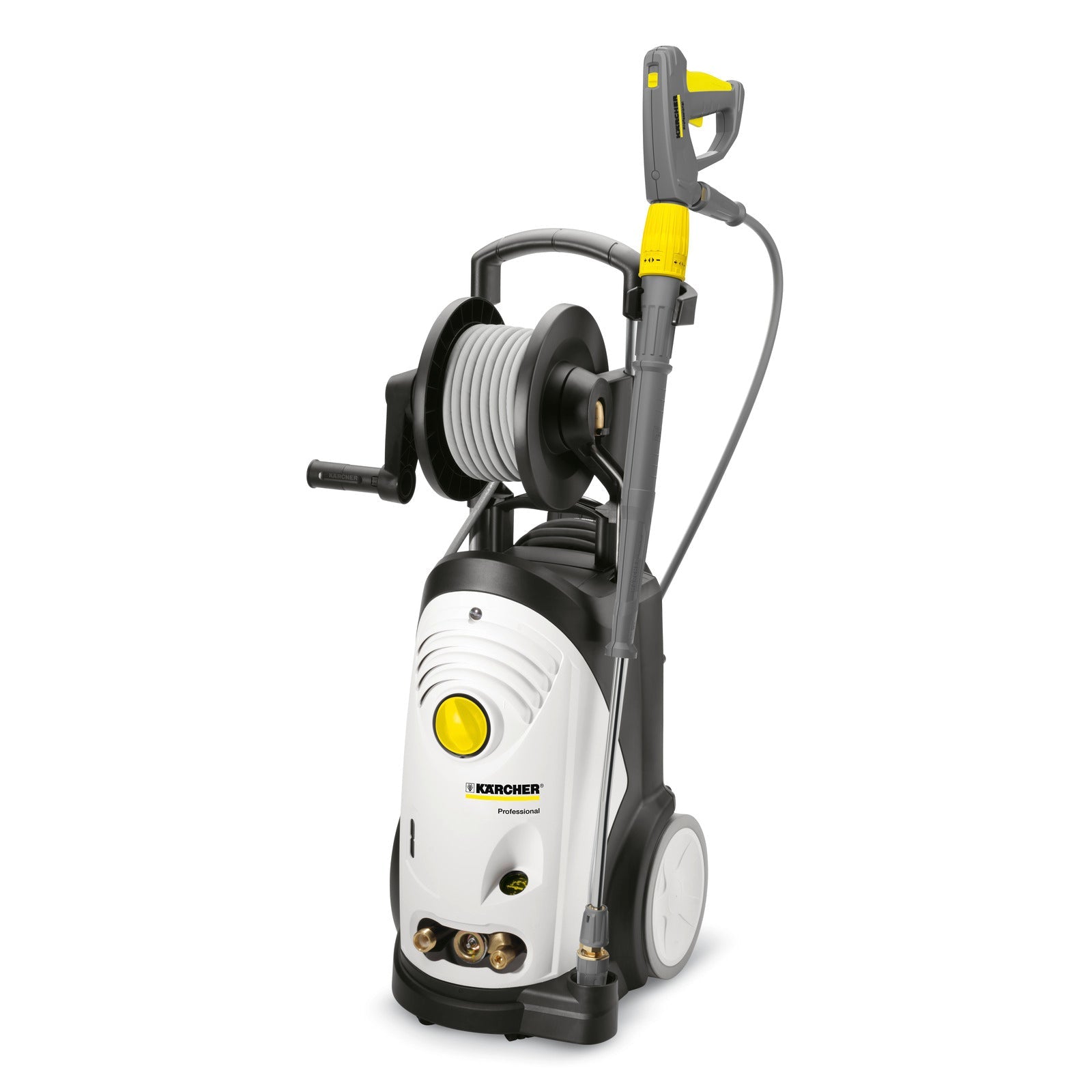

Kärcher High-pressure washer HD 7/10 CXF
BESKRIVNING
Compact, robust high-pressure washer for cleaning in sanitary areas in the food industry. Hose reel with 15 m food-grade hose. Can be fed with water temperatures up to 80 degrees. The machine is equipped with new EASY!Force and EASY!Lock .
The upright HD 7/10 CXF is mobile, compact and offers superior performance. With a 15 m hose on the reel, a powerful motor and a 3-cylinder axial piston pump, it is built to perform. A fully impact-resistant plastic cover protects the pump from damage and dirt. Cable storage (with contact lock). Nozzle compartment. Three-function nozzle that makes it quick and easy to choose between point jet, high-pressure flat jet (25°) and low-pressure flat jet (40°) for spraying cleaning agents. The detergent dosing valve enables continuous dispensing of cleaning agents with the high-pressure jet. The level in the oil tank can be easily checked from the outside via an inspection glass. The 3-cylinder axial piston pump with ceramic pistons and brass top cover ensures a long service life. The water inlet and high-pressure outlet made of brass make them highly resistant to cracks and corrosion. The high-pressure cleaner is equipped with the revolutionary user concept EASY!Force spray gun that utilizes the recoil of the high-pressure jet and reduces the force needed to hold the spray gun to zero. With the patented EASY!Lock With the quick lock, the connection is faster and easier - a full 5 times faster than with standard screw connections and without losing robustness and service life.
Features and benefits
Save time and effort: The flush handle EASY!Force for high pressure and EASY!Lock quick connectors.
- Finally – clean without getting tired with EASY!Force flush handle
- EASY!Lock Quick-release couplings: durable and robust. They are also five times faster than screws.
Hygiene requirements
- Integrated hose reel with high-pressure hose for the food industry and robust grey wheels.
- Water temperature up to 80°C.
- Durable gray wheels.
Practical detergent system
- Detergent dosing system for stubborn dirt.
- "Inno Foam Set" high pressure foam system can be used if necessary.
Servo Control
- Gentle cleaning of sensitive surfaces.
Specifications
Technical data
| Mains voltage (Ph/V/ Hz ) | 3 / 400 / 50 |
| Flow rate (l/h) | 250 - 700 |
| Inlet temperature (°C) | 80 |
| Working pressure (bar/MPa) | 10 - 100 / 1 - 10 |
| Max. pressure (bar/MPa) | 120 / 12 |
| Power (kW) | 3 |
| Paint | anthracite |
| Weight (with accessories) (kg) | 36.5 |
| Weight incl. packaging (kg) | 39 |
| Dimensions (L × W × H) (mm) | 360 x 400 x 925 |
The following is included
- Flush handle: EASY!Force Food
- High pressure hose length: 15 m
- High-pressure hose type: Food industry version
- Stainless steel spray pipe: 840 mm
- Servo Control
Standard equipment
- Integrated high-pressure hose reel
- Detergent function: Suction
- Automatic start/stop
- Stepless pressure and water regulation
