Kärcher High-pressure washer HD 10/21-4 SXA Plus
BESKRIVNING
The HD 10/21-4 SXA Plus cold water cleaner combines power and convenience. The equipment includes high-quality materials, an automatic hose reel and Vibrasoft rotor nozzle.

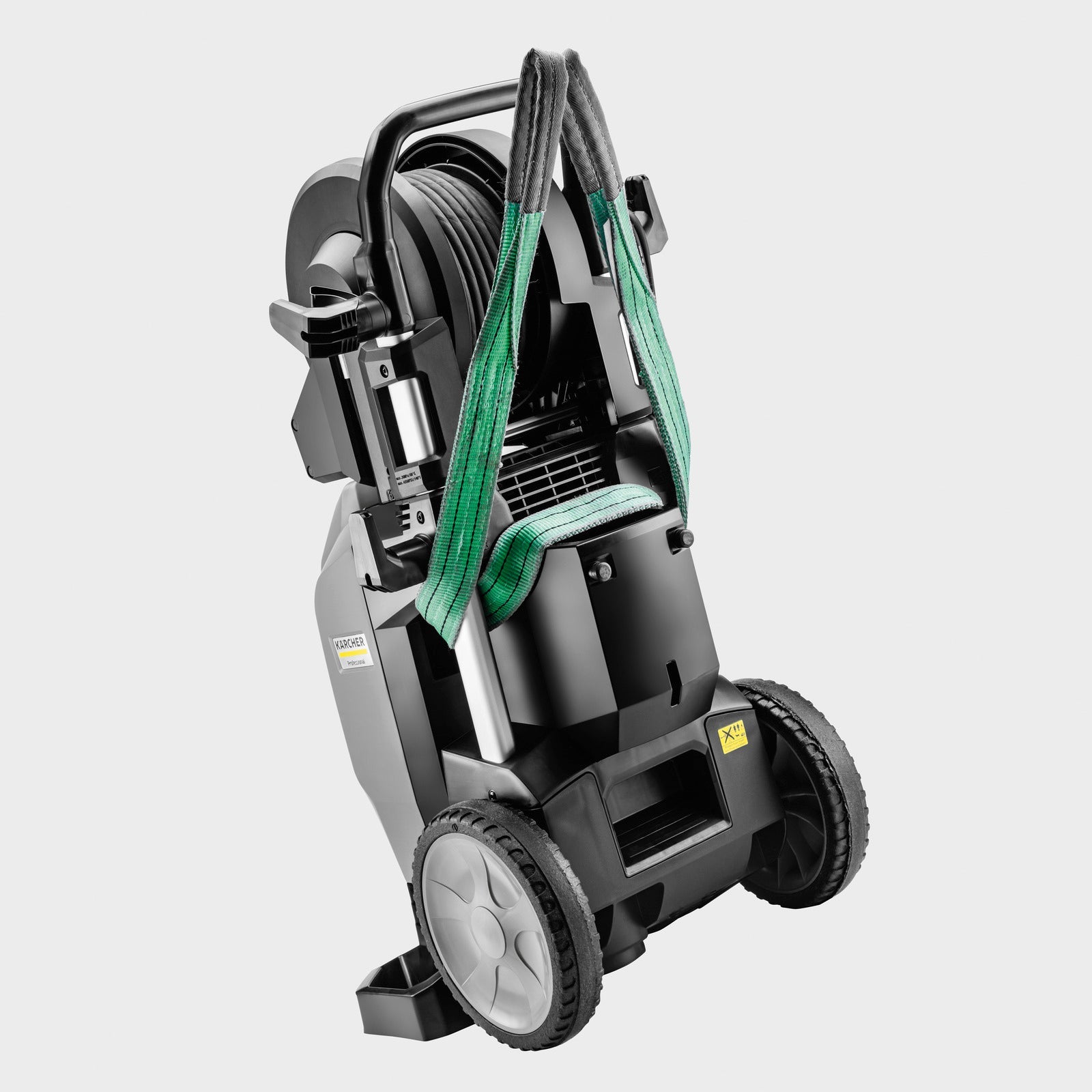

The HD 10/21-4 SXA Plus enables ergonomic working thanks to EASY!Force The Advanced spray gun, which eliminates the need to hold the trigger. Pressure and water flow can be adjusted directly on the spray gun or lance with the Servo Control control, and the stainless steel tube (1050 mm) is rotatable. The Vibrasoft rotor nozzle reduces vibrations and noise levels by up to 30 percent. The washer impresses with its high-quality design and choice of materials: the vertically installed motor and pump unit (upright concept) consists of a swash plate pump with stainless steel pistons and brass cylinder head as well as a 4-pole low-speed motor with air-water cooling, which enables a compact design for maximum mobility. The aluminum frame makes the chassis robust, lightweight and suitable for lifting by crane. Included: Ultra Guard high-pressure hose with durable Teflon® coating and an automatic hose reel that can roll in and out even under pressure and at an angle of up to 45°, which results in up to 50 percent faster set-up time. This super-class machine is complemented by practical storage solutions, such as a storage compartment and adjustable hooks.
Features and benefits

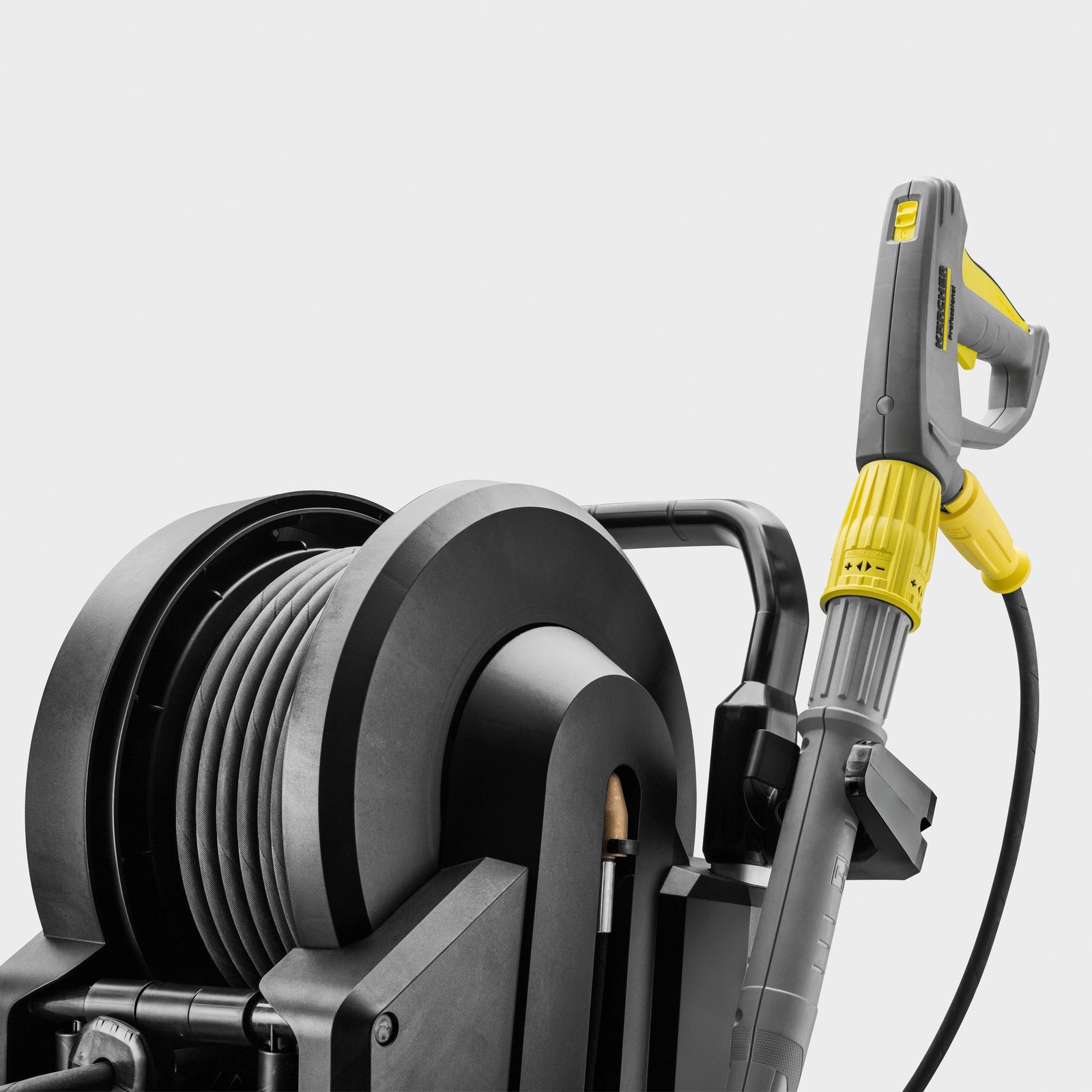

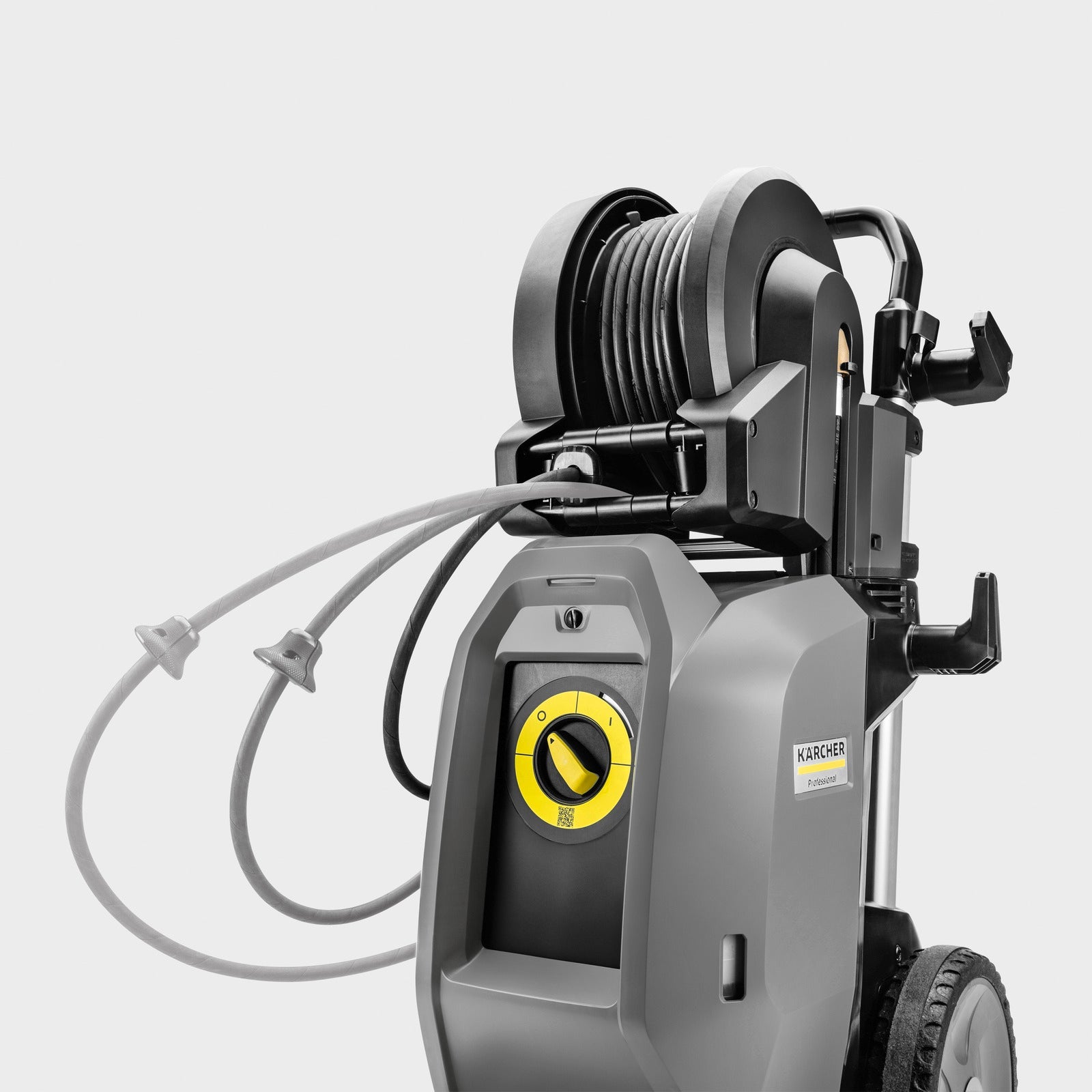

Automatic hose reel

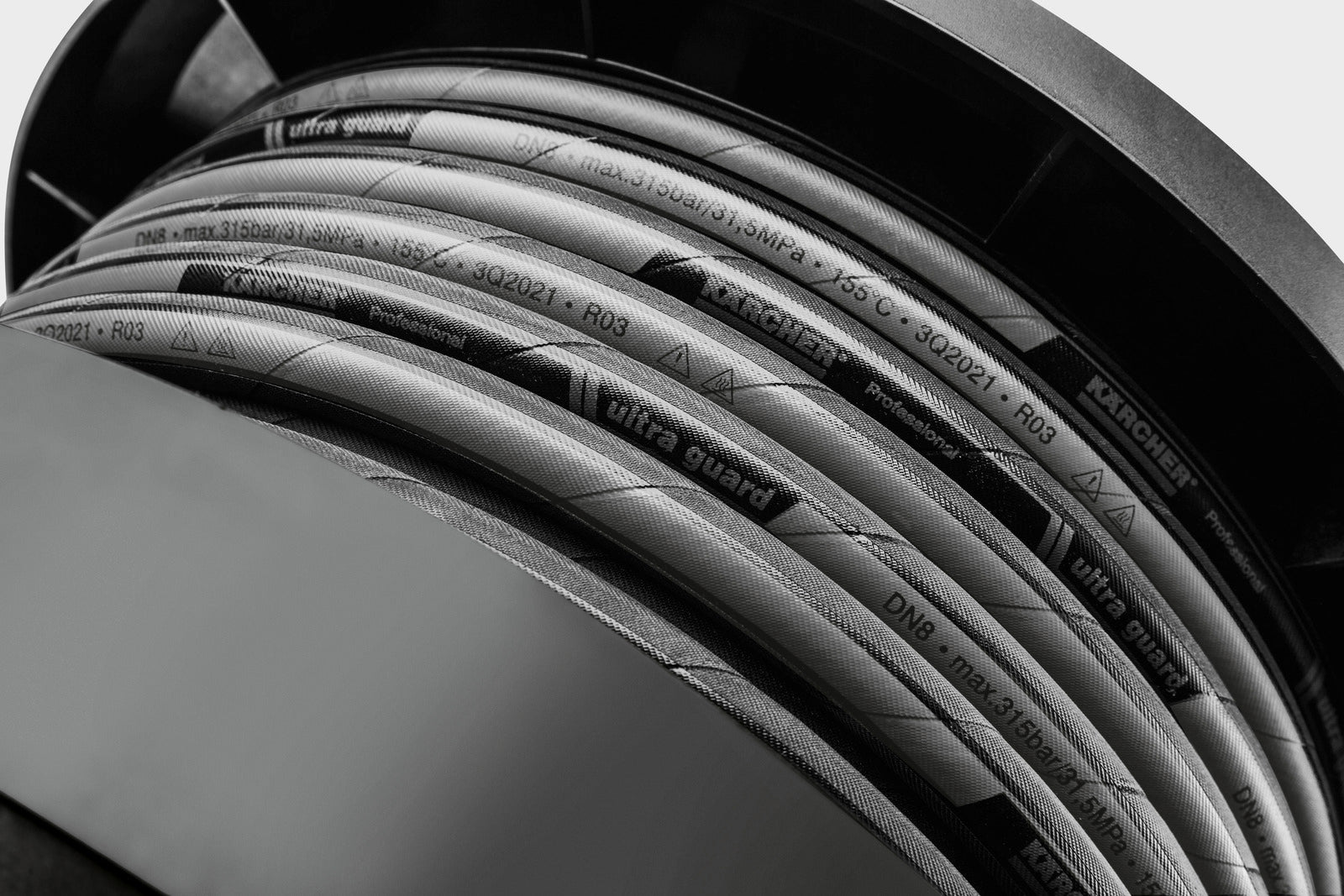

Automatic roll-up and roll-down up to 45 degree angle even when pressurized Scratch-resistant and smooth Ultra Guard hose with Teflon® coating
Compact upright design based on vertical mounting of motor and pump unit
Takes up little space during use and storage Easy to handle and transport Maximum stability creates safety during use
4-pole low-speed motor with air cooling, robust pump with stainless steel pistons and copper cylinder head
Long life with low maintenance costs With suction function and up to 60 degrees inlet water temperatureErgonomic Vibrasoft nozzle
- Reduces vibrations by up to 30%
- Lowers the noise level
- Rotating nozzle simplifies tough cleaning tasks
Intelligently designed service concept enables very fast service even carried out on site

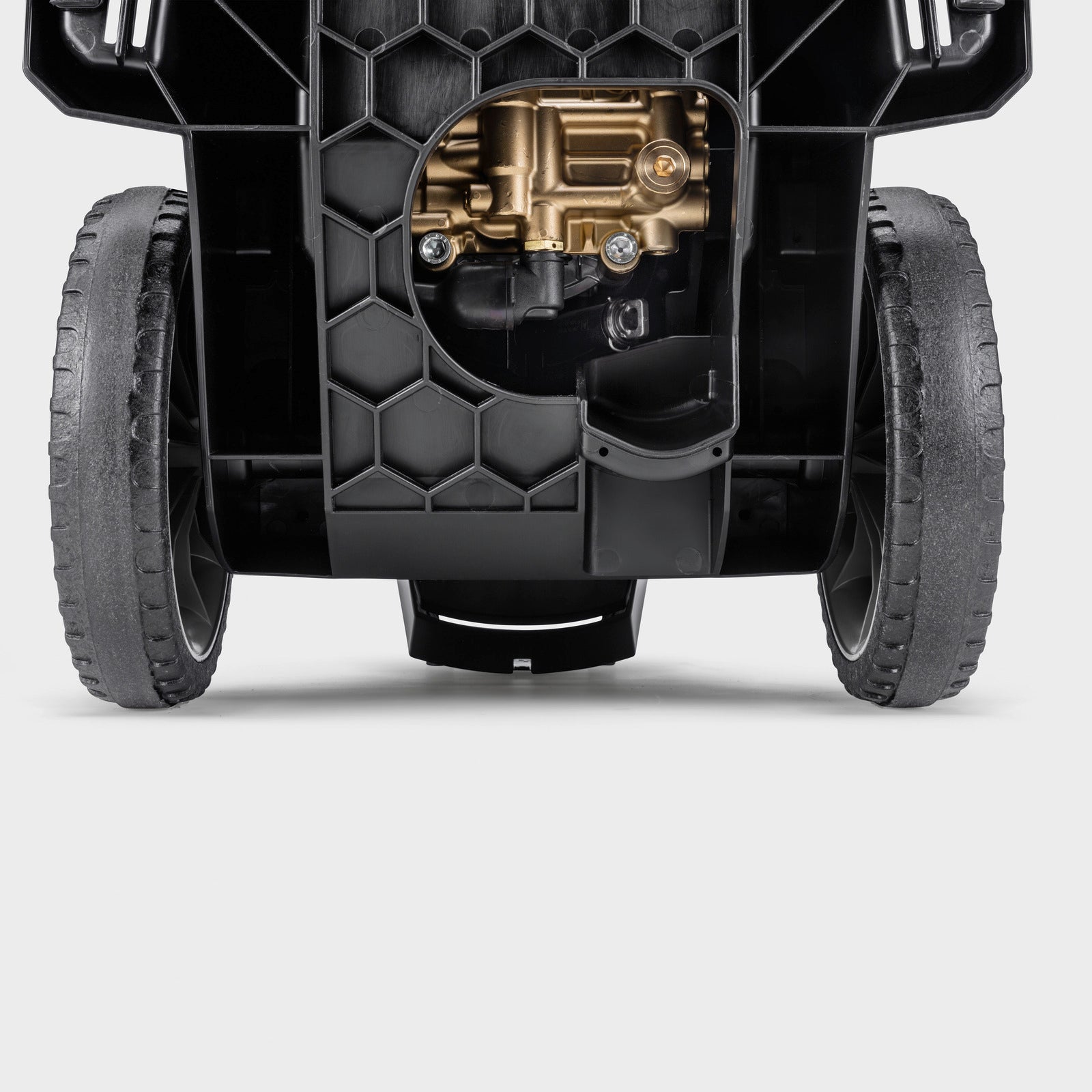

- Rotating pump head

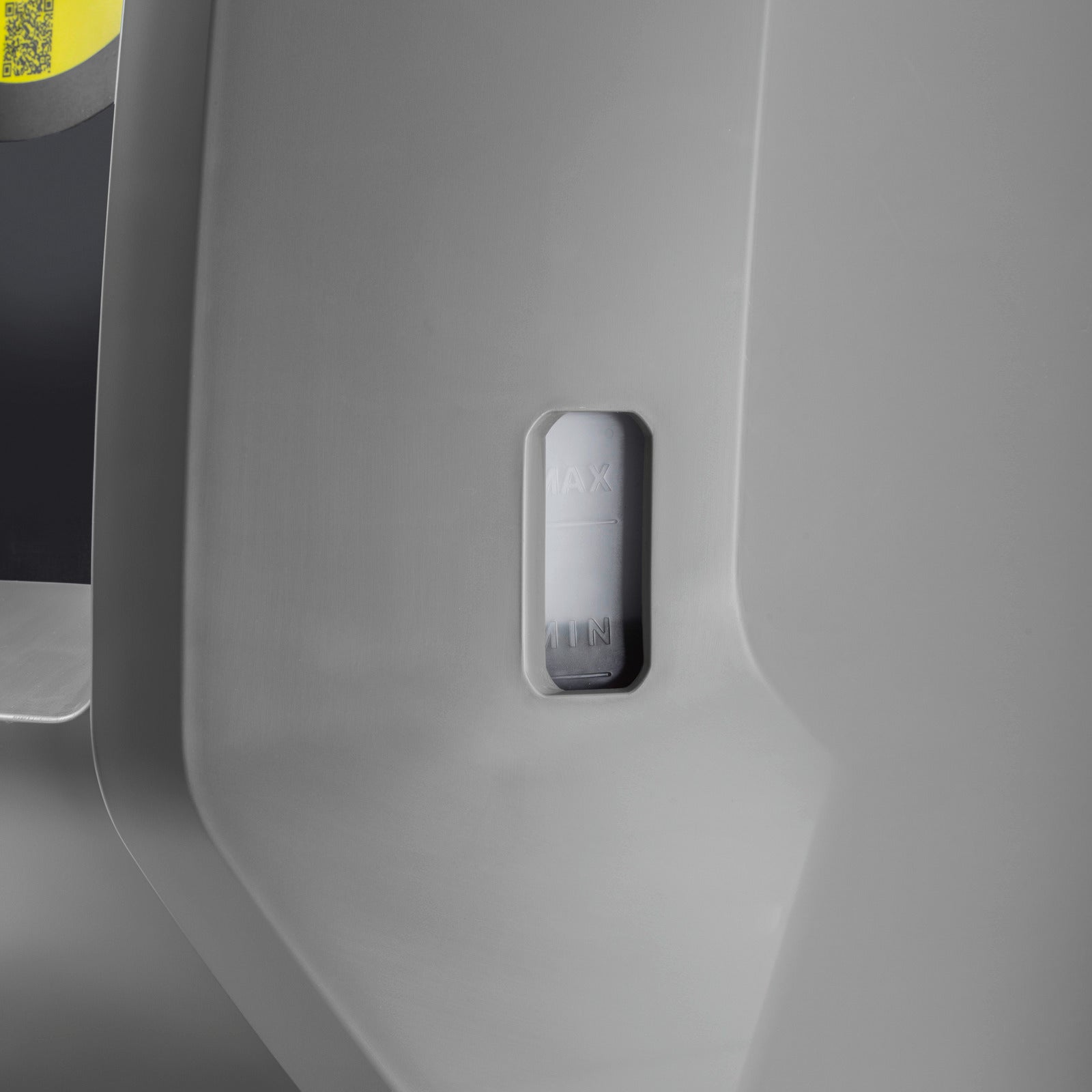

- Easy oil fill display and oil drain integrated into the chassis
- Modular design including pump, motor and control unit
Wide range of accessories with EASY!Lock
- Water pressure and flow can be adjusted with the Servo Control knob located between the lance and the gun.
- Rotating 1050mm stainless steel lance
Many storage options for accessories integrated into the machine

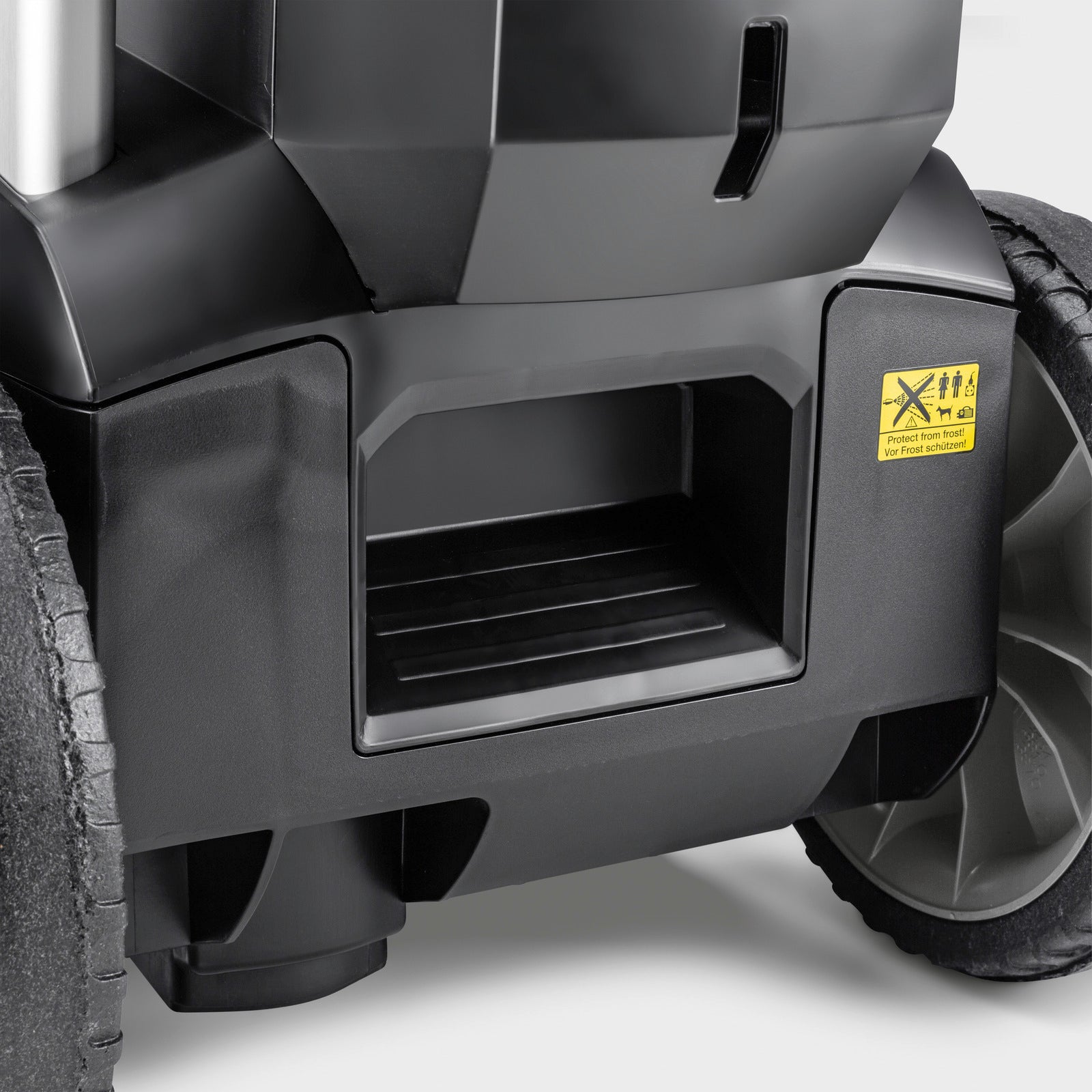

- Storage space

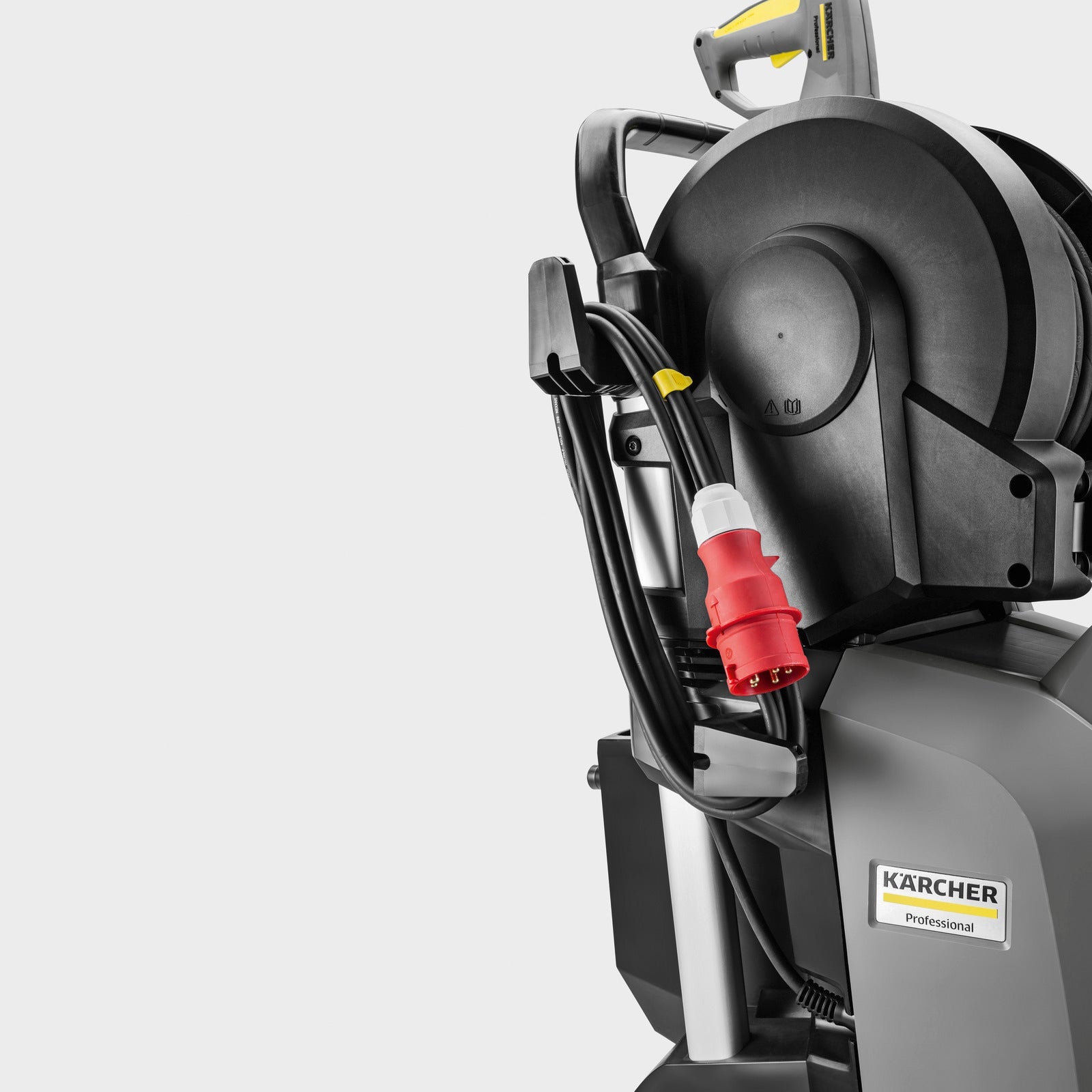

- Adjustable hooks for storing a second lance or an extension cord, for example
- High-pressure hose storage
Specifications
Technical data
| Mains voltage (Ph/V/ Hz ) | 3 / 376 - 424 / 50 |
| Flow rate (l/h) | 500 - 1000 |
| Inlet temperature (°C) | 60 |
| Working pressure (bar) | 50 - 210 |
| Max pressure (bar) | 250 |
| Power (kW) | 8 |
| Power cable (m) | 5 |
| Nozzle size | 050 |
| Water supply | 1″ |
| Paint | anthracite |
| Weight (with accessories) (kg) | 75.5 |
| Weight incl. packaging (kg) | 83.8 |
| Dimensions (L × W × H) (mm) | 607 x 518 x 1063 |
The following is included
- Flush handle: EASY!Force Advanced
- Soft-grip flush handle
- High pressure hose length: 20 m
- High pressure hose type: Ultra Guard
- High pressure hose specification: DN 8, 315 bar
- Flush pipe: 1050 mm
- Power nozzle
- Rotojet nozzle
- High-pressure hose
- Servo Control
Standard equipment
- 4-pole three-phase motor with air and water cooling
- 3-cylinder axial piston pump: With stainless steel pistons
- Automatic start/stop
- Integrated fine mesh water filter
- Oil level gauge
- Brass pump
Areas of use

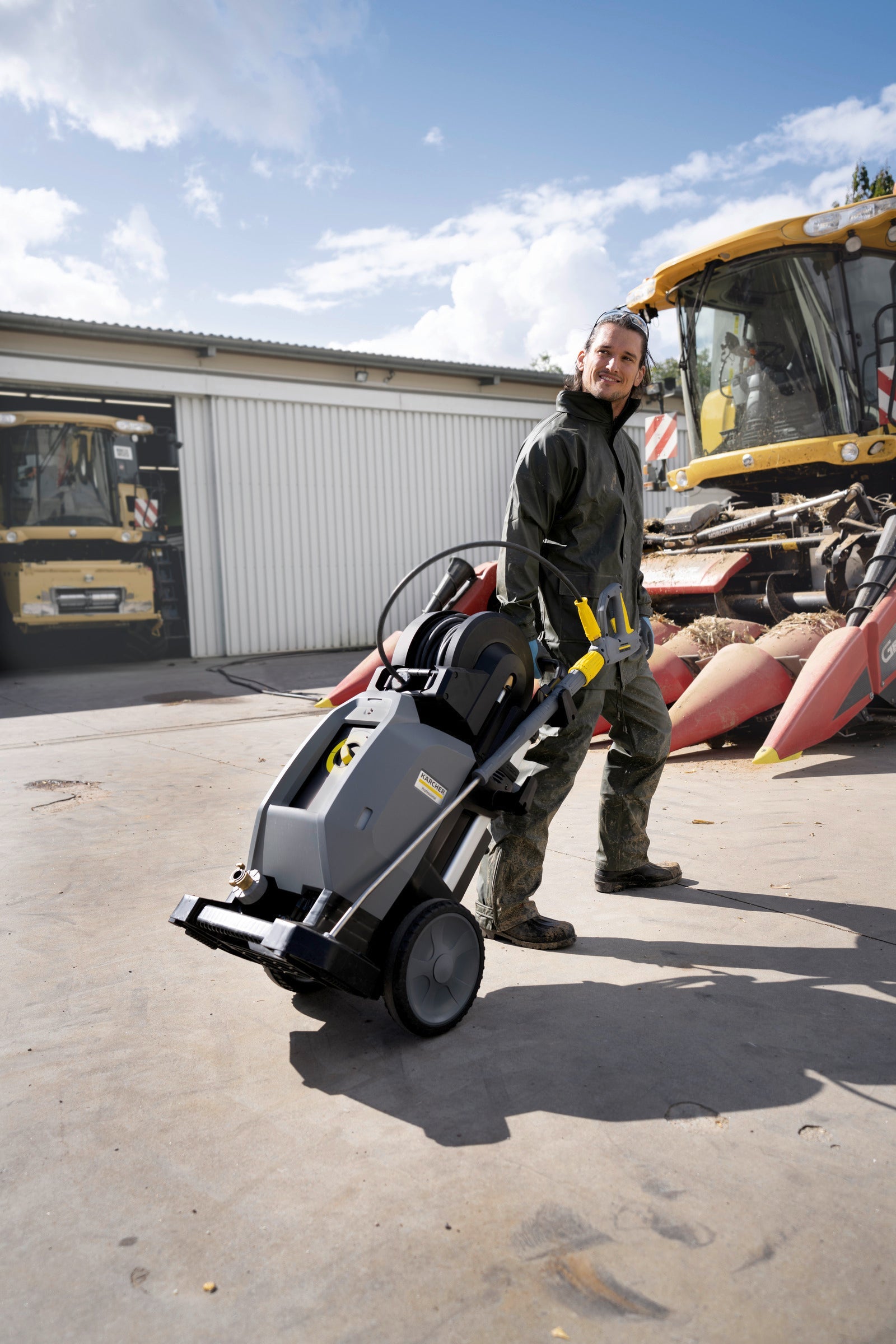

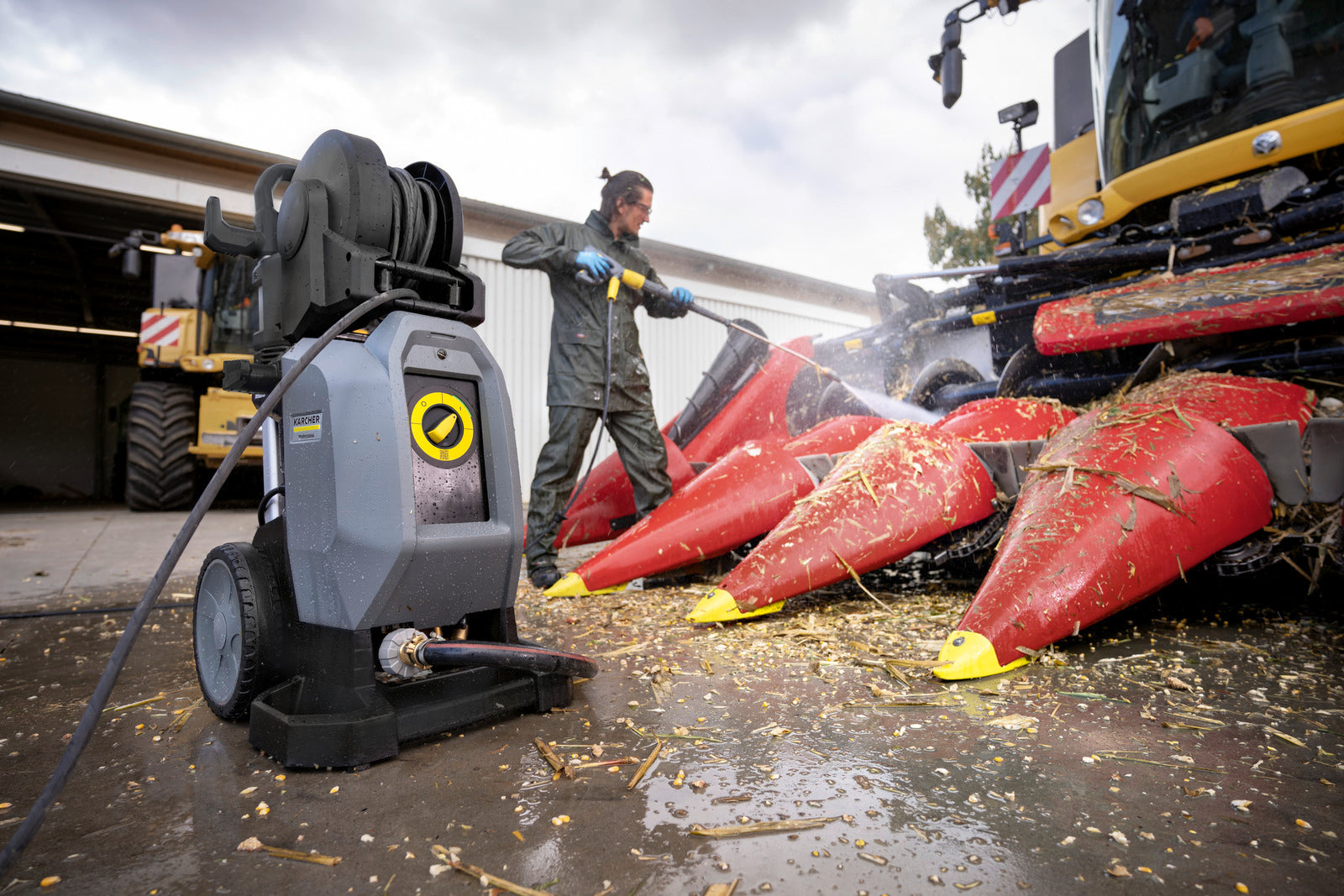

- Cleaning of tractors, machinery and accessories in agriculture

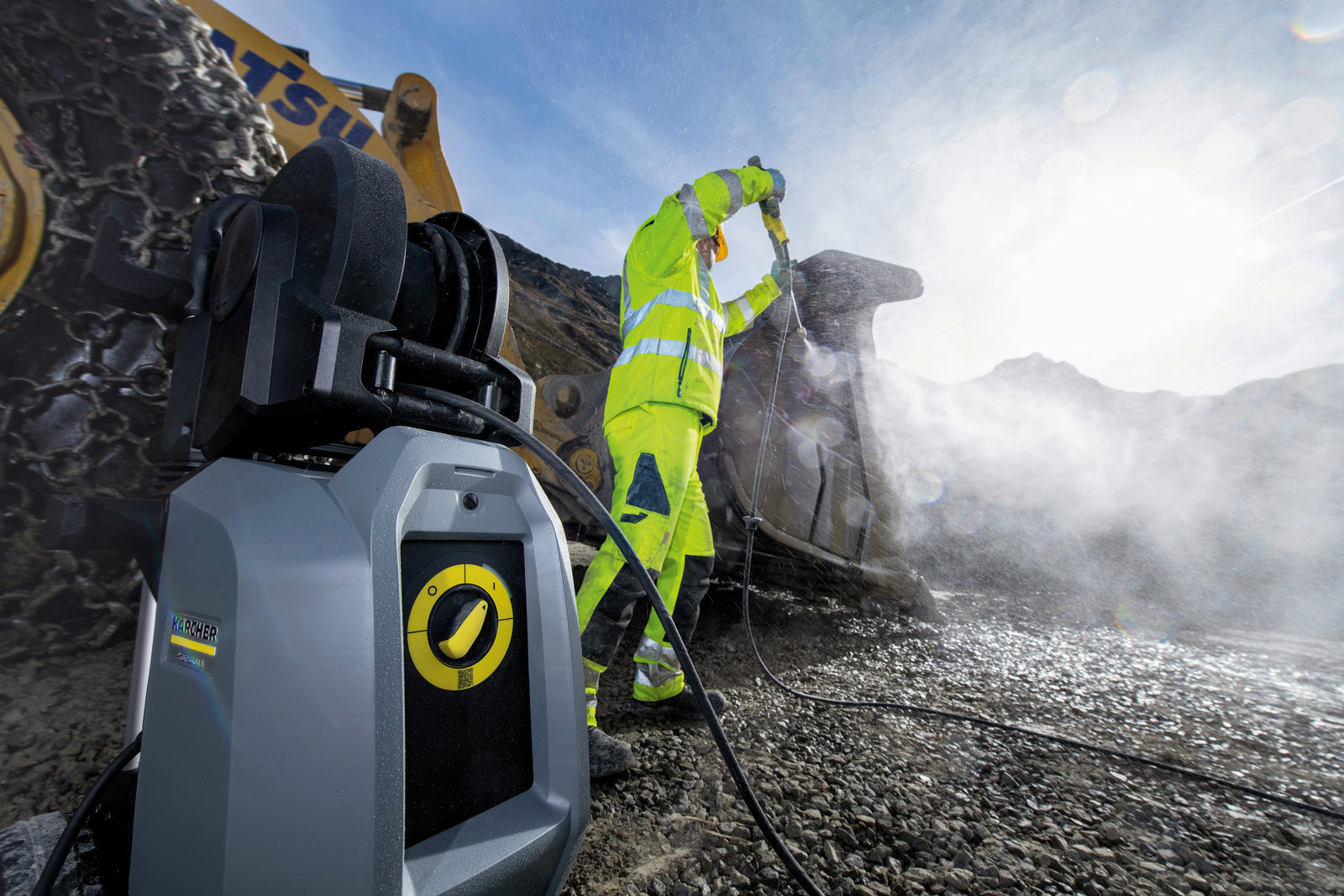

- Cleaning of machinery and equipment on construction sites such as cement mixers, scaffolding, wheel loaders, excavators and cement pumps
- Cleaning of production equipment in industries such as the paint industry, food industry or manufacturing industry
- Cleaning of vehicles in the transport sector such as trucks, ships, airplanes or buses
- Cleaning of municipal areas such as squares, bridge abutments, fountains or parking areas
