Industrial dust separator ID 130/22 Afc
BESKRIVNING

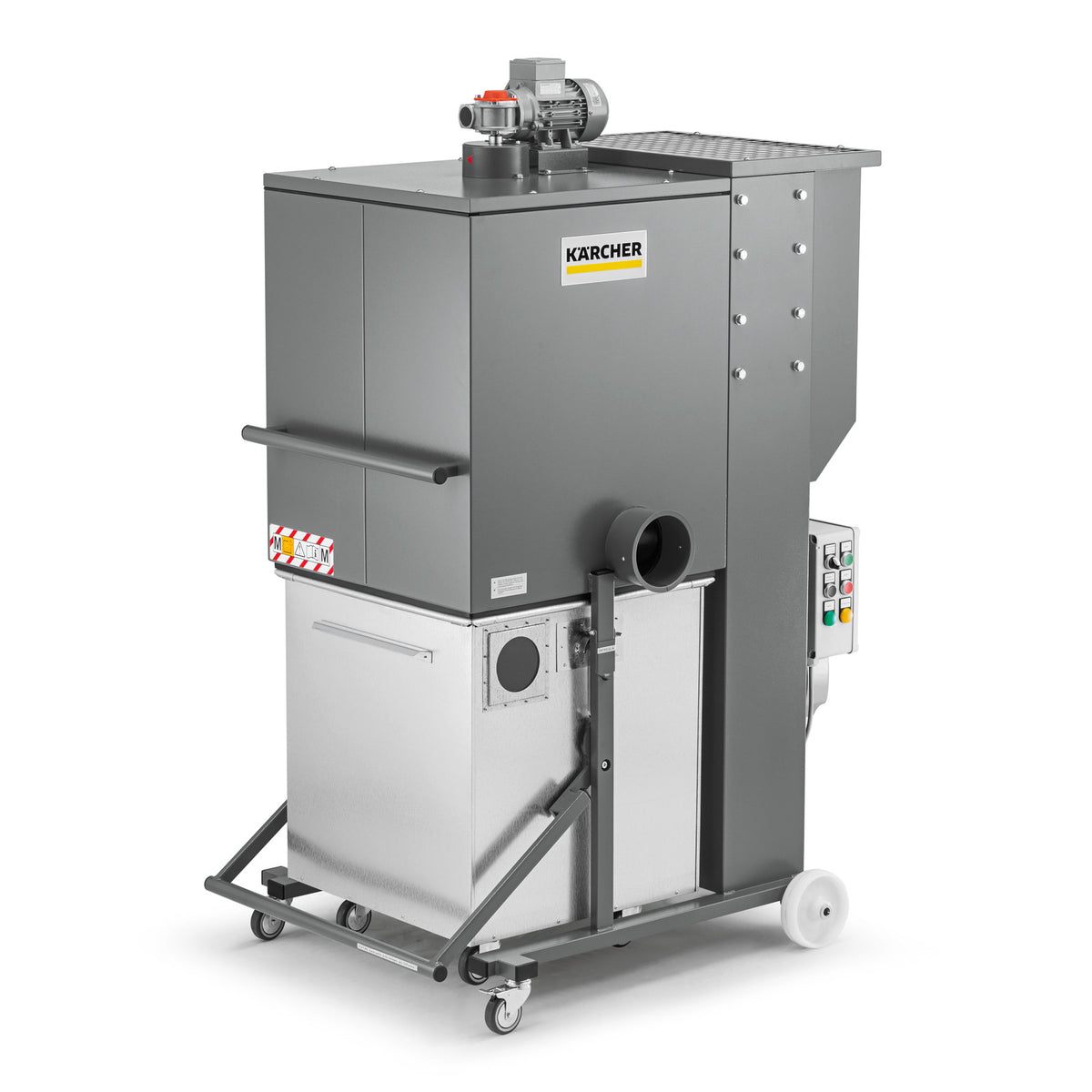

Compact, mobile dust collector ID 130/22 Afc with motorized filter cleaning for vacuuming up large amounts of fine chips and hazardous dust (OEL ≥ 0.1 mg/m³). Torque-driven.
The mobile, torque-driven industrial dust collector ID 130/22 Afc with a nominal power consumption of 2.2 kW and dust class M filter system is designed to suck up large quantities of fine chips and dust hazardous to health (OEL ≥ 0.1 mg/m³). Effective cleaning of the durable and compact filter is carried out using an electric shaking mechanism. The dust collector has a powerful, energy-efficient (IE2) radial compressor with high volume flows that is designed for continuous triple operation. In addition to its robust and maintenance-friendly design, it meets the important requirements for demanding industrial applications. A trolley allows the 170 liter container to be emptied easily and ergonomically without removing the drive head. Thanks to a PE bag with integrated fastening device and pressure equalization hose on the machine, the waste can be emptied dust-free and safely.
Features and benefits
Equipped for dust class M for a high working environment and safety
Dust class M filter technology for suction of dust hazardous to health
Easy and safe emptying without having to remove the motor top
Set-down container with wheels for ergonomic emptying
Dust-free emptying of hazardous materials
Dust-free collection thanks to PE bag with integrated closure Reliable emptying of dust into PE bag.Specifications
Technical data
| Mains voltage (Ph/V/ Hz ) | 3 / 400 / 50 |
| Airflow (l/s/m³/h) | 370 / 1329 |
| Vacuuming (mbar/kPa) | 33 / 3.3 |
| Tank capacity (l) | 170 |
| Connection power (kW) | 2.2 |
| Type of suction | Electrical |
| Filter area (m²) | 9 |
| Nominal diameter of connection | ID 140 |
| Sound pressure level (dB(A)) | 75 |
| Main filter for dust | M |
| Weight without accessories (kg) | 174 |
| Weight incl. packaging (kg) | 174 |
| Dimensions (L × W × H) (mm) | 1170 x 780 x 1580 |
Areas of use
- Excessive amounts of fine chips and dust hazardous to health (OEL > 0.1 mg/m³)
