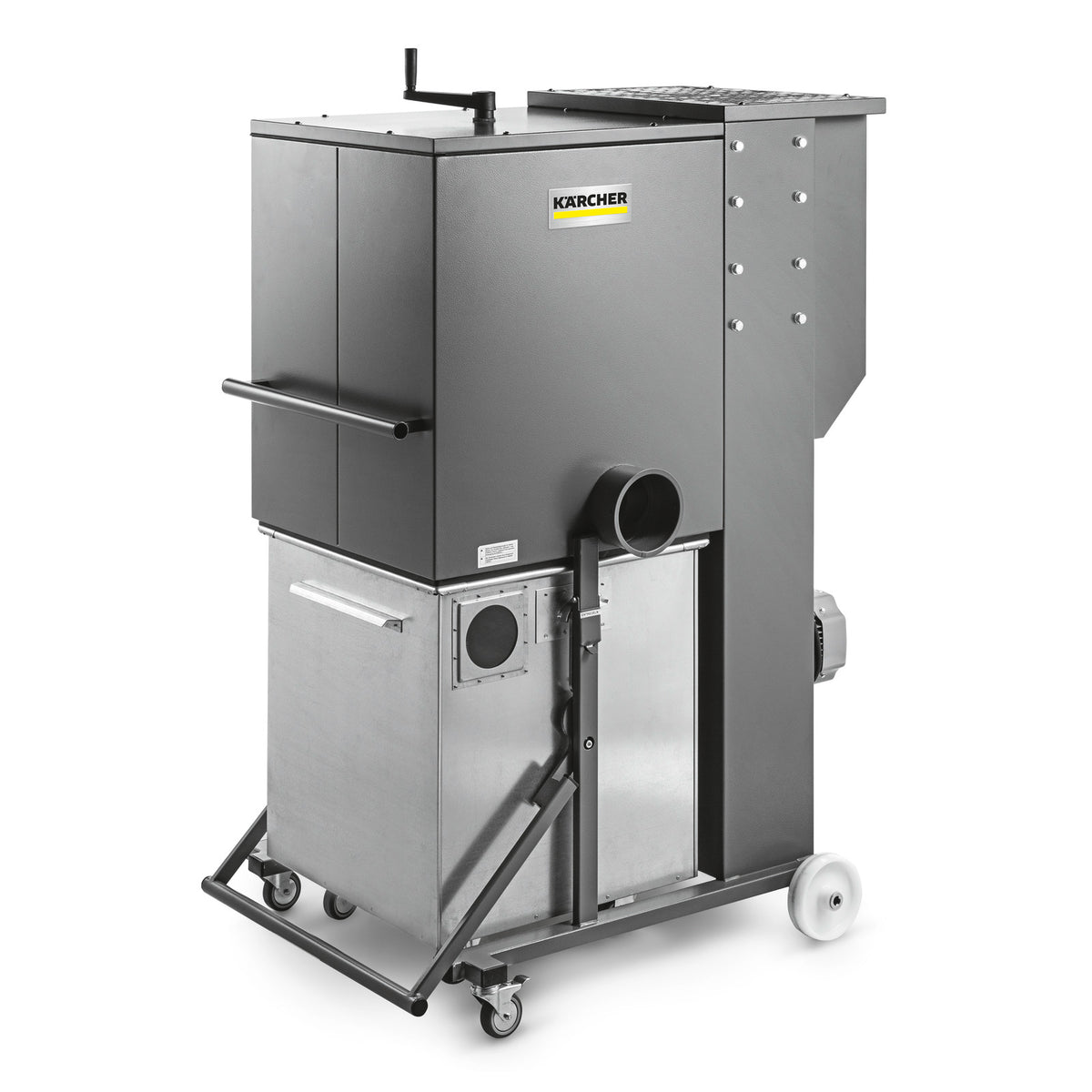

The mobile, torque-driven ID 130/22 dust extractor is suitable for vacuuming large quantities of fine chips and dust that are hazardous to health (OEL > 0.1 mg/m³). It has a robust and user-friendly design.
The ID 130/22 dust collector has a powerful and energy-efficient (IE2) radial compressor with high volume flows, which is also designed for continuous operation, for example in three-shift workplaces. The mobile, torque-driven system with a nominal power consumption of 2.2 kW and a dust class M filter system is designed to suck up large quantities of fine chips and dust that are harmful to health (OEL > 0.1 mg/m³). Its robust and user-friendly design meets the most important requirements for demanding industrial applications. A manual shaking mechanism effectively cleans the long-lasting compact filter, while the 170-liter collection container can be emptied easily and ergonomically without removing the drive head via the trolley. A PE bag with integrated closing mechanism and pressure equalization hose on the machine ensures dust-free emptying and safe disposal of the suction medium. On request, various overfill protection mechanisms can also be integrated. The system can also be expanded with multiple suction points, and the application range can be expanded to include dust class H.
Features and benefits
Equipped for dust class M for a high working environment and safety
Dust class M filter technology for suction of dust hazardous to health
Easy and safe emptying without having to remove the motor top
Set-down container with wheels for ergonomic emptying
Dust-free emptying of hazardous materials
Dust-free collection thanks to PE bag with integrated closure Easy collection of dust in PE bagSpecifications
Technical data
| Mains voltage (Ph/V/ Hz ) | 3 / 400 / 50 |
| Airflow (l/s/m³/h) | 370 / 1329 |
| Vacuuming (mbar/kPa) | 33 / 3.3 |
| Tank capacity (l) | 170 |
| Connection power (kW) | 2.2 |
| Type of suction | Electrical |
| Filter area (m²) | 9 |
| Nominal diameter of connection | ID 140 |
| Sound pressure level (dB(A)) | 75 |
| Main filter for dust | M |
| Weight without accessories (kg) | 158 |
| Weight incl. packaging (kg) | 163 |
| Dimensions (L × W × H) (mm) | 1170 x 790 x 1580 |
Standard equipment
- Filter: Cartridge filters
Areas of use
- For vacuuming large amounts of dust hazardous to health (OEL > 0.1 mg/m³)
- For vacuuming large amounts of fine dust and turning chips
