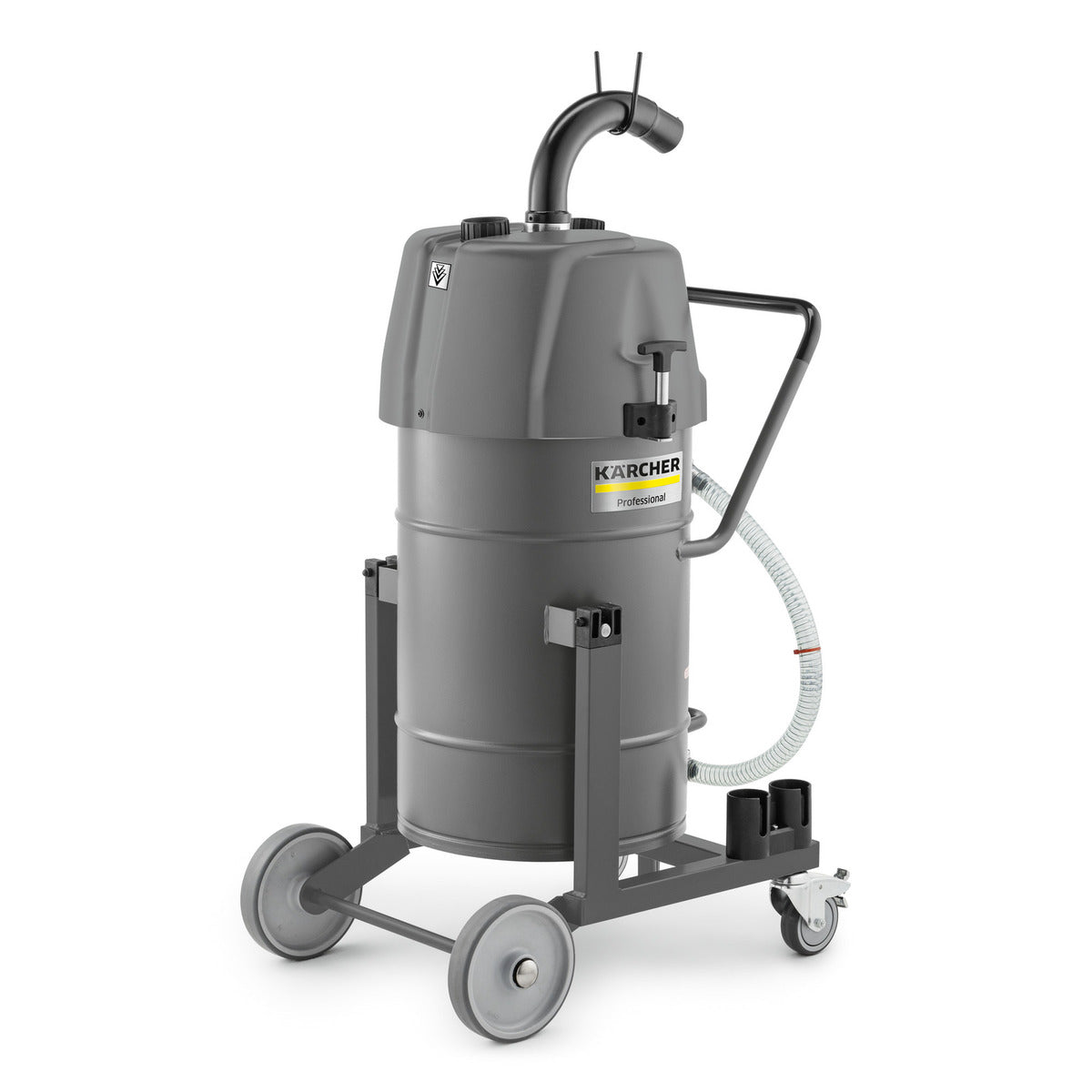

Industrial vacuum cleaner IVR-L 65/20-2 Tc
Couldn't load pickup availability
IVR-L 65/20-2 Tc liquid and chip vacuum cleaner with a robust design. Suitable for vacuuming medium amounts of oil and metal chips, etc.
A durable, washable pocket filter and a powerful twin-turbine solution with a nominal input power of 2 kW are the main features of the IVR-L 65/20-2 Tc mobile liquid and chip vacuum cleaner. Together, they guarantee continuous operation and high suction power without any reduction in filter capacity. This makes the machine ideal for vacuuming medium-sized quantities of various suction media, such as metal chips, oil or coolant emulsions. An optional sieve basket ensures that solid and liquid components are effectively separated. Liquids can be disposed of separately by simply detaching the drain hose on the 65 l container. Otherwise, the tilt chassis emptying system is used to empty the container with minimal force by tilting it using the roll-off mechanism. The vacuum cleaner has a very robust and maintenance-friendly design and meets the most important requirements for tough industrial applications. The sound-absorbing drive also ensures low operating noise.
Features and benefits
Ergonomic tilting chassis
Well-thought-out system for safe, manual and smooth emptying Frame system enables ergonomic tilted emptying using the roll-off mechanism. Quick and easy emptying of the container: just tip it backwards and it's done!
Reliable overfill protection
A float effectively prevents overfilling of the collection container Transparent hose for checking the sucked-up liquid content The hose is also used for easy emptying
High robustness, flexibility and modularity
Very robust machine and chassis with high material thickness Rotatable hose connection with up to 360° rotatable pipe bend Available as an option with overflow protection, strainer insert or accessory holderEquipped with two very quiet fan motors
- For powerful suction power and optimal cleaning performance
- The turbines can be switched on separately for individual suction power as desired
- Very quiet drive head ensures even cooling air discharge
Equipped with a compact surface filter of dust class L
- Reliably protects against coarse particles entering the suction motors
Specifications
Technical data
| Mains voltage (Ph/V/ Hz ) | 1 / 220 - 240 / 50 - 60 |
| Airflow (l/s/m³/h) | 100 / 360 |
| Vacuuming (mbar/kPa) | 220 / 22 |
| Tank capacity (l) | 65 |
| Connection power (kW) | 2 |
| Type of suction | Electrical |
| Nominal diameter of connection | ID 50 |
| Nominal diameter of accessories | ID 50 ID 40 |
| Main filter for dust | L |
| Filter area for main filter (m²) | 0.25 |
| Weight without accessories (kg) | 42.6 |
| Weight (with accessories) (kg) | 42.6 |
| Weight incl. packaging (kg) | 42.6 |
| Dimensions (L × W × H) (mm) | 730 x 570 x 1330 |
Areas of use

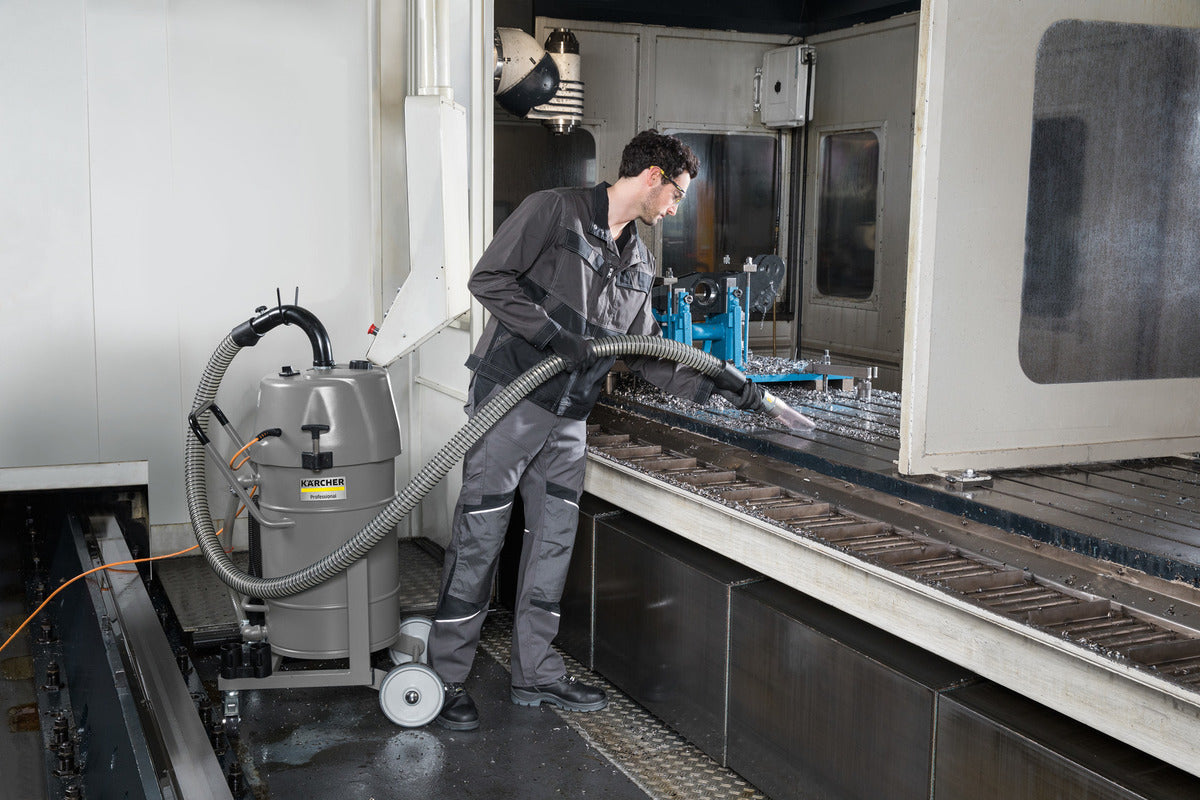

- For medium quantities of coarse and abrasive swarf
- For medium quantities of liquids, such as oils or coolant emulsions
