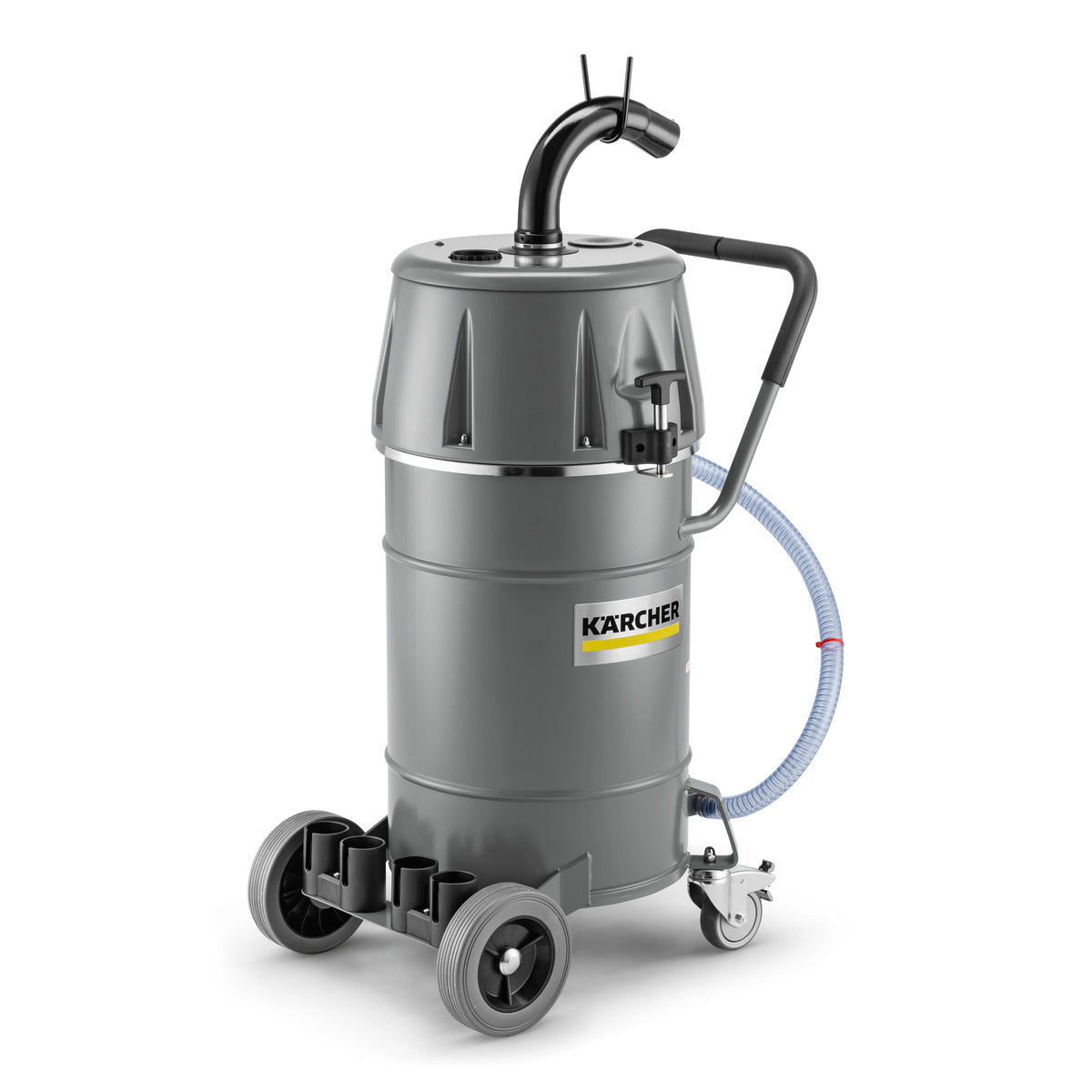

Industrial vacuum cleaner IVR-L 65/12-1
Couldn't load pickup availability

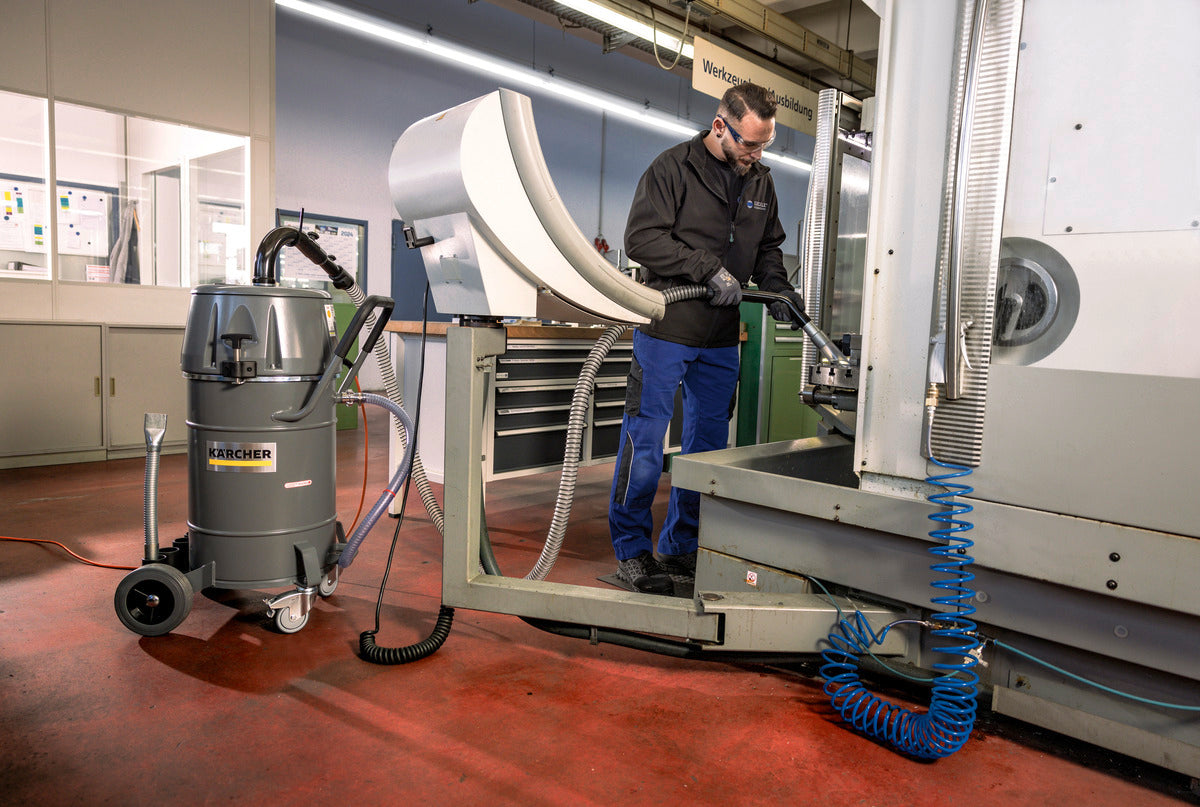

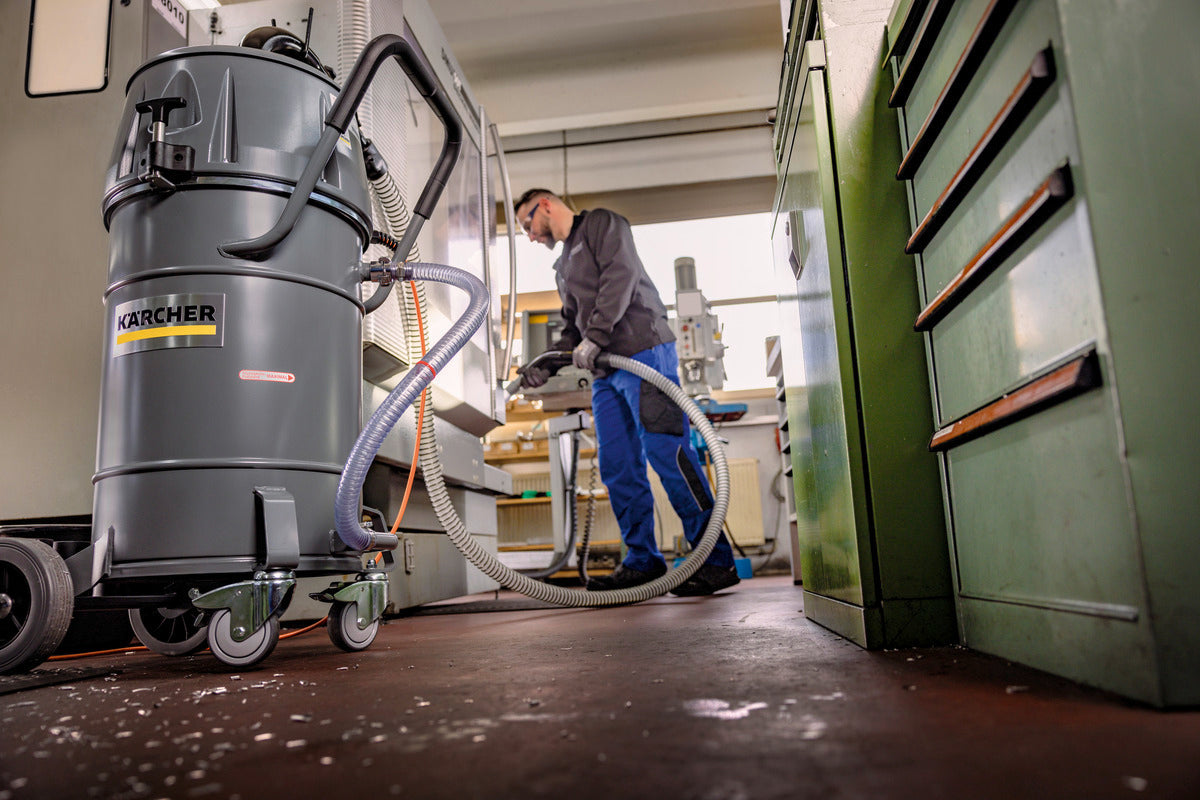

The IVR-L 65/12-1 is the smallest industrial vacuum cleaner in the IVR-L series. It is perfect for vacuuming liquids and/or chips in the metalworking industry.
With a motor power of 1.2 kW, the IVR-L 65/12-1 is an entry-level machine for vacuuming liquids and/or chips. The IVR-L 65/12-1 is the smallest liquid vacuum in the IVR-L line. The high-quality vacuum cleaner is ideal for vacuuming and separating small amounts of liquids and solids. For example, coolant, lubricant, water or oil with metal chips. The chips can be collected in a chip basket. The liquid that is sucked up is led back into the circuit via the drain hose. The fill level at any given time is always clearly visible on the drain hose. The 360° rotating hose connection on the suction head makes it easy to vacuum in all directions without the suction hose getting tangled. The integrated mechanical fill level shut-off protects the vacuum cleaner from overfilling. The drive head is partly made from recycled material.
Features and benefits
Reliable overfill protection
A float effectively prevents overfilling of the collection container Transparent hose for checking the sucked-up liquid content The hose is also used for easy emptying
High robustness, flexibility and modularity
Very robust machine and chassis with high material thickness Rotatable hose connection with up to 360° rotatable pipe bend Available as an option with overflow protection, strainer insert or accessory holder
Equipped with a compact surface filter of dust class L
Reliably protects against coarse particles entering the suction motorsEquipped with a quiet fan motor
- Very compact and easy to maneuver machine with fan motor
- Very quiet drive head ensures even exhaust of cooling air
Specifications
Technical data
| Mains voltage (Ph/V/ Hz ) | 1 / 220 - 240 / 50 - 60 |
| Airflow (l/s/m³/h) | 72 / 260 |
| Vacuuming (mbar/kPa) | 235 / 23.5 |
| Tank capacity (l) | 65 |
| Container material | Steel |
| Connection power (kW) | 1.2 |
| Type of suction | Electrical |
| Nominal diameter of connection | ID 50 |
| Nominal diameter of accessories | ID 40 |
| Main filter for dust | L |
| Filter area for main filter (m²) | 0.25 |
| Weight without accessories (kg) | 38 |
| Weight (with accessories) (kg) | 38.5 |
| Weight incl. packaging (kg) | 38.5 |
| Dimensions (L × W × H) (mm) | 718 x 526 x 1000 |
