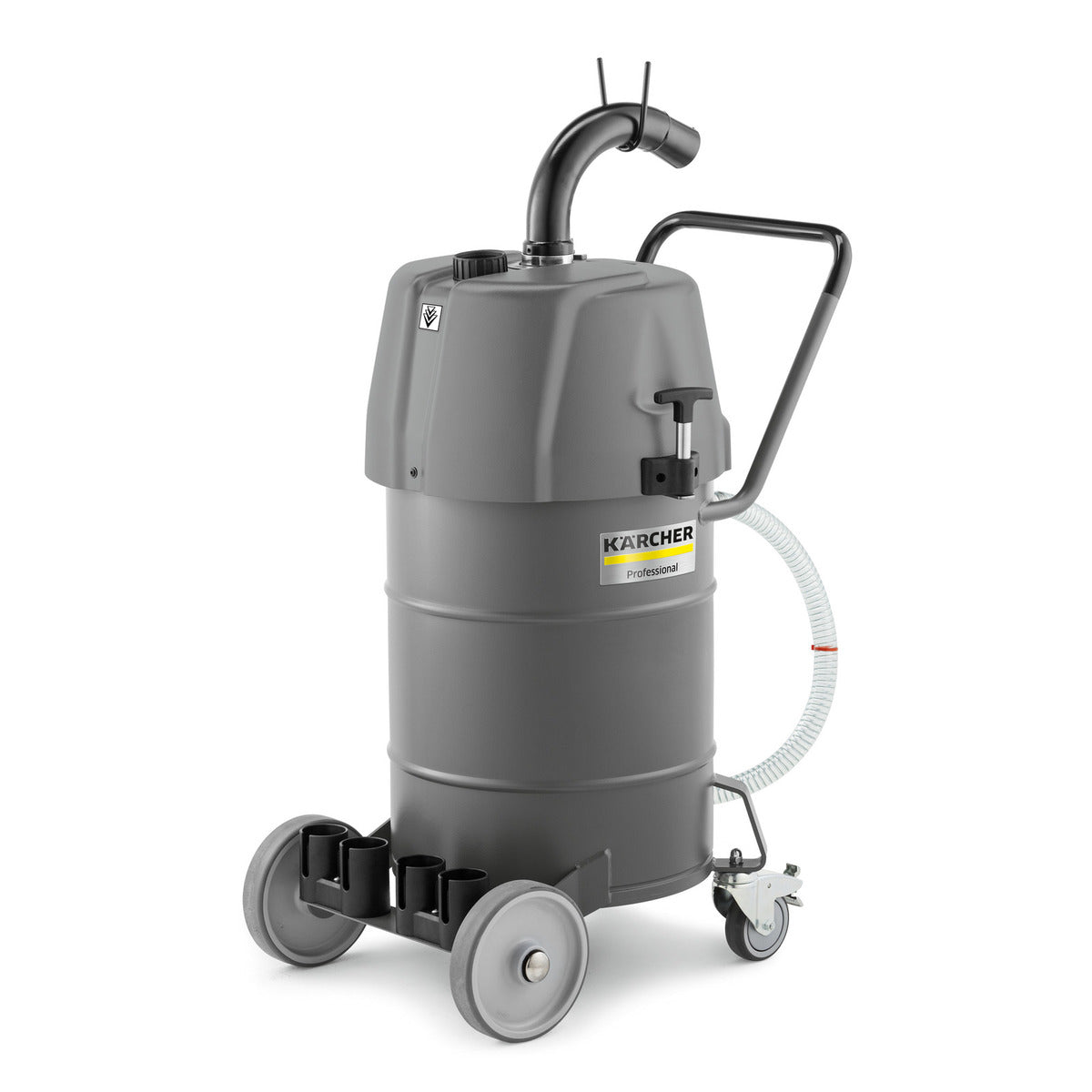

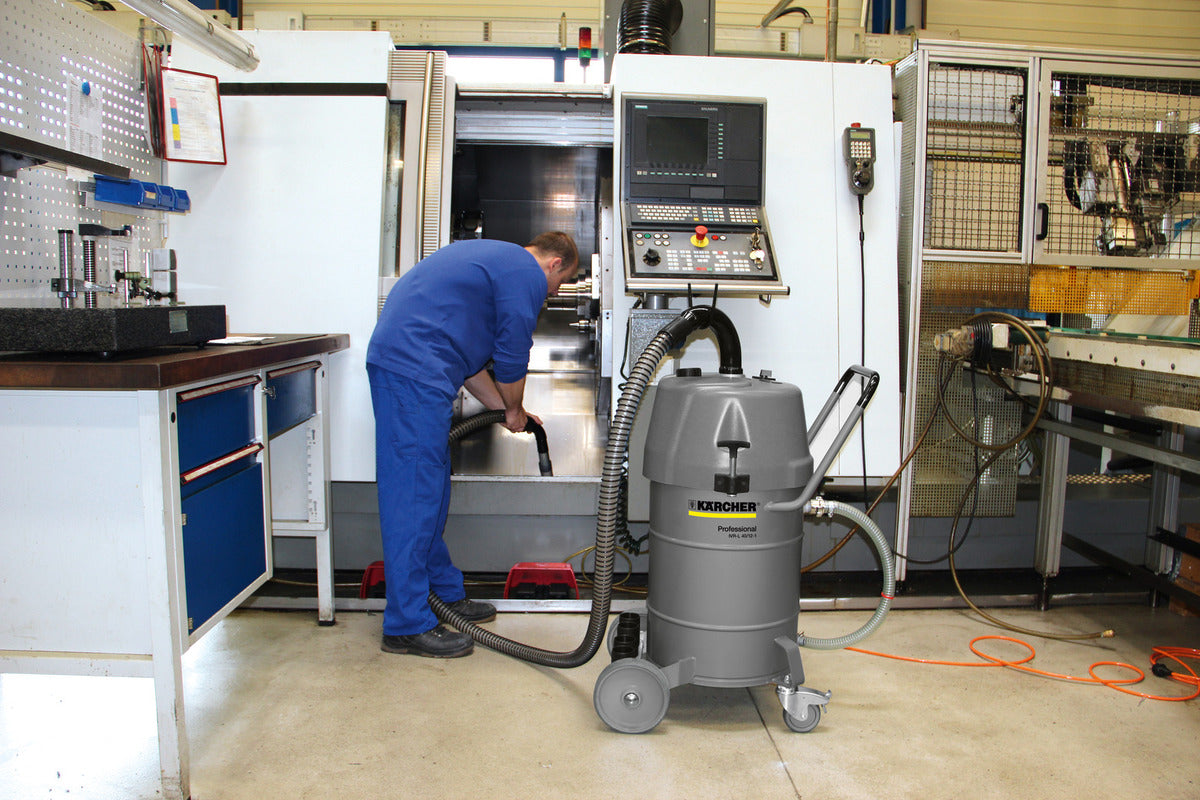

The IVR-L 40/12-1 is the smallest model in our industrial IVR-L range. It is perfect for vacuuming liquids and/or turning chips in, for example, metalworking.
With a performance of 1.2 kW, the IVR-L 40/12-1 is the entry-level model in a complete range of models for vacuuming liquids and turning chips. The IVR-L 40/12-1 is the smallest model in the IVR-L series. This quality model is ideal for vacuuming and separating smaller quantities of liquids and solids, such as cutting fluid from turning chips. The chips can be collected in a basket. The vacuumed liquid can be returned or otherwise collected through the drain hose on the machine. The liquid level in the container can be easily read on the drain hose. The 360° rotatable hose attachment on top of the suction motor makes it convenient to vacuum substances in all directions without the hose getting tangled around the machine. The built-in mechanical overflow protection switches off the machine and prevents overfilling.
Features and benefits
Reliable overfill protection
A float effectively prevents overfilling of the collection container Transparent hose for checking the sucked-up liquid content The hose is also used for easy emptying
High robustness, flexibility and modularity
Very robust machine and chassis with high material thickness Rotatable hose connection with up to 360° rotatable pipe bend Available as an option with overflow protection, strainer insert or accessory holder
Equipped with a compact surface filter of dust class L
Reliably protects against coarse particles entering the suction motorsEquipped with a quiet fan motor
- Very compact and easy to maneuver machine with fan motor
- Very quiet drive head ensures even exhaust of cooling air
Specifications
Technical data
| Mains voltage (Ph/V/ Hz ) | 1 / 220 - 240 / 50 - 60 |
| Airflow (l/s/m³/h) | 59 / 212.4 |
| Vacuuming (mbar/kPa) | 230 / 23 |
| Tank capacity (l) | 40 |
| Container material | Metal |
| Connection power (kW) | 1.2 |
| Type of suction | Electrical |
| Nominal diameter of connection | ID 50 |
| Nominal diameter of accessories | ID 40 |
| Main filter for dust | L |
| Filter area for main filter (m²) | 0.25 |
| Weight without accessories (kg) | 33 |
| Weight (with accessories) (kg) | 34 |
| Weight incl. packaging (kg) | 34 |
| Dimensions (L × W × H) (mm) | 711 x 523 x 960 |
Standard equipment
- Accessories included in delivery: no
