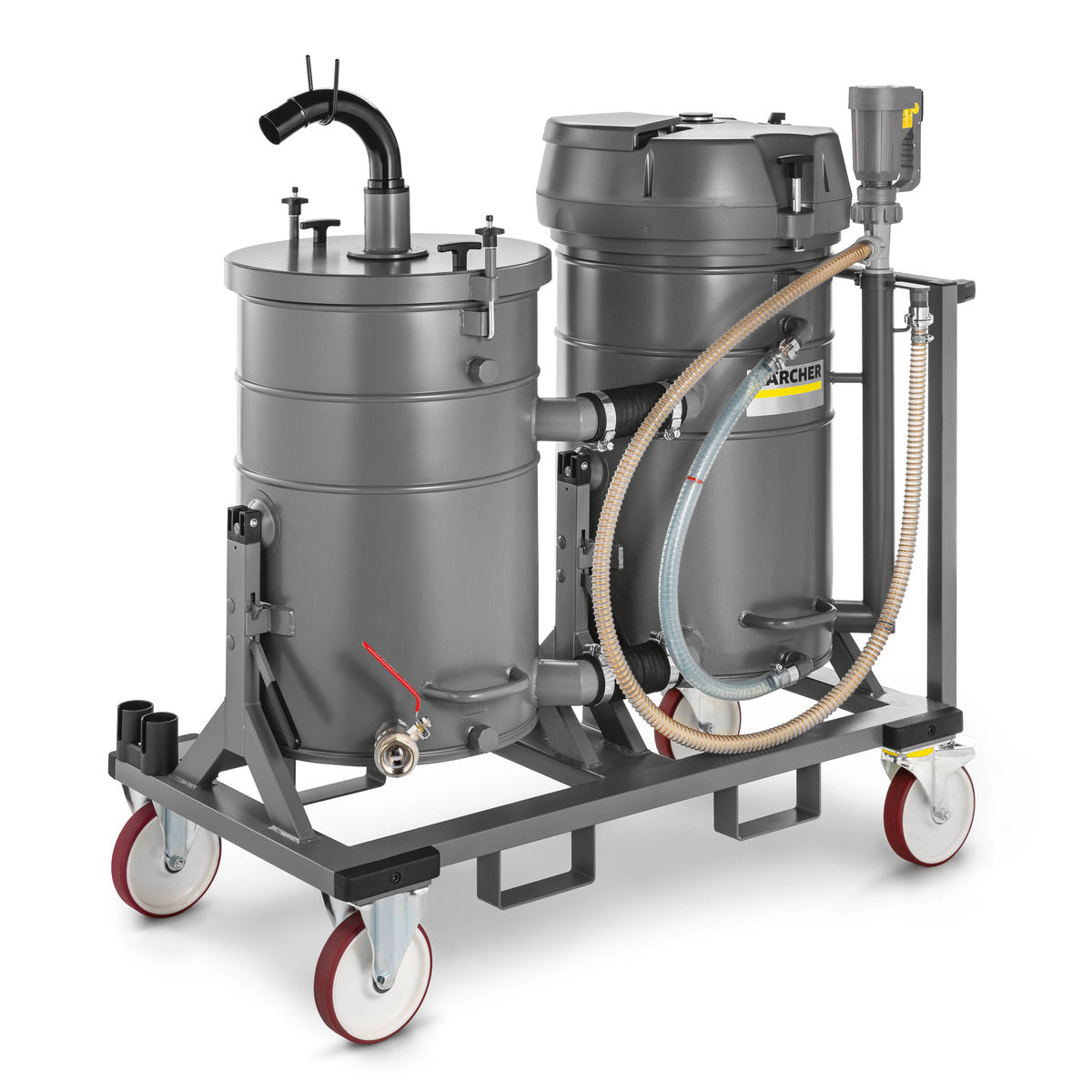

IVR-L 200/24-2 Tc Dp is built to handle large quantities of liquids such as oil or cutting fluids and solids such as turning chips. Maintenance-friendly robust design.
A powerful twin-turbine design with a performance of 2.4 kW makes the IVR-L 200/24-2 Tc Dp perfect for vacuuming large quantities of, for example, oil, cutting fluid or turning chips. The durable pocket filter with welded joints is washable and maintains the machine's high suction capacity. A filter basket effectively separates solid objects from liquids. The emptying system with a tipping chassis enables safe emptying with minimal effort thanks to a roll-off function. It is also possible to empty the machine using a forklift. Liquids can also be emptied from the 200 liter container using the emptying hose, which has a built-in visible fill level indicator. The integrated, adjustable drum pump makes it possible to significantly speed up the emptying process to an emptying height of up to 6 meters. Low noise level during operation is possible thanks to the sound-absorbed motor unit.
Features and benefits
Ergonomic tilting chassis
Well-thought-out system for safe, manual and smooth emptying. Frame system enables ergonomic tilted emptying using the roll-off mechanism.
Barrel pump function
An independent drum pump provides significantly improved possibilities for returning sucked material. Transparent hose for checking the sucked liquid content
High robustness, flexibility and modularity
Very robust machine and chassis with high material thickness Rotatable hose connection with up to 360° rotatable pipe bend Available as an option with overflow protection, strainer insert or accessory holderEquipped with two very quiet fan motors
- For powerful suction power and optimal cleaning performance
- The turbines can be switched on separately for individual suction power as desired
- Very quiet drive head ensures even cooling air discharge
Equipped with a compact surface filter of dust class L
- Reliably protects against coarse particles entering the suction motors
Specifications
Technical data
| Mains voltage (Ph/V/ Hz ) | 1 / 220 - 240 / 50 - 60 |
| Airflow (l/s/m³/h) | 148 / 532 |
| Vacuuming (mbar/kPa) | 230 / 23 |
| Tank capacity (l) | 200 |
| Connection power (kW) | 2.4 |
| Type of suction | Electrical |
| Nominal diameter of connection | ID 50 |
| Nominal diameter of accessories | ID 50 ID 40 |
| Main filter for dust | L |
| Filter area for main filter (m²) | 0.45 |
| Weight without accessories (kg) | 131 |
| Weight (with accessories) (kg) | 131 |
| Weight incl. packaging (kg) | 131 |
| Dimensions (L × W × H) (mm) | 1485 x 760 x 1550 |
Standard equipment
- Barrel pump function
Download
Instructions for use, including safety information

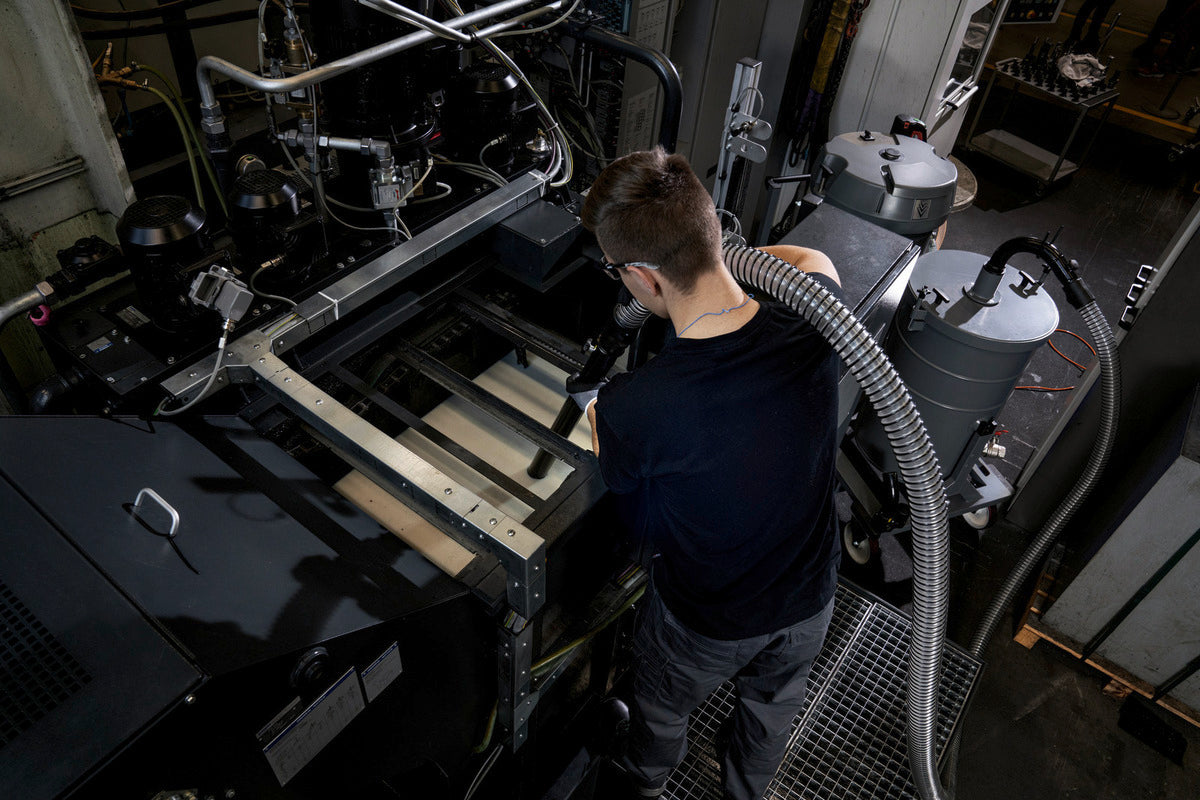

Areas of use
- For large quantities of liquids such as oils or cutting fluids
- For large quantities of solids such as turning chips
