IVR-L 100/24-2 – the compact industrial vacuum cleaner with a 100-liter container volume. Convenient suction and easy separation of, for example, chips and cutting fluid.

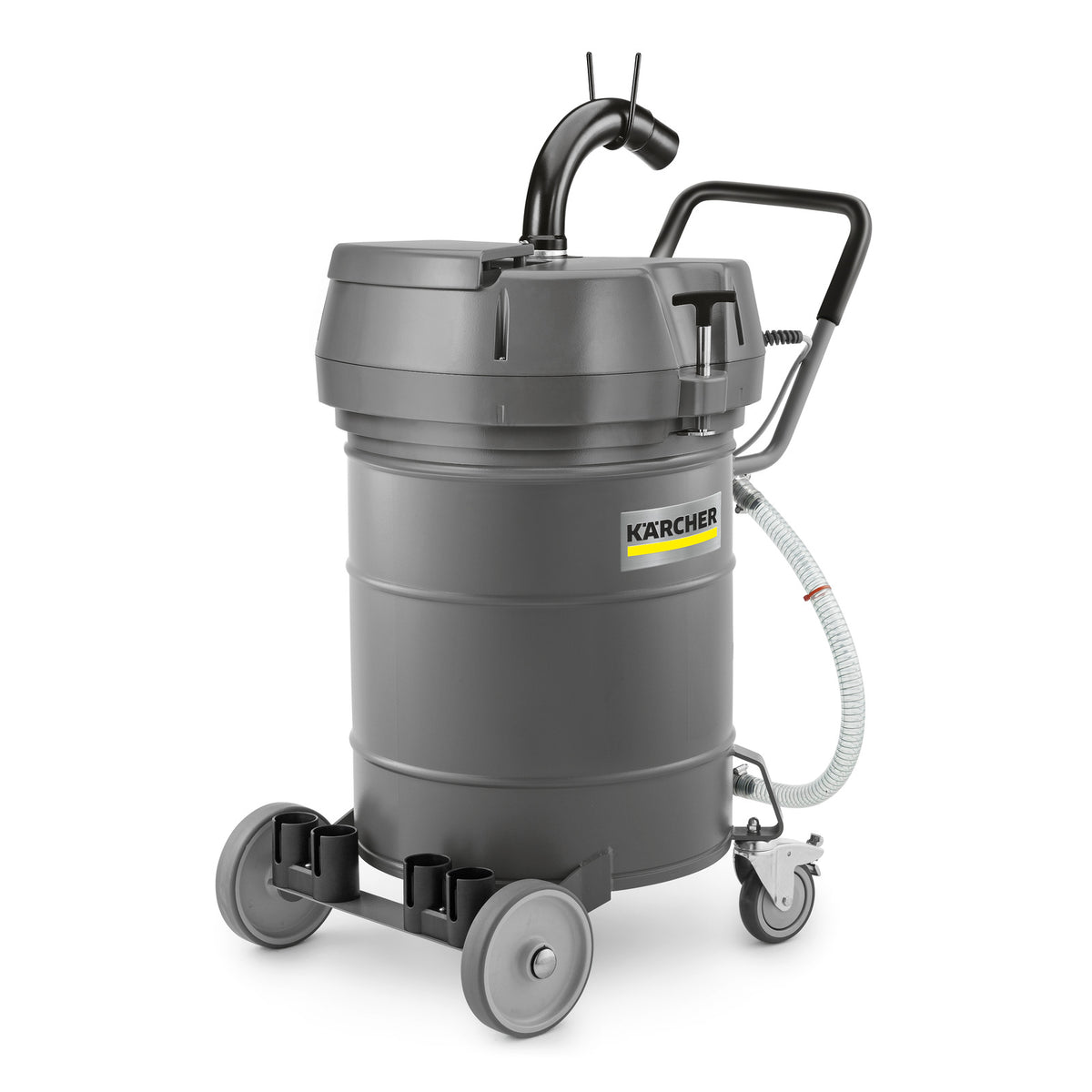

The IVR-L 100/24-2 is a compact industrial vacuum cleaner from Kärcher. The industrial vacuum cleaner has a capacity of 100 liters and can suck up coarse solids (such as turning chips) reliably and, thanks to a filter basket, separate them conveniently from the liquid. The hose connection on top of the suction motor is incredibly flexible (360° mobility) and guarantees maximum mobility without the risk of getting tangled during suction work. The filling level in the container can be easily read on the emptying hose whenever you want. The flange of the machine has brackets for lifting even when fully filled. High-quality ABS wheels guarantee the highest level of mobility.
Features and benefits
High robustness, flexibility and modularity
Very robust machine and chassis with high material thickness Rotatable hose connection with up to 360° rotatable pipe bend Available as an option with overflow protection, strainer insert or accessory holder
Visual level indicator
Transparent hose for checking the absorbed liquid content. The hose is also used for easy emptying.
Equipped with two very quiet fan motors
For powerful suction power and optimal cleaning performance The turbines can be switched on separately for individual suction power as desired Very quiet drive head ensures even exhaust of the cooling airEquipped with a compact surface filter of dust class L
- Reliably protects against coarse particles entering the suction motors
Specifications
Technical data
| Mains voltage (Ph/V/ Hz ) | 1 / 220 - 240 / 50 - 60 |
| Airflow (l/s/m³/h) | 148 / 532 |
| Vacuuming (mbar/kPa) | 230 / 23 |
| Tank capacity (l) | 100 |
| Container material | Metal |
| Connection power (kW) | 2.4 |
| Type of suction | Electrical |
| Nominal diameter of connection | ID 50 |
| Nominal diameter of accessories | ID 50 ID 40 |
| Main filter for dust | L |
| Filter area for main filter (m²) | 0.45 |
| Weight without accessories (kg) | 44 |
| Weight (with accessories) (kg) | 44 |
| Weight incl. packaging (kg) | 45.5 |
| Dimensions (L × W × H) (mm) | 640x620x1060 |
Standard equipment
- Accessories included in delivery: no
