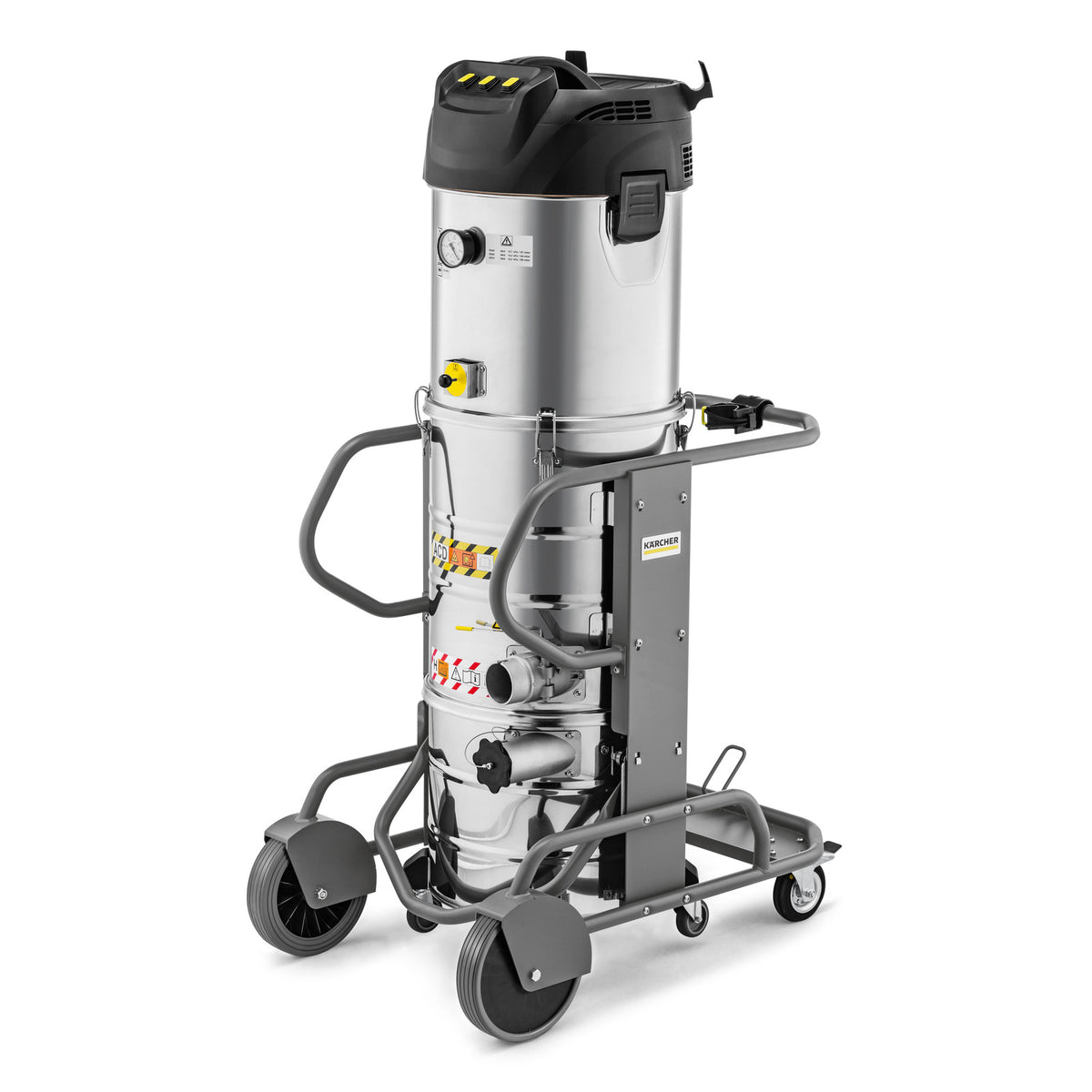

Industrial vacuum cleaner IVM 60/36-3 H ACD
BESKRIVNING
Powerful and robust three-motor industrial vacuum cleaner for medium-sized companies. Specially developed to pick up larger quantities of fine and coarse flammable dust particles outside zone 22.
Reliable and durable mid-range industrial vacuum cleaner, IVM 60/36-3 H ACD, with dust class H, which is practically universal for vacuuming all types of flammable solids outside an ATEX zone. The powerful vacuum cleaner works with three individually controlled motors in single-phase operation, the large 60-liter collection container also makes it possible to collect larger quantities. In addition to the H filter, the machine has a large PTFE star filter of dust class M and the innovative Pull and Clean filter cleaning system for uninterrupted filter cleaning during use. High-quality components such as the collection container and filter container made of acid-resistant stainless steel or the very robust steel construction ensure a long service life, the large wheels make it easy to move it from place to place.
Features and benefits
ACD – Applied for Combustible Dust
- For safe and economical extraction of respirable dust
- Complies with IEC 60335-2-69 standard
Dust class H
- The entire unit is certified in accordance with DIN EN 60335-2-69 for dust class H
- For safe suction of hazardous and flammable solids
Manual pull-and-clean filter cleaning
- The filter is cleaned in a single step simultaneously with use
- Gentle filter cleaning by reversing the air flow
Equipped with three turbines
- Three individual turbines for impressive cleaning results
- Individually controlled motors mean that suction power can be adjusted according to needs and preferences
Equipped with a large star filter and extra cartridge filter
- For safe vacuuming of solid objects and dust in dust class H
- Two-stage filter system and maximum separation rate for maximum safety
Specifications
Technical data
| Mains voltage (Ph/V/ Hz ) | 1 / 220 - 240 / 50 - 60 |
| Airflow (l/s/m³/h) | 116 / 420 |
| Vacuuming (kPa) | 25.4 |
| Tank capacity (l) | 60 |
| Container material | Stainless steel |
| Connection power (kW) | 3.6 |
| Type of suction | Electrical |
| Nominal diameter of connection | ID 70 |
| Nominal diameter of accessories | ID 50 ID 40 |
| Sound pressure level (dB(A)) | up to 79 |
| Main filter for dust | M |
| Filter area for main filter (m²) | 2 |
| Dust class secondary filter | H |
| Filter area for secondary filter (m²) | 3.5 |
| Weight without accessories (kg) | 73 |
| Weight incl. packaging (kg) | 72.8 |
| Dimensions (L × W × H) (mm) | 1020x680x1670 |
Standard equipment
- Main filter: Star filter
- Secondary filter: Cartridge filters
