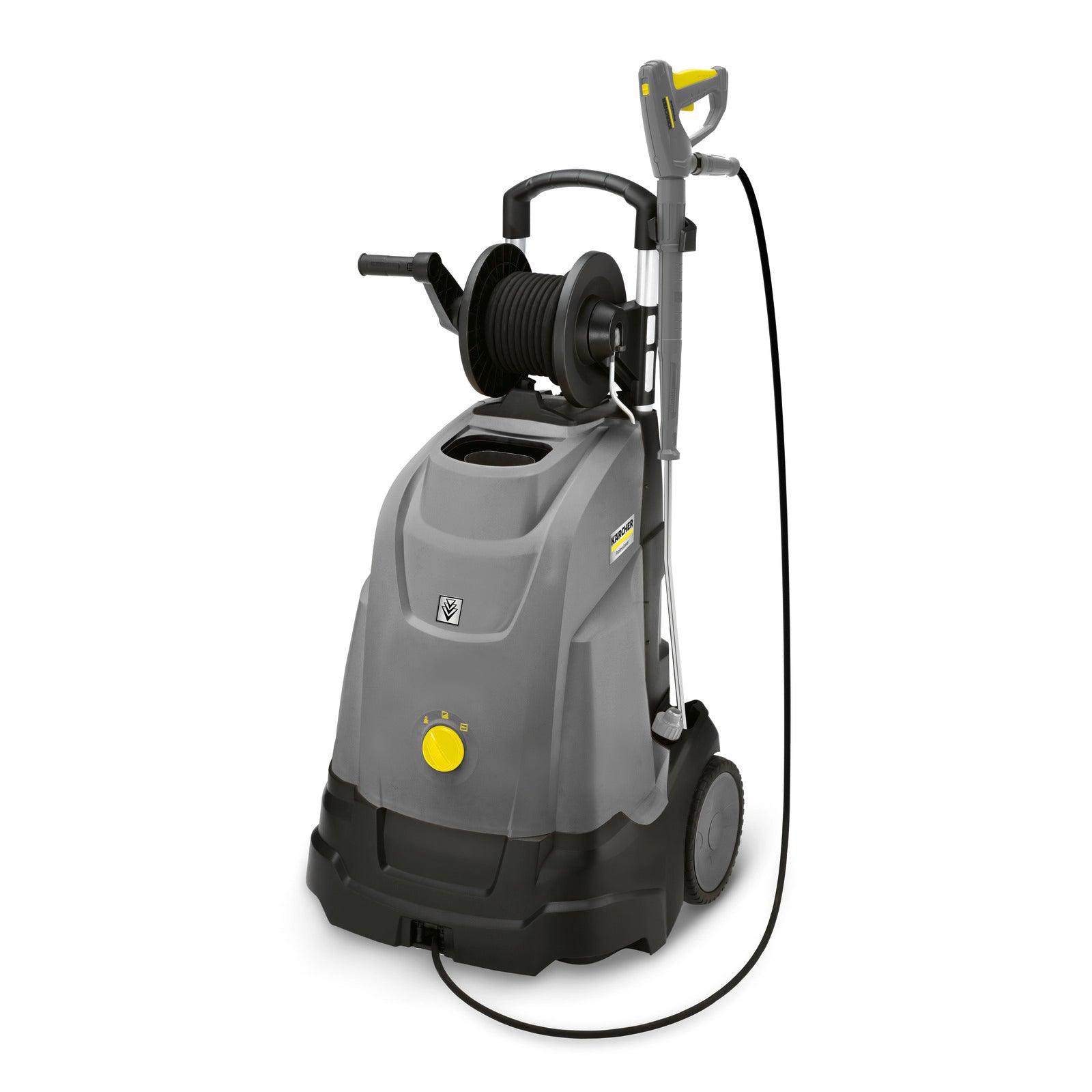

With a working pressure of 130 bar and a built-in hose reel with 15 m hose, the affordable HDS 5/13 UX hot water high-pressure cleaner impresses with an innovative upright design.
The HDS 5/13 UX: the entry-level model in the class of hot water high-pressure cleaners impresses with its sophisticated and innovative upright design. This type of horizontal machine design results in reduced weight and very compact dimensions. This makes the machine very easy to transport in country trailers and – thanks to the large wheels and push handle – very mobile on uneven surfaces. Highly effective cleaning performance is guaranteed by the combination of patented nozzle technology, turbo fan, increased pump efficiency and a powerful dirt remover. With the EASY!Force high-pressure gun, which uses the recoil force of the high-pressure jet to reduce the holding force for the operator to zero, and the EASY!Lock quick-release couplings, which make setting up and dismantling five times faster than with conventional screw couplings, the machine is very comfortable to use. Easy operation, storage options for the hose and spray lance and a built-in hose reel with 15 meters of high-pressure hose complete the machine's extensive equipment.
Features and benefits
Compact design
Space-saving storage and transport. Spill-proof pump and fuel tank for horizontal transport. Also ideal for smaller service vehicles.
Water fine filter
Effectively protects the high-pressure pump against contamination. Easy to remove from the outside.
Integrated hose reel
Safe and convenient storage of the pressure hose. Guarantees ergonomic use. Reduced setup times.Innovative upright design
- Easy transport over steps or stairs.
- Large wheels for unpaved surfaces.
Save time and energy: EASY!Force high-pressure gun and EASY!Lock quick-release couplings
- Finally, work without fatigue: the EASY!Force high-pressure gun.
- EASY!Lock Quick-release couplings: durable and robust. And five times faster than screws.
Specifications
Technical data
| Power supply (phase/V/ Hz ) | 1 / 230 / 50 |
| Flow rate (l/h) | 500 |
| Working pressure (bar/MPa) | 125 / 12.5 |
| Temperature (°C) | max. 80 |
| Connected power (kW) | 2.6 |
| Fuel oil or gas consumption at full load (kg/h) | 3.1 |
| Fuel tank (l) | 6.5 |
| Paint | anthracite |
| Weight (with accessories) (kg) | 73.9 |
| Weight incl. packaging (kg) | 83.1 |
| Dimensions (L × W × H) (mm) | 618 x 1163 x 994 |
Scope of delivery
- Spray gun: EASY!Force Advanced
- High pressure hose length: 15 m
- Spray tube: 840 mm
Equipment
- Integrated high-pressure hose reel
- Pressure shut-off
