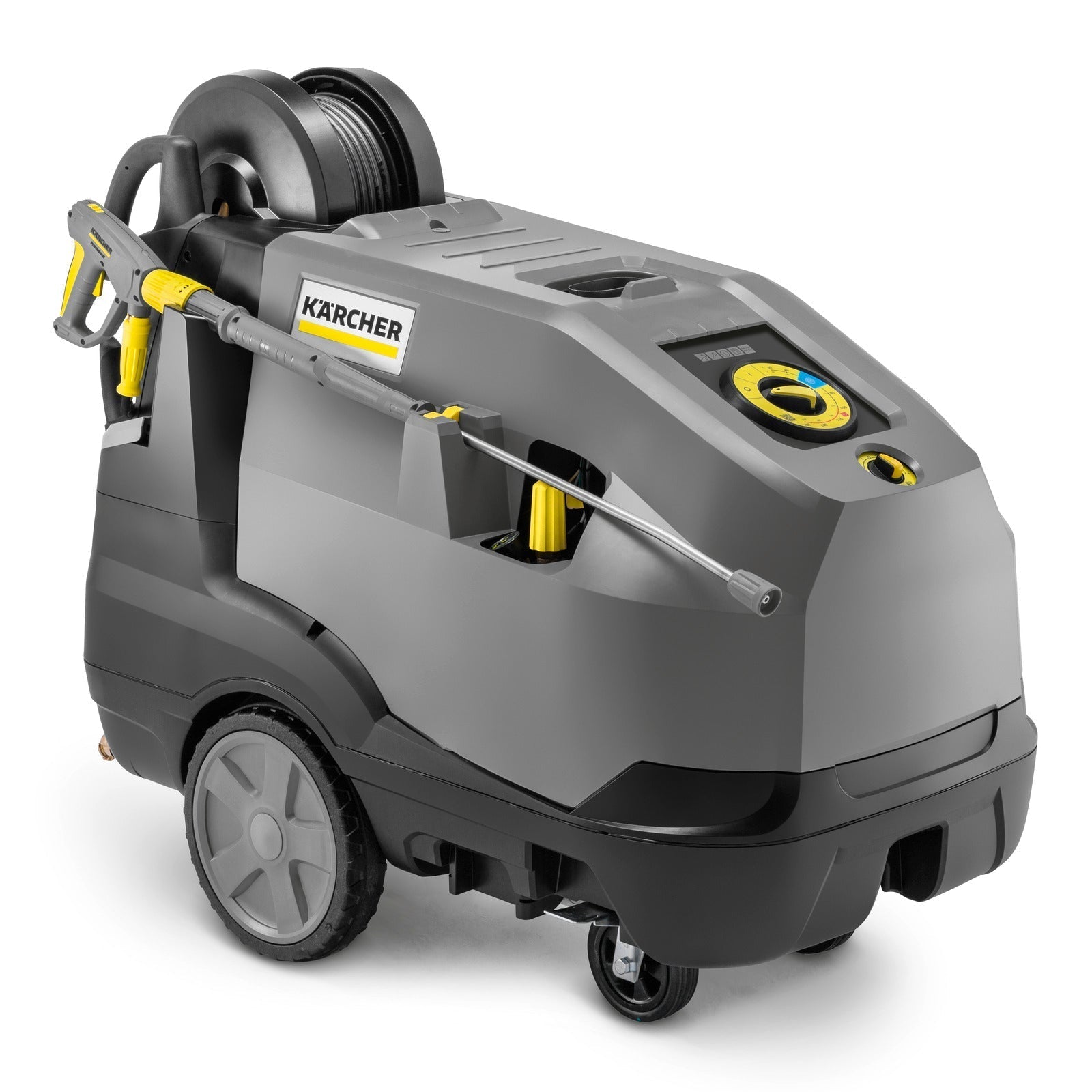

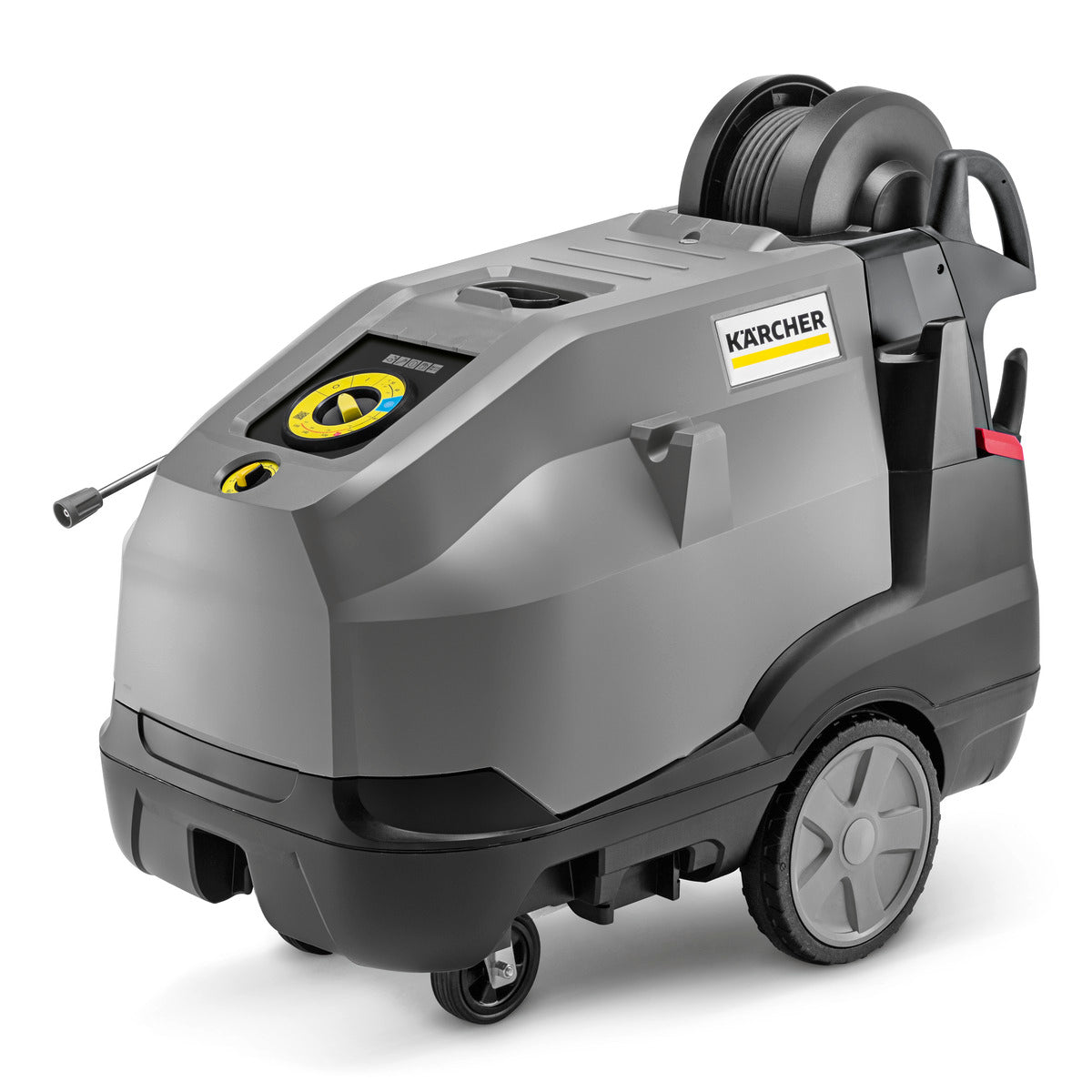

Kärcher High Pressure Washers HDS 13/20-4 SXA
Couldn't load pickup availability
Super class hot water high pressure washer: with automatic hose reel as standard, including 20 m Teflon-coated Ultra Guard HP hose and 2 detergent tanks.
Extremely powerful, extremely well-equipped, extremely user-friendly – the HDS 13/20-4 SXA hot water high-pressure cleaner with automatic hose reel and integrated Ultra Guard HP hose. The hose reel enables the 20-metre long, Teflon-coated hose to be rolled up and down at an angle of up to 45° and also reduces the usual set-up time by around half. High-quality components such as the water-cooled 4-pole electric motor, the robust 3-piston axial pump with ceramic piston, optimised burner technology and the economical eco!efficiency mode ensure maximum durability and economy. Thanks to the energy-saving EASY!Force Advanced HP high-pressure gun with servo control and the 1050 millimetre spray lance with patented nozzle technology, the machine also impresses with its user-friendly ergonomics for fatigue-free work. In addition, the HDS 13/20-4 SXA can be operated intuitively with just one button, is very easy to maintain and is equipped with sophisticated safety components as well as practical storage options for accessories.
Features and benefits

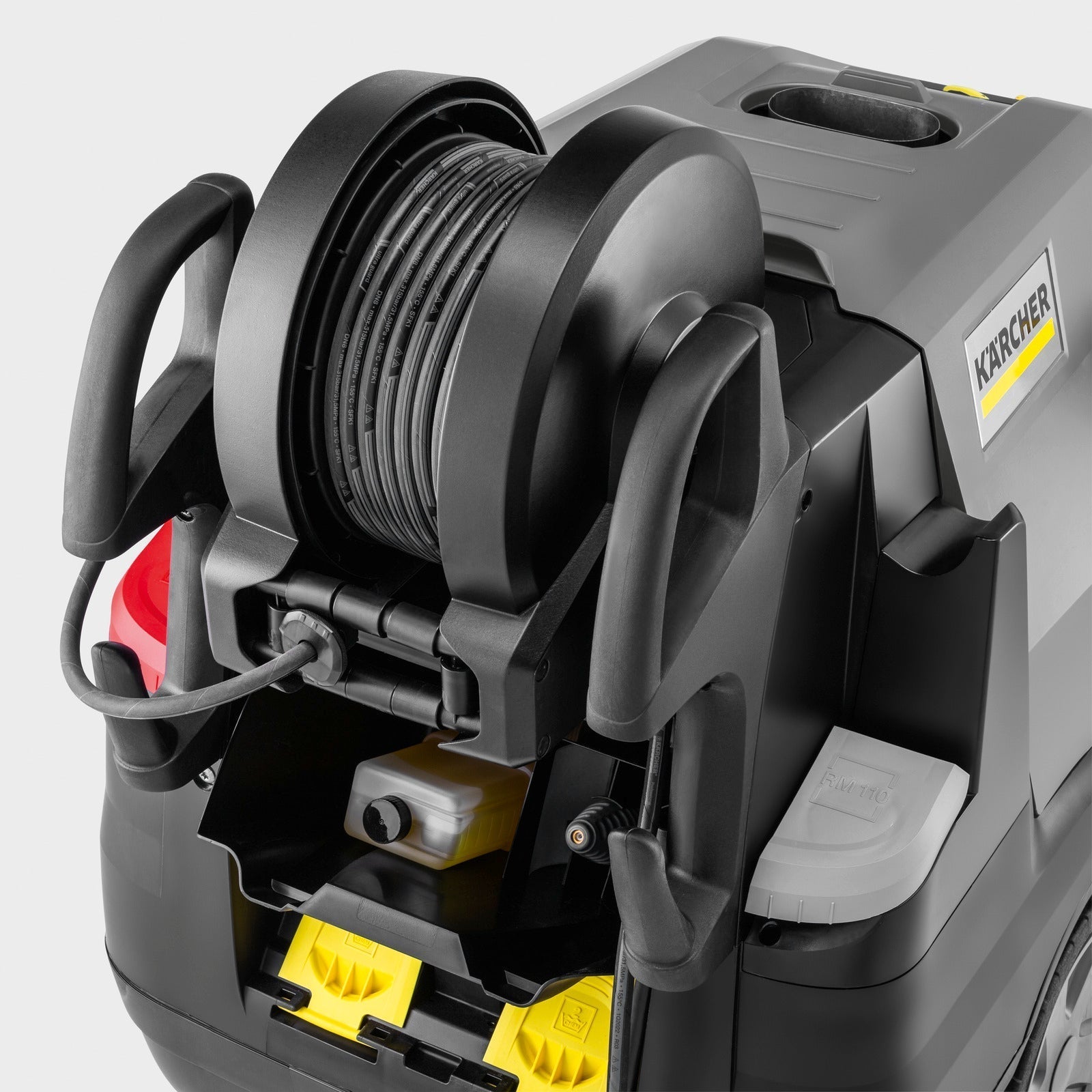

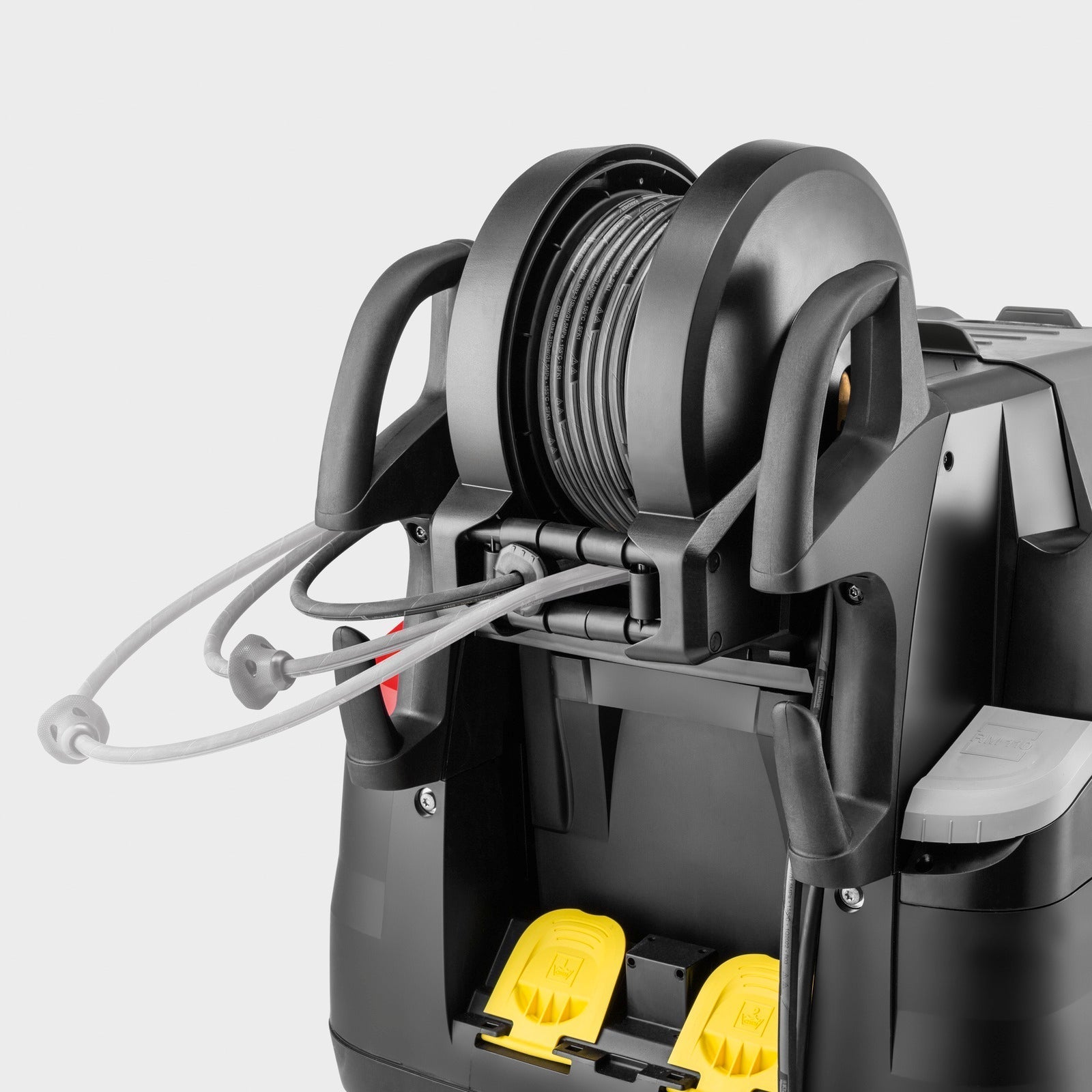

Automatic hose reel
- Enables a reduction in setup times by over 50%.
- Allows the hose to be wound and unwound at an angle of up to 45°, even under pressure.
Wide range of accessories with EASY!Lock
- EASY!Force Advanced for fatigue-free work without holding force.
- Pressure and water flow can be adjusted with the Servo Control located between the spray lance and the gun.
- Rotating 1050 mm stainless steel lance.
High efficiency
- In eco!efficiency mode, the machine operates in the most economical temperature range (60 °C) – with full water flow.
- The burner cycles are optimized to reduce fuel consumption by 20% compared to full load.
Maximum efficiency
- Highly efficient, proven "Made in Germany" burner technology.
- 4-pole electric motor with 3-piston axial pump.
- Water-cooled motor for high performance and long life.
Operational reliability
- Easily accessible water filter protects the pump against dirt particles in the water.
- Safety valves, water shortage and fuel protection ensure the machine's availability.
- Soft Damping System (SDS) compensates for vibrations and pressure peaks in the high-pressure system.
Multiple storage spaces for accessories integrated into the machine
- Built-in storage for all accessories. Includes 2 hooks for suction hose and power cord.
- Spacious storage compartment, e.g. for detergent, gloves or tools.

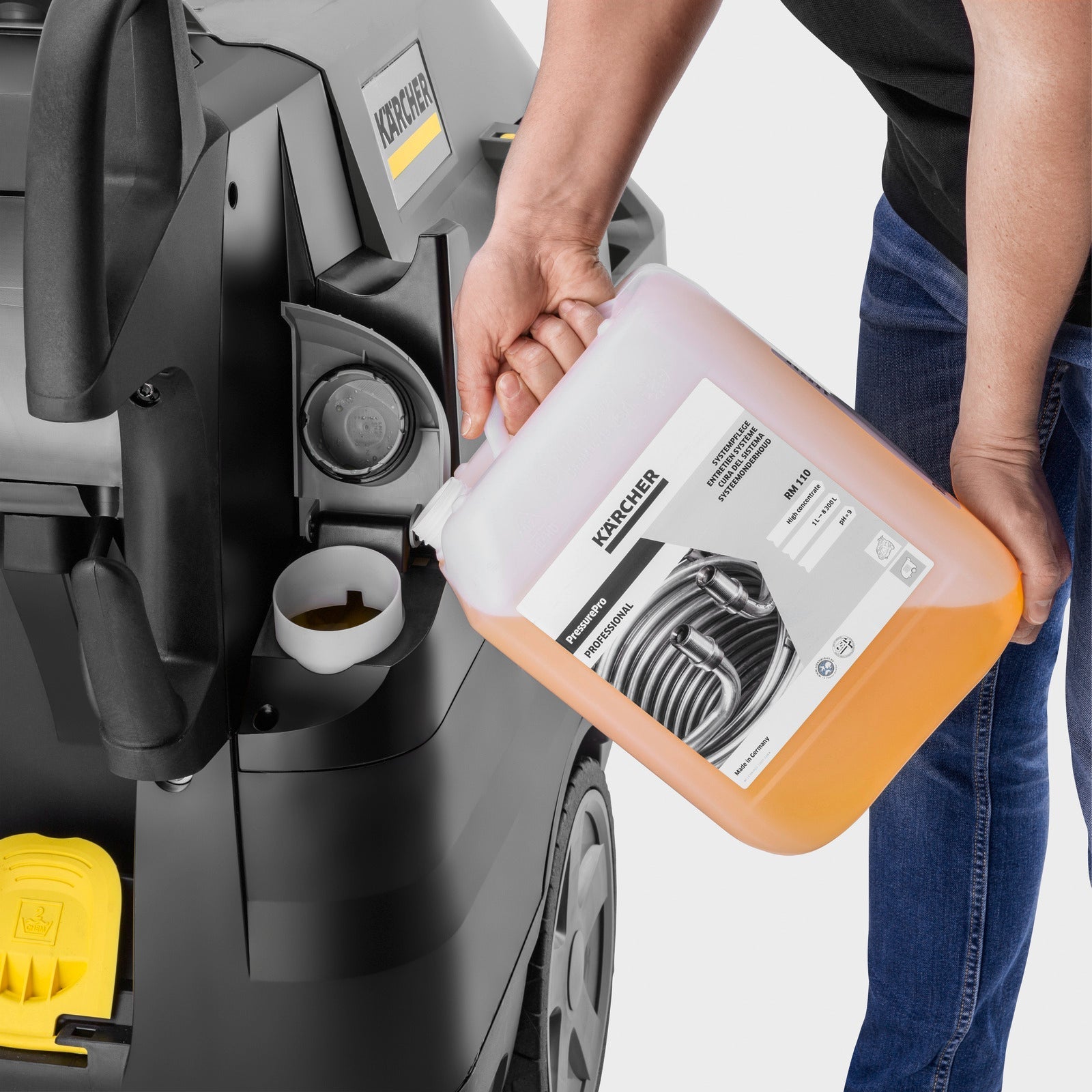

Detergent dosing unit
- Easy to switch between detergent tanks 1 and 2.
- Precise dosing unit for detergent with rinse aid function.
- Precise dosing valve ensures low consumption.

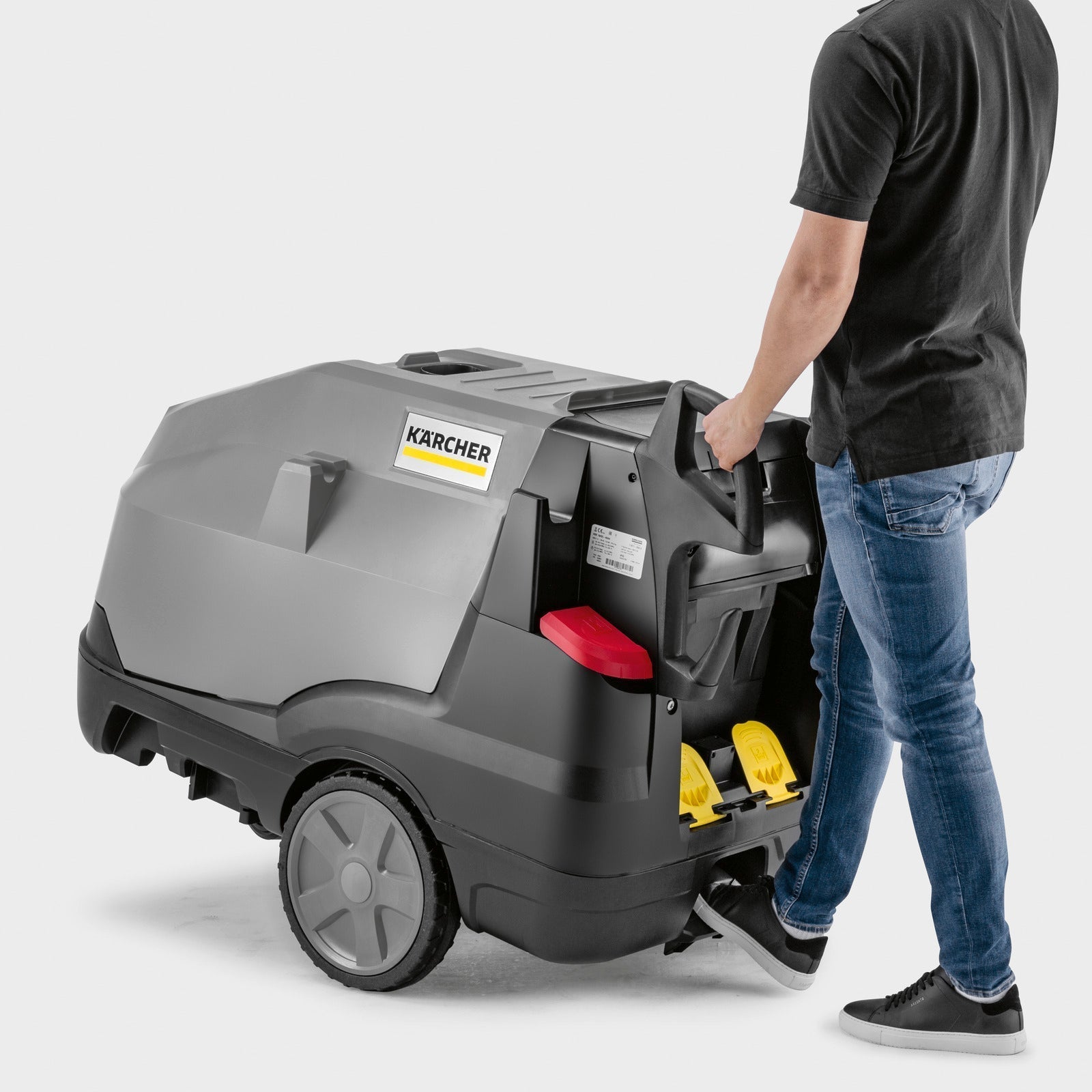

Mobility concept
- "Jogger" design with large rubber wheels and guide roller.
- Integrated tipping tray for easy transport over ledges.
- Push handle for easy transport and maneuverability.

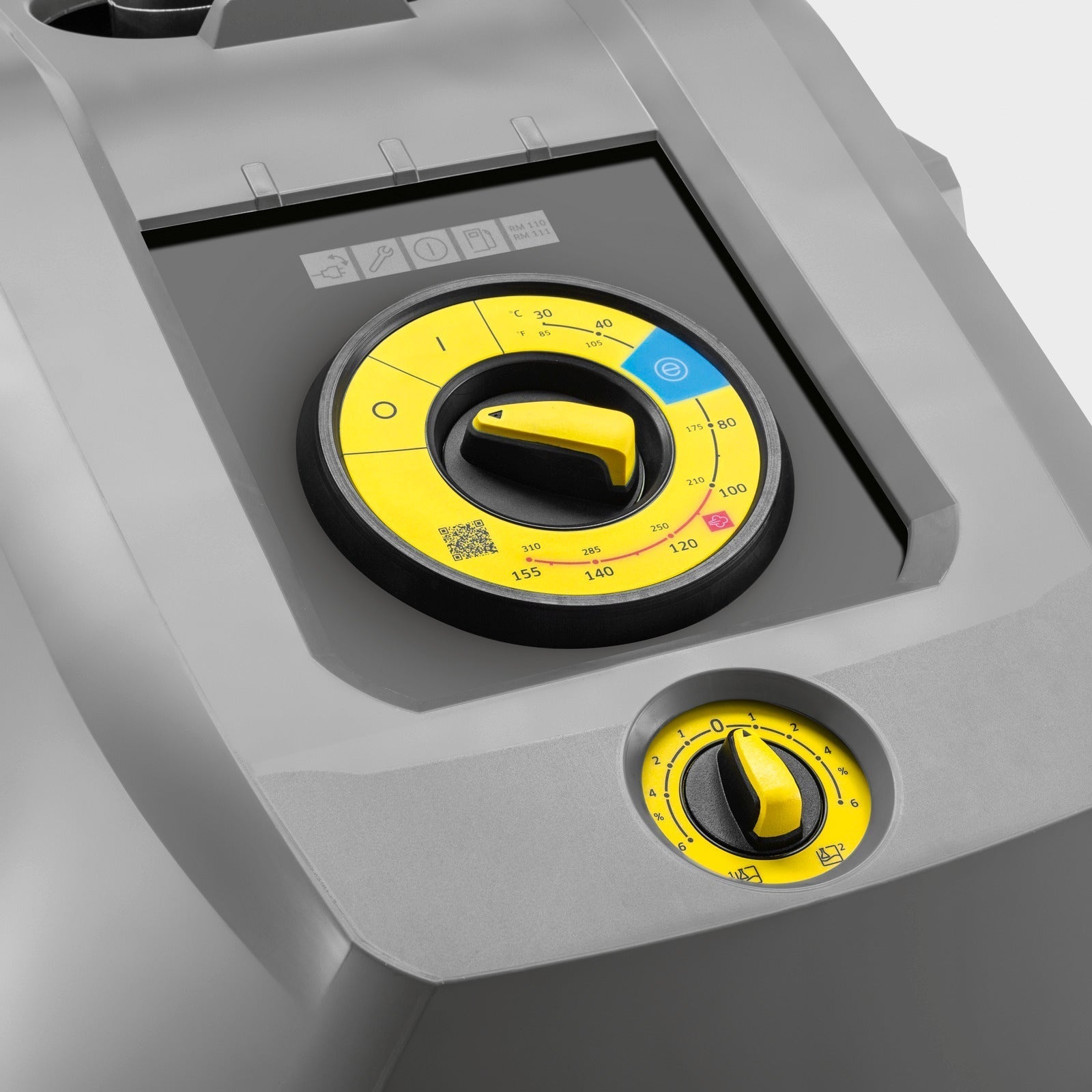

Easy-to-use controls

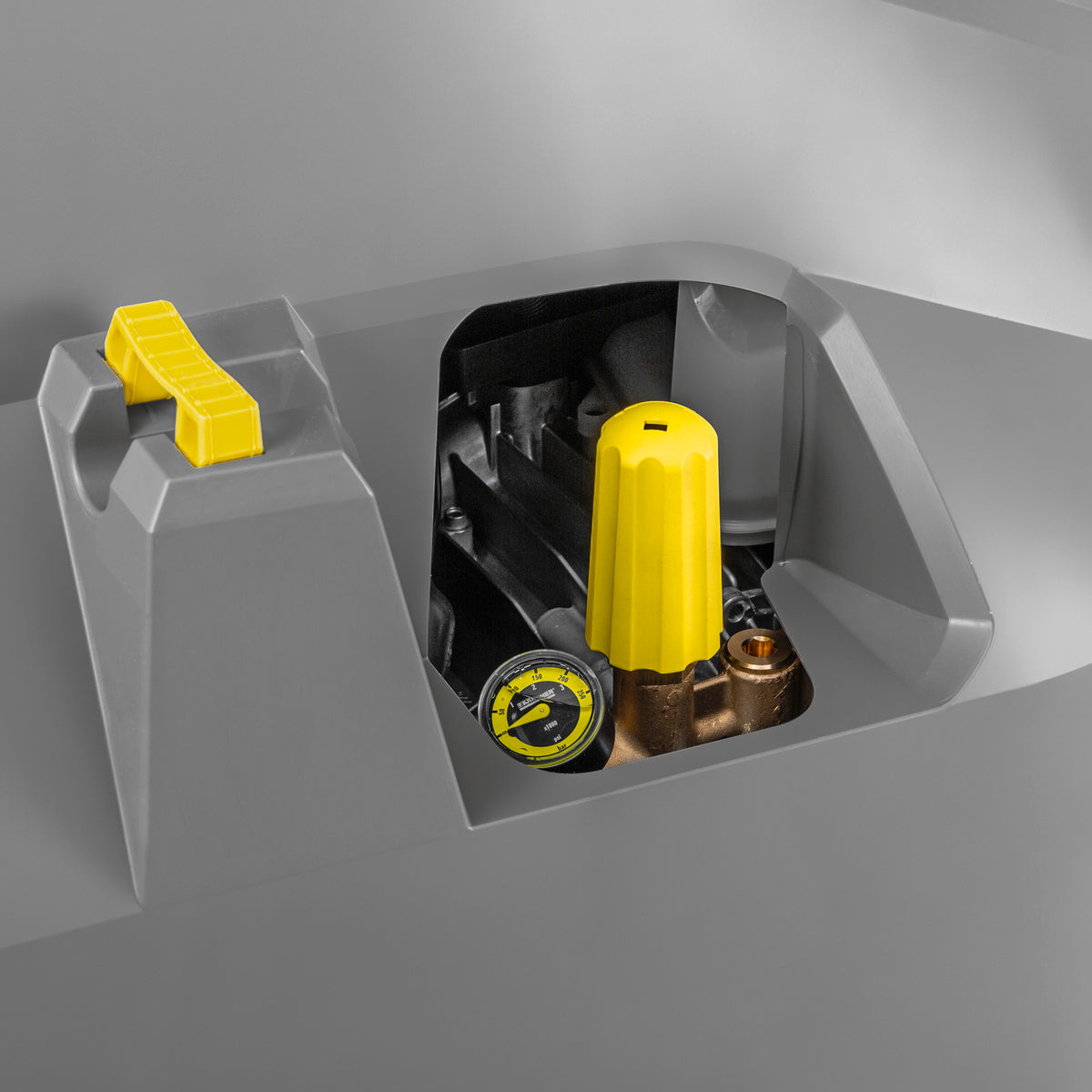

- The steam level can be selected by infinitely adjusting the water pressure/volume at the pump.
- Simple and intuitive 1-button operation.
Specifications
Technical data
| Power supply (phase/V/ Hz ) | 3/400/50 |
| Flow rate (l/h) | 600–1300 |
| Working pressure (bar/MPa) | 30–200 / 3–20 |
| Temperature (for inlet 12 °C) (°C) | min. 80 - max. 155 |
| Fuel oil or gas consumption at full load (kg/h) | 9.5 |
| Fuel oil consumption in eco!efficiency mode (kg/h) | 7.6 |
| Connected power (kW) | 9.5 |
| Power cable (m) | 5 |
| Fuel tank (l) | 25 |
| Weight (with accessories) (kg) | 198 |
| Weight incl. packaging (kg) | 210.2 |
| Dimensions (L × W × H) (mm) | 1330 × 750 × 1210 |
Scope of delivery
- Spray gun: EASY!Force Advanced
- High pressure hose length: 20 m

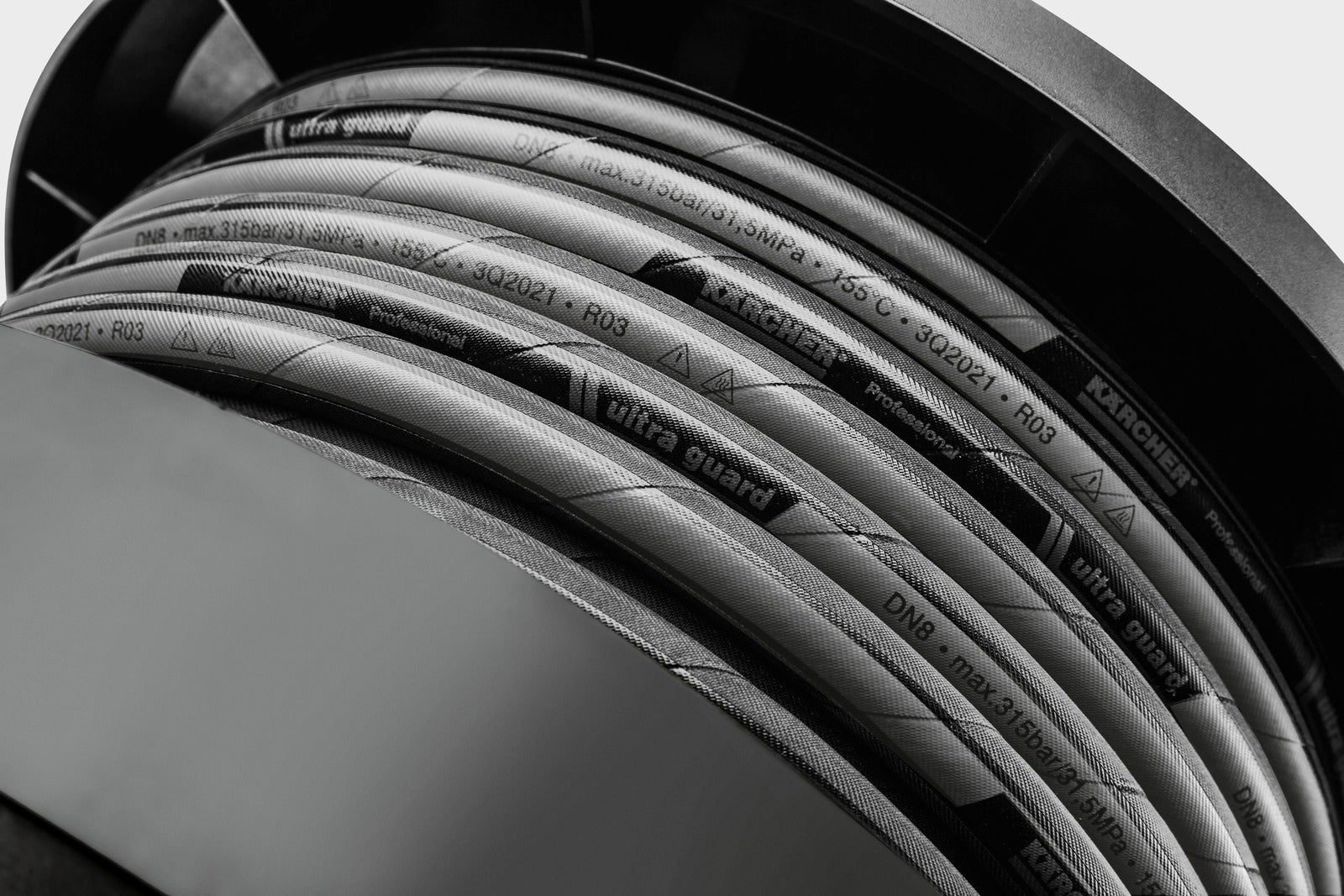

- High pressure hose specification: DN 8, 315 bar
- Spray pipe: 1050 mm
- Power nozzle
- Servo control
Equipment
- Integrated automatic hose reel
- Pressure shut-off
- Option for operation with 2 spray pipes
- Reverse polarity plug (3~)
- Soft Damping System (SDS)
- 2 detergent tanks
- Dry running protection

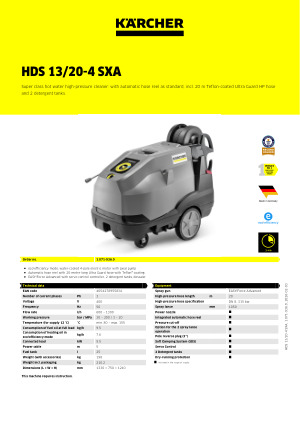

Document
