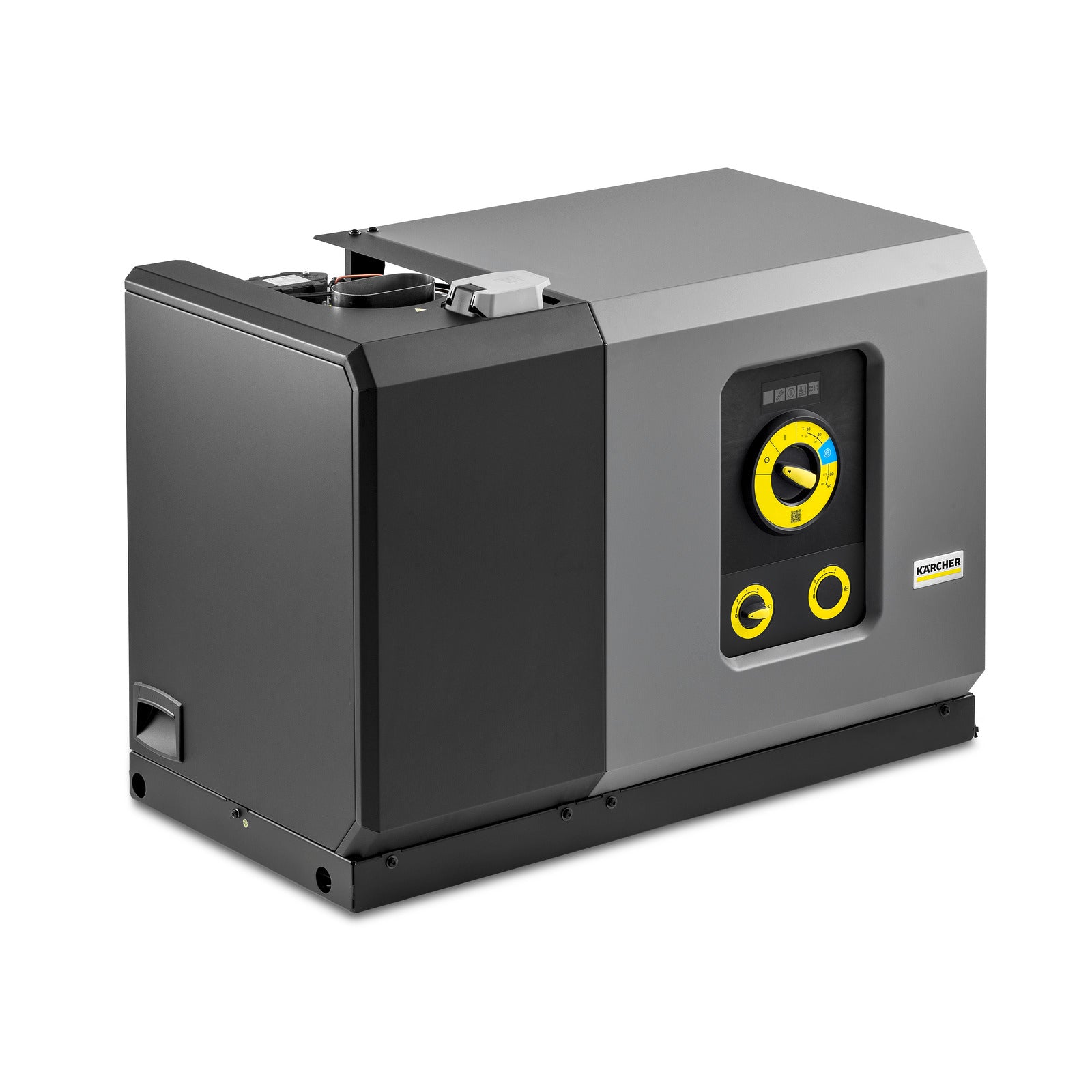

Kärcher High Pressure Washer HDS 13/20 -4 pcs EU-I
Couldn't load pickup availability
Designed for continuous use without compromise: the HDS 13/20-4 St stationary hot water cleaner with oil boiler cleans by delivering up to 1300 liters of water per hour at 200 bar pressure.
The HDS 13/20-4 St is a stationary hot water cleaner with oil boiler. The 4-pole, low-speed electric motor produces high power for uncompromising continuous use in tough conditions. The robust crankshaft pump with bronze cylinder head enables cleaning with up to 1300 liters of water per hour at a pressure of 200 bar. A large water filter protects the pump from dirt particles. The integrated water tank has limescale protection. The detergent is taken up and dosed precisely via a valve, and an indicator shows when the detergent is running low. Electronic monitoring of the oil boiler and the overall technology ensures high operational reliability. An intuitive rotary switch or optional remote control makes operation simple, and service and maintenance work is also user-friendly. With a wide range of accessories available, the HDS 13/20-4 St can be adapted to suit a wide range of cleaning tasks. The machine can be supplemented with a pressure gauge and hour meter, a second detergent dosing unit and a pressure relief system.
Features and benefits
High-performance crankshaft pump
- Robust crankshaft pump with brass cylinder head and high-quality materials ensure a long service life
- Kärcher's reliable and durable high-performance crankshaft pump ensures optimal pressure.
- Longer life, less maintenance and lower costs. Perfect for industrial use.
High quality equipment
Electronic monitoring for increased operational reliability.
- Disconnection in case of leakage or phase failure.
- Automatic undervoltage and overvoltage protection.
- Automatic burner stop at low water level, overheating protection.
Easy to use.
- Just one rotary switch ensures easy use of all functions without long training times.
- Self-explanatory symbols make the instrument easy to understand and simplify work considerably.
Very flexible
- Can be controlled with remote control as an option.
Simple maintenance and easy to service
- Easy accessibility for all service and maintenance tasks
- Extensive service network with highly trained technicians
Specifications
Technical data
| Mains voltage (Ph/V/ Hz ) | 3 / 400 / 50 |
| Flow rate (l/h) | min. 700 - max. 1300 |
| Working pressure (bar) | 200 |
| Max pressure (bar) | 235 |
| Temperature (input 12° C) (°C) | Max. 80 |
| Inlet temperature (°C) | Max. 30 |
| Power (kW) | 9.5 |
| Fuel oil consumption, full load (kg/h) | 9.1 |
| Power cable (m) | 5 |
| Water supply | 1″ |
| number of simultaneous users | 1 |
| Mobile | Stationary |
| Protection (A) | 25 |
| Weight (with accessories) (kg) | 160 |
| Weight incl. packaging (kg) | 170 |
| Dimensions (L × W × H) (mm) | 1142 x 578 x 790 |
The following is included
- Flame monitoring
- Prepared for Servo Control
- Prepared for remote control
- Power nozzle
- Detergent function: Suction
Standard equipment
- Oil dipstick
- Oil level gauge
- Prepared for chemical inlet
- RM1 dosage
- Dry running protection
- Large water filter
- Water tank with float valve
- Crankshaft pump with ceramic pistons
- Water-cooled engine
Areas of use
- Cleaning of tractors, machinery and accessories in agriculture
- Versatile applications in industrial environments, e.g. for cleaning production facilities
- High-pressure cleaning of machinery and equipment in the construction, agricultural and municipal sectors.
- Suitable for use in production halls, warehouses, logistics buildings and heavy industry facilities
- Intensive high-pressure cleaning for extreme soiling in agriculture and the construction industry.
- Suitable for cleaning machines and vehicles.
- Agriculture
- Building contractors
- Optimal for car repair shops, car rentals, car washes, property services, craftsmen, smaller construction companies, small garages and agriculture
