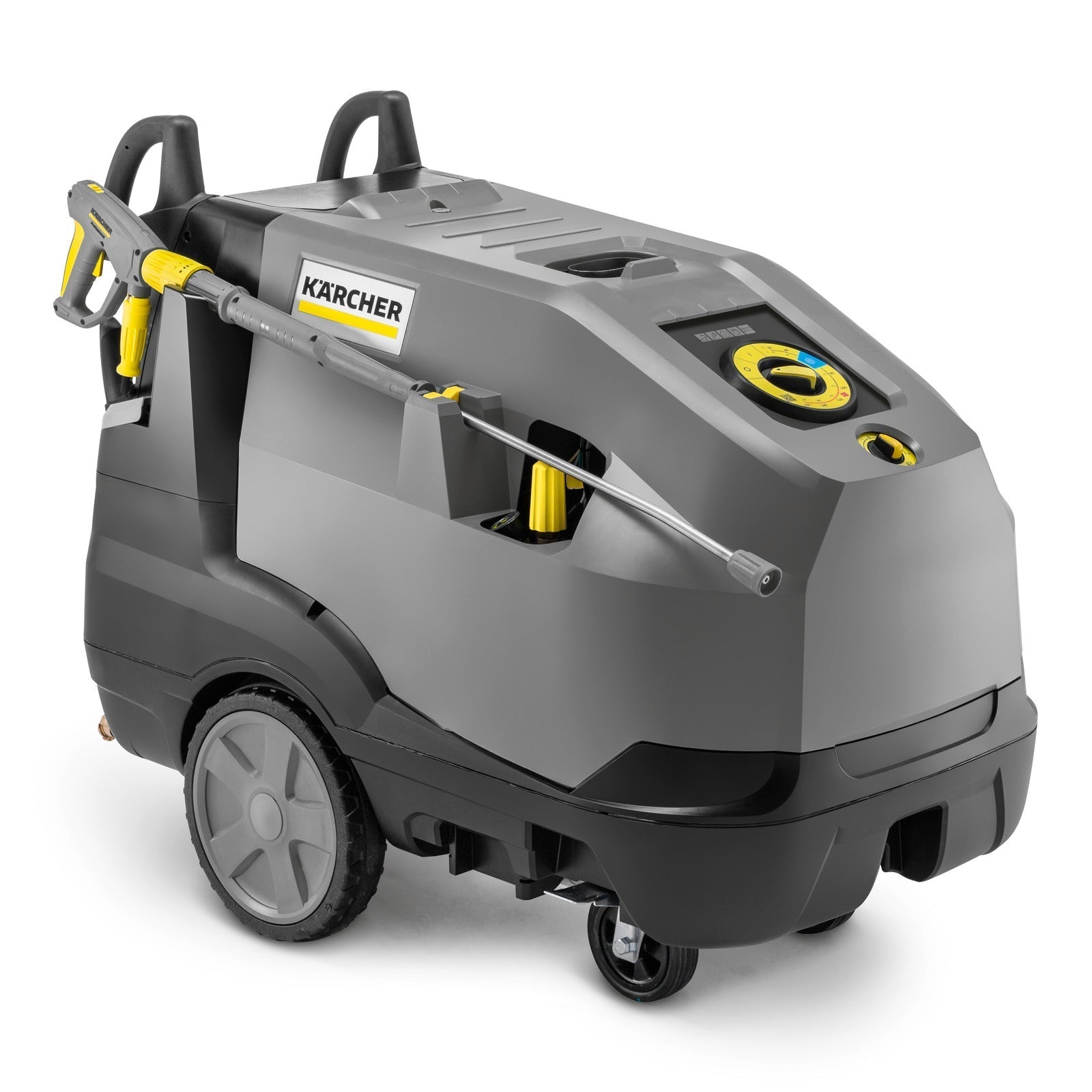

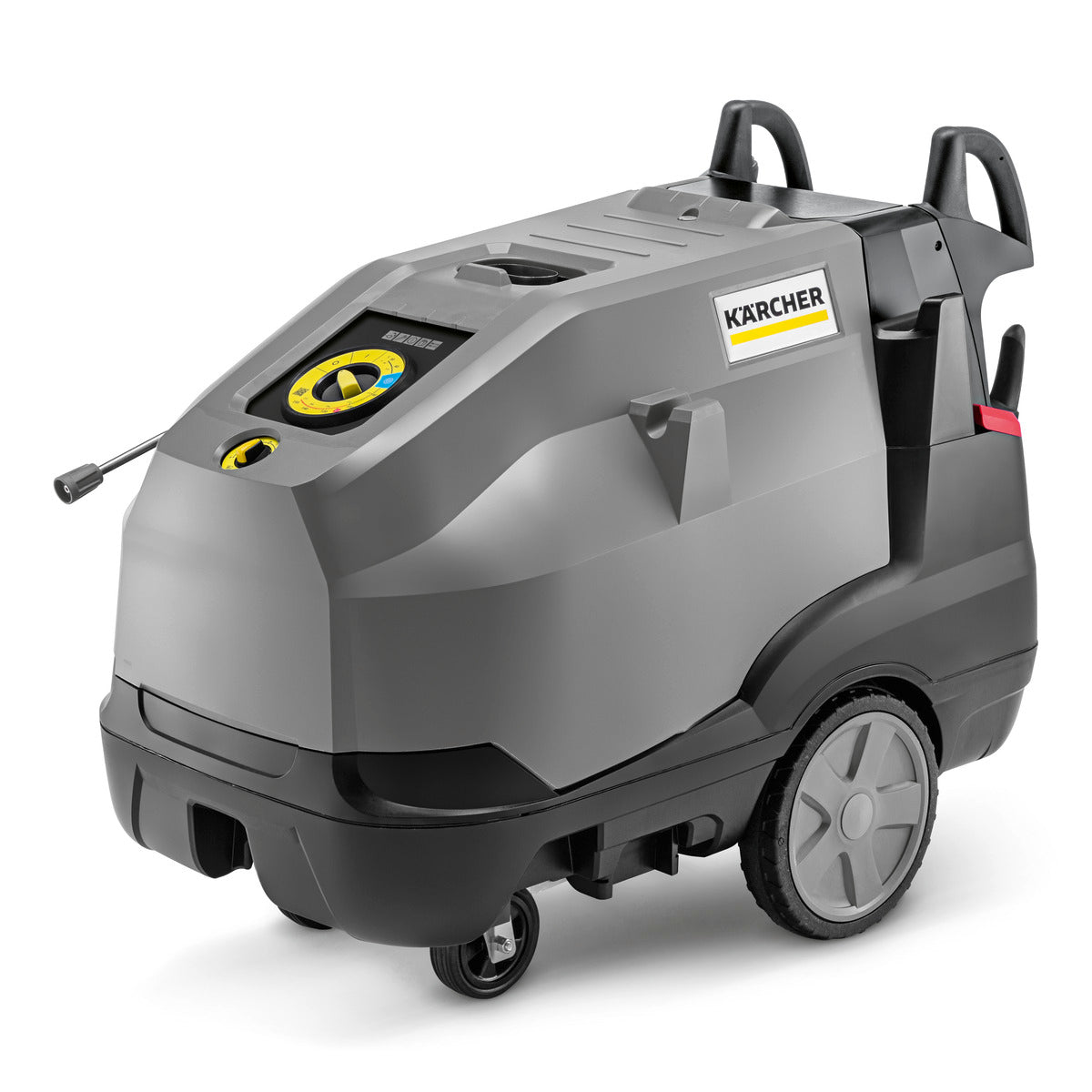

Kärcher High Pressure Washers HDS 13/20-4 S
Couldn't load pickup availability
For maximum performance in the toughest conditions: the super-class hot water high-pressure cleaner
As one of the most powerful machines in Kärcher's super class, the HDS 13/20-4 S hot water high-pressure cleaner impresses with the best possible cleaning results under the toughest operating conditions. High-quality components such as the low-speed, 4-pole, water-cooled electric motor and the robust 3-piston axial pump with ceramic piston ensure maximum quality, while the economical eco!efficiency mode ensures maximum efficiency. Very easy to use and maintain, ergonomically designed and easy to transport, the HDS 13/20-4 S also scores high marks when it comes to user-friendliness. This is underlined not least by the energy-saving EASY!Force Advanced HP high-pressure gun with servo control and the 1050 millimetre-long spray lance with patented nozzle technology. The optimised burner technology, 2 detergent tanks, comprehensive safety technology, time-saving EASY!Lock quick-release fasteners and sophisticated storage options for accessories round off the machine's extensive equipment package.
Features and benefits
High efficiency
In eco!efficiency mode, the machine operates in the most economical temperature range (60°C) – with full water flow. The burner cycles are optimized to reduce fuel consumption by 20% compared to full load operation.
Maximum efficiency
Highly efficient, proven burner technology "Made in Germany". 4-pole electric motor with 3-piston axial pump. Water-cooled motor for high performance and long service life.

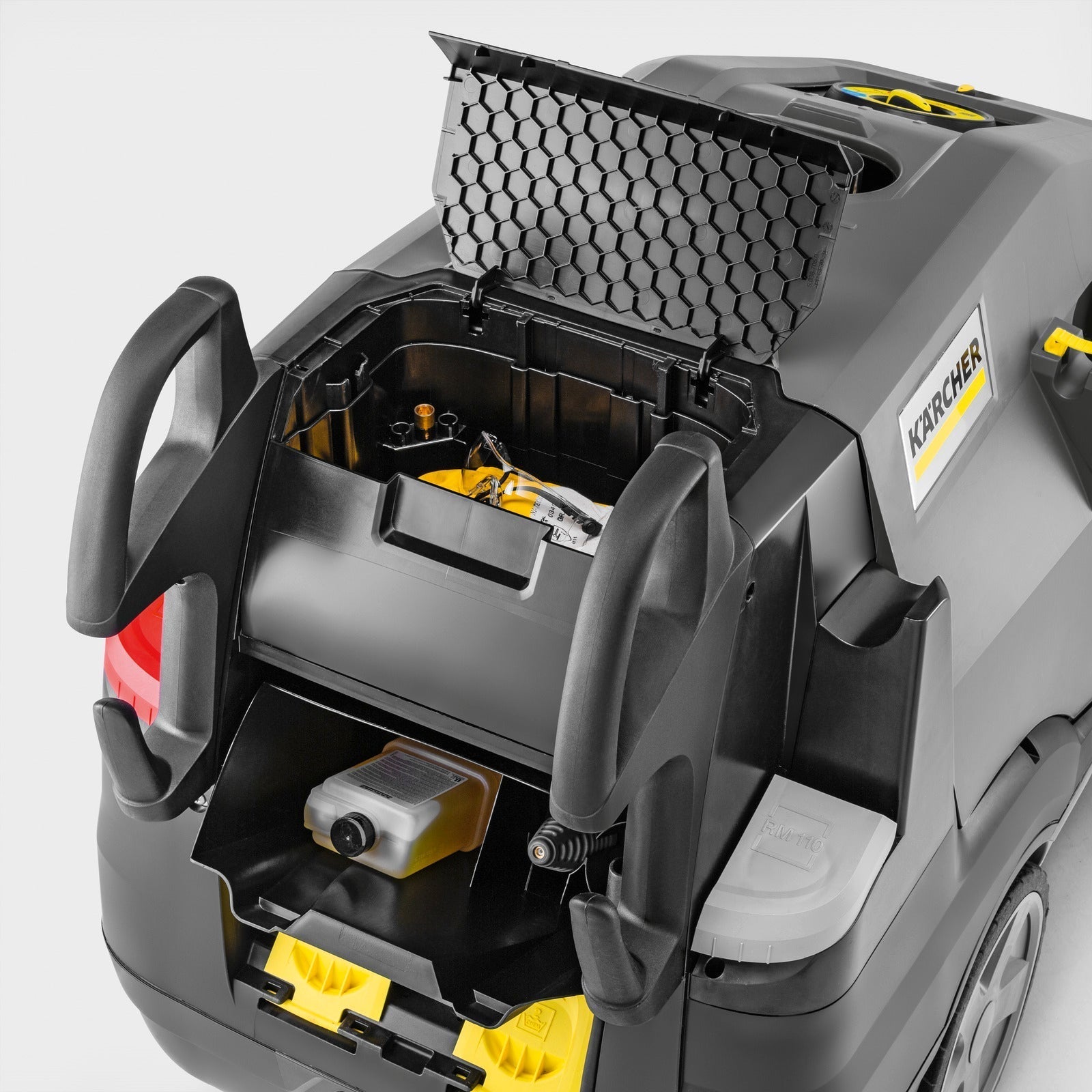

Multiple storage spaces for accessories integrated into the machine
Built-in storage for all accessories. Includes 2 hooks for suction hose and power cord. Spacious storage compartment, e.g. for cleaning agents, gloves or tools.Operational reliability
- Easily accessible water filter protects the pump against dirt particles in the water.
- Safety valves, water shortage and fuel protection ensure the machine's availability.

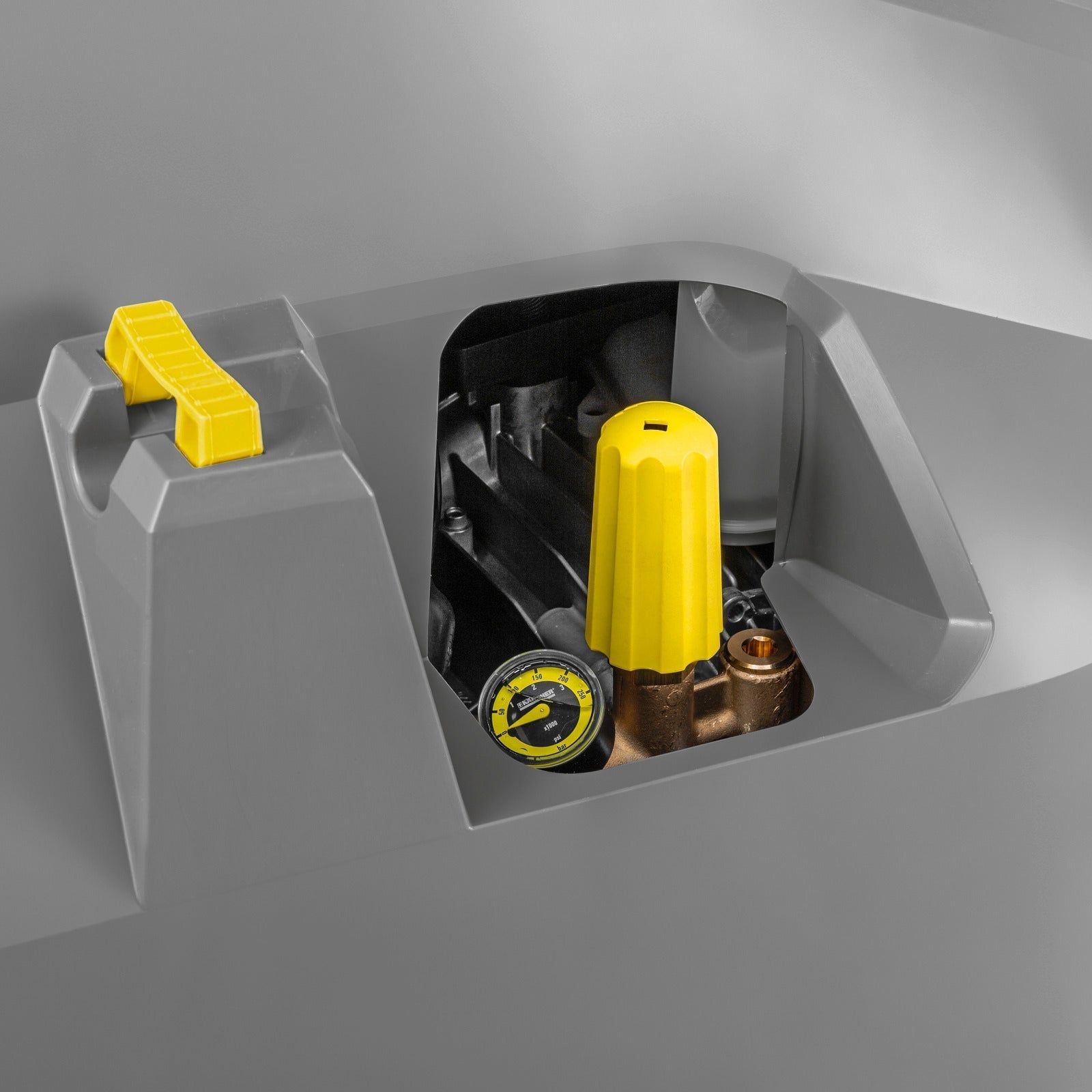

- Soft Damping System (SDS) compensates for vibrations and pressure peaks in the high-pressure system.
Wide range of accessories with EASY!Lock
- EASY!Force Advanced for fatigue-free work without holding force.
- Pressure and water flow can be adjusted with the Servo Control located between the spray lance and the gun.
- Rotating 1050 mm stainless steel lance.

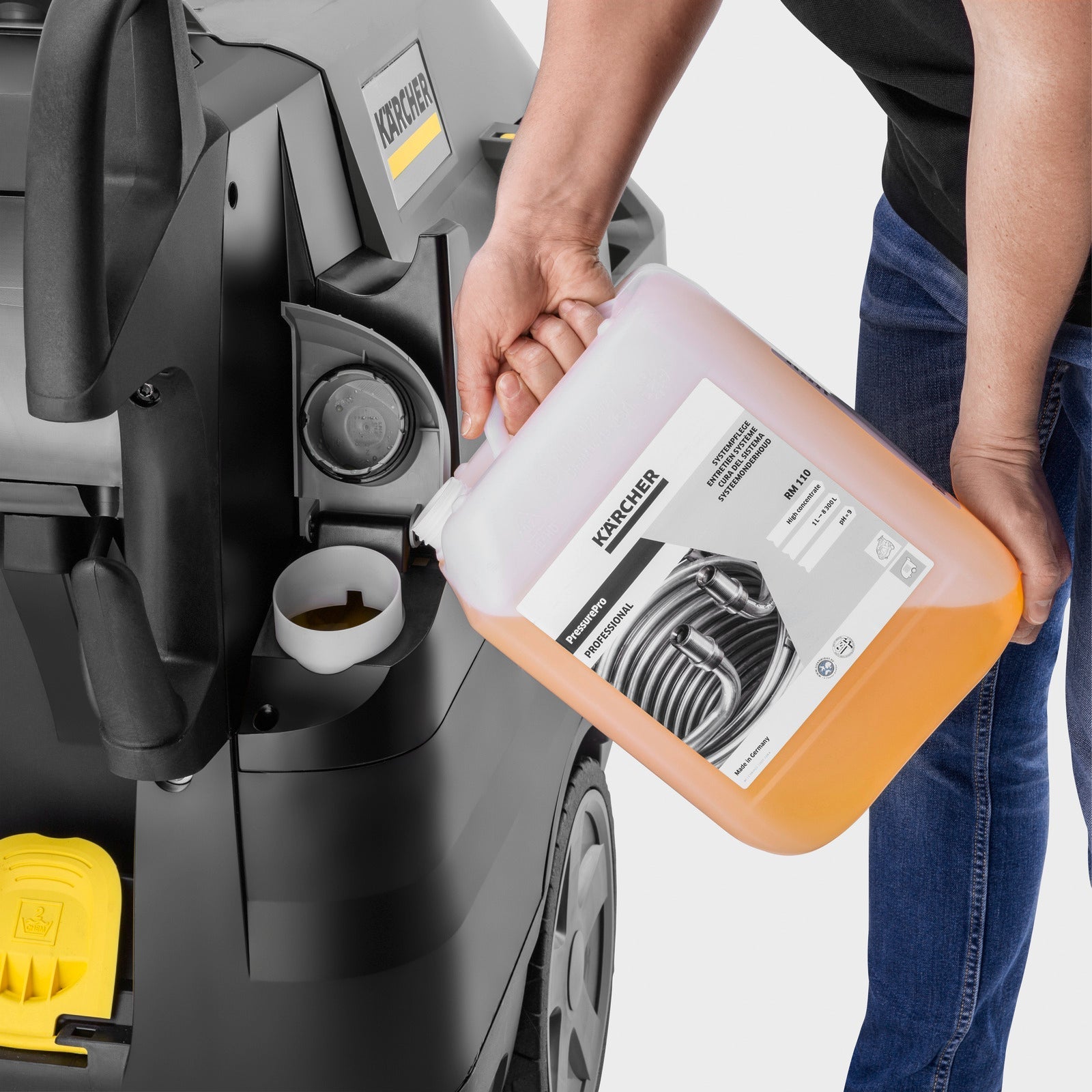

Detergent dosing unit
- Easy to switch between detergent tanks 1 and 2.
- Precise dosing unit for detergent with rinse aid function.

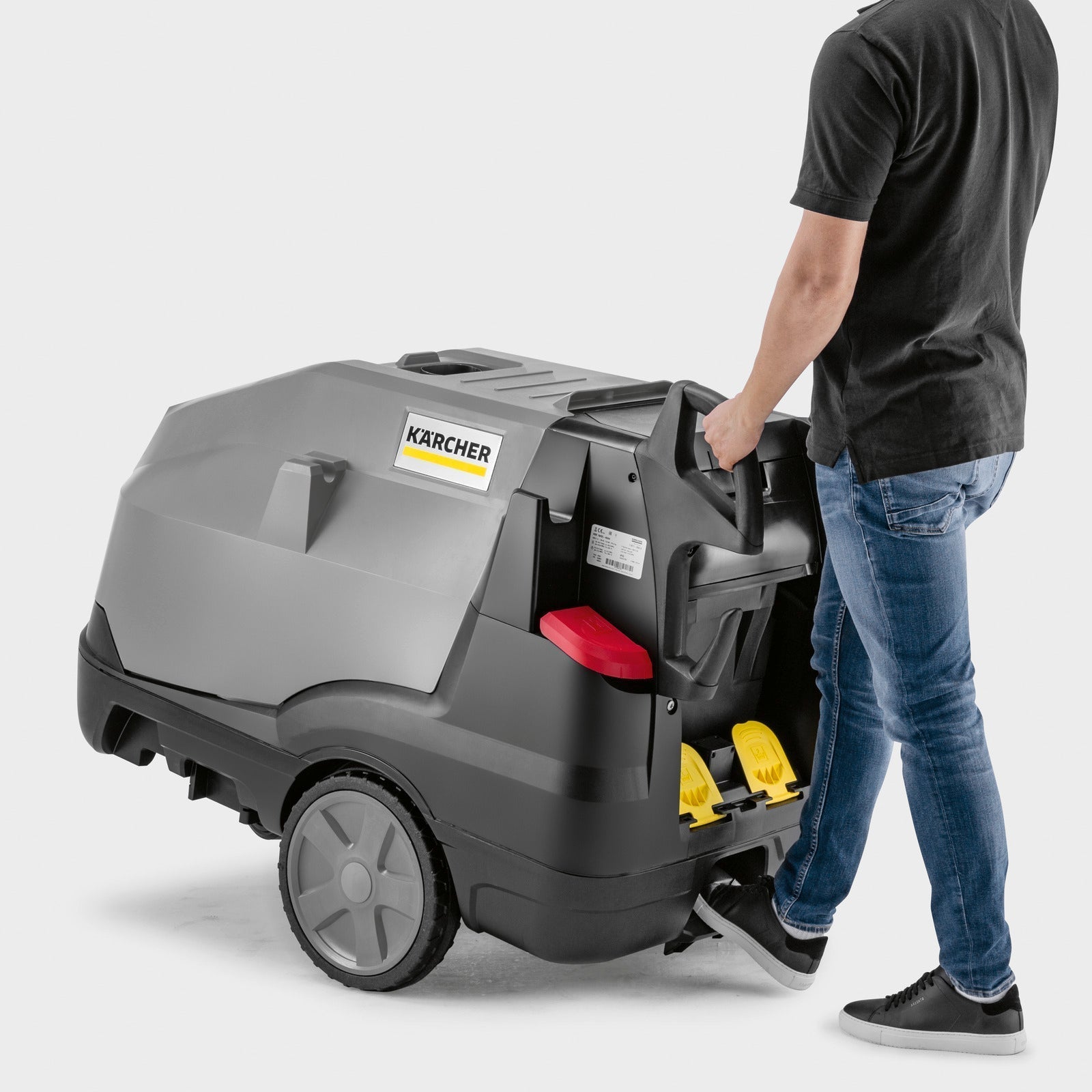

Mobility concept
- "Jogger" design with large rubber wheels and guide roller.
- Integrated tipping tray for easy transport over ledges.
- Push handle for easy transport and maneuverability.

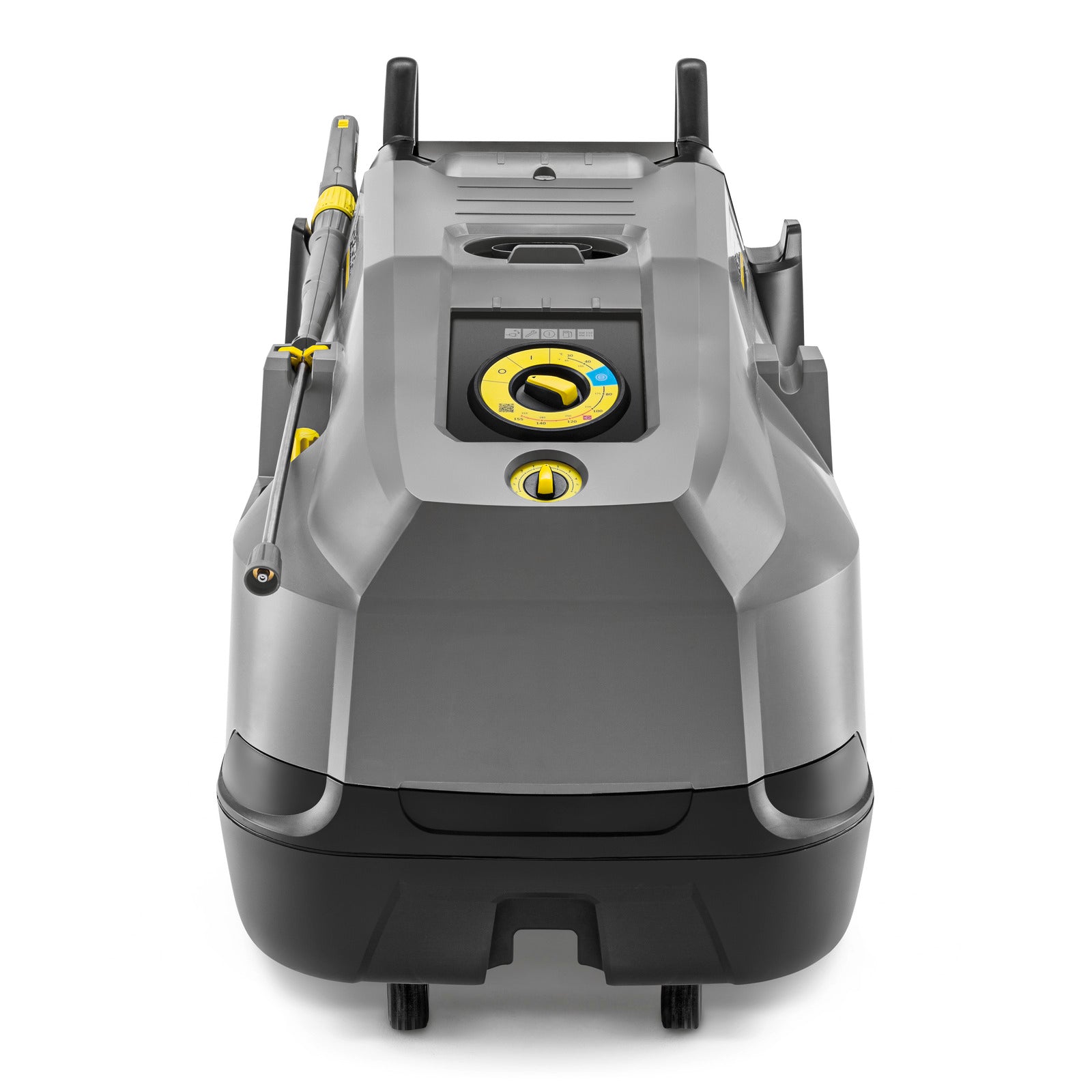

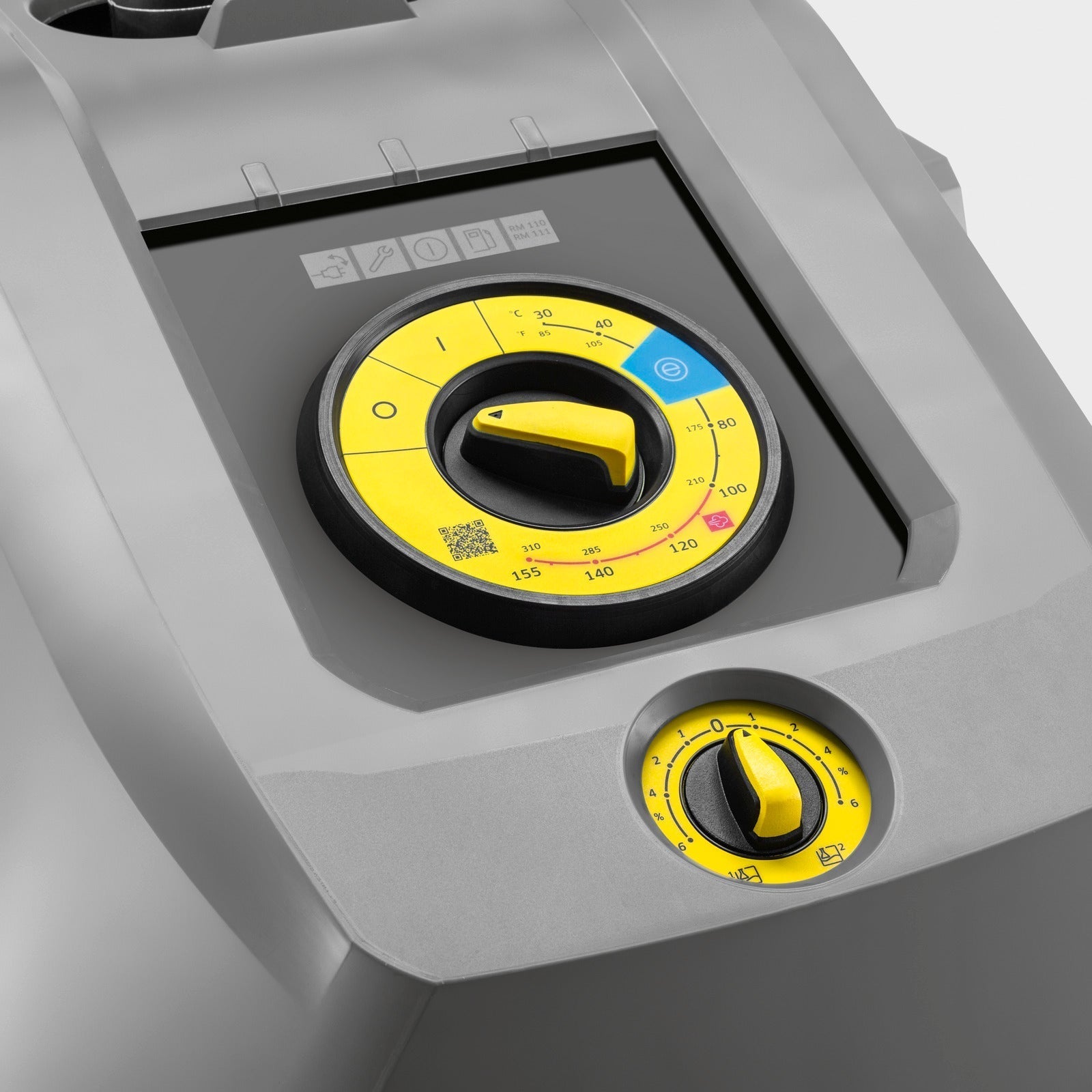

Easy-to-use controls
- One switch for all device functions.
Specifications
Technical data
| Power supply (phase/V/ Hz ) | 3/400/50 |
| Flow rate (l/h) | 600–1300 |
| Working pressure (bar/MPa) | 30–200 / 3–20 |
| Temperature (for inlet 12 °C) (°C) | min. 80 - max. 155 |
| Fuel oil or gas consumption at full load (kg/h) | 9.5 |
| Fuel oil consumption in eco!efficiency mode (kg/h) | 7.6 |
| Connected power (kW) | 9.5 |
| Power cable (m) | 5 |
| Fuel tank (l) | 25 |
| Weight (with accessories) (kg) | 206 |
| Weight incl. packaging (kg) | 215.9 |
| Dimensions (L × W × H) (mm) | 1330 x 750 x 1060 |
Scope of delivery
- Spray gun: EASY!Force Advanced
- High pressure hose length: 10 m
- High pressure hose type: Longlife
- High pressure hose specification: DN 8, 400 bar
- Spray pipe: 1050 mm
- Power nozzle
- Servo control
Equipment
- Pressure shut-off
- Option for operation with 2 spray pipes
- Reverse polarity plug (3~)
- Soft Damping System (SDS)
- 2 detergent tanks
- Dry running protection
Document

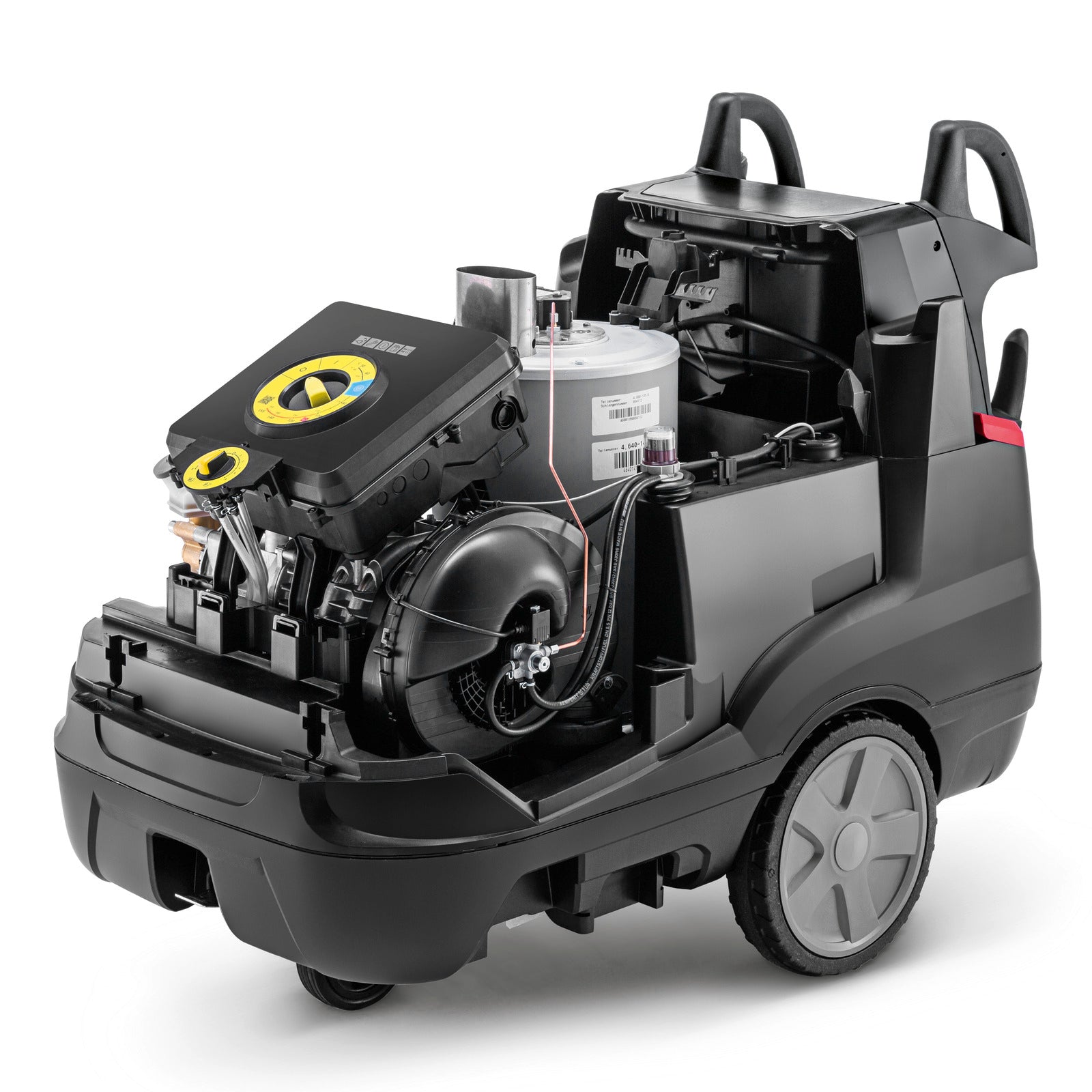

4-pole, water-cooled electric motor and robust 3-piston axial pump.
