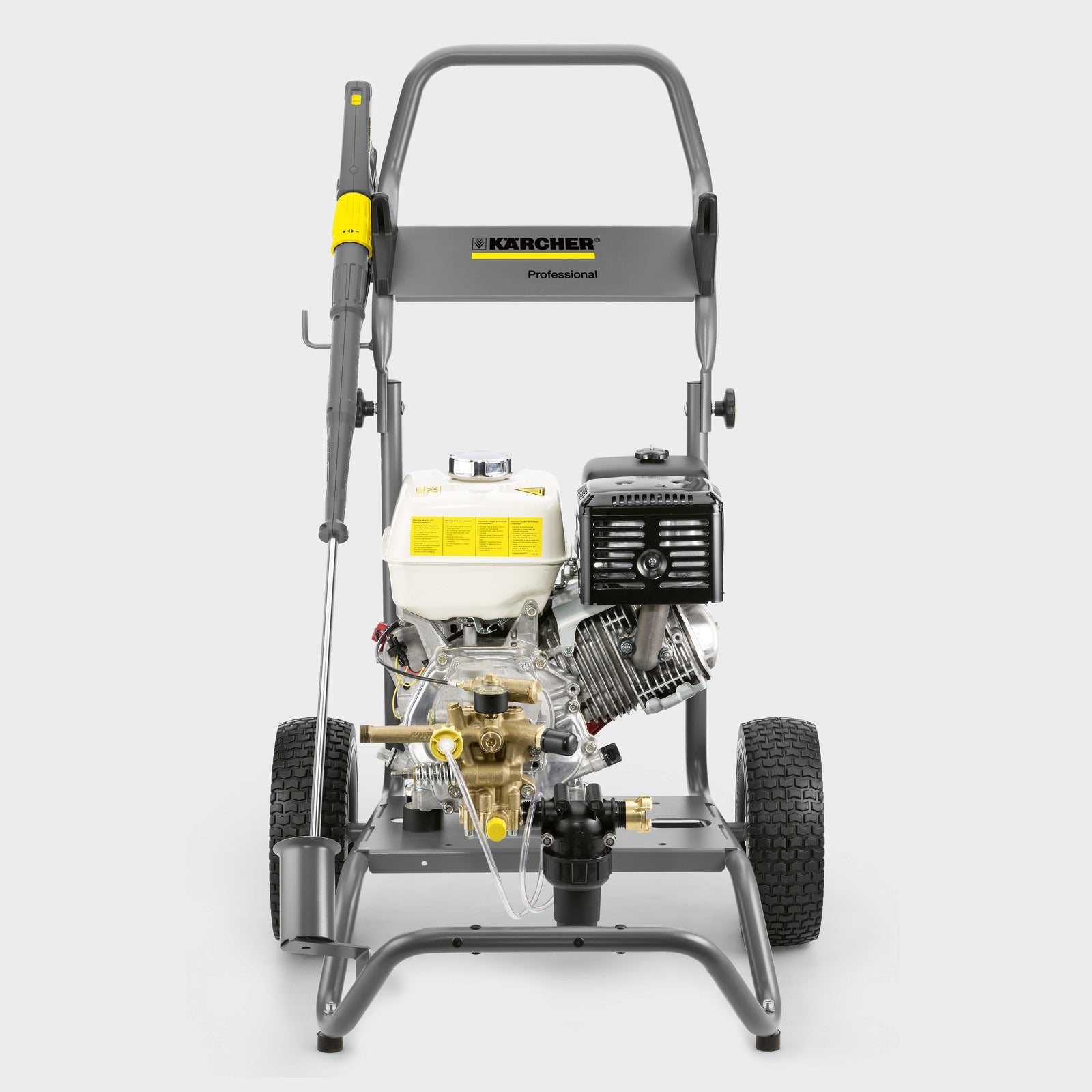

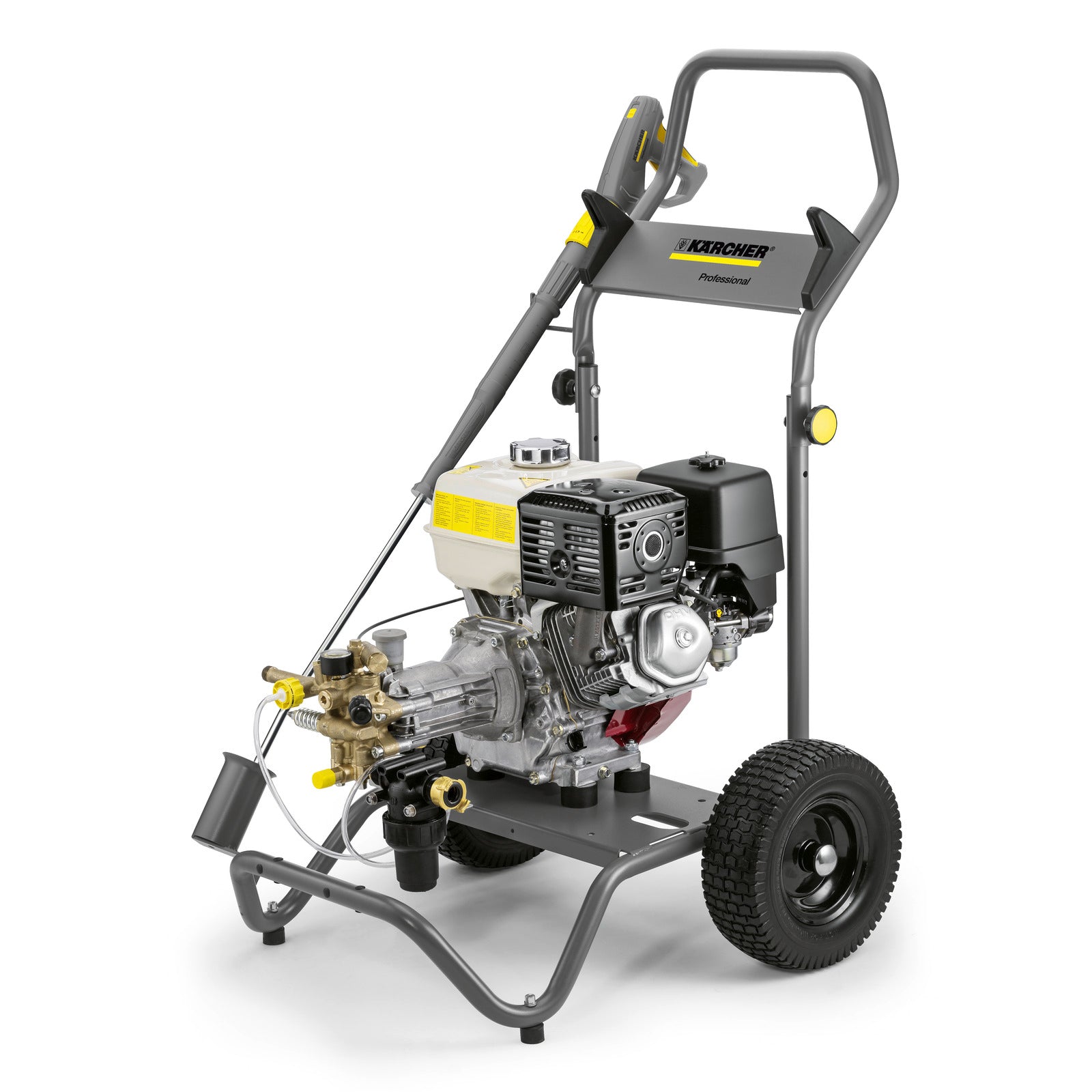

The HD 9/23 G is a cold water washer with a capacity of 900 l/h and 230 bar, with a Honda petrol engine, suitable for work where power supply is not possible. Puncture-free tires. The machine is equipped with new EASY!Force and EASY!Lock . 15 meter hose.
The HD 9/23 G is a cold water washer with a capacity of 900 l/h and 230 bar and a Honda petrol engine. Robust frame but very mobile despite uneven terrain. Puncture-free tyres. The powerful pump makes it possible to remove water from ponds or lakes in an emergency. There is the option of choosing a frame with eyelets for crane lifting and the possibility of attaching a hose reel. The high-pressure washer is equipped with the revolutionary user concept EASY!Force spray gun that utilizes the recoil of the high-pressure jet and reduces the force needed to hold the spray gun to zero. With the patented EASY!Lock With the quick lock, the connection is faster and easier - a full 5 times faster than with standard screw connections and without losing robustness and service life.
Features and benefits
Maximum independence
Equipped with reliable Honda or Yanmar engines for use without power. Can suck up water from lakes or ponds - for example - and use it for cleaning.
Optimal user-friendliness
The ergonomic frame design makes transport on uneven ground easier. Storage options for all accessories directly on the machine. Puncture-free wheels guarantee permanent high mobility.
Very versatile

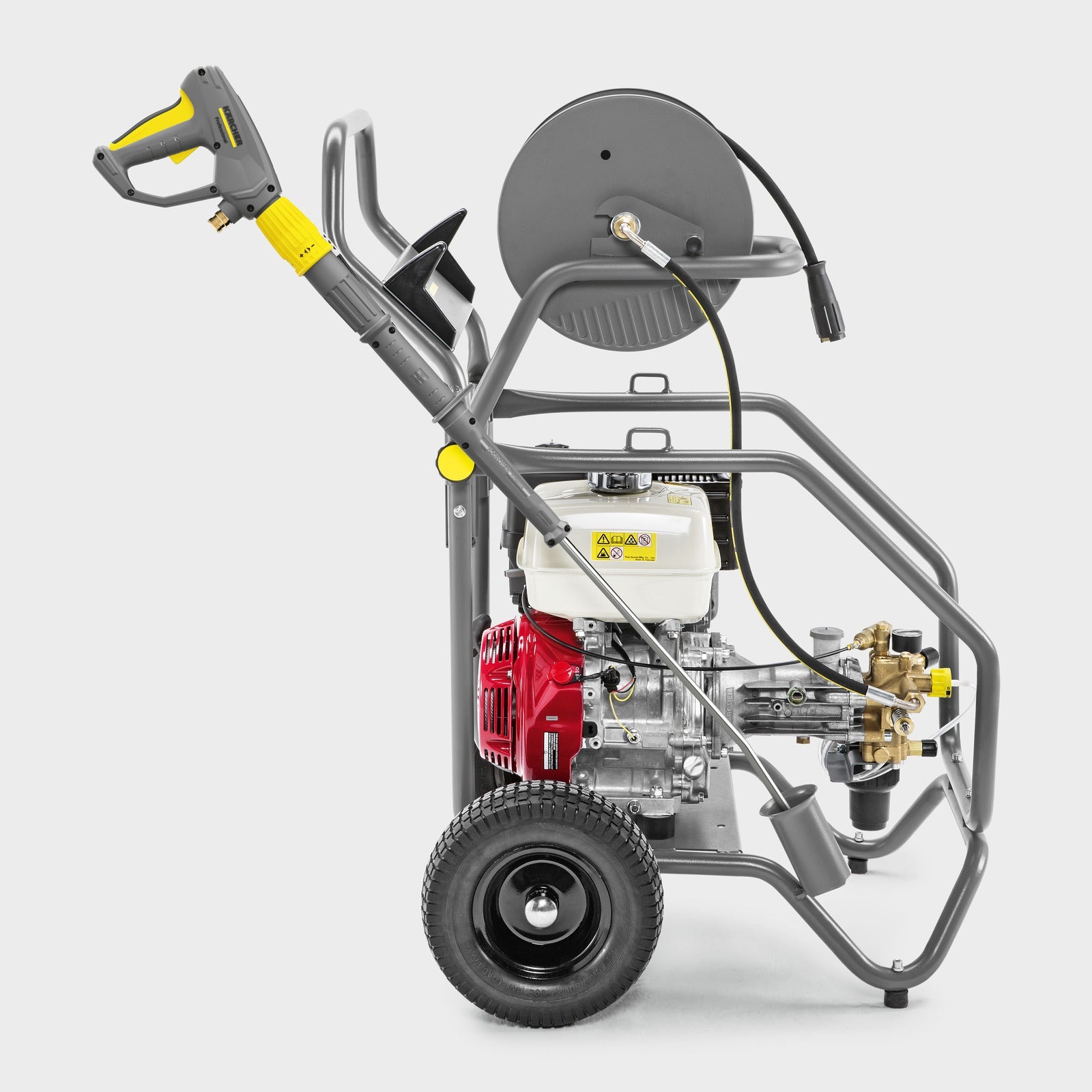

Protective frame with crane loading eyes that reliably protects the machine. Available as an option. Winch mounting kit for shorter start-up and stop times. Available as an option. Portable version with robust tubular frame specially designed for painters and bricklayers (HD 728 B).For the toughest cleaning jobs
- Robust frame for daily use in tough conditions.
- Large water filter that protects the engine
- Thermostatic valve to protect the pump against overheating in circulation mode.
Specifications
Technical data
| Flow rate (l/h) | 400 - 930 |
| Working pressure (bar/MPa) | 40 - up to 230 / 4 - up to 23 |
| Max. pressure (bar/MPa) | 270 / 27 |
| Inlet temperature (°C) | 60 |
| Water supply | 1″ |
| Drive | Petrol |
| Engine make | Honda |
| Engine type | GX 390 |
| number of simultaneous users | 1 |
| Mobile | carriage |
| Paint | anthracite |
| Weight (with accessories) (kg) | 75.5 |
| Weight incl. packaging (kg) | 82.8 |
| Dimensions (L × W × H) (mm) | 866 x 722 x 1146 |
The following is included
- Flush handle: EASY!Force Advanced
- High pressure hose length: 15 m
- High pressure hose type: Premium quality
- High pressure hose specification: DN 8, 315 bar
- Power nozzle
- Servo Control
Standard equipment
- Stepless pressure and water regulation
- Detergent function: Suction
Areas of use
- Construction sites (e.g. cleaning of construction machinery, scaffolding and equipment).
- Agriculture (cleaning of vehicles and equipment or for use in forestry)
- Industry (cleaning of equipment).
- Service workshops (cleaning outside areas, e.g. squares and parking lots)
