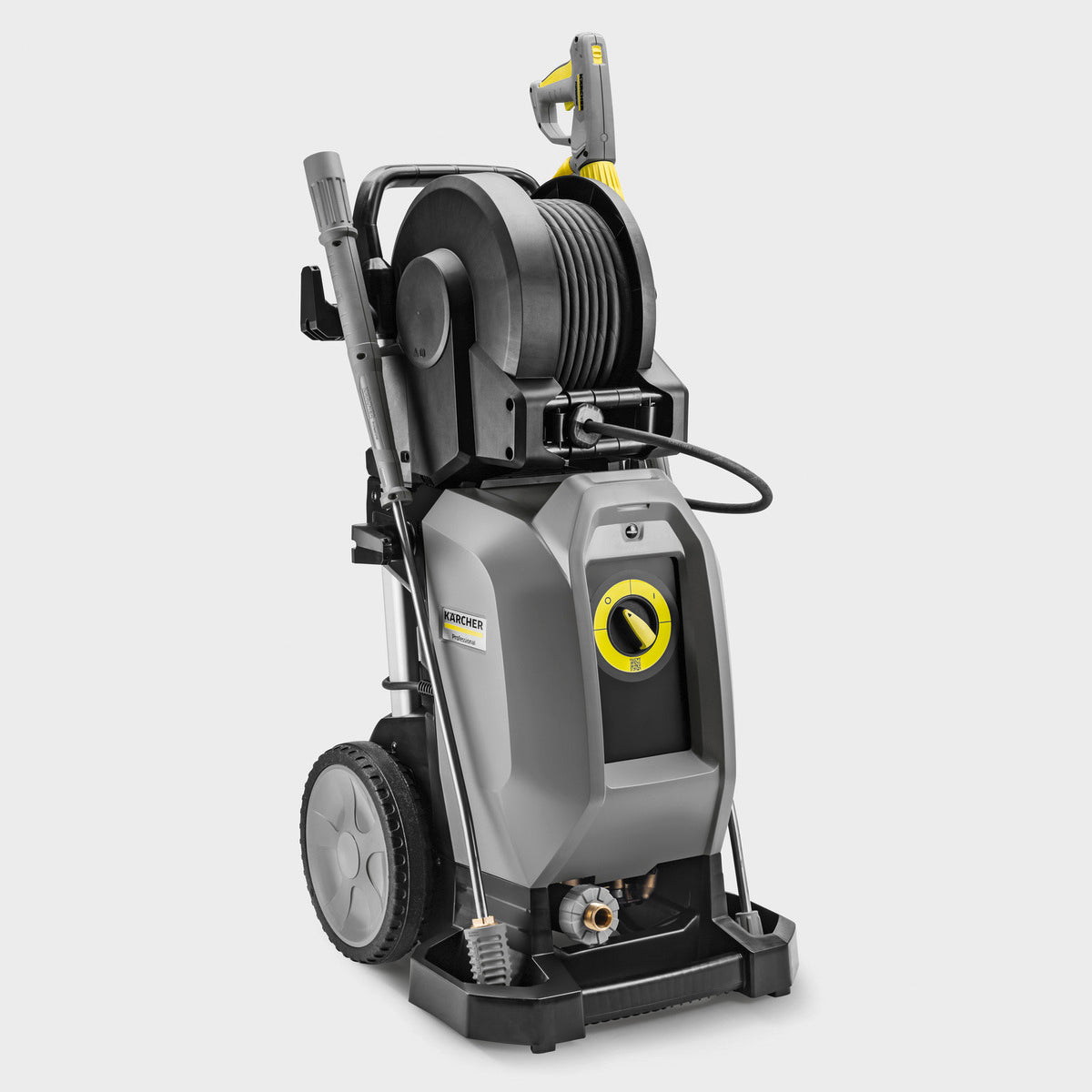

Kärcher High Pressure Washers HD 9/20-4 SXA Plus
Couldn't load pickup availability

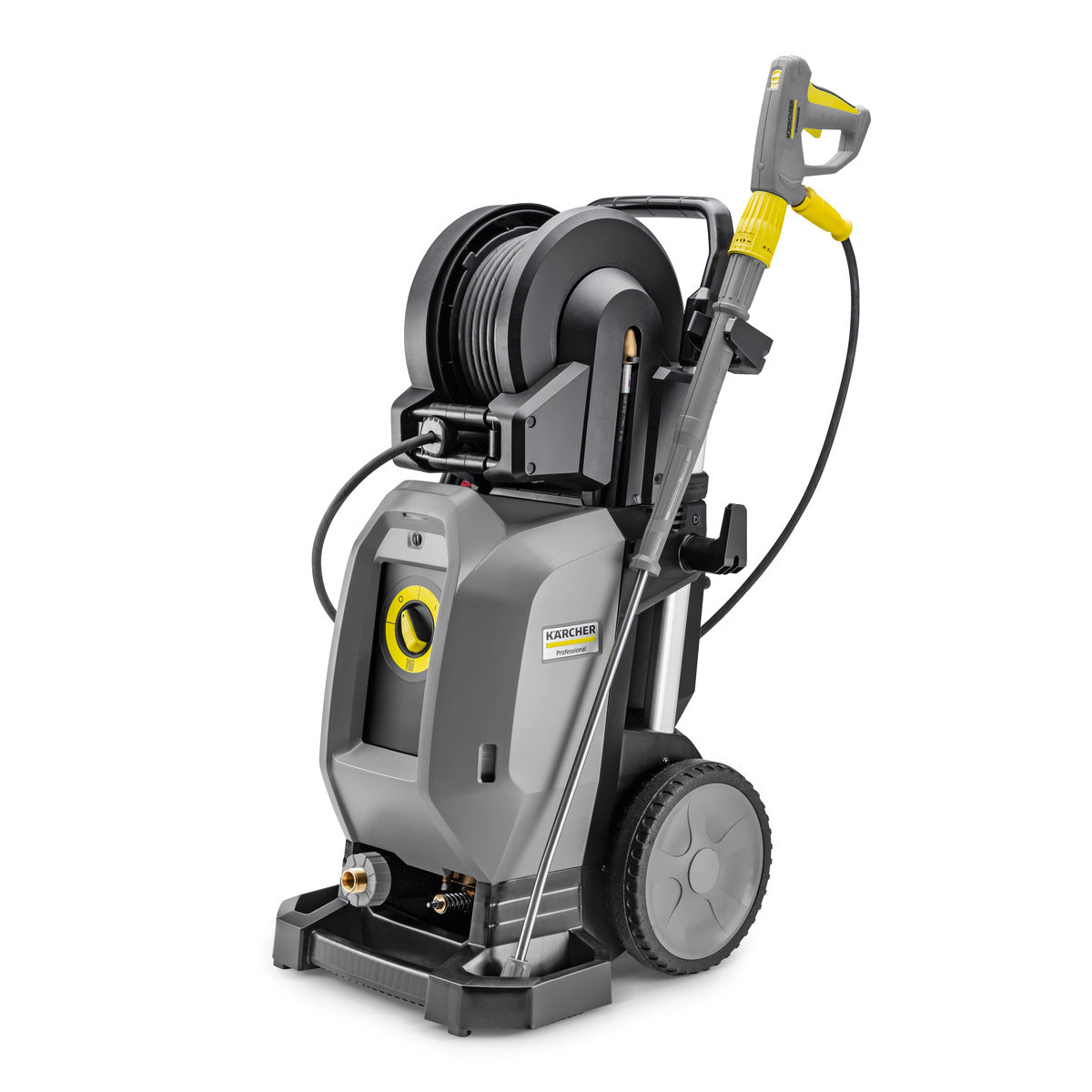

The HD 9/20-4 SXA Plus cold water high-pressure cleaner offers both power and convenience. The equipment includes high-quality materials, the automatic hose reel and the rotating Vibrasoft nozzle.

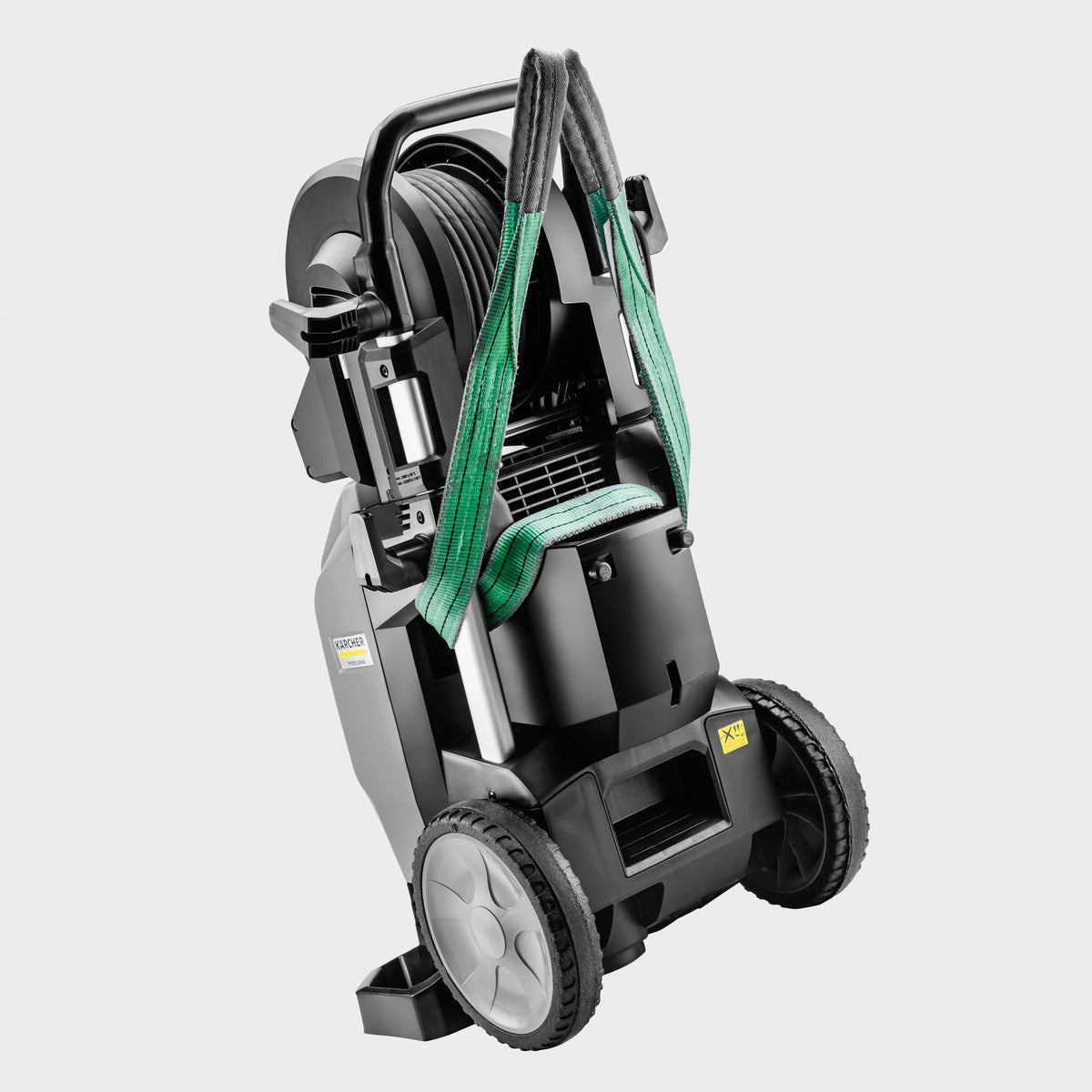

The HD 9/20-4 SXA Plus cold water high-pressure cleaner makes ergonomic work possible thanks to the EASY!Force Advanced high-pressure gun without holding force. The pressure and water volume can be regulated directly on the gun/lance with the Servo Control control unit; the stainless steel lance (1050 mm) can be rotated. The Vibrasoft rotary nozzle reduces vibrations and noise by up to 30 percent. The cleaner impresses with its high-quality workmanship and materials: the vertically installed motor and pump unit (upright concept) consists of a wobble pump with stainless steel pistons and brass cylinder head as well as a 4-pole low-speed motor with air-water cooling system and a compact design for maximum portability. The aluminum frame makes the chassis robust, lightweight and suitable for crane loading. Includes Ultra Guard high-pressure hose with durable Teflon® coating and an automatic hose reel that can be rolled up and unrolled even under pressure and at an angle of up to 45°, for up to 50 percent faster set-up times. This super-class unit is rounded off with accessory storage options such as a storage compartment and adjustable hooks.
Features and benefits

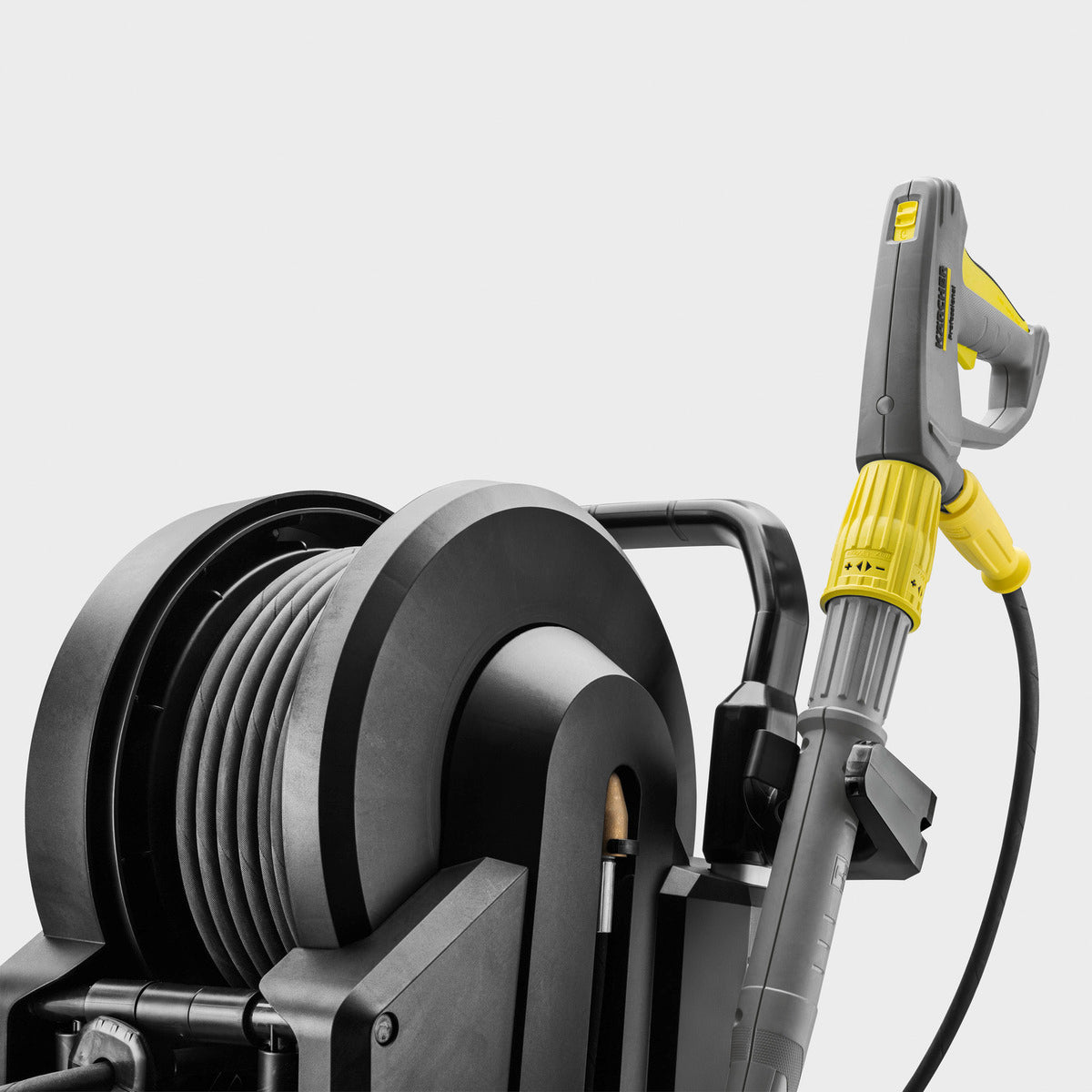

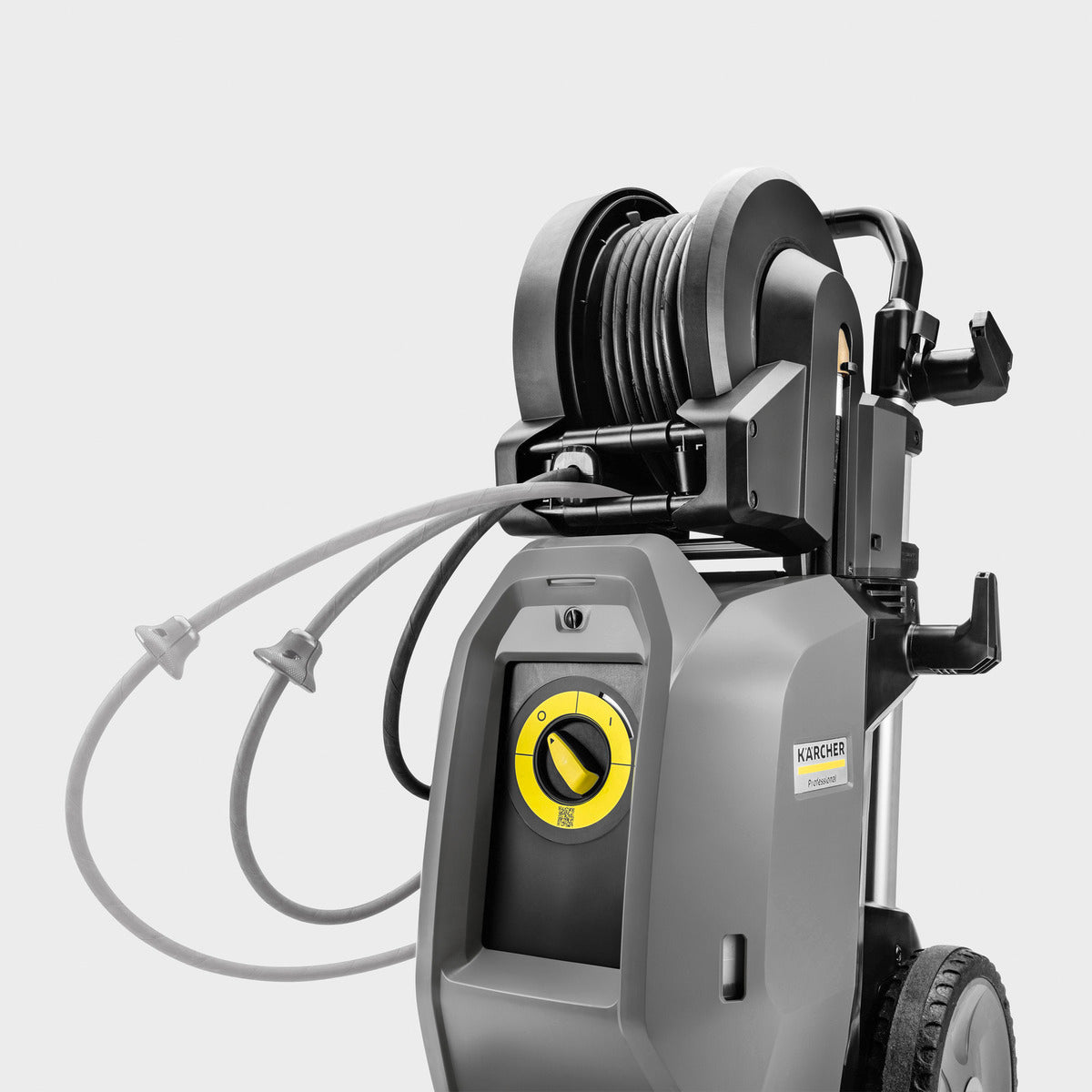

Automatic hose reel

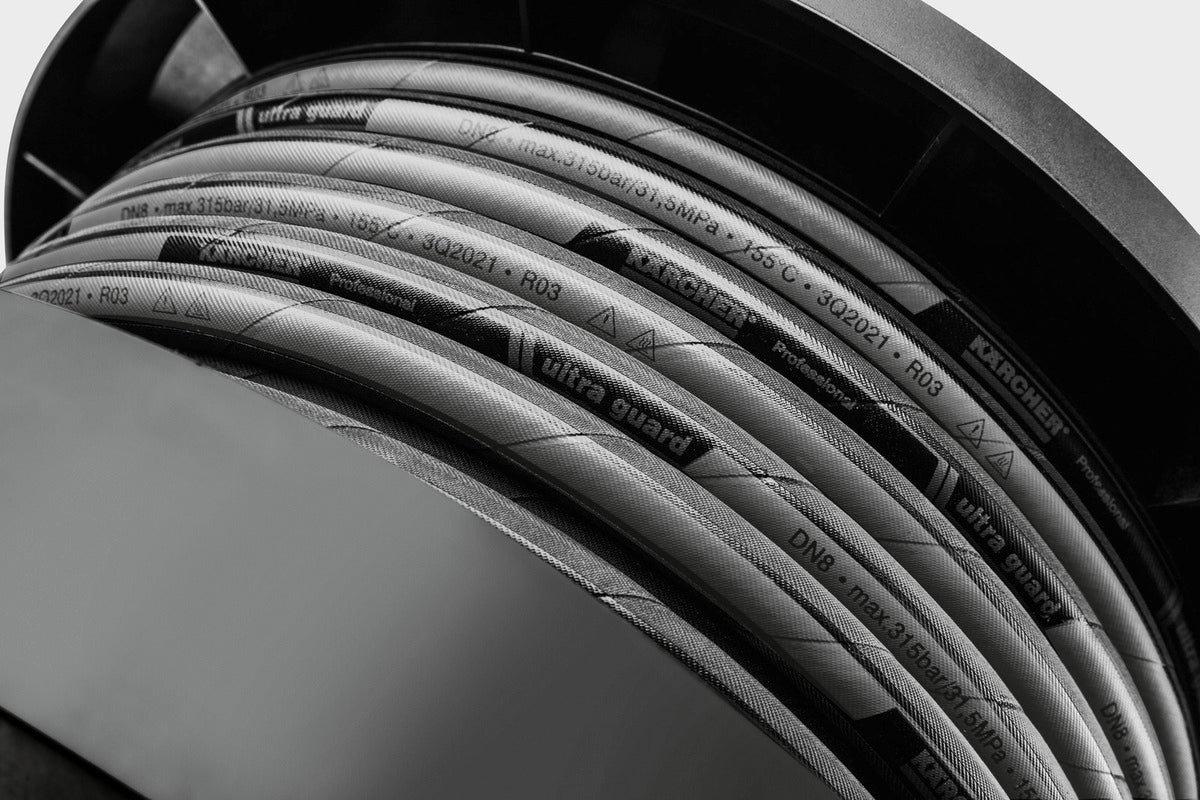

Automatic winding and unwinding up to an angle of 45°, even under pressure. Scratch-resistant and smooth Ultra Guard HD hose with Teflon® coating. Up to twice as fast set-up times.
Compact, upright design concept based on vertical placement of motor and pump unit
Small footprint and space-saving proportions. Easy to maneuver and transport. Maximum stability ensures a firm footing for the machine.
4-pole low-speed motor with air-water cooling system, robust pump with stainless steel pistons and brass cylinder head
Long service life and low maintenance costs. High performance and efficiency. With suction function and water temperature up to 60 °C.Ergonomic Vibrasoft dirt blower
- Reduces vibrations by up to 30%.
- Reduces volume and noise level.
- Rotating nozzle takes the hard work out of extensive cleaning tasks.
Intelligently designed service concept enables quick on-site operation

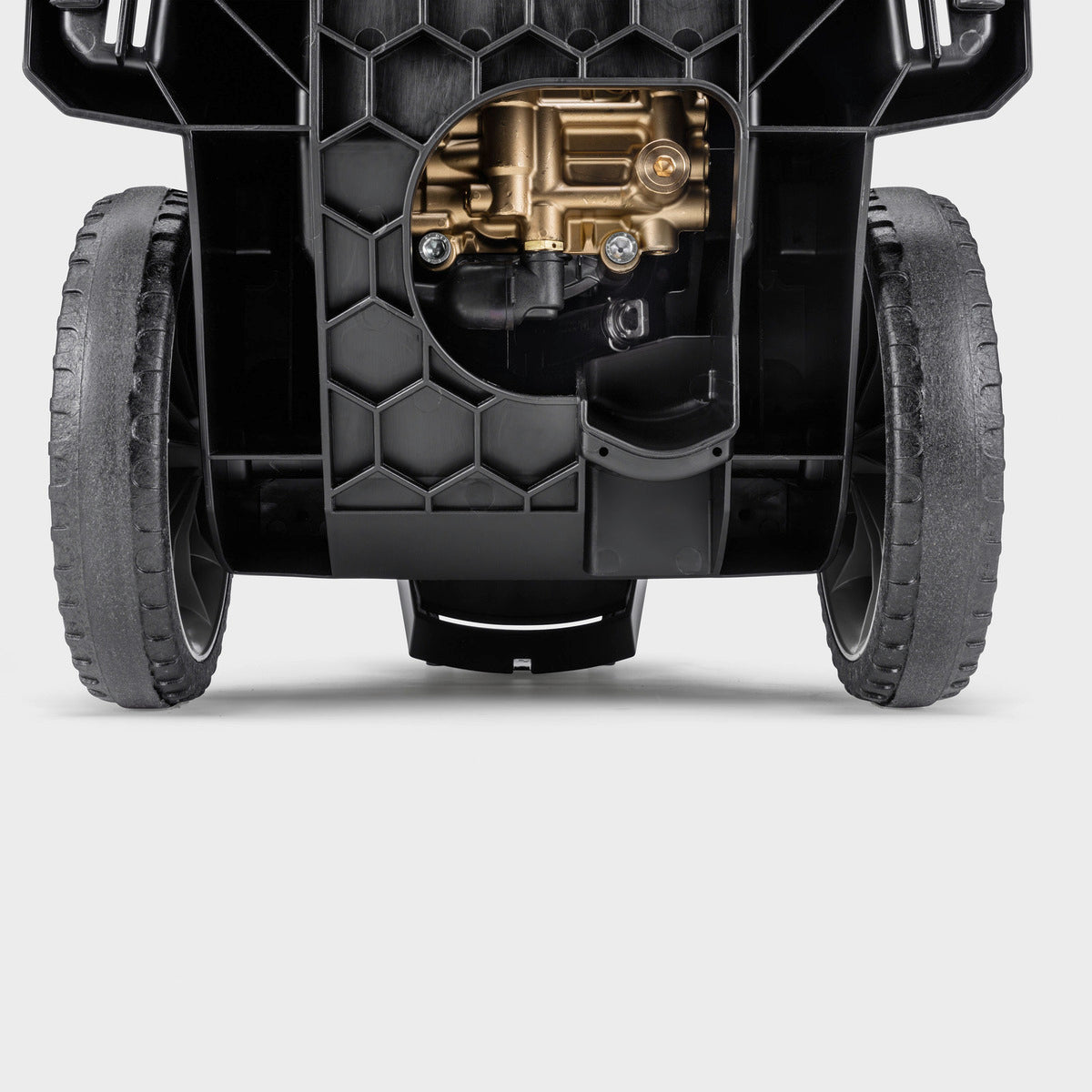

- Swivelling pump head.
- Convenient oil level indicator and oil drain hole integrated into the chassis.
- Modular construction, consisting of pump, motor and control cabinet.
Wide range of accessories with EASY!Lock
- Pressure and water flow can be adjusted with the Servo Control located between the spray lance and the gun.
- EASY!Force Advanced high-pressure gun for fatigue-free work without holding force.
- Rotating 1050 mm stainless steel lance.
Multiple storage spaces for accessories integrated into the machine

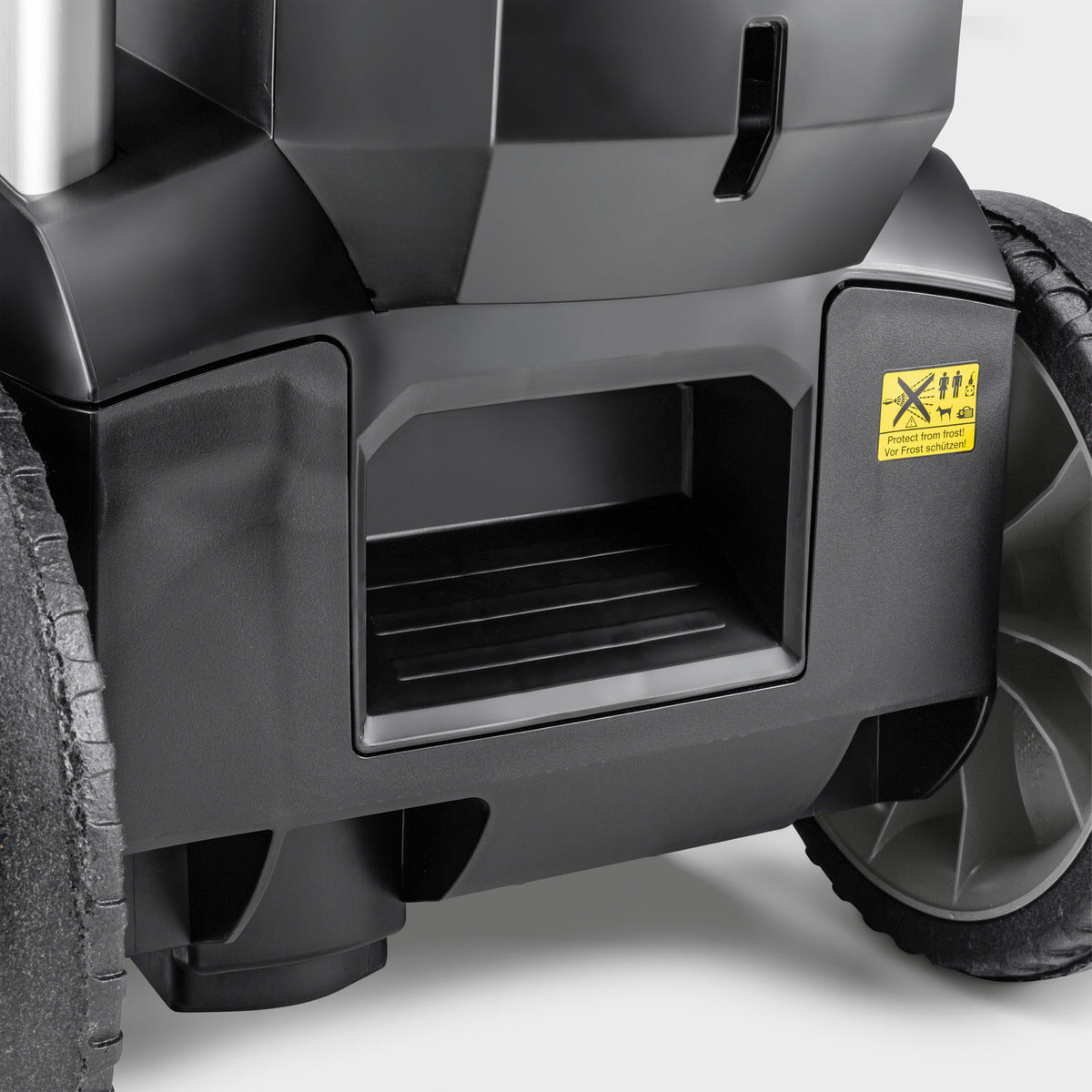

- Storage compartment.

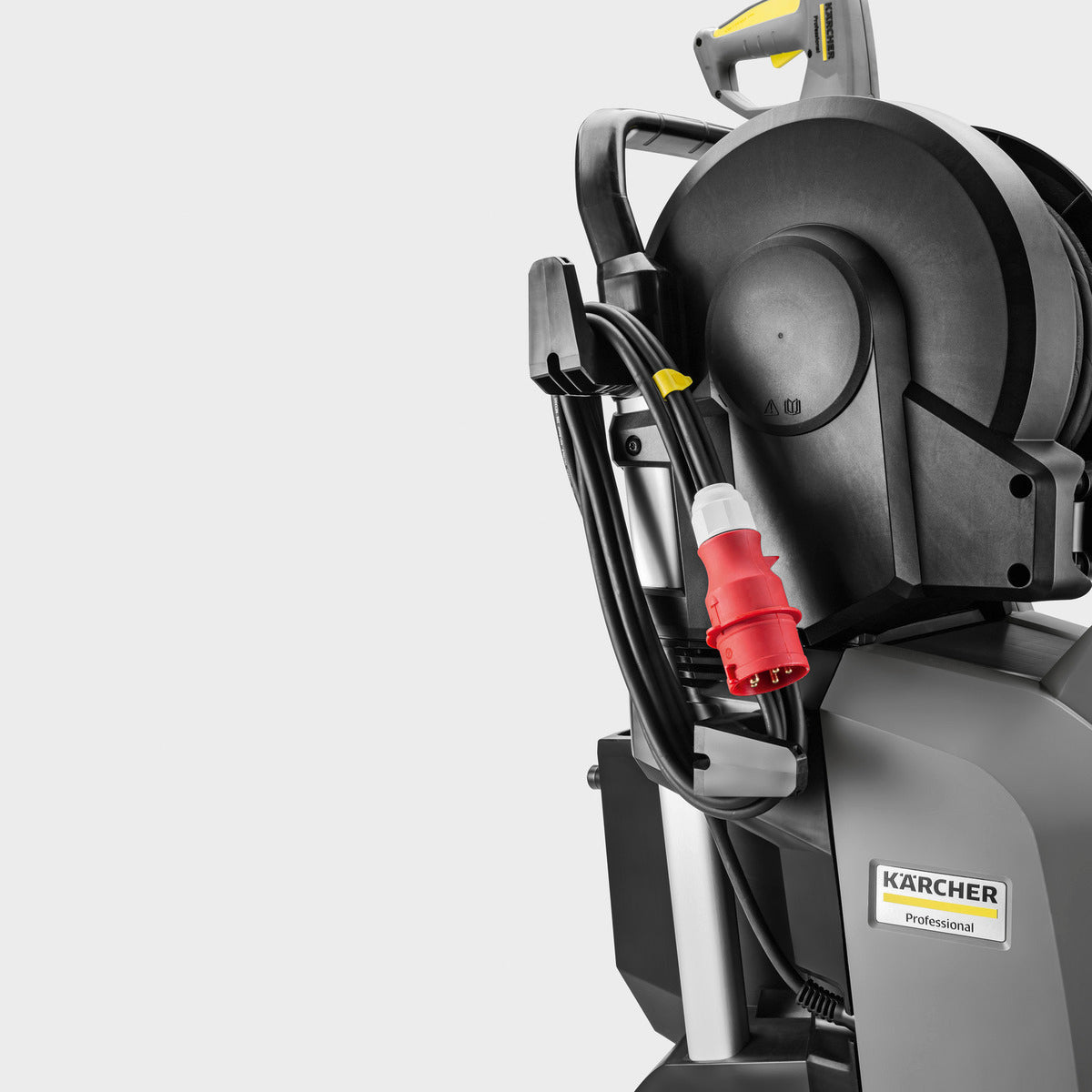

- Adjustable hooks, e.g. for storing another lance or electric cable.
- Storage for high-pressure hose.
Specifications
Technical data
| Power supply (phase/V/ Hz ) | 3/376–424/50 |
| Flow rate (l/h) | 500–900 |
| Inlet temperature (°C) | 60 |
| Working pressure (bar) | 50–200 |
| Maximum pressure (bar) | 250 |
| Final power (kW) | 7 |
| Power cable (m) | 5 |
| Nozzle size | 047 |
| Paint | anthracite |
| Weight (with accessories) (kg) | 74.5 |
| Weight incl. packaging (kg) | 82.8 |
| Dimensions (L × W × H) (mm) | 607 x 518 x 1063 |
Scope of delivery
- Spray Gun: SIMPLE! Advanced Power
- Spray gun with soft grip padding
- High pressure hose length: 20 m
- High pressure hose type: Ultra Guard
- High pressure hose specification: DN 8, 315 bar
- Spray pipe: 1050 mm
- Power nozzle
- Dirt blower
- Servo control
Equipment
- 4-pole three-phase motor with air and water cooling
- 3-piston axial pump: with stainless steel pistons
- Pressure shut-off
- Integrated fine water filter
- Oil level sight glass
- Brass water tap
Document
Area of application

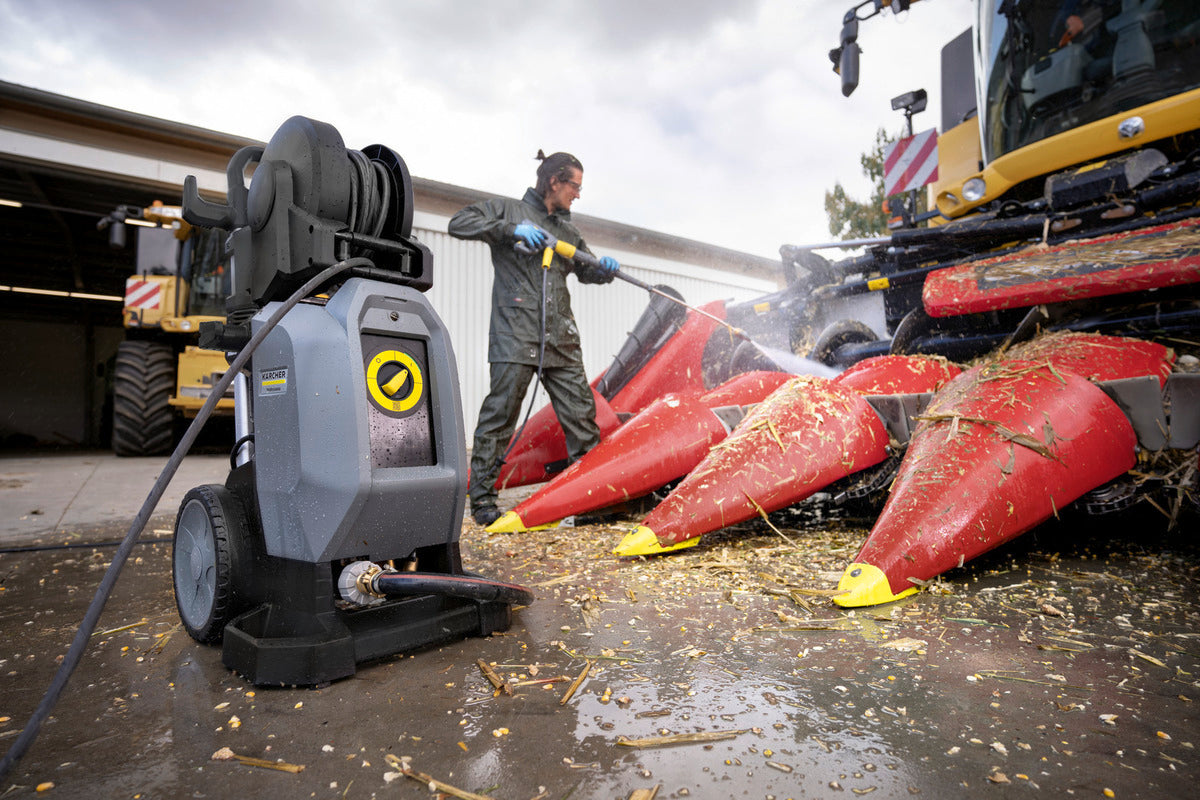

- Cleaning of tractors, machinery and agricultural equipment

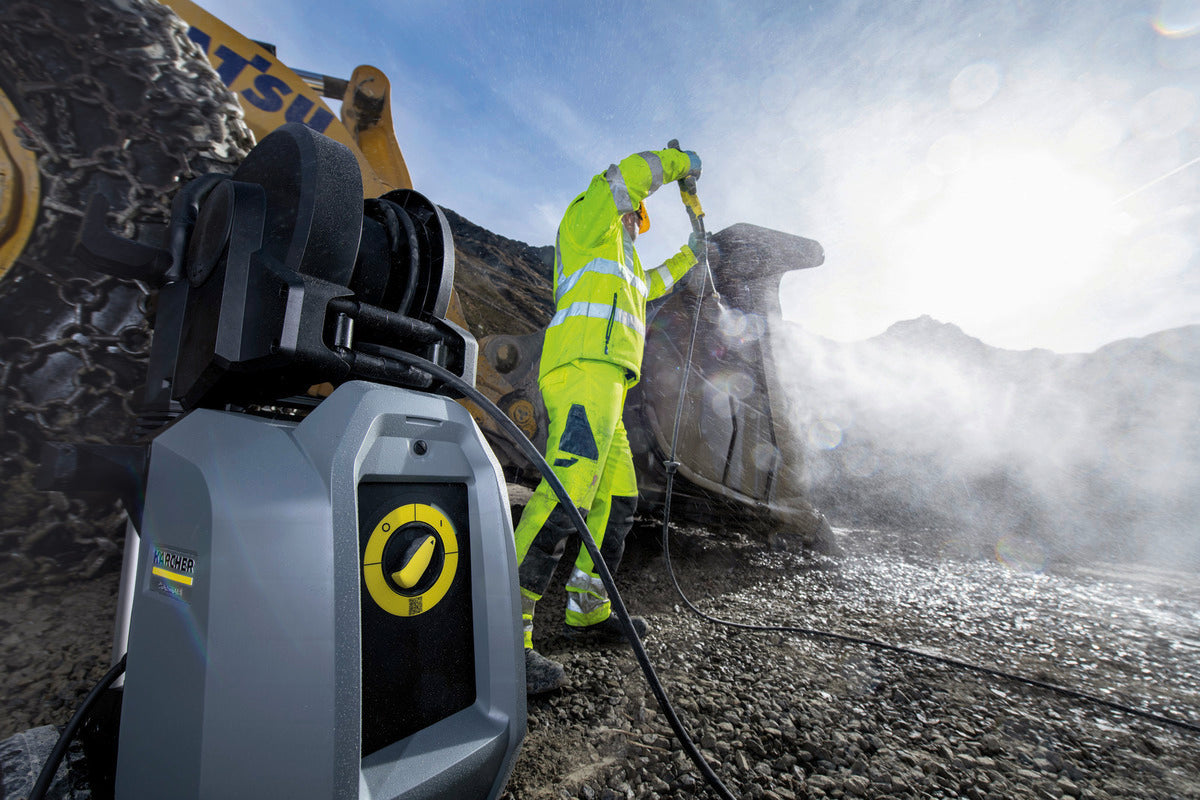

- Cleaning of machinery and equipment on the construction site, such as cement mixers, scaffolding, wheel loaders, excavators or concrete pumps
- Cleaning of production machines in industry, such as in paint shops, food production or the manufacturing sector
- Cleaning of vehicles in the transport sector, such as trucks, ships, airplanes or buses
- Cleaning of common areas such as squares, driveways, fountains or parking lots
