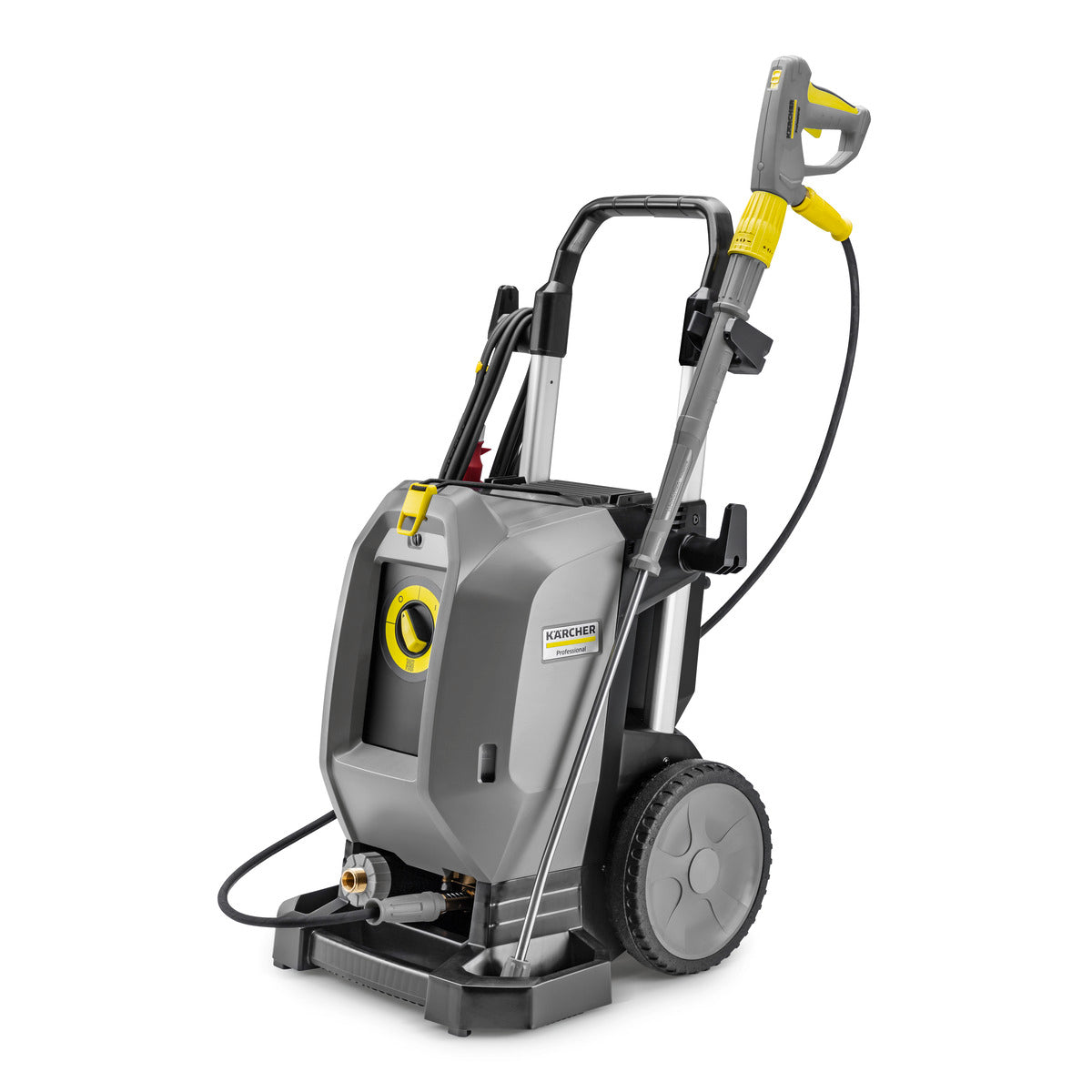

Kärcher High Pressure Washers HD 9/20-4 S
Couldn't load pickup availability
The HD 9/20-4 S Classic cold water high-pressure cleaner delivers high power and Superclass quality – its ergonomic design makes it the perfect tool for everyday use.
The HD 9/20-4 S cold water high-pressure cleaner is ideal for daily use in tough conditions. The finest materials guarantee the highest quality – and you can rely on both from Kärcher. Inside the machine, a durable wobble pump with stainless steel pistons and a brass cylinder head delivers powerful performance, complemented by a 4-pole low-speed motor with air-water cooling system. Integrated aluminum frame supports reduce weight and provide a lightweight yet durable chassis, suitable for crane loading. For a compact design and maximum portability, the motor and pump unit are mounted vertically in an upright arrangement. In addition, it has accessory storage in the form of a storage compartment and adjustable hooks. The HD 9/20-4 S takes ergonomic working to the next level. Thanks to the EASY!Force Advanced gun, it can be operated without holding force, effectively assisted by a rotating 1050 millimeter stainless steel lance. The Servo Control unit, located between the gun and the lance, can be used to adjust pressure and water flow.
Features and benefits
Compact, upright design concept based on vertical placement of motor and pump unit
Small footprint and space-saving proportions. Easy to maneuver and transport. Maximum stability ensures a firm footing for the machine.
4-pole low-speed motor with air-water cooling system, robust pump with stainless steel pistons and brass cylinder head
Long service life and low maintenance costs. High performance and high efficiency. With suction function and water temperature up to 60 °C.
Intelligently designed service concept enables fast on-site operations

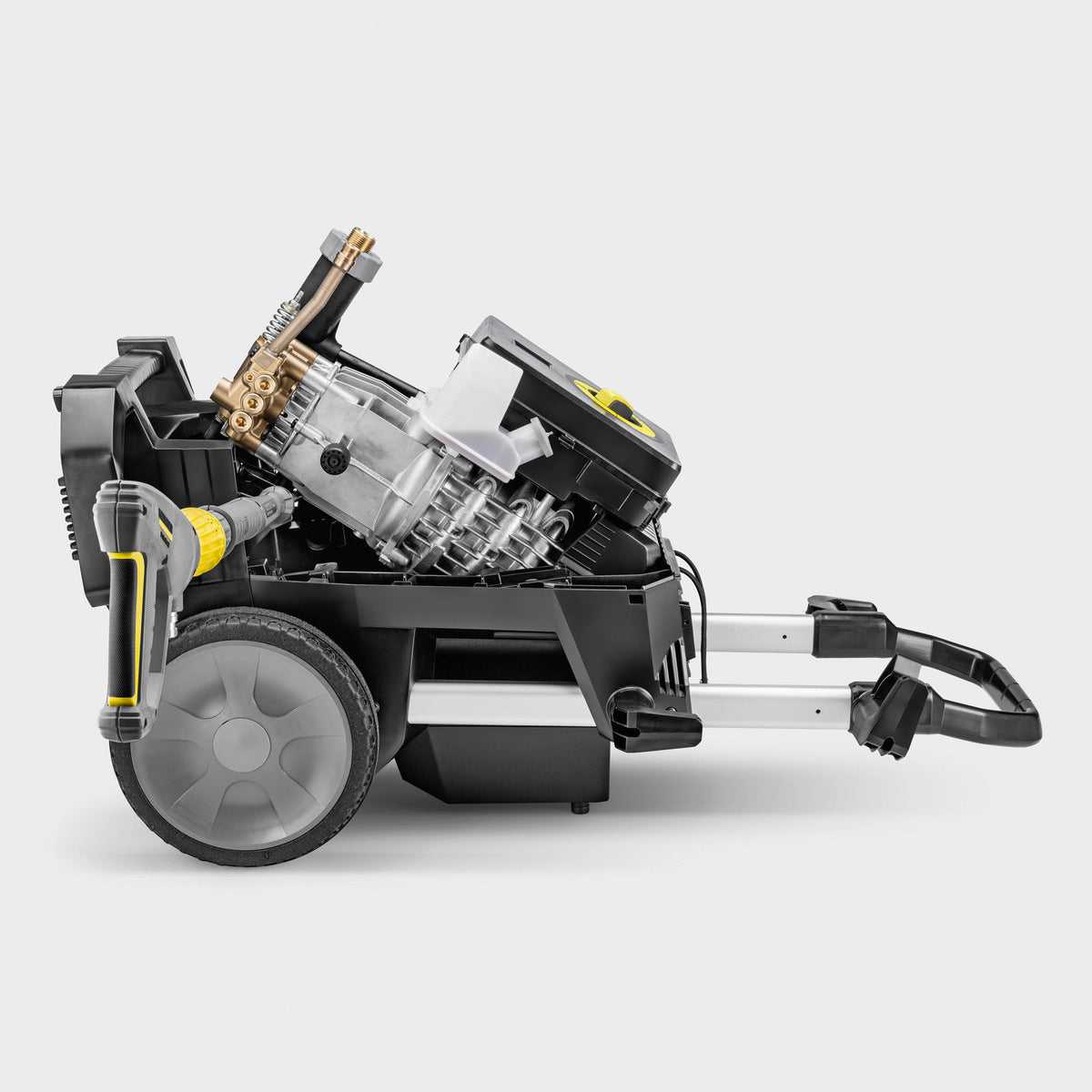

Swivelling pump head. Practical oil level indicator and oil drain holes integrated into the chassis. Modular design, consisting of pump, motor and control cabinet.Wide range of accessories with EASY!Lock
- Pressure and water flow can be adjusted with the Servo Control located between the spray lance and the gun.
- EASY!Force Advanced for fatigue-free work without holding force.
- Rotating 1050 mm stainless steel lance.
Multiple storage spaces for accessories integrated into the machine

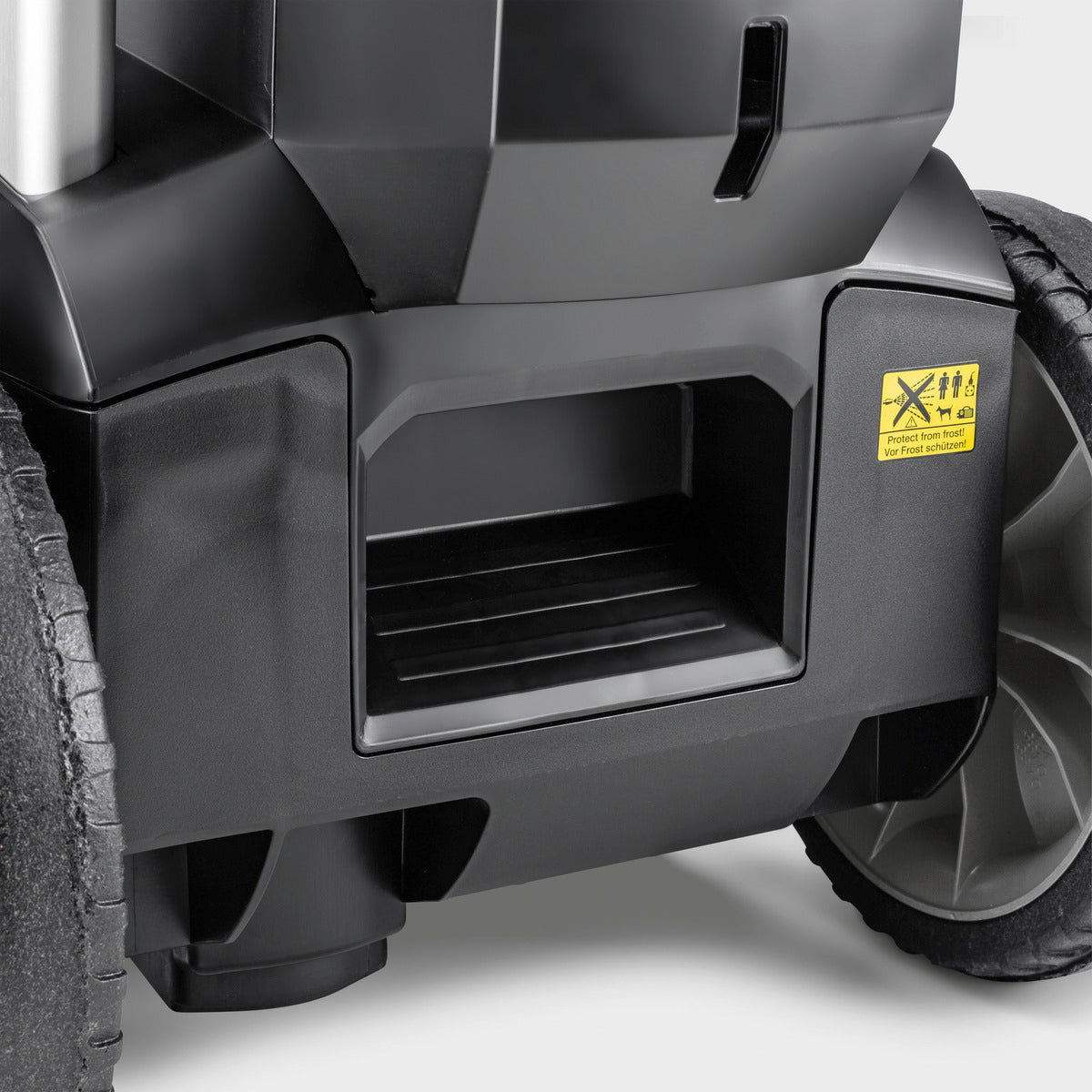

- Storage compartment.
- Adjustable hooks, e.g. for storing a second lance or electric cable.

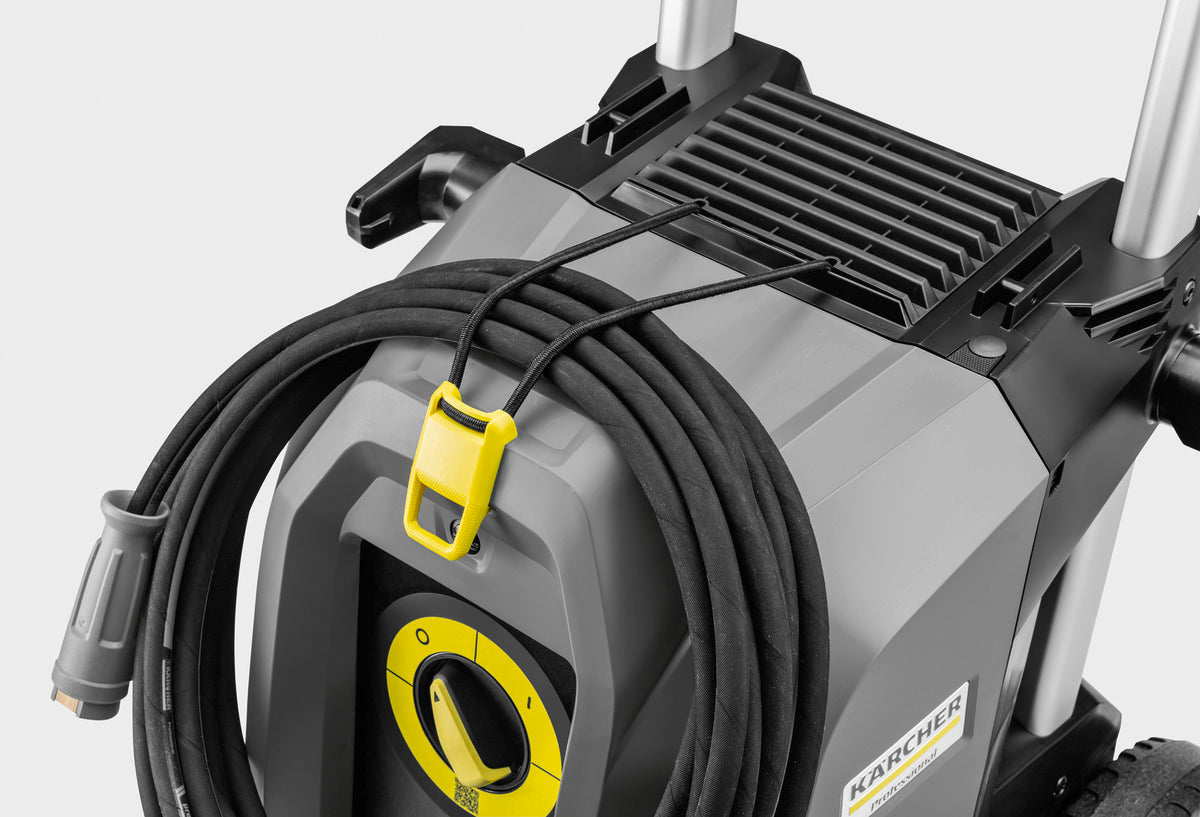

- Storage for high-pressure hose.
Specifications
Technical data
| Power supply (phase/V/ Hz ) | 3/376–424/50 |
| Flow rate (l/h) | 500–900 |
| Inlet temperature (°C) | 60 |
| Working pressure (bar) | 50–200 |
| Maximum pressure (bar) | 250 |
| Connected power (kW) | 7 |
| Power cable (m) | 5 |
| Nozzle size | 047 |
| Water inlet | 1″ |
| Paint | anthracite |
| Weight (with accessories) (kg) | 62.4 |
| Weight incl. packaging (kg) | 70.7 |
| Dimensions (L × W × H) (mm) | 607 x 518 x 1063 |
Scope of delivery
- Spray gun: EASY!Force Advanced
- Spray gun with soft grip padding
- High pressure hose length: 10 m
- High pressure hose type: Premium quality
- High pressure hose specification: DN 8, 315 bar
- Spray pipe: 1050 mm
- Power nozzle
- Servo control
Equipment
- 4-pole three-phase motor with air and water cooling

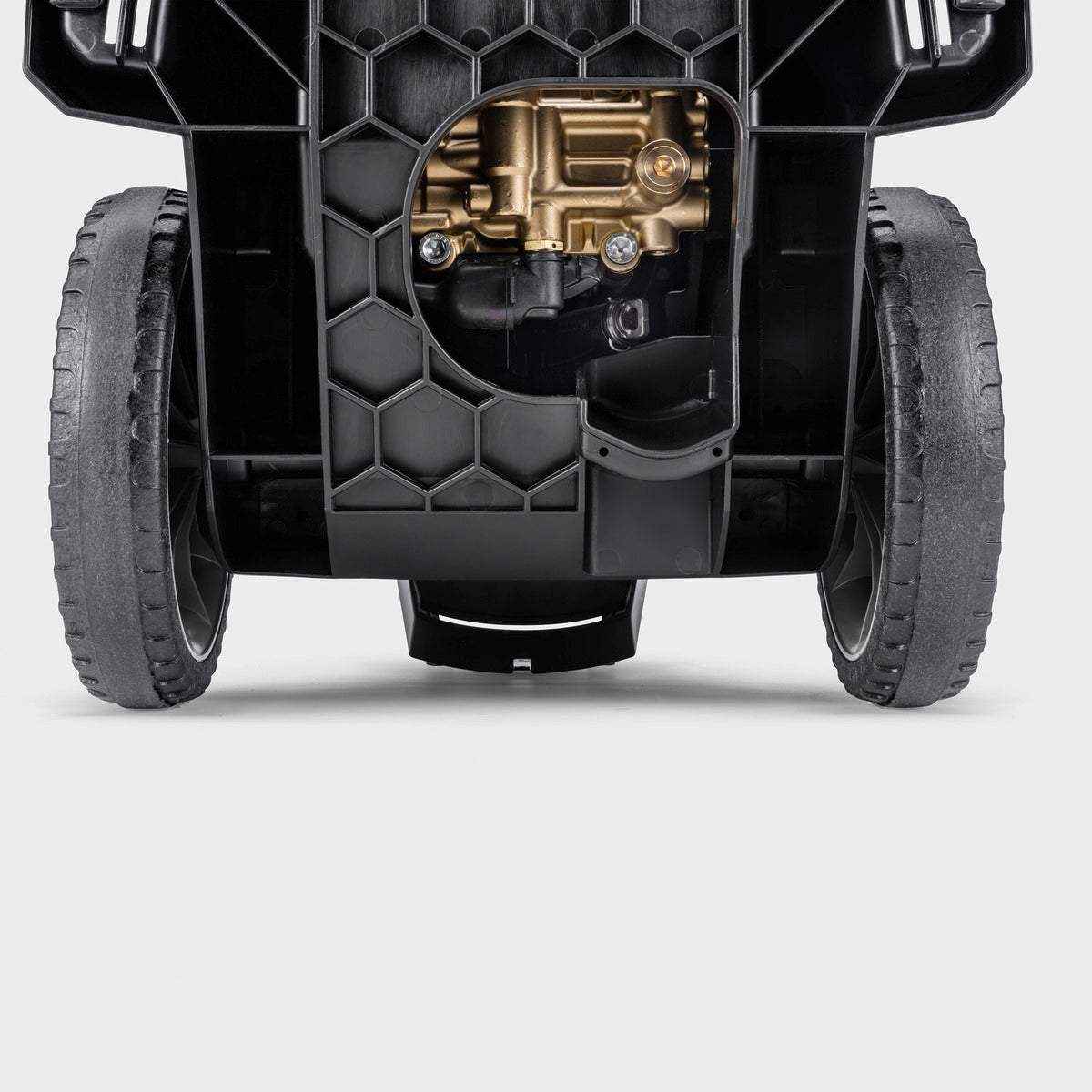

- 3-piston axial pump: with stainless steel pistons
- Pressure shut-off

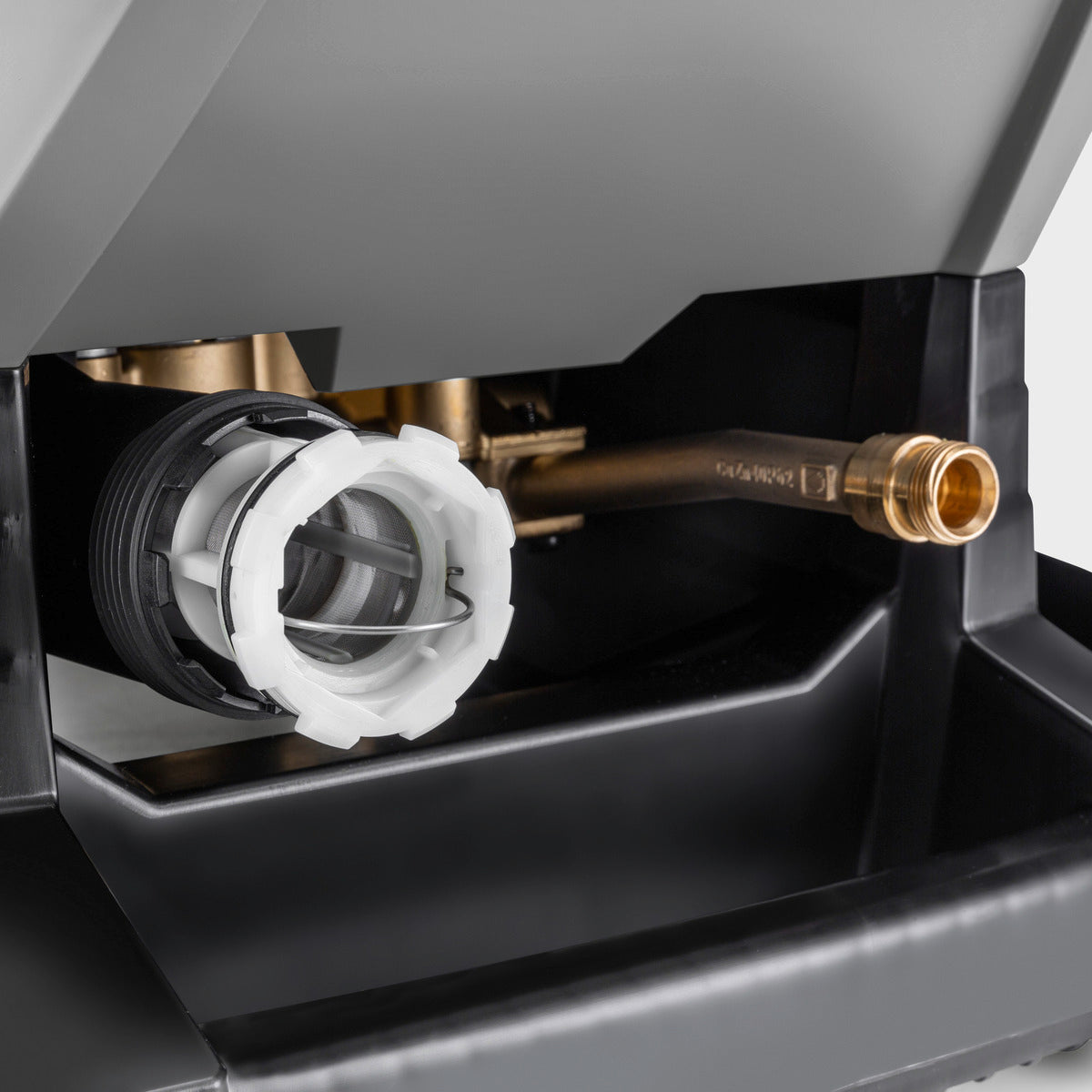

- Integrated fine water filter

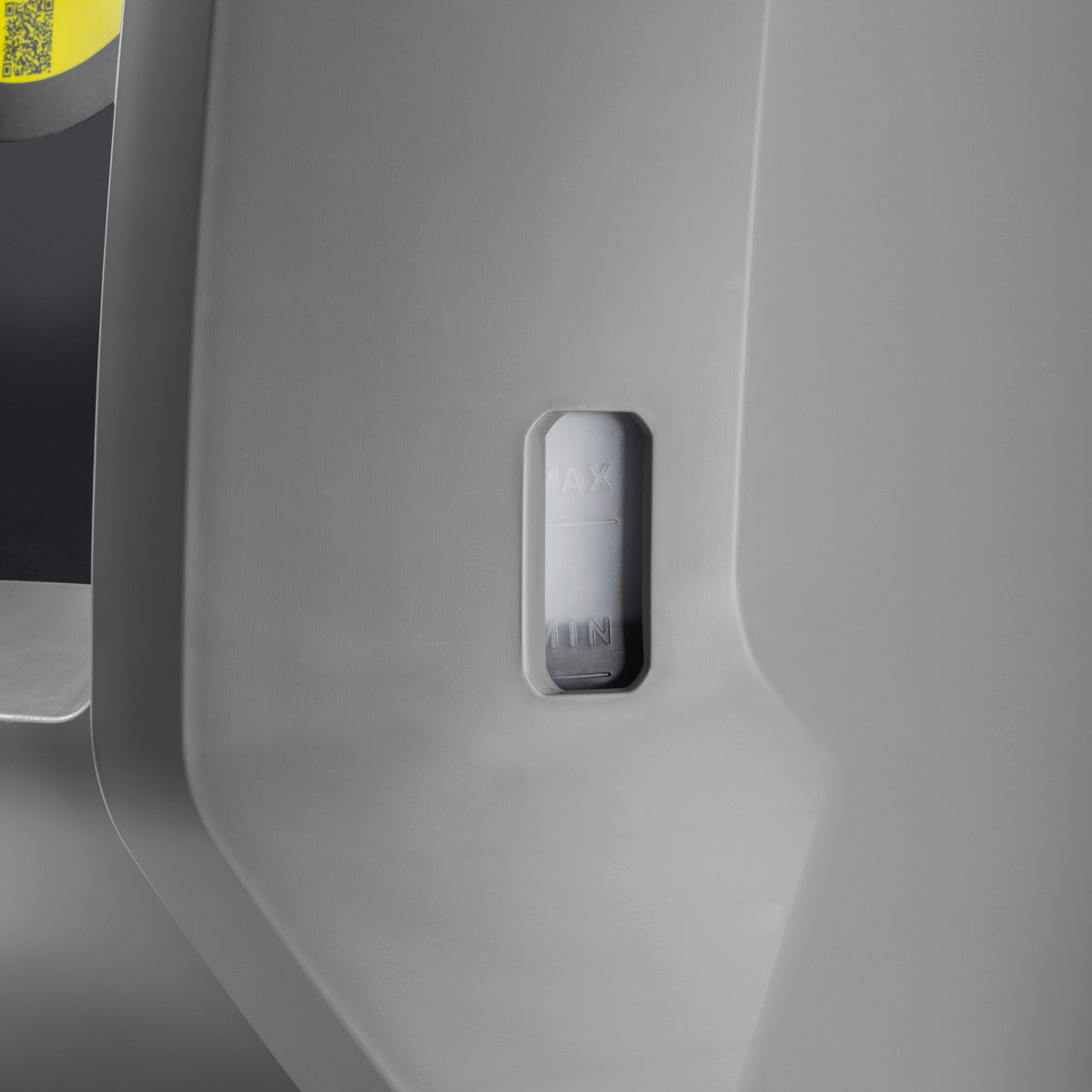

- Oil level sight glass
- Brass water inlet
Document
Areas of use

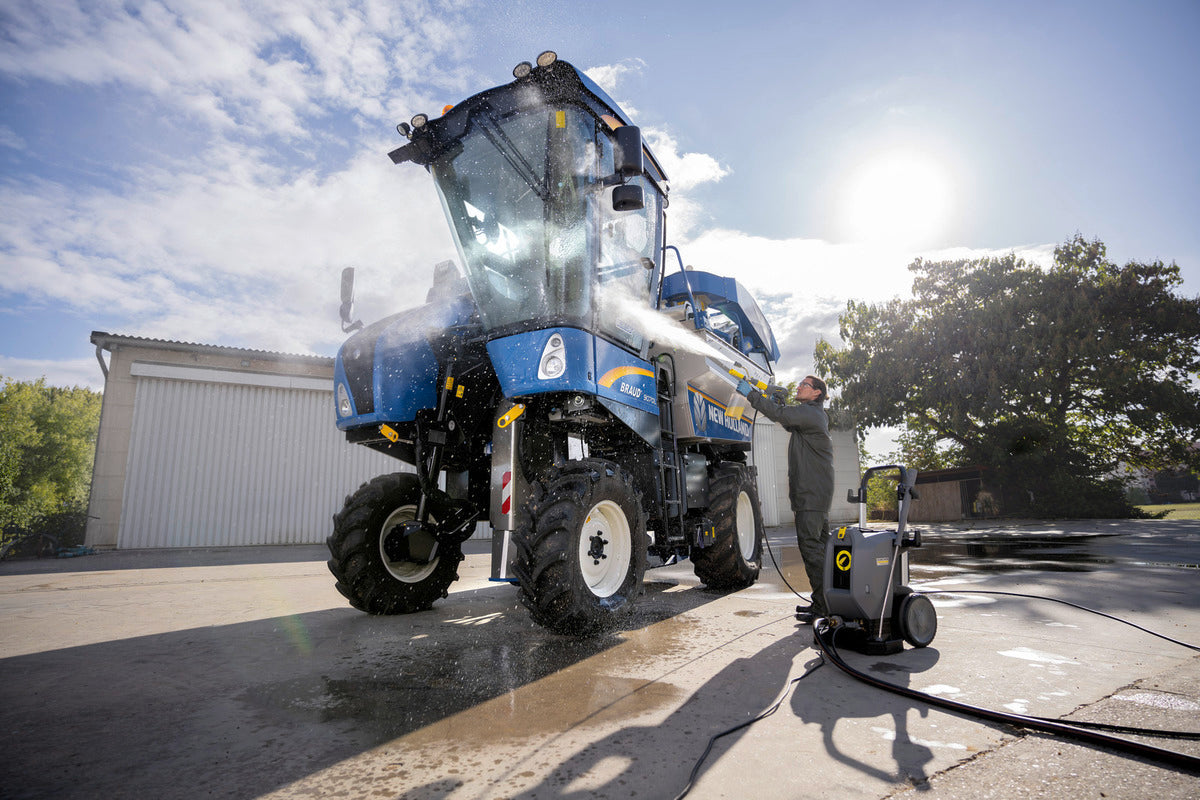

- Cleaning of tractors, machinery and agricultural equipment

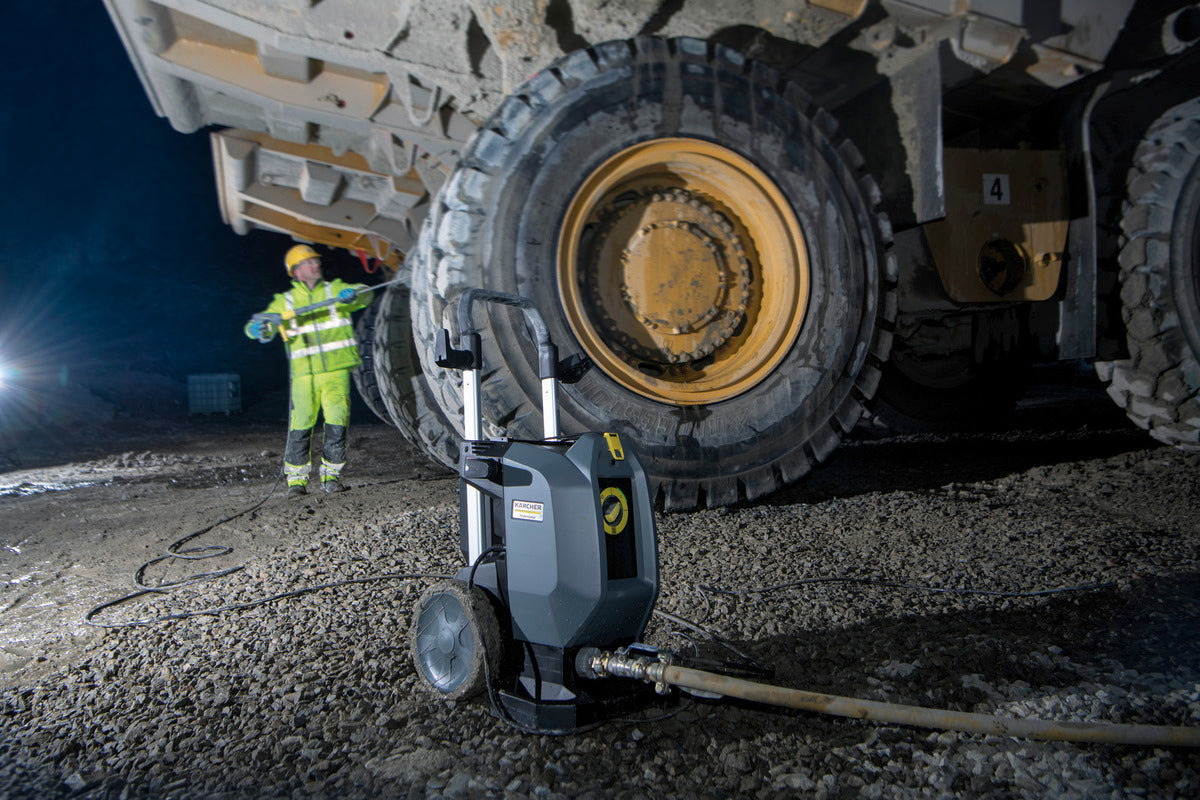

- Cleaning of machinery and equipment on the construction site, such as cement mixers, scaffolding, wheel loaders, excavators or concrete pumps
- Cleaning of production machines in industry, such as in paint shops, food production or the manufacturing sector
- Cleaning of vehicles in the transport sector, such as trucks, ships, airplanes or buses
- Cleaning of common areas such as squares, driveways, fountains or parking lots
