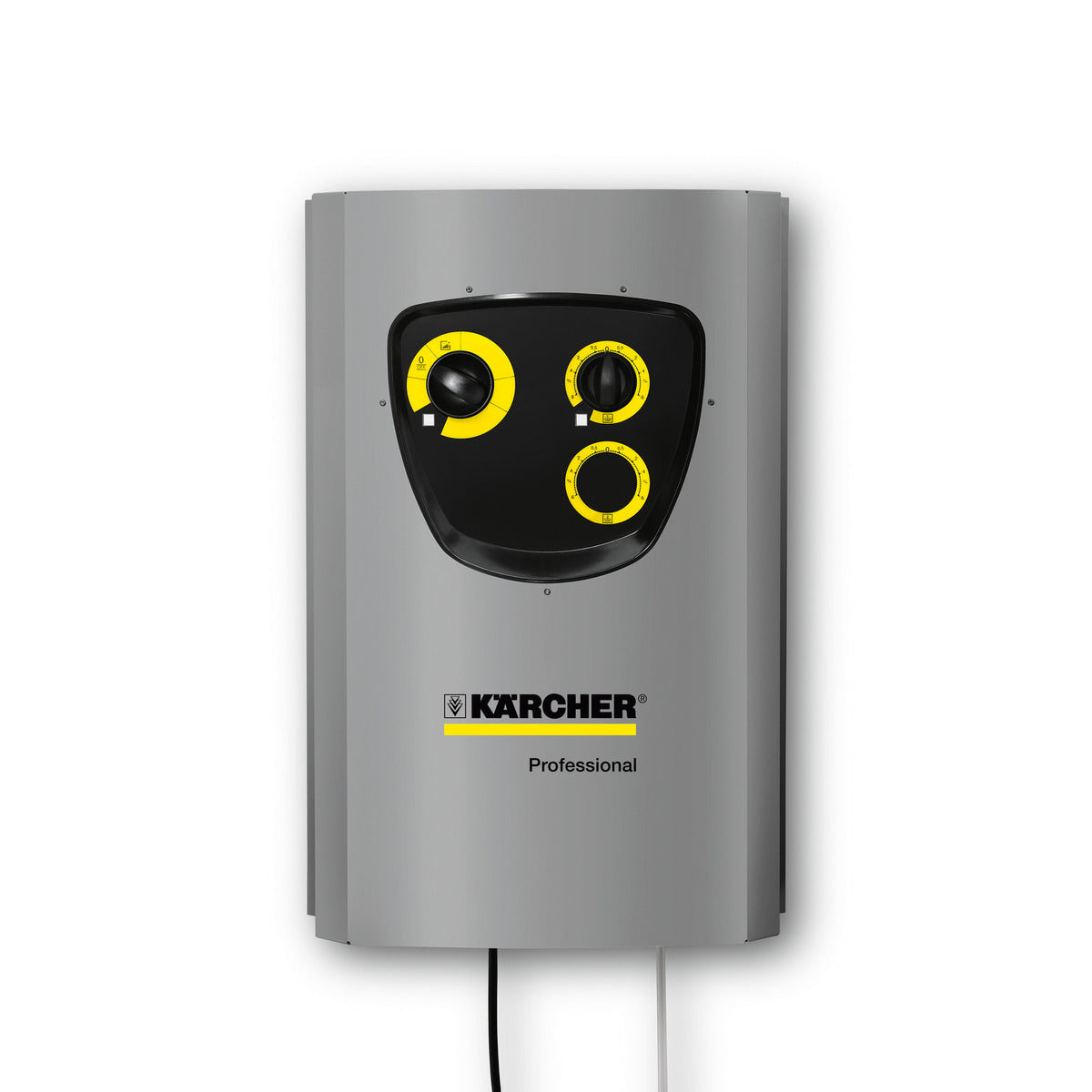

The configurable HD 9/18-4 ST, with an output of 180 bar and 900 l/h, is Kärcher's all-round solution in the field of cold water machines for operation with a lance.
Although many of the equipment features of our cold water high-pressure cleaner HD 9/18-4 ST are freely configurable, with a working pressure of 180 bar and a delivery of at least 900 l/h, it deserves the title "all-rounder" for its versatile application options, from industry to agriculture. To protect the machine, optional functions such as pressure relief, dry-running protection and water softening can be integrated. For hygienically sensitive areas, the version with a stainless steel housing is recommended, while particularly demanding cleaning tasks are best handled with the hot water version and the option to suck in cleaning agents. The newly developed innovations with the names EASY!Force and EASY!Lock are always included: the EASY!Force high-pressure gun uses the recoil force of the high-pressure jet to reduce the holding force to zero, while the EASY!Lock quick-release couplings enable handling that is five times faster than conventional screw connections without compromising on robustness or service life. Extensive accessories and additional details round off the well-thought-out concept of the HD 9/18-4 ST in a nice way.
Features and benefits
Application-based configuration
- You don't pay for something you don't really need.
- Simply choose a base unit and add only the features you need.
- Wide range of accessories for a variety of applications.
High flexibility
- Additional accessories or equipment can be mounted.
- Remote controls can be used directly at the point of use.
- Easy pre-connection of an HWE 860 water heater possible.
Ready to use quickly at any time
- The pump starts as soon as the trigger gun is activated, allowing convenient work from any feed point.
- Ready at the touch of a button, without setup times or transportation of mobile machines.
- For quick cleaning at various points of use.
Durable and robust design
- Suitable for daily use.
- Enables long periods of use and increases efficiency and productivity.
- Minimal maintenance and long service life.
Always flexible thanks to quick retrofitting
- Most features and accessories can be retrofitted at any time.
- Simple plug-and-play saves installation costs.
- Adaptation to changing requirements instead of a new purchase.
Perfectly hygienic
- Up to 70°C water temperature even in the basic model.
- Pre-pressure pump for inlet temperature up to 85°C.
- Easy pre-connection of an HWE 860 water heater possible.
Durable and robust
- 4-pole, slow-running electric motor guarantees long working hours.
- Robust brass cylinder head and ceramic piston.
- 4-pole electric motor with 3-piston axial pump.
Most equipment features and accessories can be easily retrofitted at any time
- The extensive range of accessories offers ergonomic and economical cleaning solutions for a variety of applications.
- Customized equipment and compatible accessories for every installation location and every budget.
- Minimal installation effort.
Specifications
Technical data
| Power supply (phase/V/ Hz ) | 3/400/50 |
| Flow rate (l/h) | 460–900 |
| Working pressure (bar/MPa) | 40 - 180 / 4 - 18 |
| Maximum pressure (bar/MPa) | 200 / 20 |
| Inlet temperature (°C) | 70 |
| Connected power (kW) | 6.8 |
| Protection (A) | 16 |
| Water inlet | 1″ |
| Number of users | 1 |
| Portability | stationary |
| Weight (with accessories) (kg) | 62.5 |
| Dimensions (L × W × H) (cm/mm) | 533 / 420 x 790 |
Scope of delivery
- High pressure hose length: 10 m
- High pressure hose specification: DN 8, 315 bar
- Stainless steel flush pipe: 1050 mm
- Prepared for power steering
- Pre-equipped for detergent inlet
Equipment
- Spray gun: EASY!Force Advanced
- Dry running protection
- Elapsed time counter
- Prepared for remote control
Areas of use
- Cleaning of vehicles and machinery in the automotive, industrial and agricultural sectors
- Ideal for cleaning applications in the food industry
- Ideal for applications in the food, cosmetics and chemical industries
- High-pressure washing of machinery and equipment in the construction, agricultural and municipal sectors
- Agriculture
- Stable cleaning
- Ideal for use in logistics centers, parking garages, production halls, warehouses, hotels, smaller parking facilities and parking garages.
- For applications in production, logistics and heavy industry, halls and warehouses
- For use in the metal and construction industries, as well as in heavy industry
- Public institutions
Configurable components
Pressure relief kit
Dosing unit for water softener
Operating hour meter
ABS: Preparation for remote control, one cleaning agent, low pressure application, preparation for remote control, high pressure, one cleaning agent
ABS: Preparation for remote control, two cleaning agents, low pressure application
ABS: Preparation for remote control, a cleaning agent, high-pressure application
ABS: Preparation for remote control, two cleaning agents, high-pressure application
