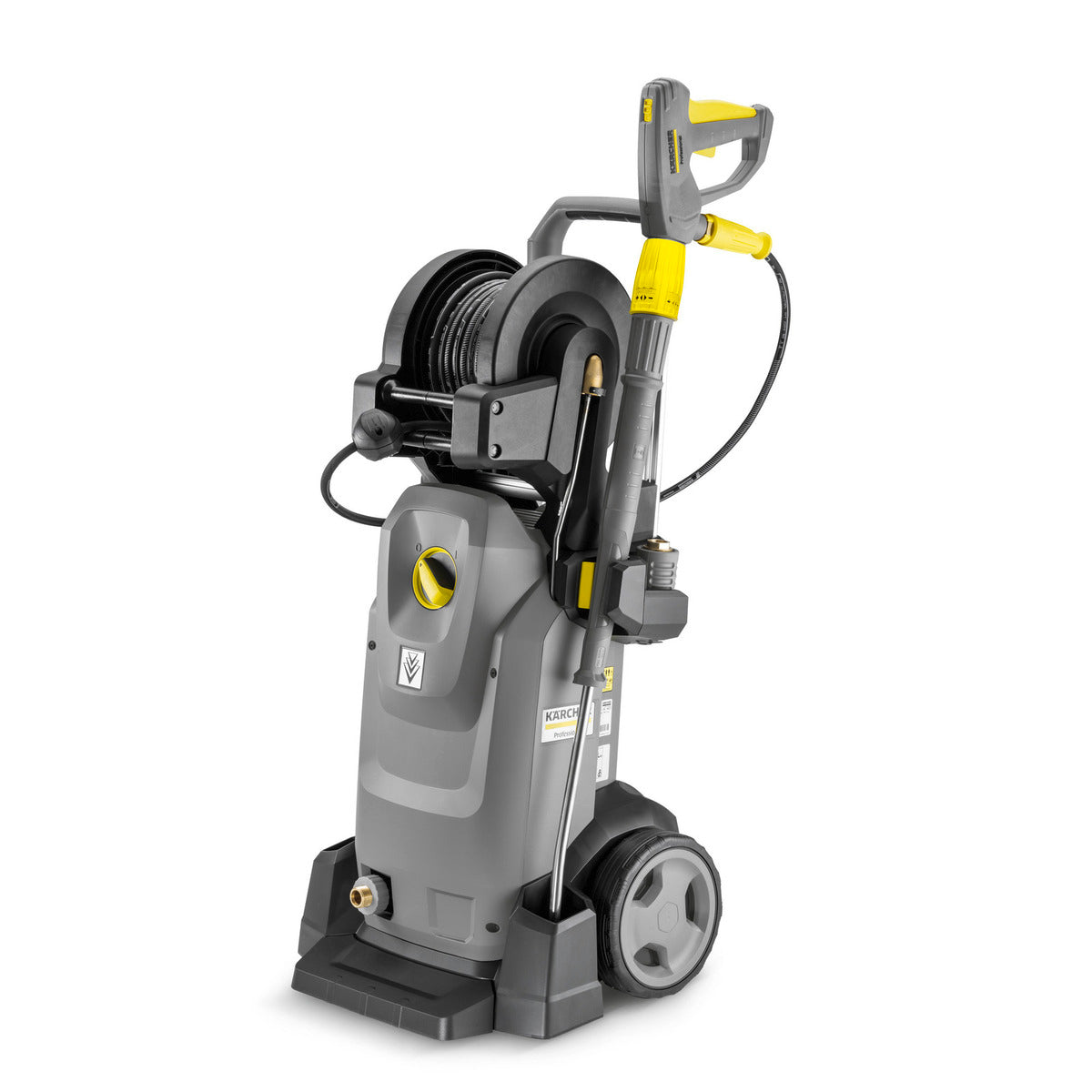

Kärcher High Pressure Washers HD 8/18-4 MXA Plus
Couldn't load pickup availability
Excellent performance data (hourly water volume of 760 l at 180 bar working pressure) and a practical hose reel are what make the HD 8/18-4 MXA Plus stand out in daily commercial use.
Our compact, mobile, unheated high-pressure cleaner HD 8/18-4 MXA Plus with 4-pole slow-running three-phase motor impresses with a wide range of equipment, service-friendly design and high flexibility in use. An integrated hose reel makes handling the high-pressure hose infinitely easier and the newly developed robust 3-piston axial pump with brass head increases cleaning performance and energy efficiency by an impressive 20%, while ensuring a long service life. The high-quality components are protected by an automatic pressure relief function and a large water filter. Innovative solutions ensure that you can work without getting tired and save time when assembling and disassembling: the EASY!Force high-pressure gun uses the recoil force of the high-pressure jet to reduce the holding force to zero, while the EASY!Lock quick-release couplings enable handling that is five times faster than conventional screw connections without compromising on robustness or service life. Thanks to smart solutions, accessories up to the optional cup spray lance can be stored directly on the machine for safe transport.
Features and benefits
Spring-mounted automatic hose reel
Maximum comfort when handling the high-pressure hose. Enables short setup times thanks to quick winding and unwinding. Avoids tripping hazards and thus increases operational safety.
Additional stand
Enlarges the machine's stand surface. Increases tilt stability when used upright.
High-quality equipment
Automatic pressure relief to protect components and extend their service life. Powerful, 4-pole, slow-running electric motor. High-quality brass cylinder head.Smart storage of accessories
- Holder for the cup foam lance.
- EASY!Lock TR20 allows you to store the Power nozzle or a surface cleaner directly at the machine.
- Practical nozzle compartment for storing the rotary nozzle.
Outstanding mobility
- The push handle, which can be folded in at the touch of a button, increases the machine's compactness and reduces the space requirement.
- Can be easily stored in service vehicles.
- Integrated storage options reduce setup times.
Flexible operation
- For vertical and horizontal operation.
- Maximum stability in horizontal operation as the wheels do not touch the floor.
Easy service
- Easy access to the cylinder head through the open part at the bottom of the machine.
- Quick access to the electrical box by simply removing the machine cover.
- Large, easily accessible water fine filter to protect the pump against dirt particles in the water.
Simple and time-saving solutions
- Fatigue-free EASY!Force high-pressure gun.
- EASY!Lock quick-release couplings: durable and robust. And five times faster than screws.
Increased energy efficiency
- Newly developed 3-piston axial pump for significantly reduced flow and pressure losses.
- 20% increase in cleaning performance and energy efficiency.
Specifications
Technical data
| Power supply (phase/V/ Hz ) | 3/400/50 |
| Flow rate (l/h) | 380–760 |
| Inlet temperature (°C) | 60 |
| Working pressure (bar/MPa) | 30–180 / 3–18 |
| Maximum pressure (bar/MPa) | 270 / 27 |
| Connected power (kW) | 4.6 |
| Power cable (m) | 5 |
| Water inlet | 3/4″ |
| Paint | anthracite |
| Weight (with accessories) (kg) | 45.7 |
| Weight incl. packaging (kg) | 49.6 |
| Dimensions (L × W × H) (mm) | 400 × 455 × 966 |
Scope of delivery
- Spray gun: EASY!Force
- Spray tube: 840 mm
- Power nozzle
- Dirt blower
- Servo control
Equipment
- High pressure hose length: 15 m
- High pressure hose type: Flexible
- Integrated high-pressure hose reel
- ANTI!Twist
- Pressure shut-off
Areas of use

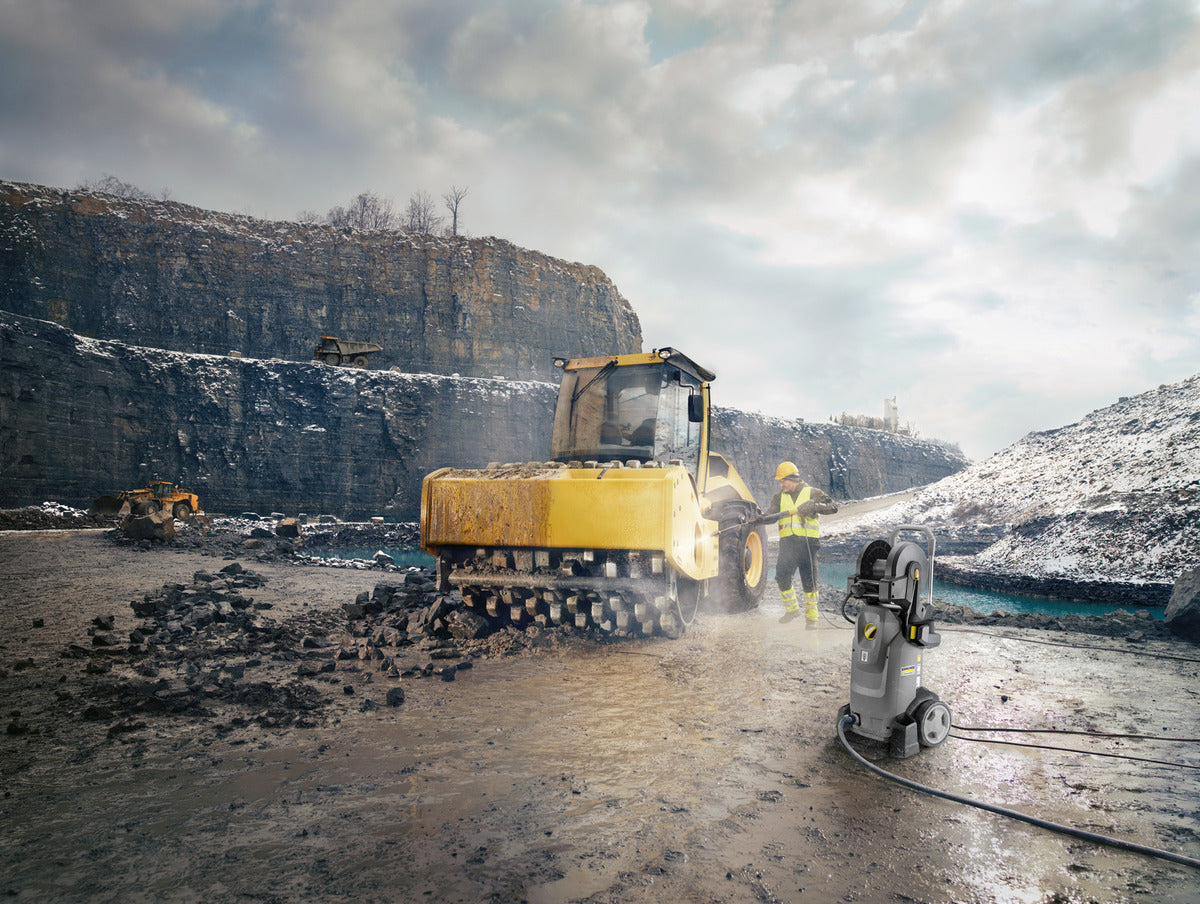

- Perfect for use in vehicle cleaning, construction, transportation and industry
