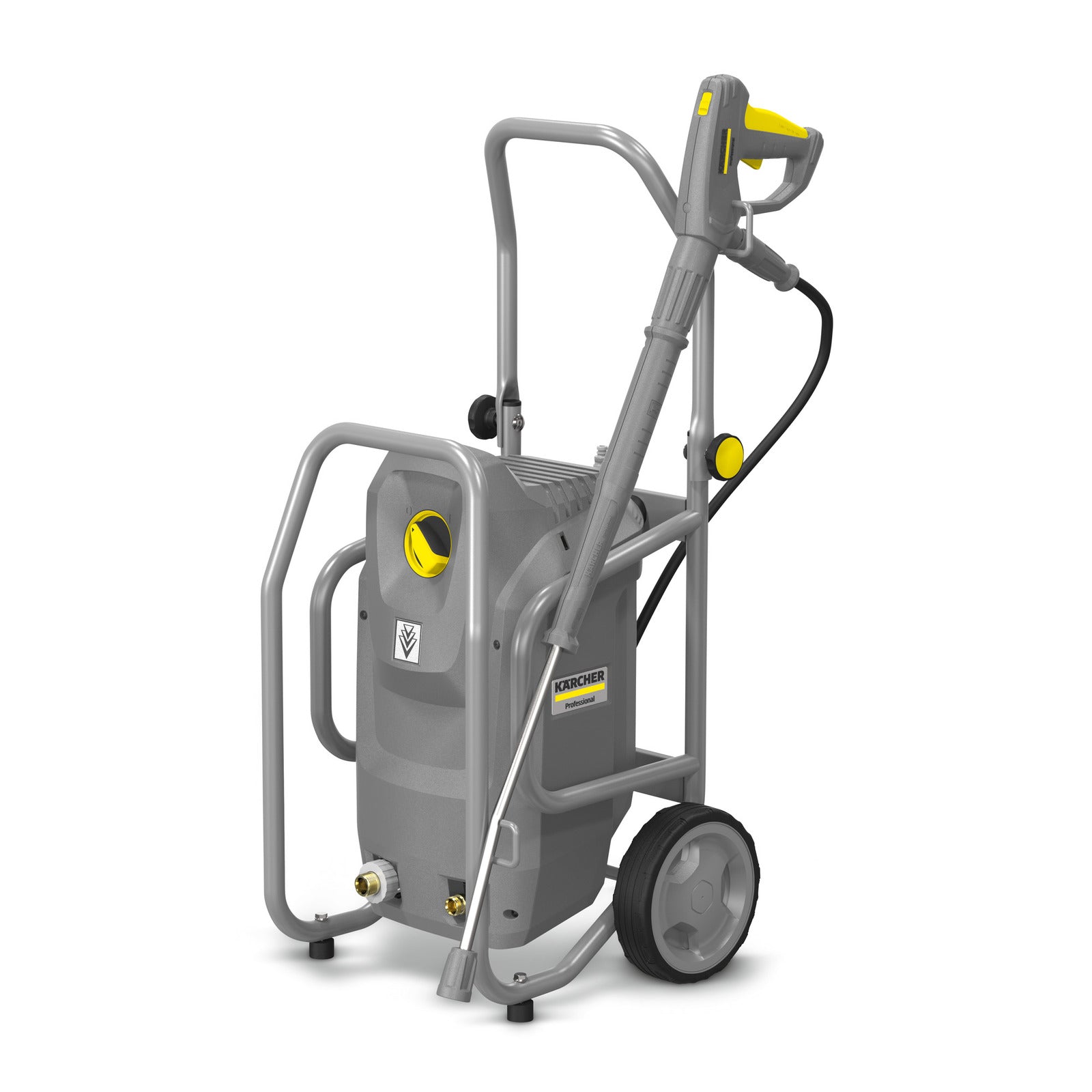

Kärcher High-pressure cleaner HD 7/17 M Cage
Couldn't load pickup availability
Up to 700 liters of water per hour for optimal cleaning results: The powerful HD 7/17 M Cage washer with steel tube frame, three-phase motor and automatic pressure relief.
The HD 7/17 M Cage with three-phase motor is a mobile and robust high-pressure cleaner equipped with a powder-coated steel tube frame that is designed to be used both vertically and horizontally under tough working conditions. The new 3-piston axial pump with brass cylinder head is easily accessible thanks to the service-friendly design and enables 20% higher cleaning results and energy efficiency. An additional water filter is built in to protect the pump, while the automatic pressure relief further protects it and other components during stand-by use. Our innovative EASY!Force The spray gun uses the recoil force from the high-pressure jet to reduce the force required to hold the handle to zero as standard and our EASY!Lock Quick-release couplings enable handling that is five times faster than conventional couplings without compromising on durability or safety.
Features and benefits
Durable and robust
Stable steel tube frame protects all components. The steel tube frame can also be used for easy attachment and lashing of the machine in the service vehicle. Robust plastic chassis reliably protects the pump from damage and dirt.
High quality equipment
Automatic pressure relief to protect components and extend their life. Powerful, 2-pole, air-cooled electric motor. High-quality brass cylinder head.
Easy service
Easy access to the top cover when the bottom of the machine is opened. Quick access to the electrical box by simply removing the cover. Large, easily accessible fine water filter that protects the pump from dirt particles in the water.Increased energy efficiency
- Newly developed three-cylinder axial piston pump that has significantly reduced flow and pressure losses.
- 20 percent increase in cleaning performance and energy efficiency.
Efficient and time-saving solutions
- Smooth EASY!Force flush handle.
- EASY!Lock Quick-release couplings: durable and robust. They are also five times faster than screws.
Flexible use
- Designed for vertical and horizontal operation.
Smart storage of accessories
- Bracket for fixing the foam nozzle.
- EASY!Lock The TR20 allows the power nozzle or a surface cleaner to be stored directly on the machine.
Specifications
Technical data
| Mains voltage (Ph/V/ Hz ) | 3 / 400 / 50 |
| Flow rate (l/h) | 700 |
| Inlet temperature (°C) | 60 |
| Working pressure (bar/MPa) | 170 / 17 |
| Max. pressure (bar/MPa) | 255 / 25.5 |
| Power (kW) | 4.2 |
| Power cable (m) | 5 |
| Water supply | 3/4″ |
| Paint | anthracite |
| Weight (with accessories) (kg) | 36.6 |
| Weight incl. packaging (kg) | 40.9 |
| Dimensions (L × W × H) (mm) | 420 x 460 x 970 |
The following is included
- Flush handle: EASY!Force
- Flush pipe: 840 mm
- Power nozzle
Standard equipment
- High pressure hose length: 10 m
- High pressure hose type: Premium quality
- Automatic start/stop
Areas of use

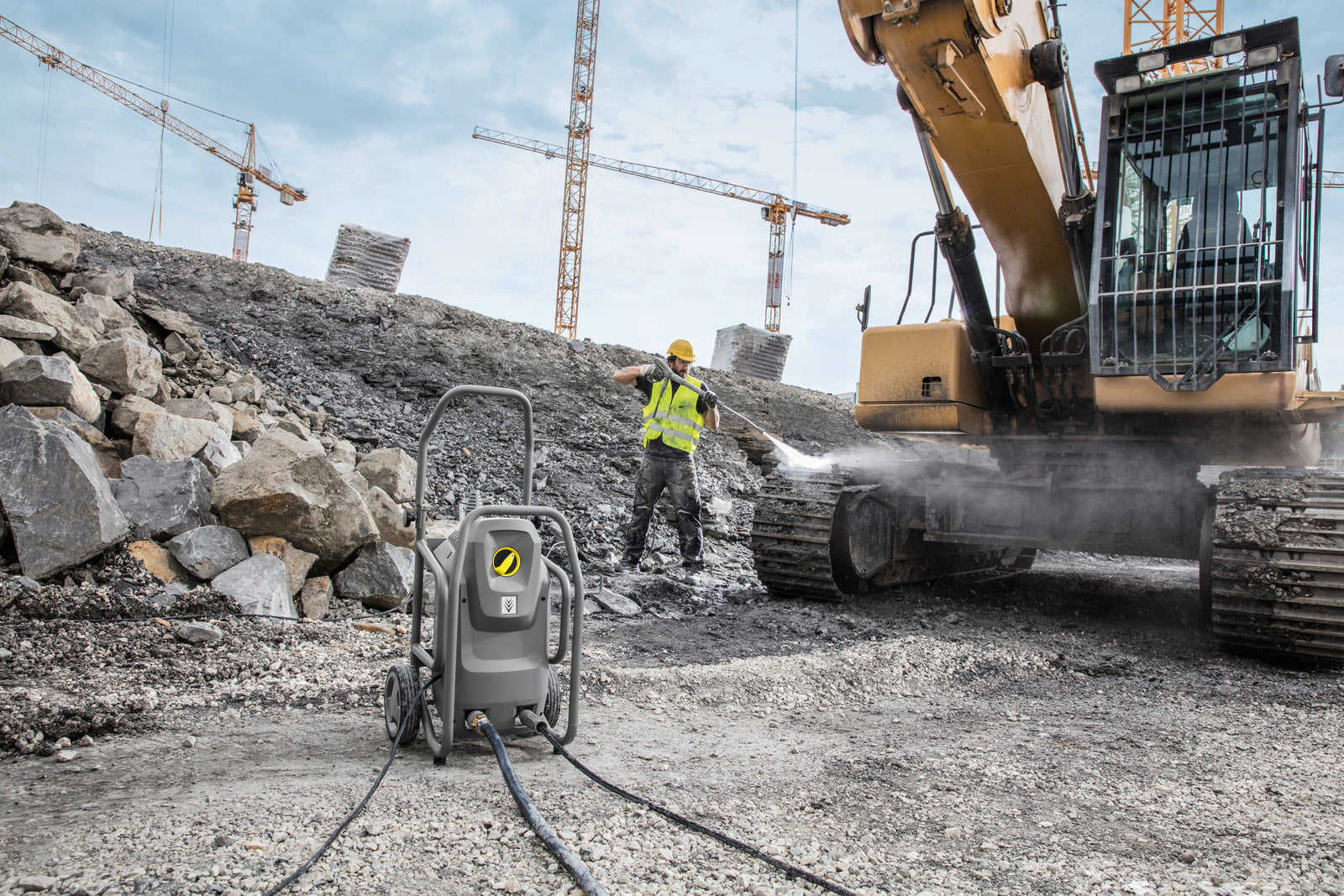

- Ideal for use in vehicle washes, in the construction and transport sectors, as well as in industry
