Kärcher High-pressure washer HD 6/15 M pcs
Couldn't load pickup availability

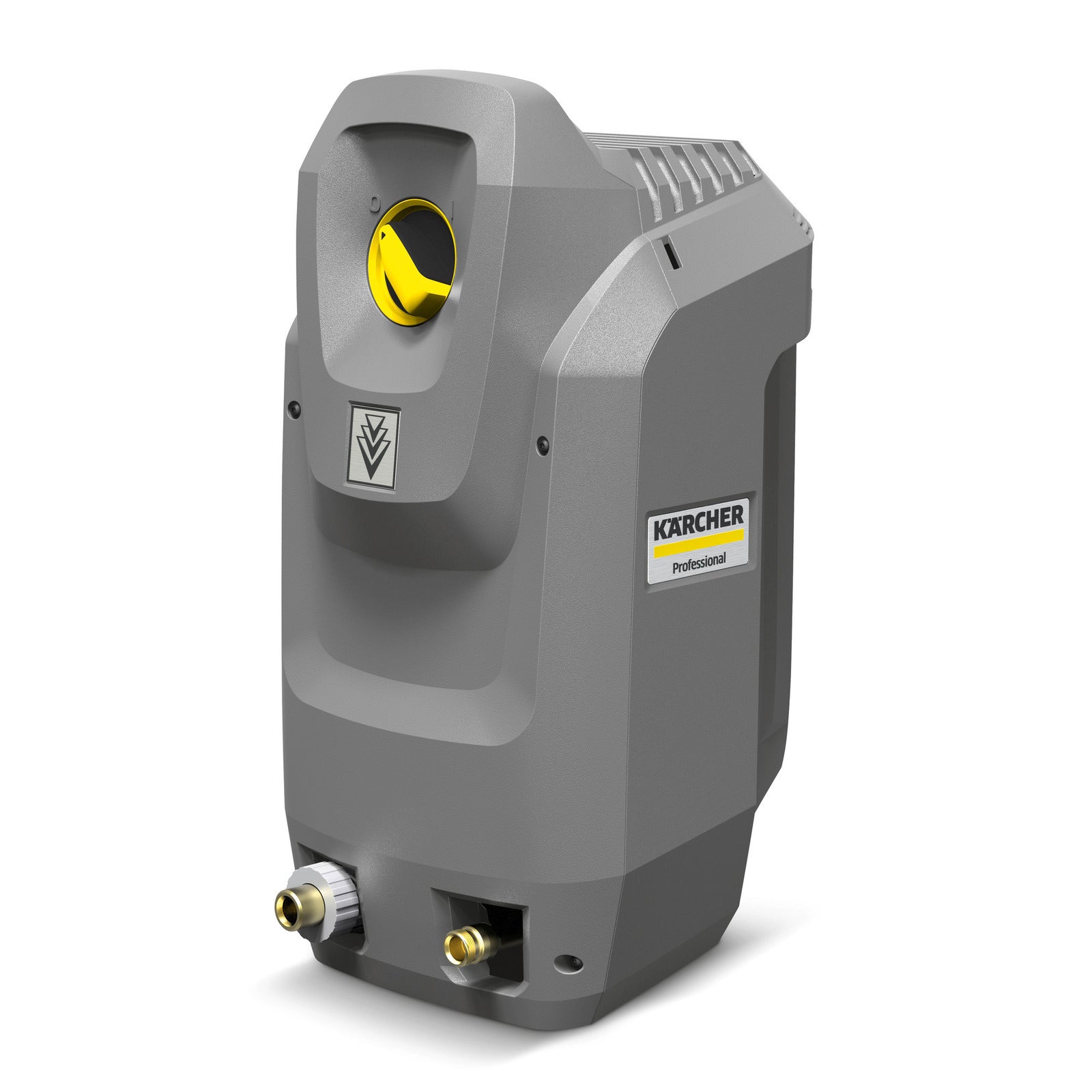

The compact HD 6/15 M PU motor/pump unit for stationary use, with AC motor, wall mounting, 600 liters per hour flow rate and automatic pressure relief.
The newly developed three-cylinder axial piston pump with hardened stainless steel pistons is the core of our powerful 6/15 M PU motor/pump unit with AC motor. It offers up to 20% higher energy efficiency and cleaning performance, guarantees a long service life and ensures a working pressure of 150 bar. To protect the pump, a fine water filter is integrated, which reliably removes dirt particles from the recycled water. The automatic pressure relief function also protects the pump and other high-pressure components from possible loads during standby operation. In addition, the mid-range machine has an extremely service- and user-friendly design, meaning that all important components are easily accessible. Whether used in a vertical or horizontal position: a smart three-point support on the back of the machine ensures easy vertical mounting on walls (or horizontally as a built-in machine).
Features and benefits
High quality equipment
Automatic pressure relief to protect components and extend their life. Powerful, 2-pole, air-cooled electric motor. High-quality brass cylinder head.
Flexible use
Designed for vertical and horizontal operation.
Prepared for stationary use
Simple and robust three-point wall mount on the back of the unit. Space-saving design. Integrated storage options reduce setup time.Easy service
- Easy access to the top cover when the bottom of the machine is opened.
- Quick access to electrical box by simply removing the cover.
- Large, easily accessible fine filter for the water that protects the pump against dirt particles in the water.
Increased energy efficiency
- Newly developed three-cylinder axial piston pump that has significantly reduced flow and pressure losses.
- 20 percent increase in cleaning performance and energy efficiency.
Specifications
Technical data
| Mains voltage (Ph/V/ Hz ) | 1 / 230 / 50 |
| Flow rate (l/h) | 560 |
| Inlet temperature (°C) | 60 |
| Working pressure (bar/MPa) | 150 / 15 |
| Max. pressure (bar/MPa) | 225 / 22.5 |
| Power (kW) | 3.1 |
| Power cable (m) | 5 |
| Water supply | 3/4″ |
| Paint | anthracite |
| Weight (with accessories) (kg) | 20.5 |
| Weight incl. packaging (kg) | 22.9 |
| Dimensions (L × W × H) (mm) | 290 x 300 x 565 |
Standard equipment
- Automatic start/stop
Areas of use
- Ideal for building contractors, tradespeople, building service providers and local authorities
