Kärcher High Pressure Washer HD 6/15 M *EU
Couldn't load pickup availability

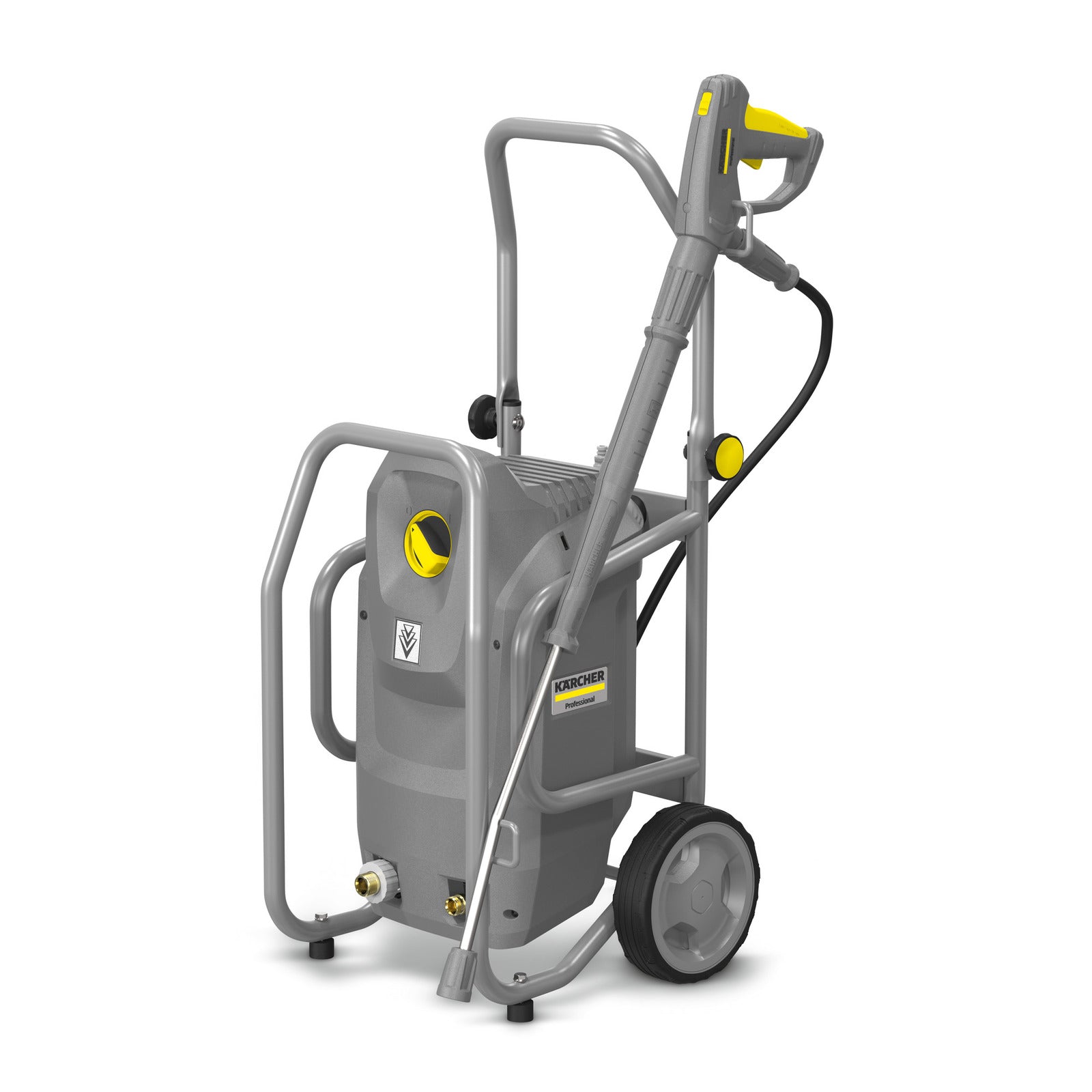

The HD 6/15 M Cage is a very robust, mobile high-pressure cleaner for daily commercial use that is equipped with a 3-piston axial pump and a steel tube frame to protect the pump unit.
The unheated HD 6/15 M Cage high-pressure cleaner handles all situations in demanding, daily commercial use, both standing and lying down. The mobile and very robust machine is equipped with a new 3-piston axial pump with a brass cylinder head, which has enabled an improvement in cleaning performance and energy efficiency by up to 20 percent. The machine is equipped with an automatic pressure relief that protects all high-pressure components and an additional water filter for the pump itself. The HD 6/15 M Cage is designed for the easiest possible service and is equipped with a powder-coated steel tube frame that makes it possible to use the high-pressure cleaner even in very demanding applications without damaging it. Other standard equipment includes The EASY!Force spray gun uses the recoil force of the high-pressure jet to completely eliminate the force the user needs to resist. This also includes EASY!Lock quick-release couplings make handling five times faster than with standard screw couplings without compromising on either robustness or service life.
Features and benefits
Durable and robust
Stable steel tube frame protects all components. The steel tube frame can also be used for easy attachment and lashing of the machine in the service vehicle. Robust plastic chassis reliably protects the pump from damage and dirt.
High quality equipment
Automatic pressure relief to protect components and extend their life. Powerful, 2-pole, air-cooled electric motor. High-quality brass cylinder head.
Easy service
Easy access to the top cover when the bottom of the machine is opened. Quick access to the electrical box by simply removing the cover. Large, easily accessible fine water filter that protects the pump from dirt particles in the water.Increased energy efficiency
- Newly developed three-cylinder axial piston pump that has significantly reduced flow and pressure losses.
- 20 percent increase in cleaning performance and energy efficiency.
Efficient and time-saving solutions
- Smooth EASY!Force flush handle.
- EASY!Lock Quick-release couplings: durable and robust. They are also five times faster than screws.
Flexible use
- Designed for vertical and horizontal operation.
Smart storage of accessories
- Bracket for fixing the foam nozzle.
- EASY!Lock The TR20 allows the power nozzle or a surface cleaner to be stored directly on the machine.
Specifications
Technical data
| Mains voltage (Ph/V/ Hz ) | 1 / 230 / 50 |
| Flow rate (l/h) | 560 |
| Inlet temperature (°C) | 60 |
| Working pressure (bar/MPa) | 150 / 15 |
| Max. pressure (bar/MPa) | 225 / 25 |
| Power (kW) | 3.1 |
| Power cable (m) | 5 |
| Water supply | 3/4″ |
| Paint | anthracite |
| Weight (with accessories) (kg) | 34 |
| Weight incl. packaging (kg) | 38.3 |
| Dimensions (L × W × H) (mm) | 420 x 460 x 970 |
The following is included
- Flush handle: EASY!Force
- Flush pipe: 840 mm
- Power nozzle
Standard equipment
- High pressure hose length: 10 m
- High pressure hose type: Premium quality
- Automatic start/stop
Areas of use

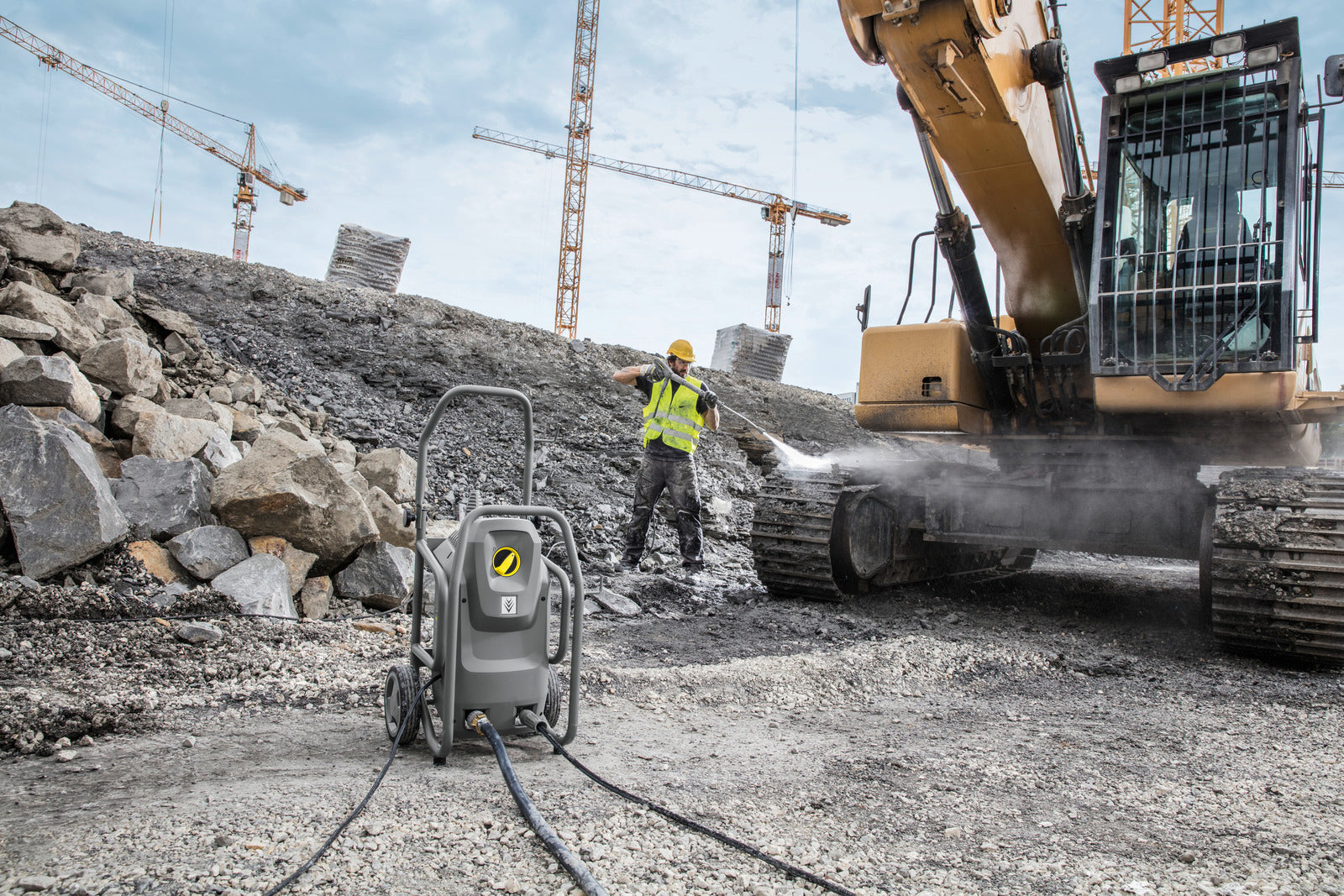

- Ideal for use in vehicle washes, in the construction and transport sectors, as well as in industry
