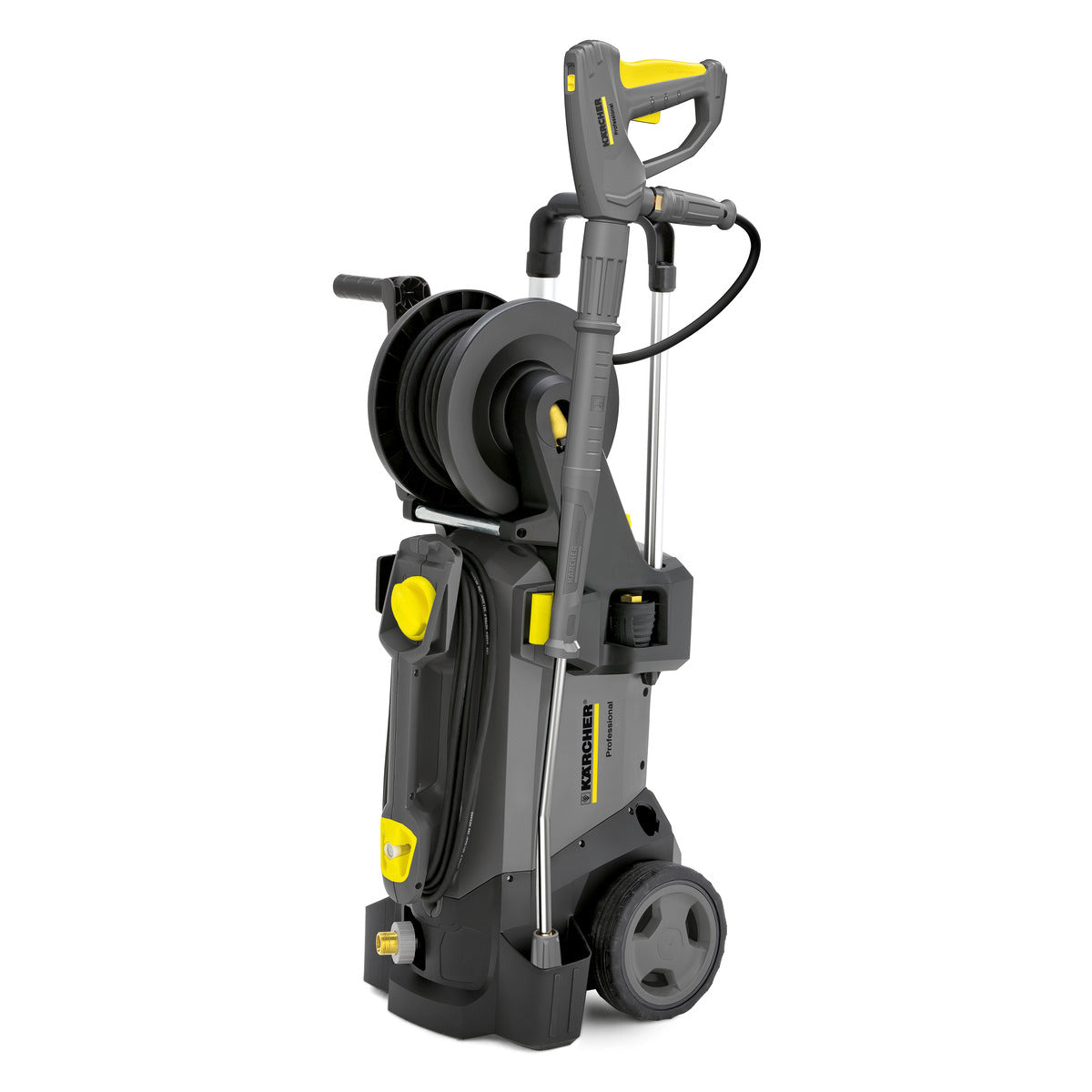

Kärcher High Pressure Washers HD 5/15 CX Plus
Couldn't load pickup availability
Practical, mobile, versatile: the HD 5/15 CX Plus cold water high-pressure cleaner for vertical and horizontal use. With accessory storage, brass cylinder head and automatic pressure relief.
The compact, lightweight and versatile HD 5/15 CX Plus cold water high-pressure cleaner offers outstanding mobility and is suitable for both vertical and horizontal operation. The machine is equipped with sophisticated accessory storage, and the brass head and automatic pressure relief ensure a long service life. At the same time, it impresses with innovative new developments that increase the operator's working comfort in the long term by ensuring easy operation and time-saving set-up and dismantling. The EASY!Force high-pressure gun uses the recoil force of the high-pressure jet to reduce the holding force to zero, while the EASY!Lock quick-release couplings make handling five times faster than with conventional screw connections, without compromising on robustness and service life. All in all, a comprehensive equipment package for excellent cleaning results, with high convenience and a long service life.
Features and benefits
Save time and energy: EASY!Force high-pressure gun and EASY!Lock quick-release couplings
Finally, fatigue-free work: EASY!Force high-pressure gun. EASY!Lock quick-release couplings: durable and robust. And five times faster than screws.
Portability
Integrated carrying handle on the front of the machine allows for easy loading and convenient transport. The push handle can be folded in at the touch of a button. Compact design.
Flexibility
Vertical and horizontal operation possible. The wheels are not on during horizontal operation. The machine offers maximum stability. Separate parking and transport position for the spray unit.Quality
- The automatic pressure relief protects the components and extends the life of the machine.
- High quality brass cylinder head.
- Large, easily accessible water fine filter to protect the pump against dirt particles in the water.
Storage of accessories
- Screw connection (M 18 × 1.5) for storing surface cleaner directly on the machine.
- Practical nozzle compartments for triple nozzle and rotary nozzle.
- Integrated hose reel with 15 m pressure hose. For large working radius and easy storage (CX versions).
Specifications
Technical data
| Power supply (phase/V/ Hz ) | 1 / 230 / 50 |
| Flow rate (l/h) | 500 |
| Inlet temperature (°C) | 60 |
| Working pressure (bar/MPa) | 150 / 15 |
| Maximum pressure (bar/MPa) | 200 / 20 |
| Connected power (kW) | 2.8 |
| Power cable (m) | 5 |
| Nozzle size (mm) | 32 |
| Water inlet | 3/4″ |
| Paint | anthracite |
| Weight (with accessories) (kg) | 28.3 |
| Weight incl. packaging (kg) | 31.2 |
| Dimensions (L × W × H) (mm) | 380 x 370 x 930 |
Scope of delivery
- Spray gun: EASY!Force
- High pressure hose length: 15 m
- High pressure hose specification: DN 6, 200 bar
- Spray tube: 840 mm
- Dirt blower
Equipment
- Hose reel
- Detergent function: Suction
- Pressure shut-off
