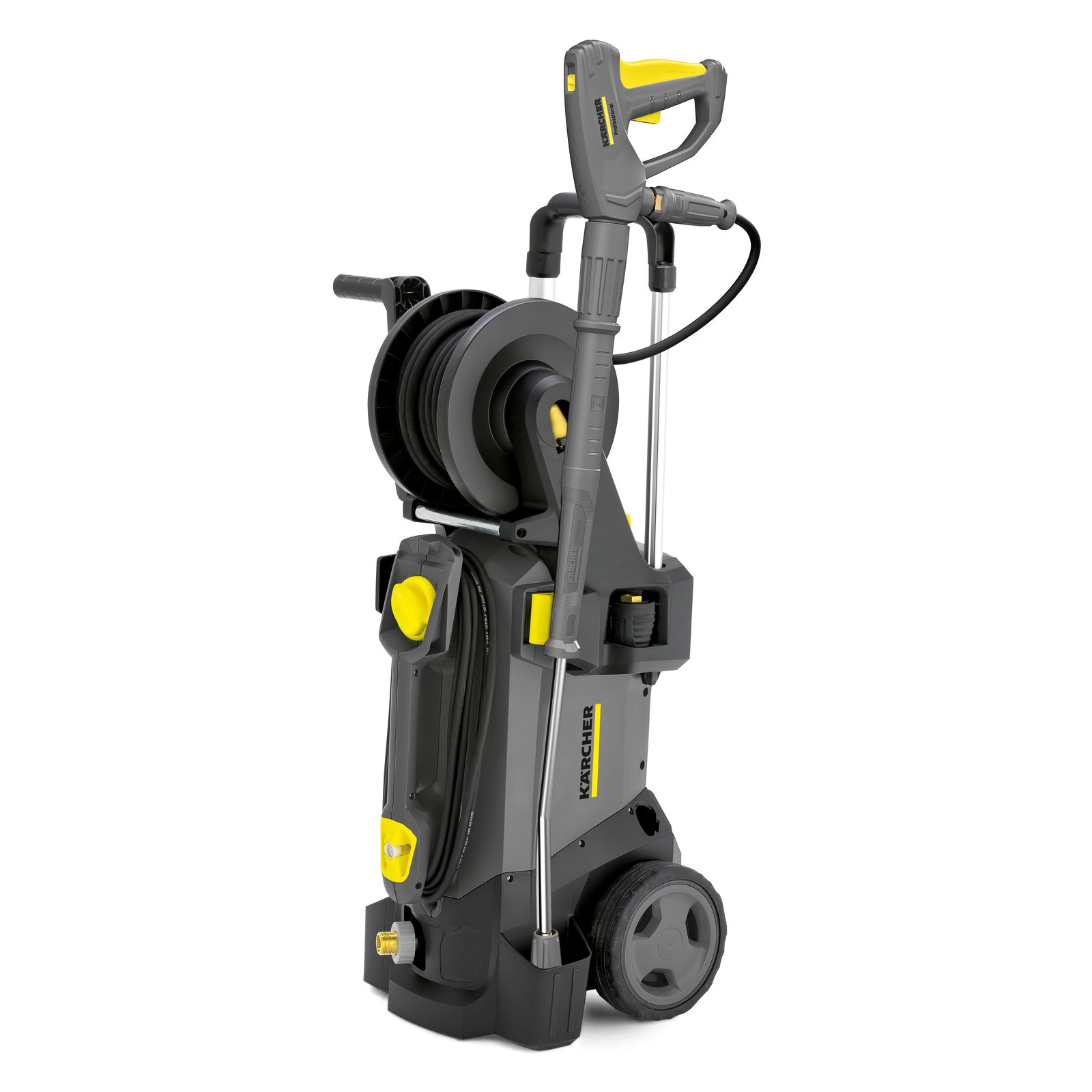

Kärcher High-pressure washer HD 5/15 CX
Couldn't load pickup availability
The HD 5/15 CX is a compact, powerful single-phase washer for cleaning on the farm, in the workshop, of the company's fleet and machinery. The machine is equipped with new EASY!Force and EASY!Lock . Hose reel with 15 m high-pressure hose.
The compact, lightweight and versatile HD 5/15 CX impresses with its excellent mobility and is suitable for both vertical and horizontal operation. Equipped with practical accessory storage and automatic pressure relief. The 3-cylinder axial piston pump with ceramic pistons and brass cylinder head guarantees a long service life and delivers a water flow of 500 l/h and 150 bar. The high-pressure cleaner is equipped with the revolutionary user concept EASY!Force spray gun that utilizes the recoil of the high-pressure jet and reduces the force needed to hold the spray gun to zero. With the patented EASY!Lock With the quick lock, connection is faster and easier - a full 5 times faster than with standard screw connections and without losing robustness and service life. Hose reel with 15 m high-pressure hose.
Features and benefits
Save time and effort: The flush handle EASY!Force for high pressure and EASY!Lock quick connectors.
- Finally – clean without getting tired with EASY!Force flush handle
- EASY!Lock Quick-release couplings: durable and robust. They are also five times faster than screws.
Mobile
- Integrated carrying handle on the front of the machine allows for easy loading and convenient transport.
- The handle can be easily folded at the push of a button.
- Compact design.
Flexible
- For vertical and horizontal operation.
- When operating horizontally, the wheels do not lock in and therefore provide maximum stability.
- Separate storage space for the spray handle.
Quality
- The automatic pressure relief system protects high-pressure components and improves durability.
- High quality brass cylinder head.
- Large, easily accessible fine filter for the water that protects the pump against dirt particles in the water.
Accessory storage
- Screw thread connection (M 18 x 1.5) for connecting a surface cleaner directly to the machine.
- Practical storage of the rotojet and three-function nozzles.
- Integrated hose reel with 15 m high-pressure hose. For large radius of action and easy storage (CX models).
Specifications
Technical data
| Mains voltage (Ph/V/ Hz ) | 1 / 230 / 50 |
| Flow rate (l/h) | 500 |
| Inlet temperature (°C) | up to 60 |
| Working pressure (bar/MPa) | 150 / 15 |
| Max. pressure (bar/MPa) | 200 / 20 |
| Power (kW) | 2.8 |
| Power cable (m) | 5 |
| Water supply | 3/4″ |
| Paint | anthracite |
| Weight (with accessories) (kg) | 27.5 |
| Weight incl. packaging (kg) | 30.4 |
| Dimensions (L × W × H) (mm) | 380 x 370 x 930 |
The following is included
- Flush handle: EASY!Force
- High pressure hose length: 15 m
- Flush pipe: 840 mm
Standard equipment
- Hose reel
- Detergent function: Suction
- Automatic start/stop
