Kärcher High-pressure washer HD 5/15 C Plus
Couldn't load pickup availability

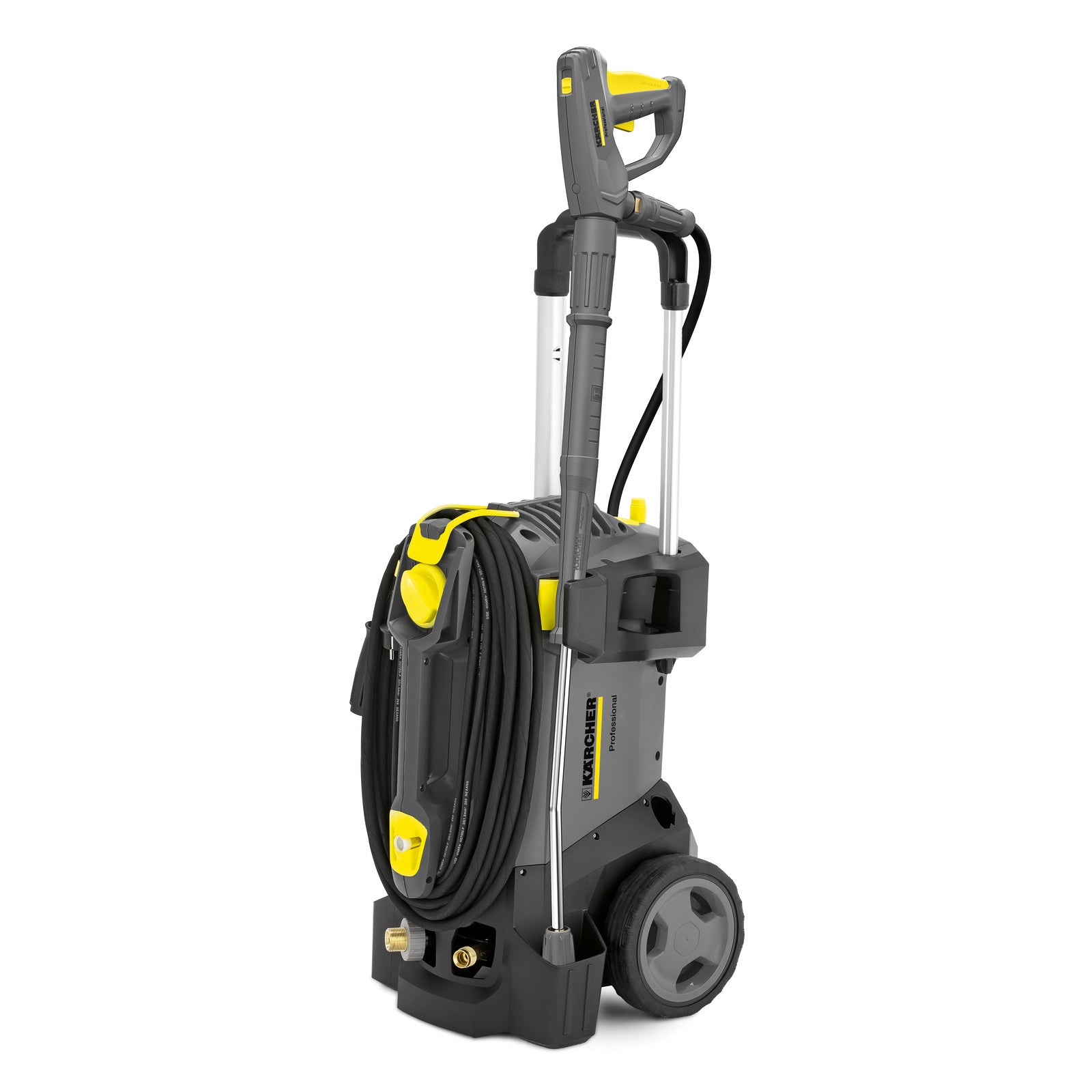

The HD 5/15 C Plus is a compact, powerful single-phase washer for cleaning in the yard, workshop, company fleet and machinery. The machine is equipped with new EASY!Force and EASY!Lock . 10 m steel-reinforced high-pressure hose. Rotojet included.
The compact, lightweight and versatile HD 5/15 CX Plus impresses with its excellent mobility and is suitable for both vertical and horizontal operation. Equipped with practical accessory storage and automatic pressure relief. The 3-cylinder axial piston pump with ceramic pistons and brass cylinder head guarantees a long service life and delivers a water flow of 500 l/h and 150 bar. The high-pressure cleaner is equipped with the revolutionary user concept EASY!Force spray gun that utilizes the recoil of the high-pressure jet and reduces the force needed to hold the spray gun to zero. With the patented EASY!Lock quick lock makes connection faster and easier - a full 5 times faster than with standard screw connections and without losing robustness and service life. Hose reel with 15 m high-pressure hose. Rotojet included.
Features and benefits
Save time and effort: The flush handle EASY!Force for high pressure and EASY!Lock quick connectors.
Finally – clean without getting tired with EASY!Force flush handle EASY!Lock Quick-release couplings: durable and robust. They are also five times faster than screws.
Mobile
Integrated carrying handle on the front of the machine allows for easy loading and convenient transport. The handle can be easily folded at the push of a button. Compact design.
Flexible
For vertical and horizontal operation. In horizontal operation, the wheels are not in place and therefore provide maximum stability. Separate storage space for the spray handle.Quality
- The automatic pressure relief system protects high-pressure components and improves durability.
- High quality brass cylinder head.
- Large, easily accessible fine filter for the water that protects the pump against dirt particles in the water.
Accessory storage
- Screw thread connection (M 18 x 1.5) for connecting a surface cleaner directly to the machine.
- Practical storage of the rotojet and three-function nozzles.
- Integrated hose reel with 15 m high-pressure hose. For large radius of action and easy storage (CX models).
Specifications
Technical data
| Mains voltage (Ph/V/ Hz ) | 1 / 230 / 50 |
| Flow rate (l/h) | 500 |
| Inlet temperature (°C) | 60 |
| Working pressure (bar/MPa) | 150 / 15 |
| Max. pressure (bar/MPa) | 200 / 20 |
| Power (kW) | 2.8 |
| Power cable (m) | 5 |
| Nozzle size (mm) | 32 |
| Water supply | 3/4″ |
| Paint | anthracite |
| Weight (with accessories) (kg) | 28.3 |
| Weight incl. packaging (kg) | 31.2 |
| Dimensions (L × W × H) (mm) | 380 x 370 x 930 |
The following is included
- Flush handle: EASY!Force
- High pressure hose length: 15 m
- Flush pipe: 840 mm
- Rotojet nozzle
Standard equipment
- Hose reel
- Detergent function: Suction
- Automatic start/stop
