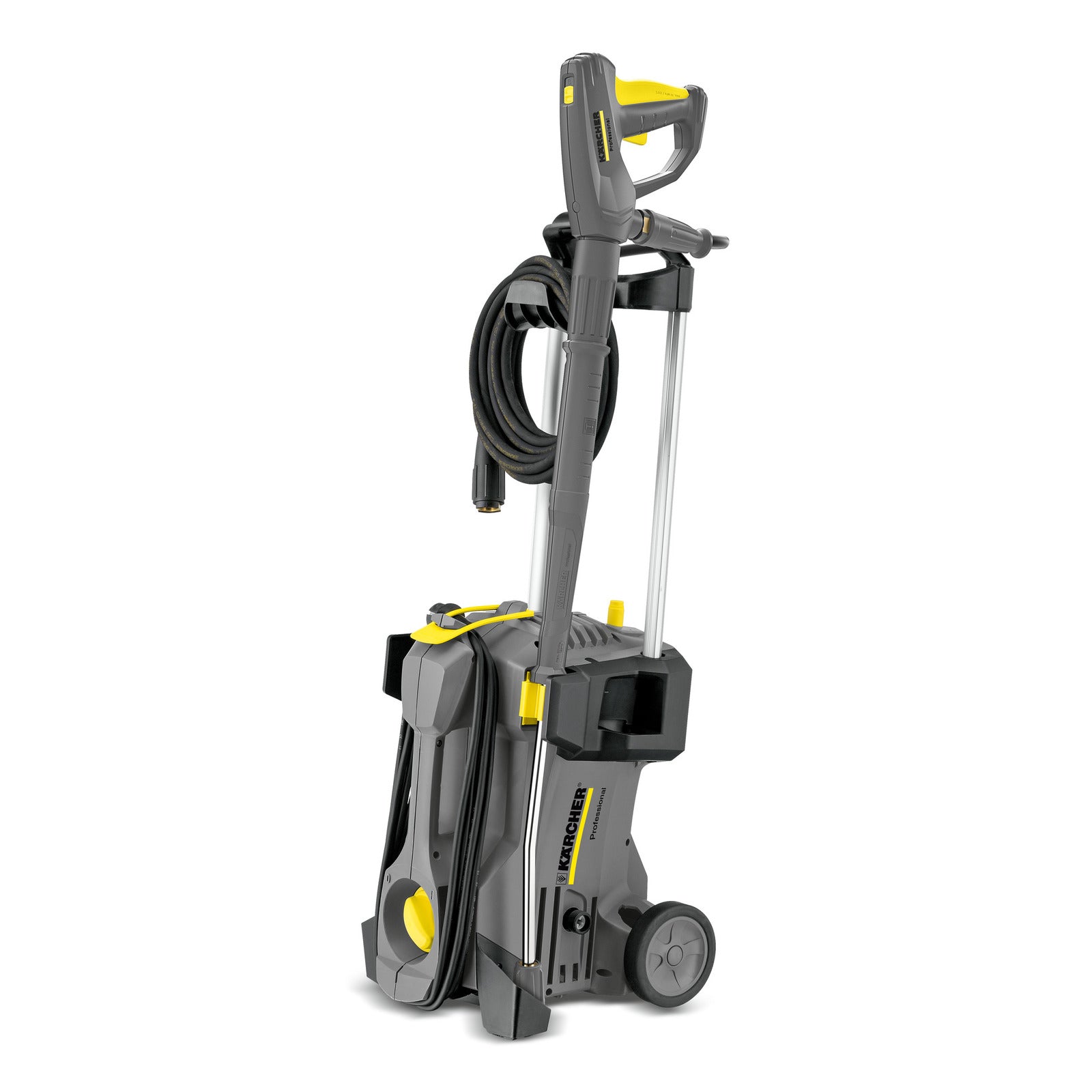

Kärcher High-pressure washer HD 5/11 P Plus
Couldn't load pickup availability
Compact design, extendable handle and low weight are some of the features of the HD 5/11P Plus, which is a portable single-phase washer. The machine is equipped with new EASY!Force and EASY!Lock .
The HD 5/11 P Plus is a portable single-phase 230 Volt/2.2 kW washer that impresses with its compact design and light weight of 20 kg. The machine has an axial pump with three pistons and brass cylinder head and delivers 500 l/h and 110 bar. Automatic pressure relief system protects components so that the machine lasts longer, which reduces maintenance/repair costs. An additional carrying handle and extendable push handle make it easy to transport and store and that it can be used in both horizontal and vertical positions. The high-pressure washer is equipped with the revolutionary user concept EASY!Force spray gun that utilizes the recoil of the high-pressure jet and reduces the force needed to hold the spray gun to zero. With the patented EASY!Lock quick lock makes connection faster and easier - a full 5 times faster than with standard screw connections and without losing robustness and service life. Complete with foam applicator to get detergent function. 10 meter hose. Rotojet included.
Features and benefits
Save time and effort: The flush handle EASY!Force for high pressure and EASY!Lock quick connectors.
Finally – clean without getting tired with EASY!Force flush handle EASY!Lock Quick-release couplings: durable and robust. They are also five times faster than screws.
Mobile
Extra carrying handle for easy loading and transport. Compact design and low weight
Flexible
For vertical and horizontal operation. Separate storage space for the spray handle. The machine offers the best possible stability in horizontal operation.Quality
- The automatic pressure relief system protects high-pressure components and improves durability.
- High quality brass cylinder head.
Accessory storage
- Screw thread connection (M 18 x 1.5) for connecting a surface cleaner directly to the machine.
- Practical storage of the rotojet and three-function nozzles.
- Rubber band for attaching the high-pressure hose
Specifications
Technical data
| Mains voltage (Ph/V/ Hz ) | 1 / 230 / 50 |
| Flow rate (l/h) | 490 |
| Inlet temperature (°C) | 60 |
| Working pressure (bar/MPa) | 110 / 11 |
| Max. pressure (bar/MPa) | 160 / 16 |
| Power (kW) | 2.2 |
| Power cable (m) | 5 |
| Water supply | 3/4″ |
| Paint | anthracite |
| Weight (with accessories) (kg) | 20.9 |
| Weight incl. packaging (kg) | 23 |
| Dimensions (L × W × H) (mm) | 351 x 312 x 904 |
The following is included
- Flush handle: EASY!Force
- High pressure hose length: 10 m
- Flush pipe: 840 mm
- Rotojet nozzle
Standard equipment
- Automatic start/stop
Areas of use
- Facade cleaning
- Construction sites
- Floor and wall cleaning
- Outdoor areas
- Vehicle
- Machines and devices
