Kärcher High-pressure washer HD 17/15-4 S ST Classic
Couldn't load pickup availability

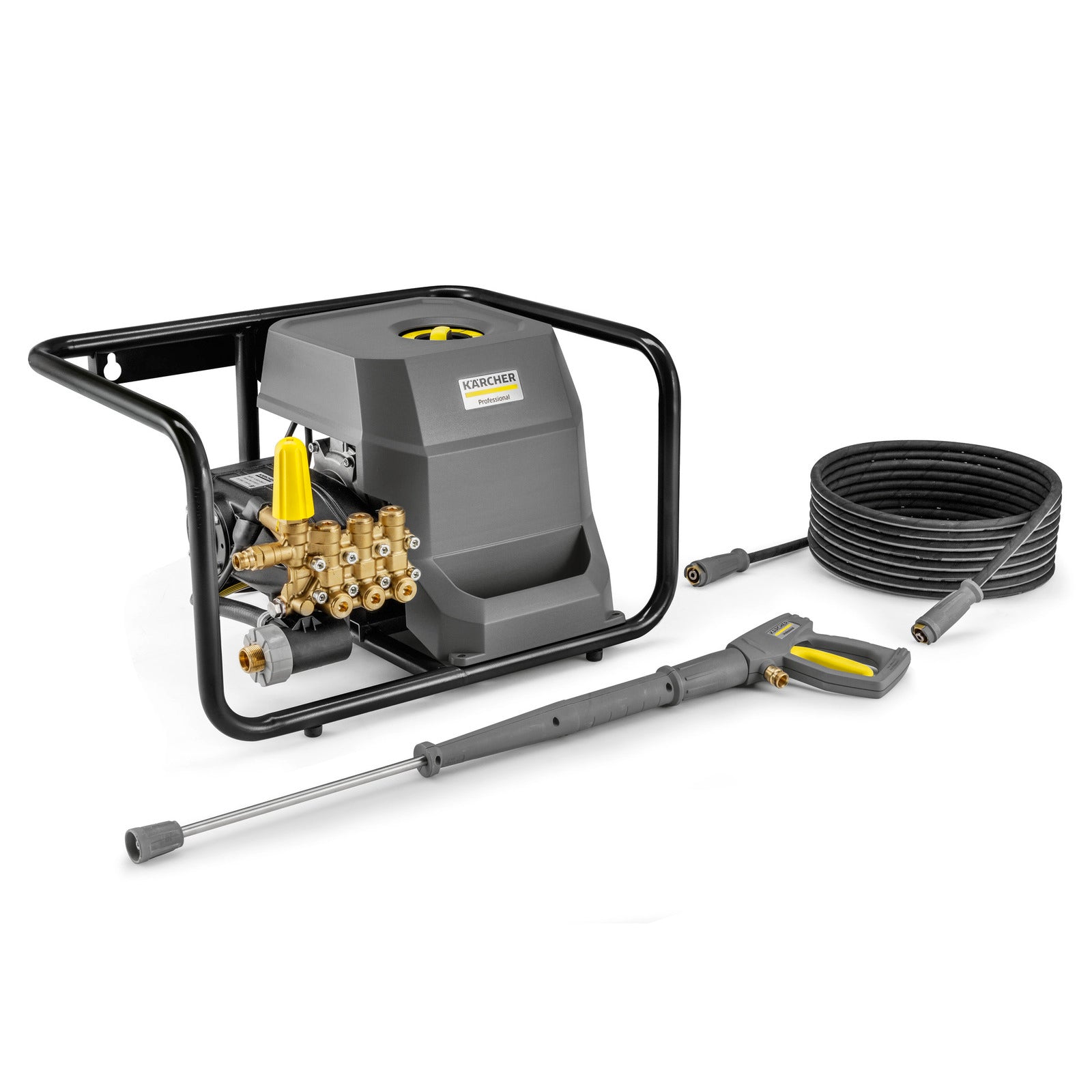

The HD 17/15-4 S St Classic, the stationary cold water high-pressure cleaner, is designed for tough continuous use and optimal cleaning results. Easy to install, operate and maintain.
Robust, powerful, ultra-easy to use and suitable for the toughest stationary applications: the HD 17/15-4 S St. Classic cold water high-pressure cleaner from Kärcher produces up to 150 bar of working pressure from its 9 kW motor output and delivers a flow rate of 1700 liters. The strong, easily adjustable crankshaft pump with its high-quality brass cylinder head and the low-speed 4-pole motor with automatic shut-off and air/water cooling form the heart of the machine and ensure consistent and long-lasting operation. In addition, the pump is effectively protected against dirt by an easy-to-maintain water filter. Gun, lance, 10 meter high-pressure hose and a power nozzle are included as standard - all with our innovative quick EASY!Lock couplings for speed and simplicity. Routine service and maintenance tasks on the HD 17/15-4 S St Classic can be completed as quickly as installing its ultra-strong steel frame on the wall or floor.
Features and benefits

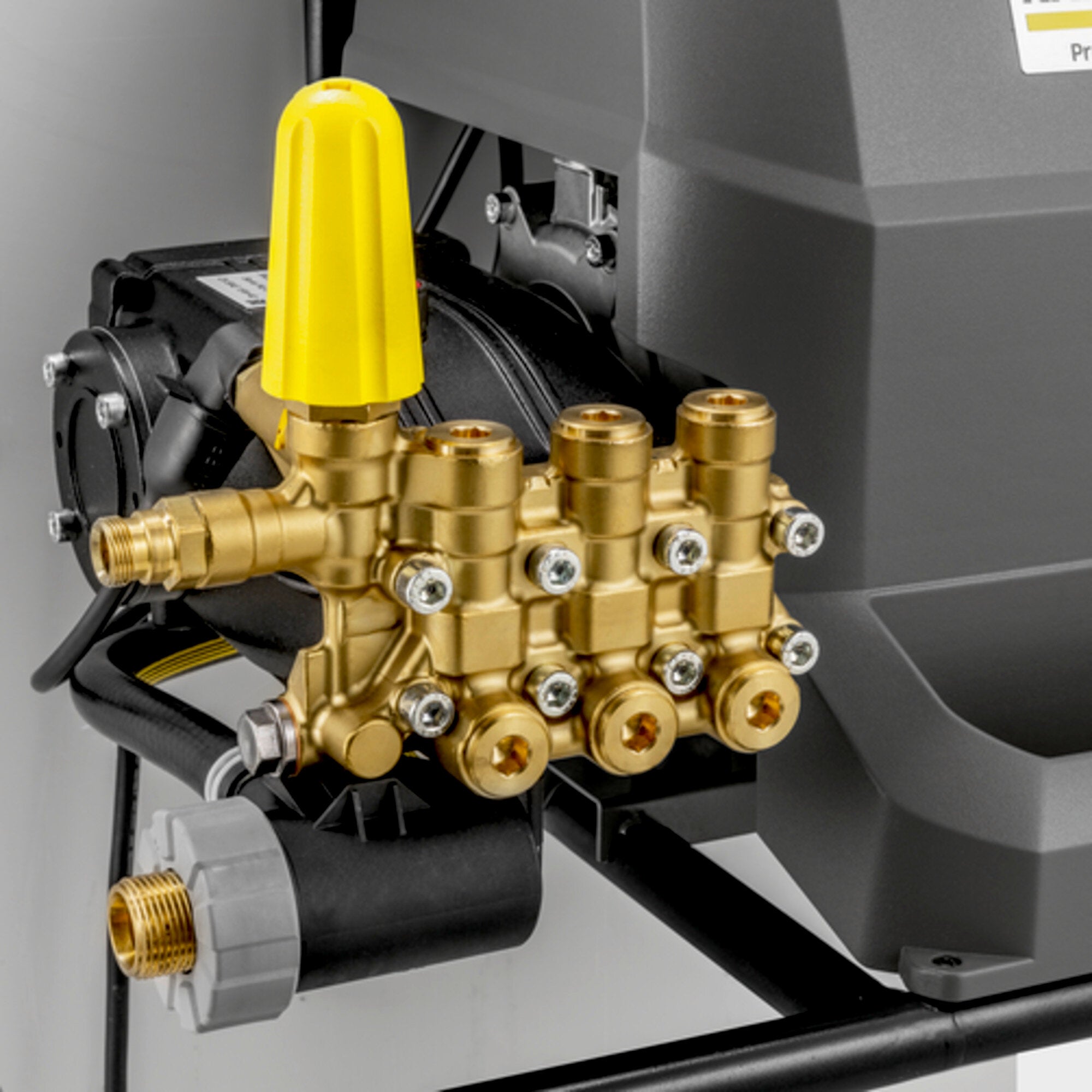

Powerful and robust crankshaft pump with brass cylinder head and pistons with ceramic sides
High efficiency and workmanship Long service life with low maintenance costs With suction function and up to 60 degrees inlet water temperature
Robust, stationary chassis
A robust tubular steel frame protects the machine from damage. Stable tubular steel frame protects all components. Integrated accessory storage
Classic accessories with EASY!Lock connections
Quick and easy unpacking and assembly and easy to change accessories Robust and durable accessories User-friendly4-pole low-speed motor with air cooling, robust pump with stainless steel pistons and copper cylinder head
- Tried and tested high-quality Kärcher components guarantee a long service life.
- Built to last, very reliable.
- For high level of performance with low maintenance costs.
Clear machine design
- Large water filter that protects the engine
- Pressure and water flow can be adjusted directly on the pump itself
- The oil level and quality can be easily checked through the inspection window and with the dipstick.
Easy to use and maintain
- Integrated water filter can be removed and cleaned without tools
- Good accessibility for easy service and maintenance
- Easy operation
Very flexible
- Wide range of accessories for all types of applications
- The extensive range of accessories provides ergonomic and economical cleaning solutions for a variety of applications.
- Easy installation
Specifications
Technical data
| Mains voltage (Ph/V/ Hz ) | 3 / 376 - 424 / 50 |
| Flow rate (l/h) | 1000 - 1700 |
| Inlet temperature (°C) | 60 |
| Working pressure (bar) | 100 - 150 |
| Max pressure (bar) | 210 |
| Power (kW) | 9 |
| Power cable (m) | 5 |
| Nozzle size | 110 |
| Water supply | 1″ |
| Paint | anthracite |
| Weight (with accessories) (kg) | 61 |
| Weight incl. packaging (kg) | 66.7 |
| Dimensions (L × W × H) (mm) | 720x522x418 |
The following is included
- High pressure hose length: 10 m
- High pressure hose specification: DN 10, 250 bar
- Flush pipe: 840 mm
- Power nozzle
Standard equipment
- Crankshaft pump with ceramic pistons
- 4-pole three-phase motor with air and water cooling
- Automatic start/stop
- Integrated fine mesh water filter
- Oil level gauge
- Brass pump
Areas of use

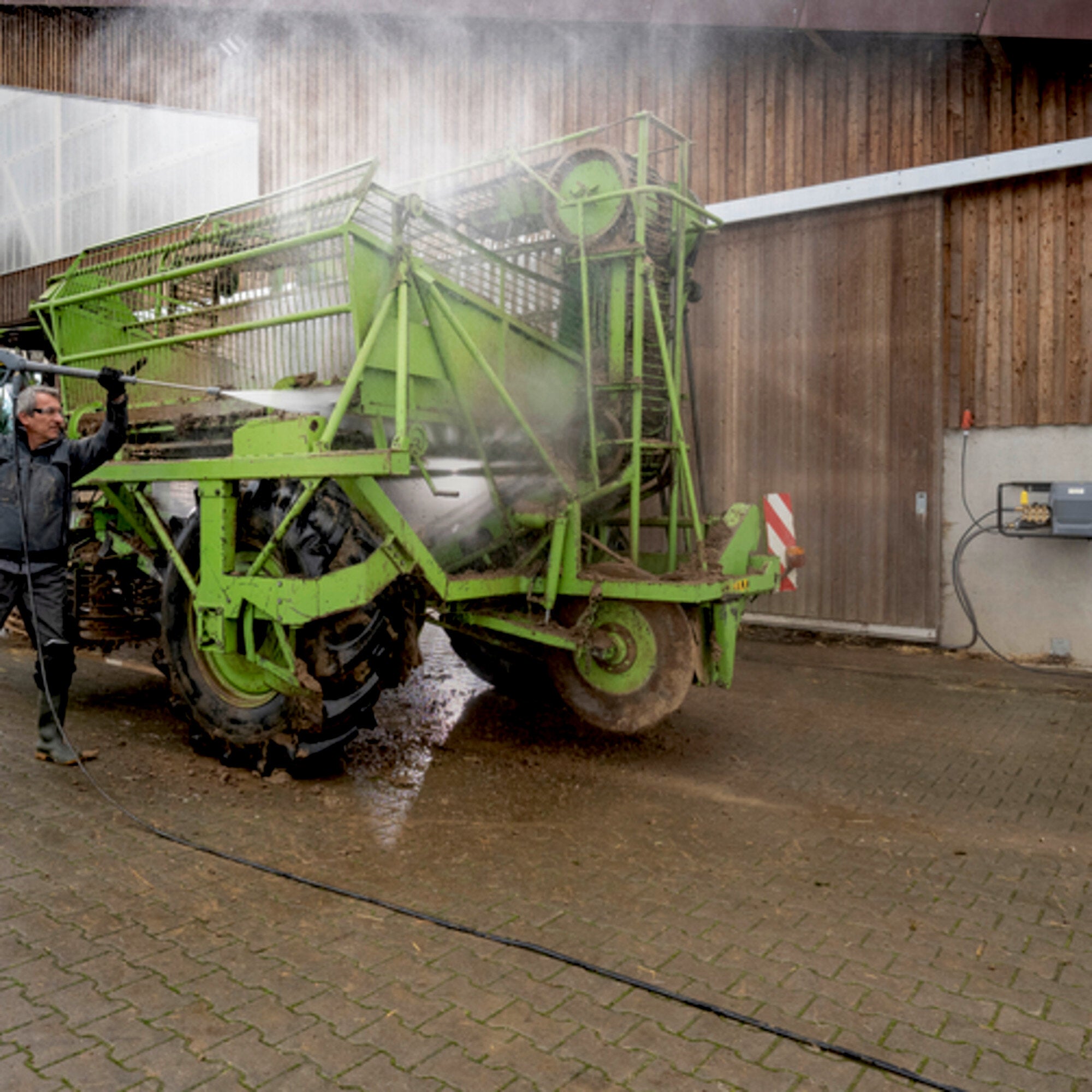

- Cleaning of animal stables in agriculture
- Perfect for car dealerships, car rental companies and gas stations
- Vehicle and machine cleaning in the automotive, industrial and agricultural sectors

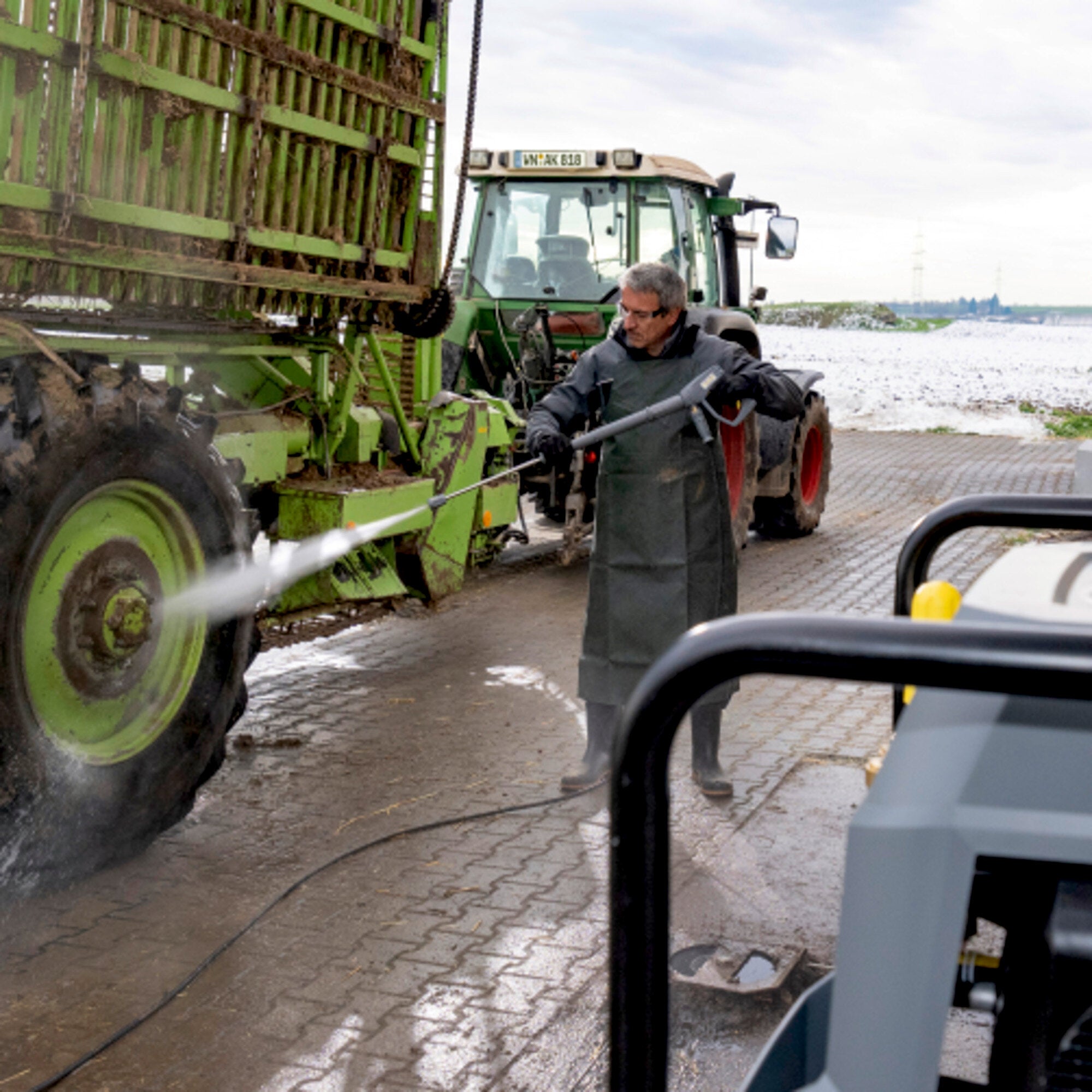

- Cleaning of tractors, machinery and accessories in agriculture
- High-pressure cleaning of machinery and equipment in the construction, agricultural and municipal sectors.
- For cleaning production halls, warehouses and logistics halls, as well as loading areas
- Ideal for various needs in the transport and logistics sector
- Industry
- Agriculture
