Kärcher High-pressure washer HD 17/12-4 St H
Couldn't load pickup availability

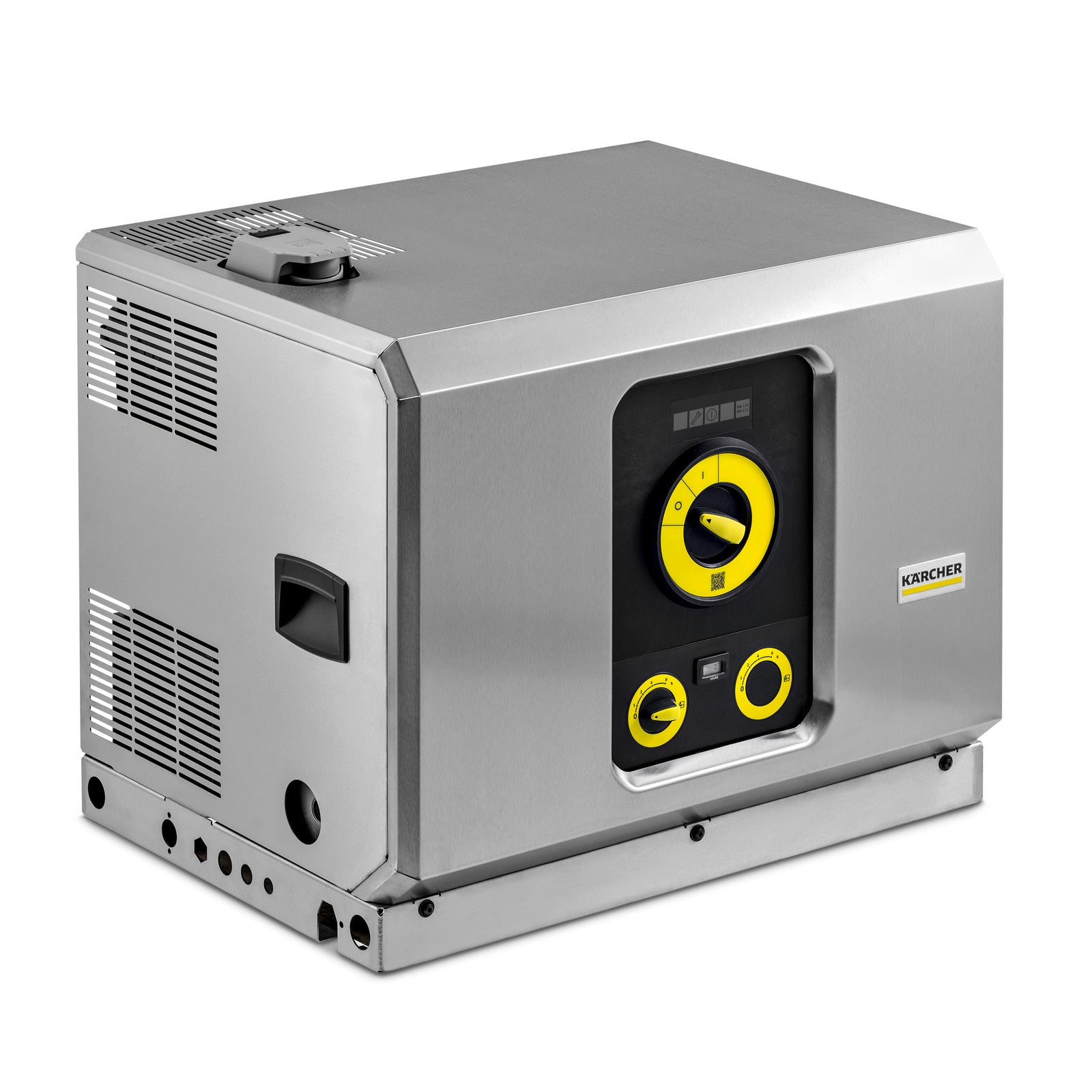

This robust, stationary high-pressure washer combines high performance (1,700 l/h) with easy operation and maintenance and comprehensive equipment. Perfect for agriculture and industry.
Our stationary cold water cleaner is a powerful choice with a flow rate of 1,700 l/h and a pressure of 120 bar, making it ideal for continuous use in tough working environments, such as in the food industry. A water temperature of up to 85 °C is possible at the inlet. Both the crankshaft pump with brass cylinder head and the stainless steel chassis and housing ensure a robust construction. The high-pressure cleaner has a water tank with dry-running protection and limescale protection, where a level indicator shows when the limescale protection is empty. The chemical inlet has a dosing valve with empty indicator. The 4-pole, low-speed electric motor guarantees a long service life. Installation, operation and maintenance are designed for simplicity and user-friendliness. Electronic monitoring ensures high operational reliability. The product is complemented by an extensive range of accessories, which can be selected according to requirements: pressure gauge, hour meter, inlet for other chemicals, automatic pressure relief and remote controls.
Features and benefits
High quality equipment
Water tank with valve, limescale protection and dry-running protection. Very robust frame and housing in stainless steel. Booster pump for temperatures up to 85°C.
Durable and robust

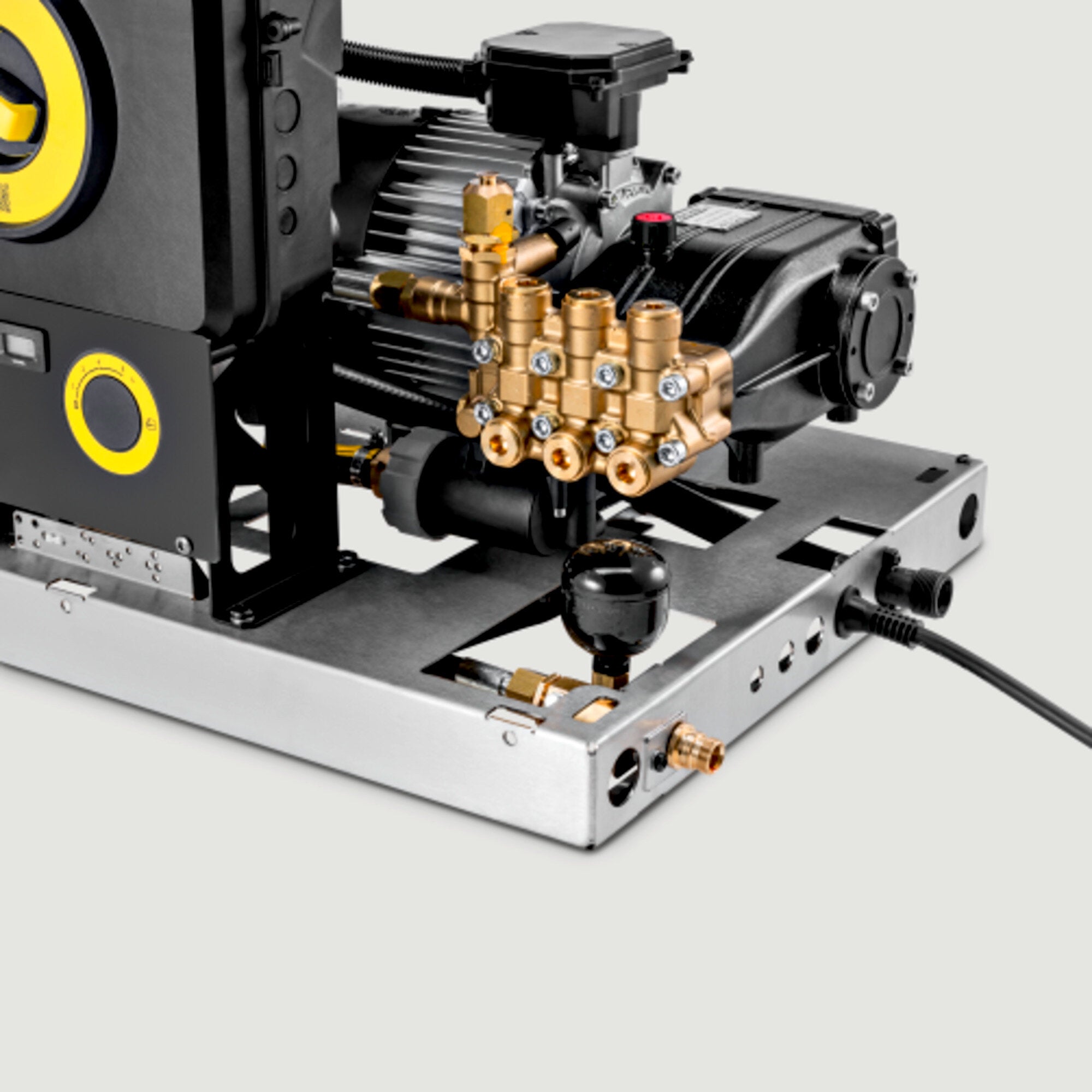

Robust crankshaft pump with brass cylinder head and high-quality materials ensure long service life. 4-pole, low-speed electric motor guarantees long service life. Prevents deposits.
Electronic monitoring for increased operational reliability.
Shutdown in case of lack of water, LED indicators: standby, service, error. Disconnection in case of leakage or phase failure. Automatic undervoltage and overvoltage protection.Easy operation
- Just one rotary switch ensures easy use of all functions without long training times.
- Particularly user-friendly thanks to self-explanatory symbols. No need for time-consuming learning

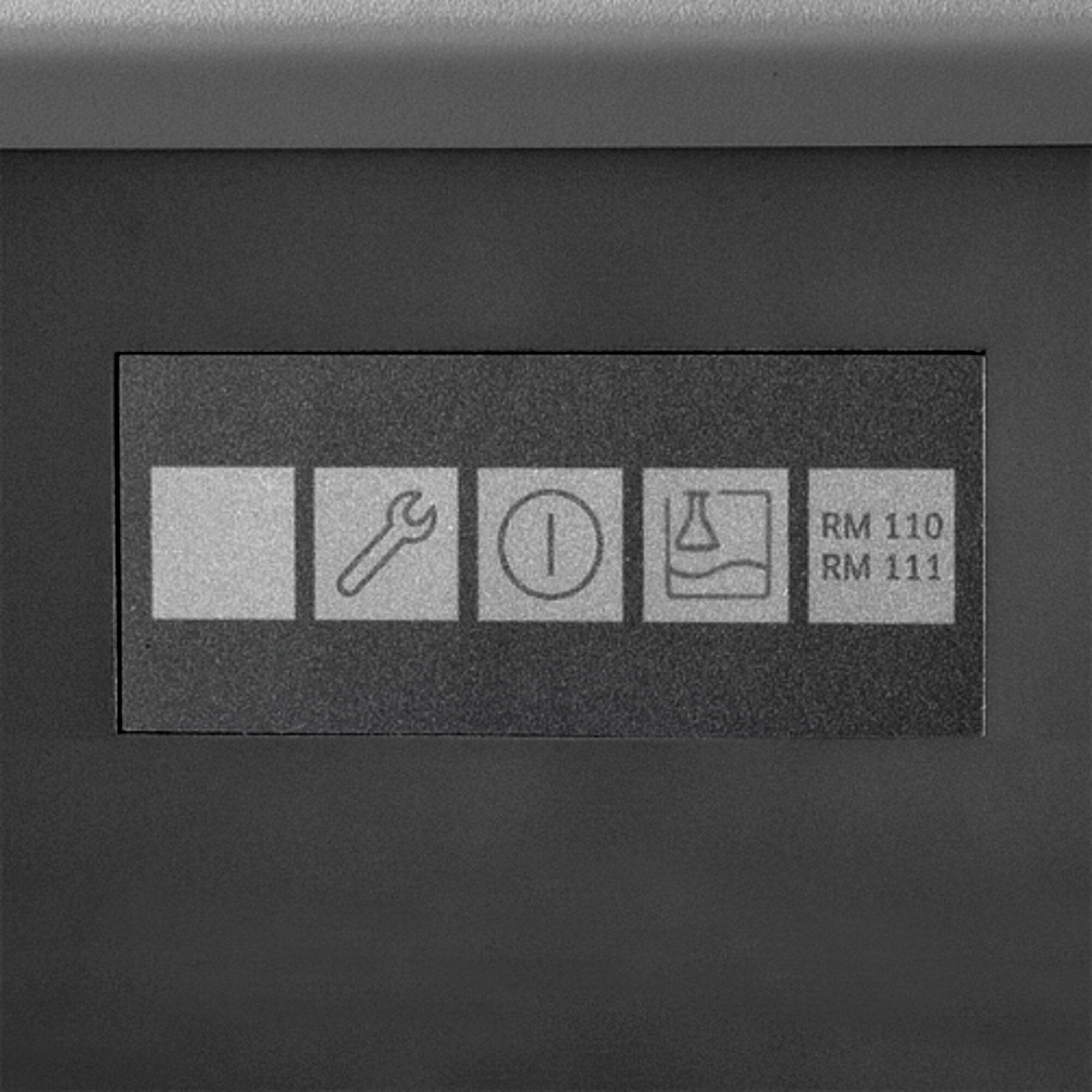

- LED lights indicate important operating statuses
Extensive range of accessories and mounting kits
- Pressure gauge and hour meter available as options
- Automatic pressure relief is available as an option
- Remote controls can be used directly at the outlet.
Chemical inlet with valve and empty indicator
- Chemical inlet system with dosing valve and empty indicator included as standard
- Optional: second inlet with valve and empty indicator
- Detergent dosing unit on the suction side.
Robust design enables even demanding applications
- Suitable for daily use.
- Using hot water significantly increases cleaning efficiency
- Ideal for long-term use
Large integrated water filter
- Ensures long service life for all high-pressure components
- Large water filter for maximum pump protection
- Easy to use, easy to clean.
Ready for use in a short time
- Ready to use at the touch of a button, without setup times and transportation of mobile machines.
- The pump starts when the spray handle is used, making it easy to work from different locations.
- Permanent installation without risks: no contamination or loose hoses
Easy installation and maintenance

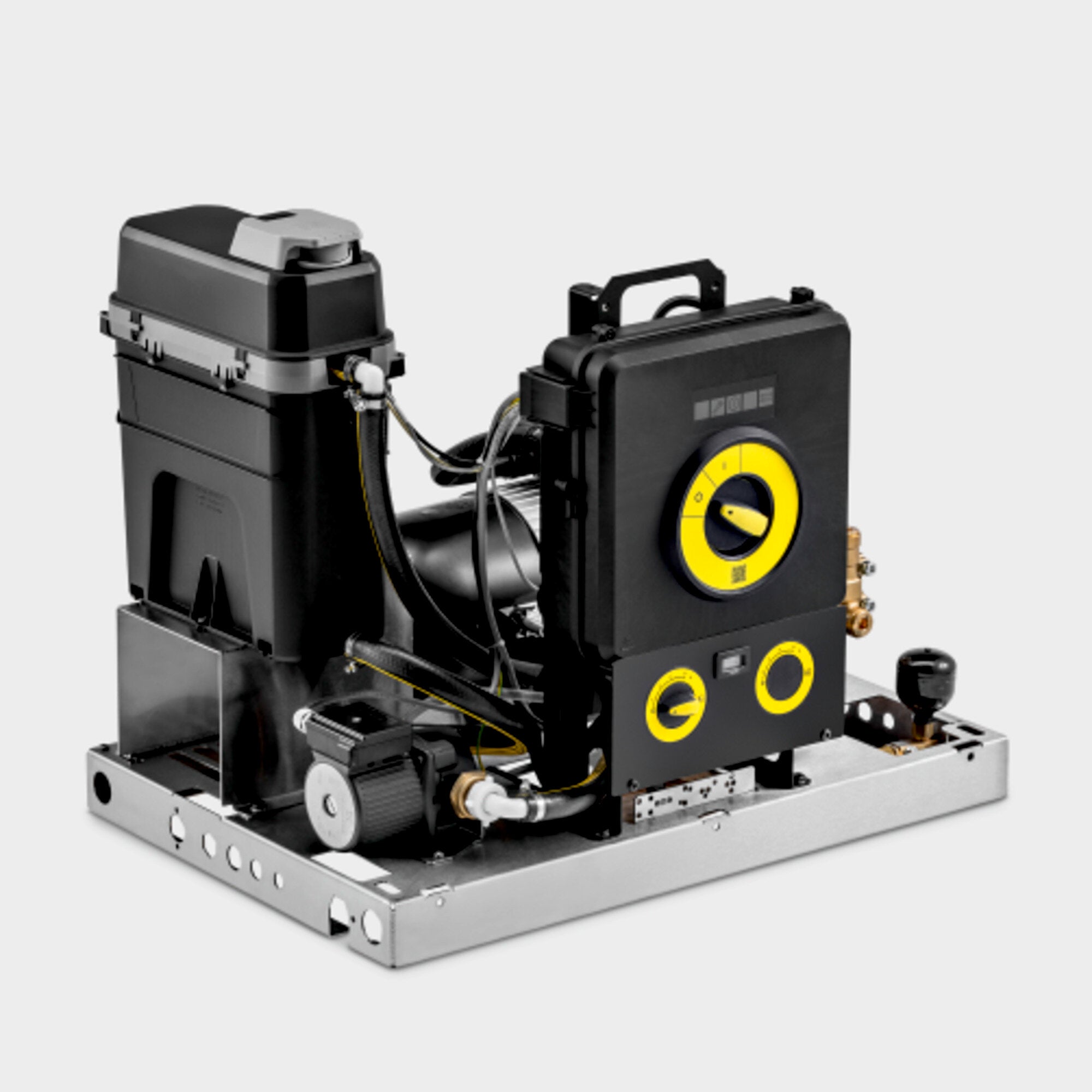

- Quick and easy access to all components for maintenance.
- Quick and easy installation reduces assembly costs
- Display of error codes and status, facilitates service
Specifications
Technical data
| Mains voltage (Ph/V/ Hz ) | 3 / 400 / 50 |
| Flow rate (l/h) | 900 - 1700 |
| Working pressure (bar/MPa) | 50 - 120 / 5 - 12 |
| Max. pressure (bar/MPa) | 180 / 18 |
| Inlet temperature (°C) | 85 |
| Power (kW) | 7 |
| Protection (A) | 16 |
| Power cable (m) | 5 |
| Water supply | 1″ |
| Number of users | 2 |
| Mobile | Stationary |
| Weight (with accessories) (kg) | 91 |
| Weight incl. packaging (kg) | 100.8 |
| Dimensions (L × W × H) (mm) | 800 x 605 x 600 |
The following is included
- Servo Control
- Power nozzle
- Frame and casing: Stainless steel
- Prepared for Servo Control
- Prepared for chemical inlet
Standard equipment
- Crankshaft pump with ceramic pistons
- Pressure pump
- Scale inhibitor
- Dry running protection
- Large water filter
- Water tank with float valve
- Prepared for remote control
- RM1 dosage
- Oil level gauge
- Oil dipstick
- Air-cooled engine
Areas of use
- Perfect for cleaning in the food industry
- Suitable for use in the food, cosmetics and chemical industries
- Cleaning of animal stables in agriculture
- Versatile applications in industrial environments, e.g. for cleaning production facilities
- Cleaning of vehicles and machinery in the automotive, industrial and agricultural sectors
- Suitable for use in production halls, warehouses, logistics buildings and heavy industry facilities
- Agriculture
- Industry
- Vehicle cleaning
- For high-pressure cleaning with cold and hot water
