Kärcher High Pressure Washer HD 13/18-4St
Couldn't load pickup availability
Easy operation, high safety and durability: powerful stationary cold water cleaner with 1,300 l/h and 180 bar.
This stationary cold water cleaner impresses with a temperature of up to 60 °C at the water inlet, a flow rate of 1,300 l/h and a working pressure of 180 bar. Its high performance makes it ideal for continuous use in tough conditions, for example in agriculture or industry. The robust housing and frame made of powder-coated steel, the stable crankshaft pump with brass cylinder head and the 4-pole, low-speed electric motor with water cooling ensure durability and a long service life. The machine also has an integrated water tank with dry-running protection and an empty level indicator. The detergent is fed in via a special inlet with dosing valve, and the empty level is also displayed here. The machine has a large rotary switch for convenient operation, and installation and maintenance can also be carried out quickly. Accessories are not included in the scope of delivery but are available at every point of use: pressure gauge and timer, inlet for a second detergent, automatic pressure relief and remote controls.
Features and benefits
Durable and robust

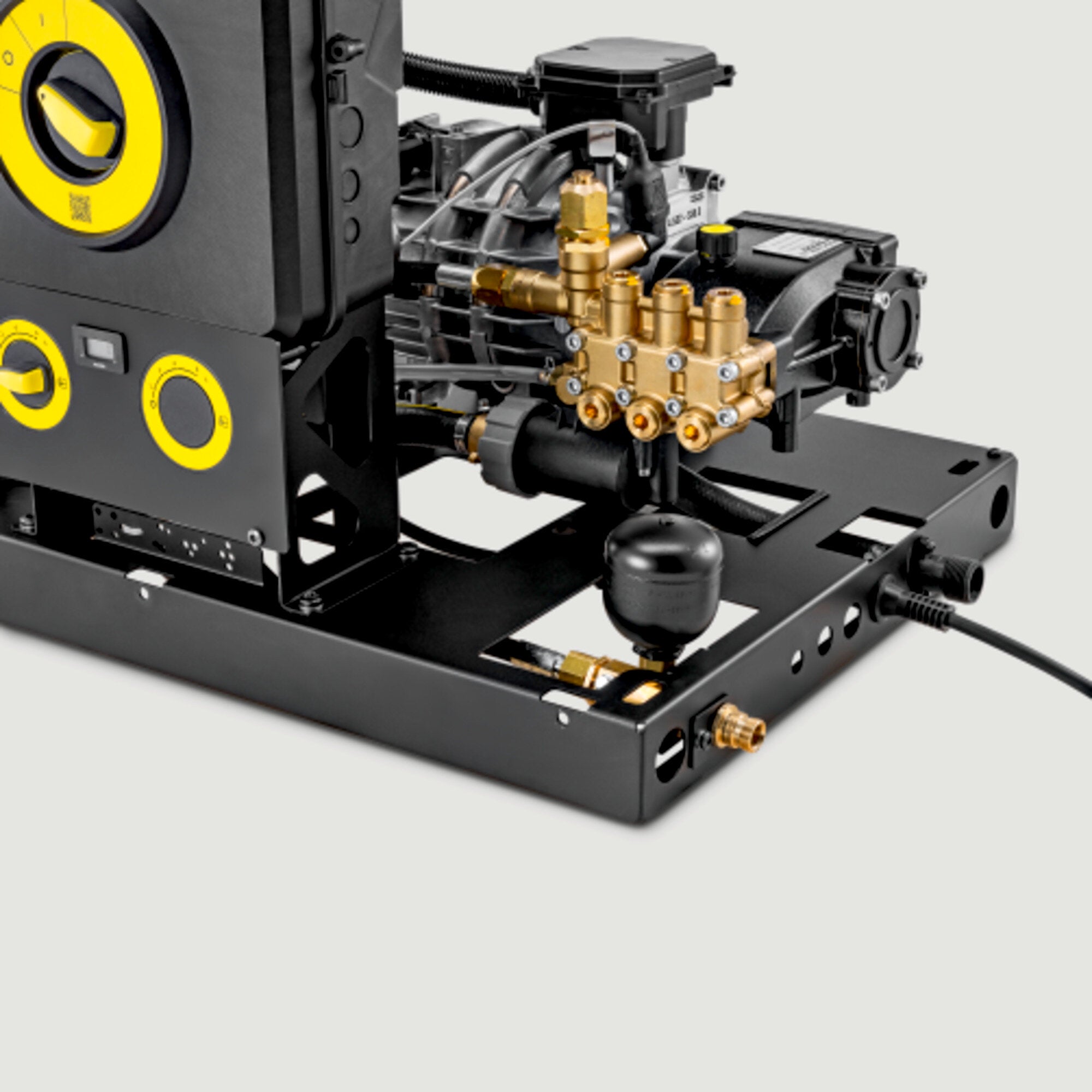

Robust crankshaft pump with brass cylinder head and high-quality materials ensure long service life. Powerful, 4-pole electric low-speed motor.
High quality equipment
Detergent dosing unit on the suction side. Ready for connection of remote controls
Electronic monitoring for increased operational reliability.
Disconnection in case of leakage or phase failure. Automatic under- and overvoltage protection. LED lights indicate when it is ready for use, if the water is about to run out and service intervals.Easy operation
- Just one rotary switch ensures easy use of all functions without long training times.
- Particularly user-friendly thanks to self-explanatory symbols. No need for time-consuming learning
Simple maintenance and easy to service
- Easy accessibility for all service and maintenance tasks
- Extensive service network with highly trained technicians

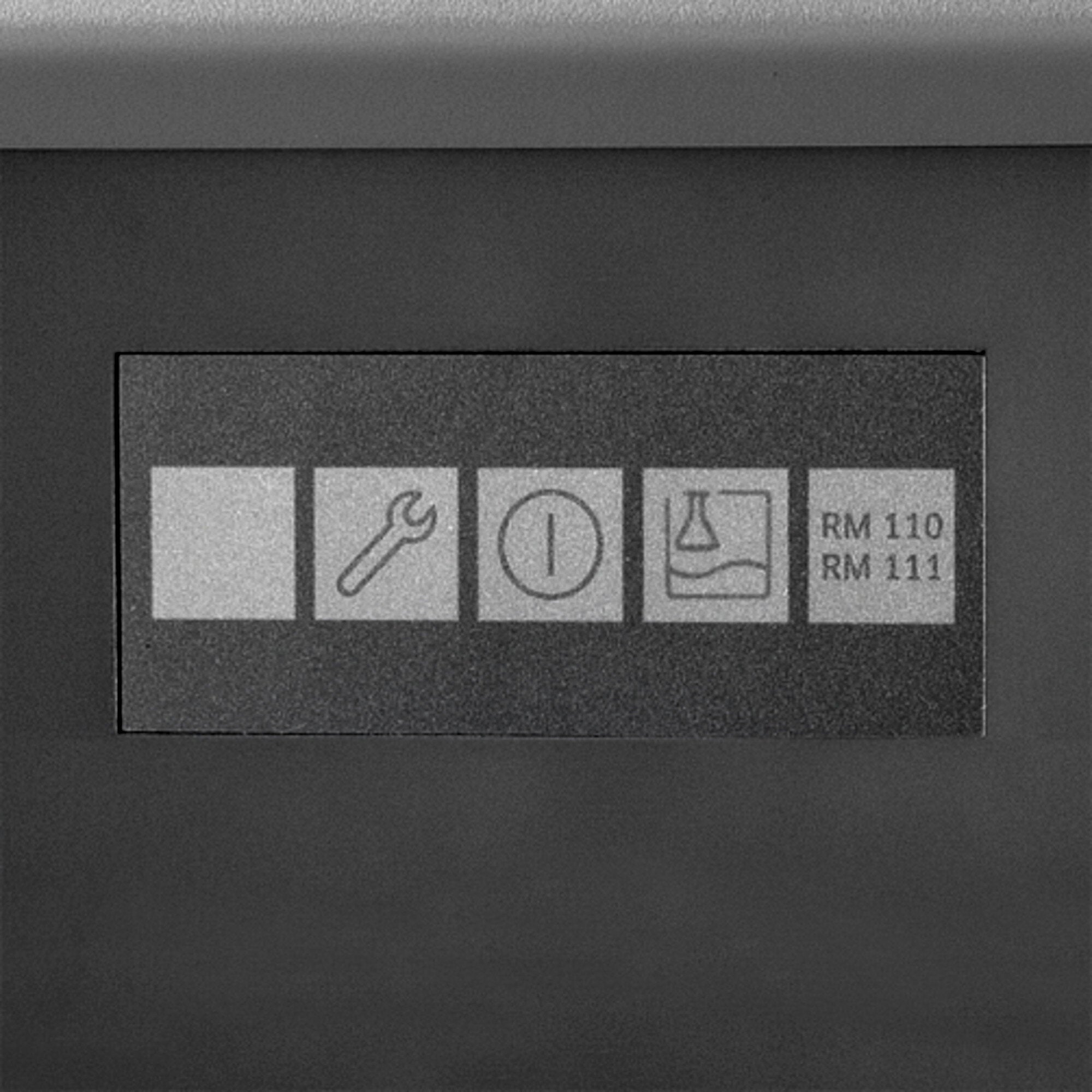

- LED lights indicate important operating statuses
Large integrated water filter
- Large water filter for maximum pump protection
- Ensures long service life for all high-pressure components
- Easy to use, easy to clean.
Robust design enables even demanding applications
- Built for everyday use
- Can be used under tough working conditions.
- Robust, durable and reliable machine
Extensive range of accessories and mounting kits
Ready for use in a short time
- Ready to use at the touch of a button, without setup times and transportation of mobile machines.
- The machine is always ready for maximum productivity and flexibility
- The pump starts when the spray handle is used, making it easy to work from different locations.
Servo Control
- Stepless pressure and flow control via the spray handle
- Versatile and flexible uses.
Specifications
Technical data
| Mains voltage (Ph/V/ Hz ) | 3 / 400 / 50 |
| Flow rate (l/h) | 700 - 1300 |
| Working pressure (bar/MPa) | 50 - 180 / 5 - 18 |
| Max. pressure (bar/MPa) | 240 / 24 |
| Inlet temperature (°C) | 60 |
| Power (kW) | 8.8 |
| Protection (A) | 16 |
| Power cable (m) | 5 |
| Water supply | 1″ |
| Number of users | 1 |
| Mobile | Stationary |
| Weight (with accessories) (kg) | 81 |
| Weight incl. packaging (kg) | 90.8 |
| Dimensions (L × W × H) (mm) | 800 x 605 x 600 |
The following is included
- Servo Control
- Power nozzle
- Prepared for Servo Control
- Prepared for chemical inlet
Standard equipment
- Crankshaft pump with ceramic pistons
- Dry running protection
- Large water filter
- Water tank with float valve
- Prepared for remote control
- RM1 dosage
- Oil level gauge
- Oil dipstick
- Water-cooled engine
Areas of use
- Vehicle and machine cleaning in the automotive, industrial and agricultural sectors
- Versatile applications in industrial environments, e.g. for cleaning production facilities
- Cleaning of animal stables in agriculture
- Optimal for car repair shops, car rentals, car washes, property services, craftsmen, smaller construction companies, small garages and agriculture
- Ideal for use in vehicle washes, in the construction and transport sectors, as well as in industry
- Agriculture
- Industry
