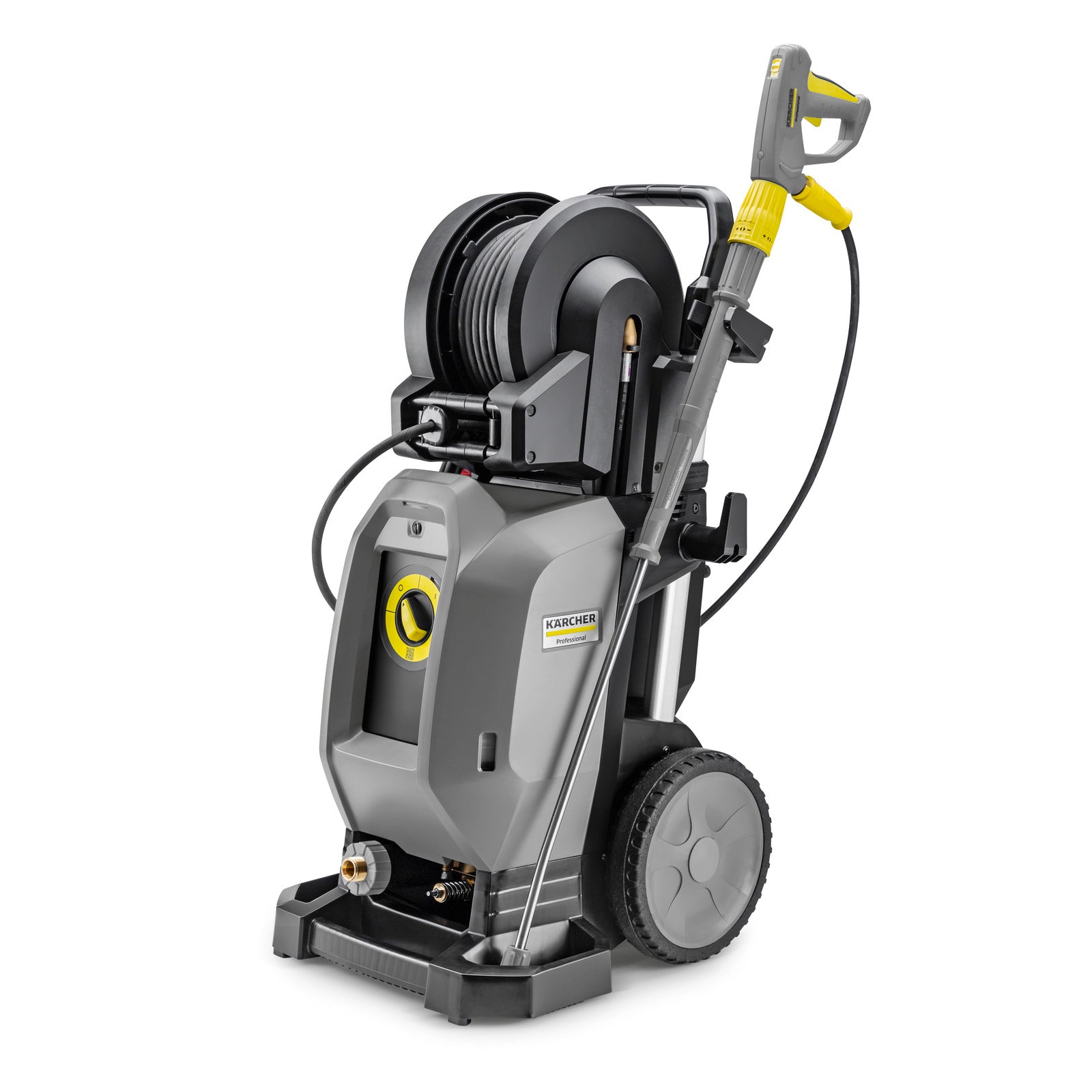

Kärcher High-pressure washer HD 13/18-4 SXA Plus
Couldn't load pickup availability
Equipped with an automatic hose reel, Vibrasoft rotojet nozzle and designed for tough tasks, Kärcher's HD 13/18-4 SXA Plus is always a good choice in terms of performance and ergonomics.

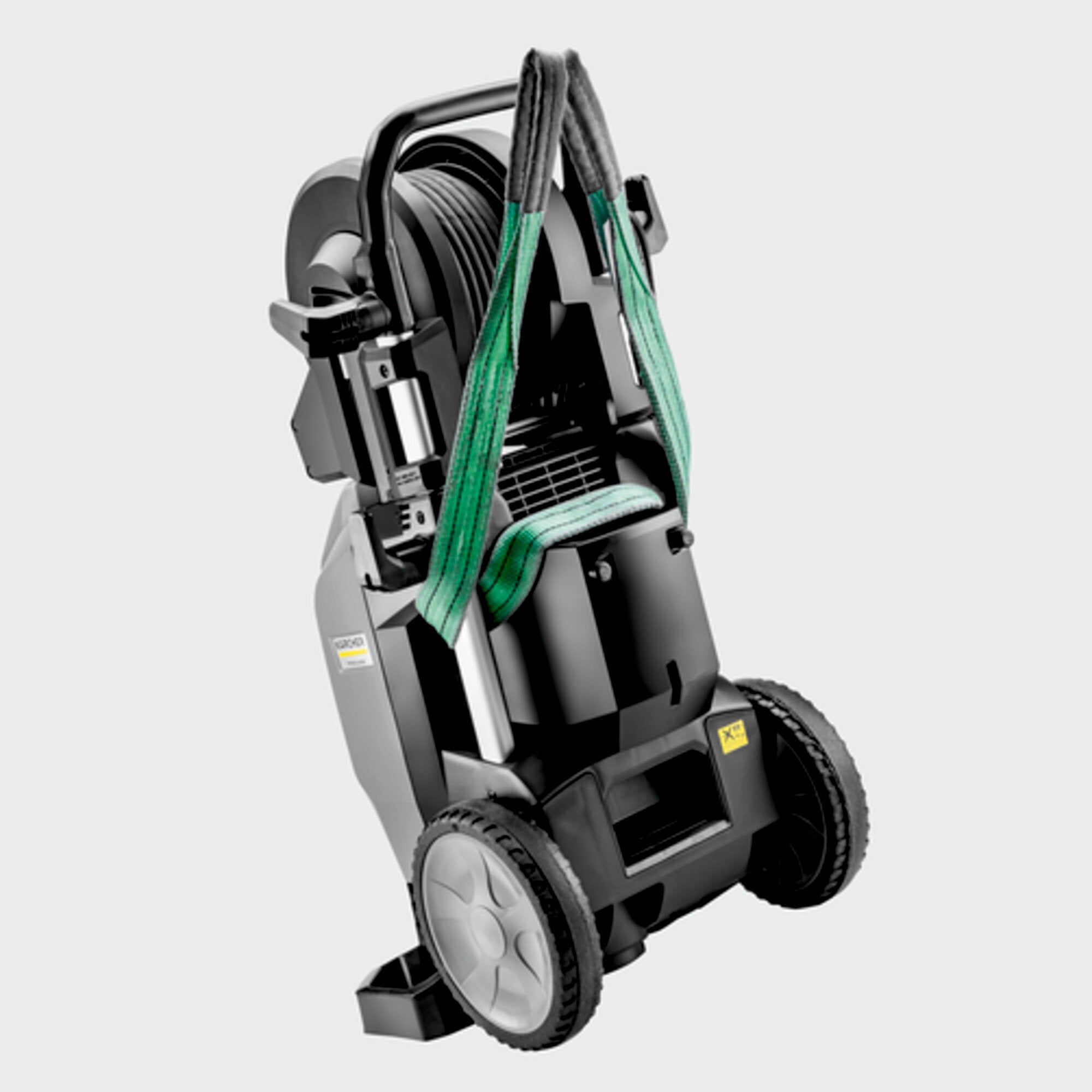

The Kärcher HD 13/18-4 SXA Plus high-pressure cleaner delivers impressive ergonomics and premium quality. Effortless use thanks to EASY!Force Advanced handle that requires no gripping force. A rotatable 1050 mm stainless steel lance allows for maximum efficiency. Pressure and water flow are adjusted via the Servo Control knob. The Vibrasoft rotojet nozzle dampens vibrations and noise by an impressive 30 percent compared to traditional equivalent nozzles. Support systems and an LED status display provide clear operating information. The highest level of engineering and material quality make this probably the most outstanding model in its class on the market. The vertically mounted motor and pump unit that combines a very durable pump with stainless steel pistons and a copper cylinder keeps the machine stable and reliable while being compact and mobile. It has a 4-pole low-speed motor with an air-cooled system and an aluminum frame creating a lightweight yet robust chassis construction suitable for lifting with, for example, a crane. An ultra-guard high-pressure hose that is Teflon-coated is stored and used conveniently together with the automatic hose reel that can take in and out the hose even at an angle of 45 degrees, which provides up to 50% less preparation time before use.
Features and benefits

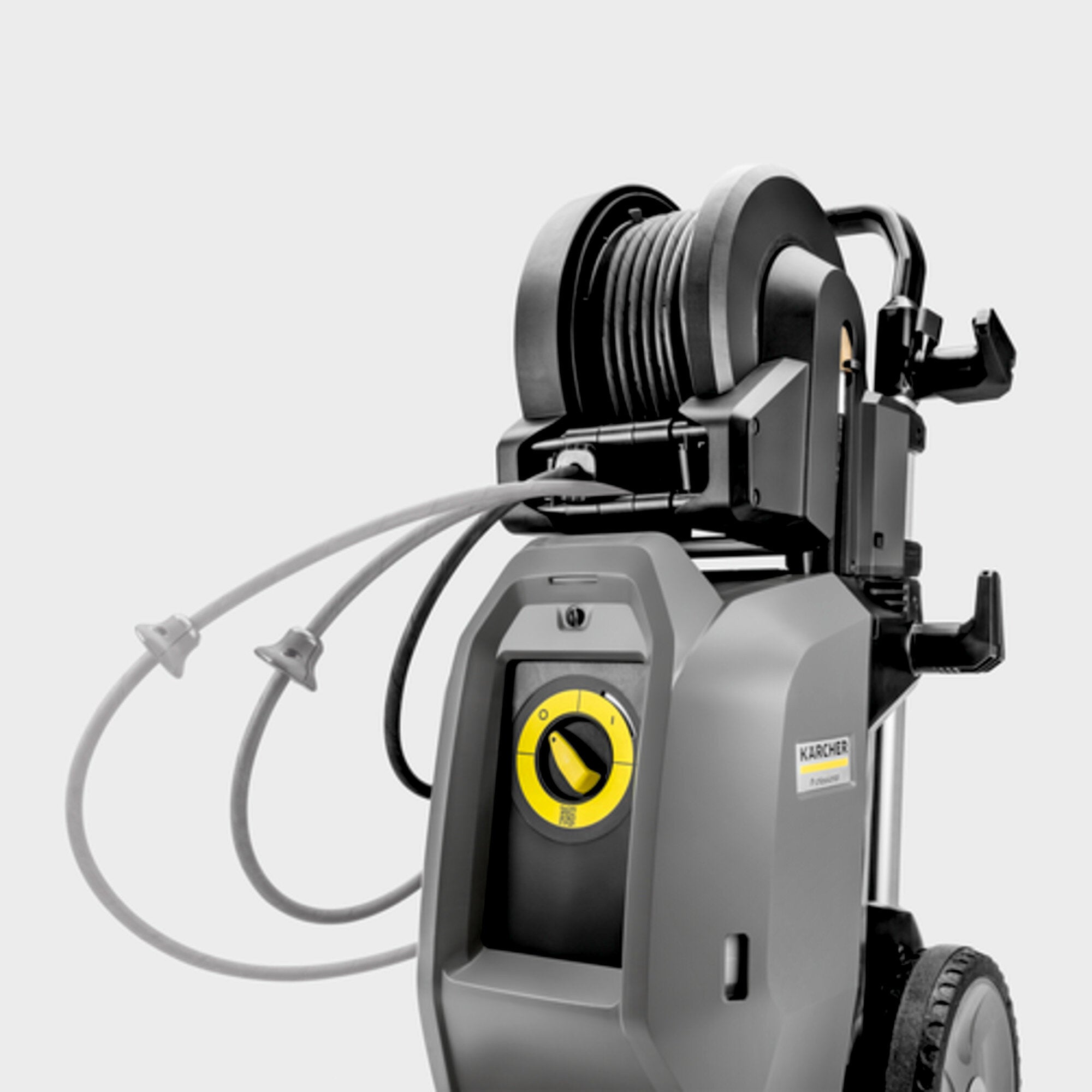

Automatic hose reel
Automatic roll-up and roll-down up to a 45 degree angle even when pressurized Scratch-resistant and smooth Ultra Guard hose with Teflon® coating Start-up time is halved compared to ordinary systems
Compact upright design based on vertical mounting of motor and pump unit
Takes up little space during use and storage Easy to handle and transport Maximum stability creates safety during use
4-pole low-speed motor with air cooling, robust pump with stainless steel pistons and copper cylinder head
Long life with low maintenance costs High efficiency and level of performance With suction function and up to 60 degrees inlet water temperatureErgonomic Vibrasoft nozzle
- Reduces vibrations by up to 30%
- Lowers the noise level
- Rotating nozzle simplifies tough cleaning tasks

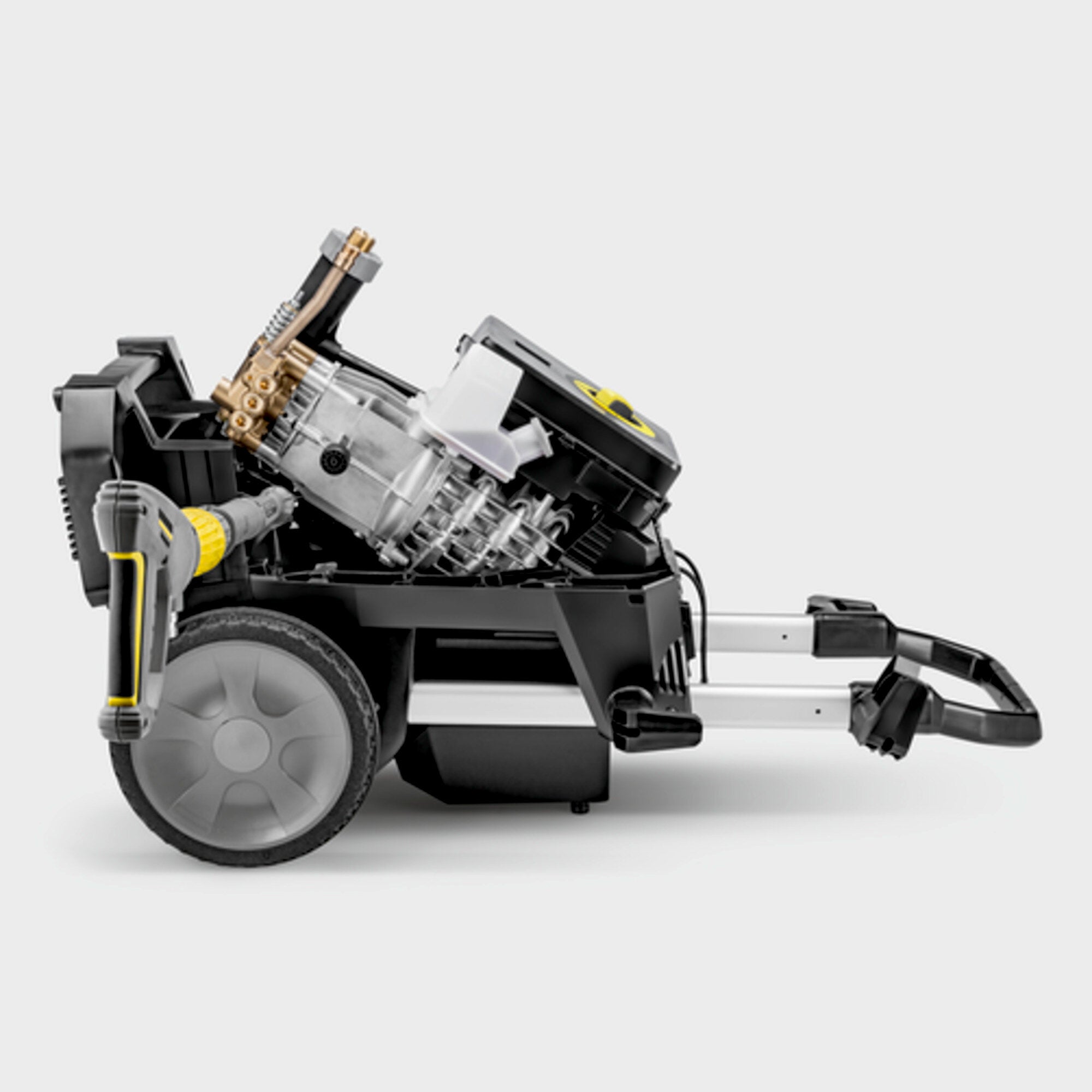

Intelligently designed service concept enables very fast service even carried out on site
- Rotating pump head
- Easy oil fill display and oil drain integrated into the chassis
- Modular design including pump, motor and control unit
Assistance system and LED status display
- Integrated electronics for monitoring the device.
- Automatic shutdown if voltage is too low or too high
- Disconnection in case of leakage or phase failure.
Wide range of accessories with EASY!Lock
- Water pressure and flow can be adjusted with the Servo Control knob located between the lance and the gun.
- EASY!Force Advanced for working without strain from gripping the handle
- Rotating 1050mm stainless steel lance
Many storage options for accessories integrated into the machine
- Storage space
- Adjustable hooks for storing a second lance or an extension cord, for example
- High-pressure hose storage
Specifications
Technical data
| Mains voltage (Ph/V/ Hz ) | 3 / 376 - 424 / 50 |
| Flow rate (l/h) | 700 - 1300 |
| Inlet temperature (°C) | 60 |
| Working pressure (bar) | 50 - 180 |
| Max pressure (bar) | 250 |
| Power (kW) | 8.8 |
| Power cable (m) | 5 |
| Nozzle size | 075 |
| Water supply | 1″ |
| Paint | anthracite |
| Weight (with accessories) (kg) | 81.9 |
| Weight incl. packaging (kg) | 90.2 |
| Dimensions (L × W × H) (mm) | 607 x 518 x 1063 |
The following is included
- Flush handle: EASY!Force Advanced
- Soft-grip flush handle
- High pressure hose length: 20 m
- High pressure hose type: Ultra Guard
- Flush pipe: 1050 mm
- Power nozzle
- Rotojet nozzle
- Servo Control
Standard equipment
- 4-pole three-phase motor with air and water cooling
- 3-cylinder axial piston pump: With stainless steel pistons
- Automatic start/stop
- Integrated fine mesh water filter
- Electronic motor protection with LED display
- Oil level gauge
- Brass pump
Areas of use
- Cleaning of tractors, machinery and accessories in agriculture
- Cleaning of machinery and equipment on construction sites such as cement mixers, scaffolding, wheel loaders, excavators and cement pumps
- Cleaning of production equipment in industries such as the paint industry, food industry or manufacturing industry
- Cleaning of vehicles in the transport sector such as trucks, ships, airplanes or buses
- Cleaning of municipal areas such as squares, bridge abutments, fountains or parking areas
