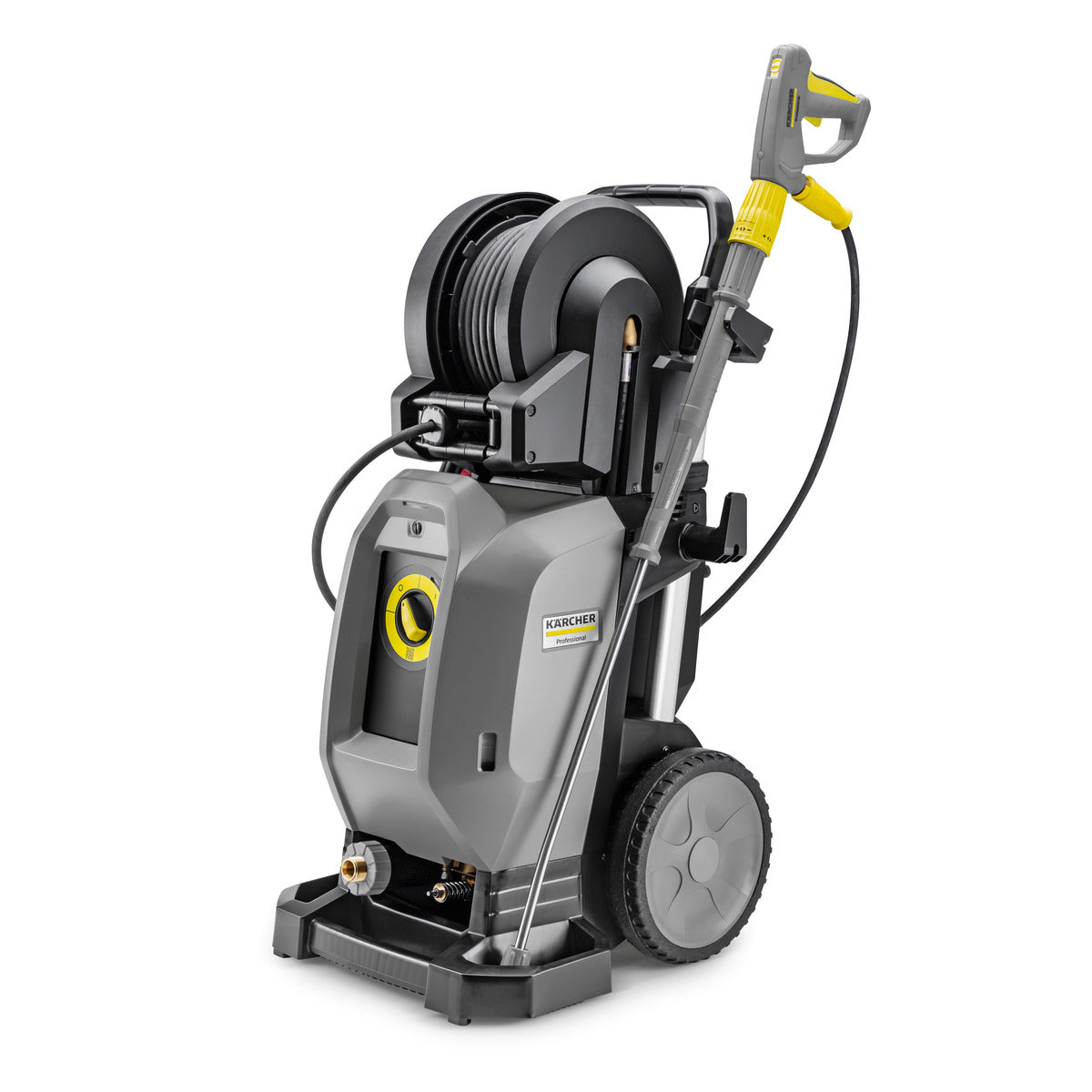

The HD 13/18-4 SXA Plus cold water high-pressure washer is made of the highest quality materials for maximum performance. With assistance system, automatic hose reel and Vibrasoft rotating nozzle.

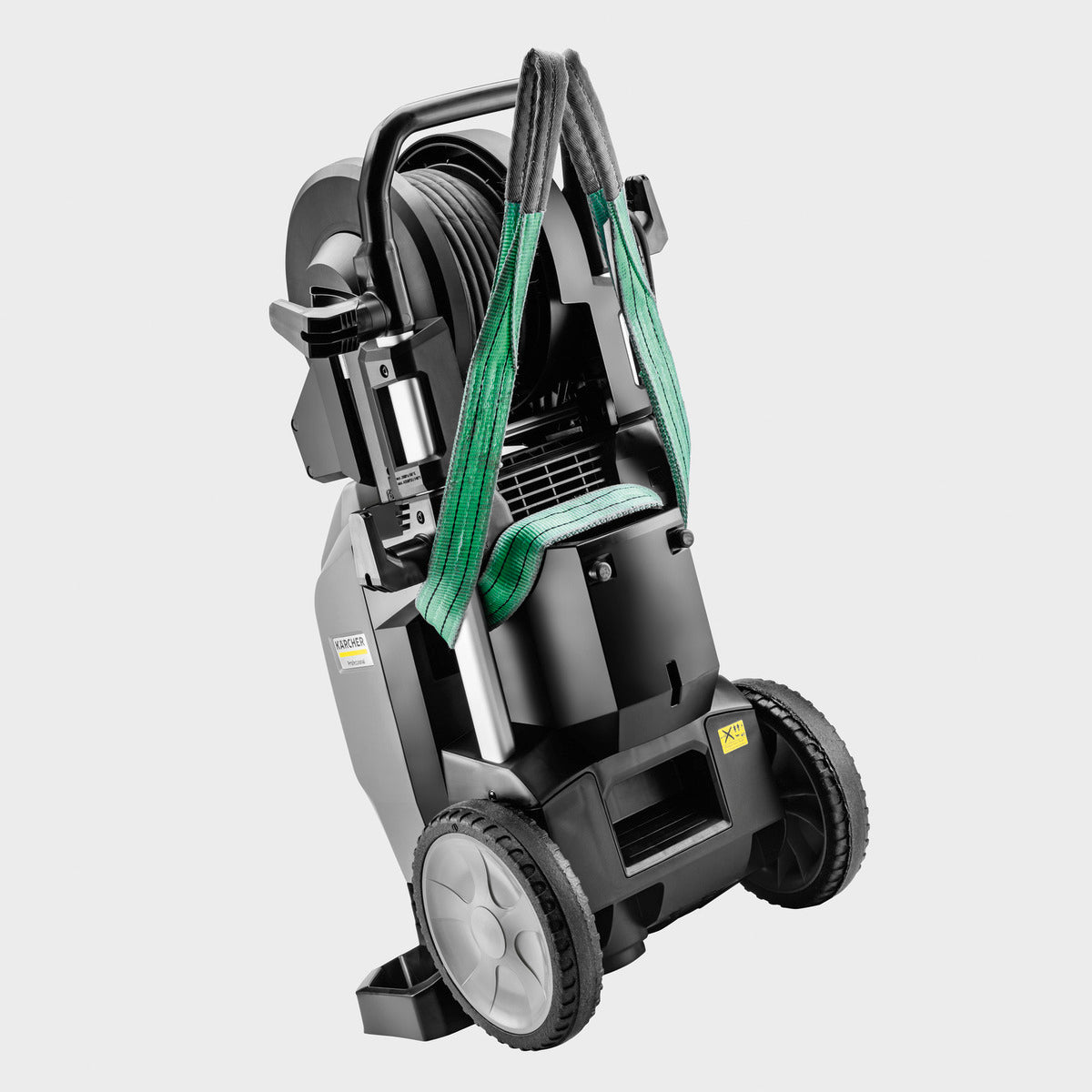

The HD 13/18-4 SXA Plus cold water high-pressure cleaner is designed with the highest possible quality and ergonomics in mind. The EASY!Force Advanced high-pressure gun eliminates all holding forces. The pressure and water flow can be adjusted with the Servo Control control located between the lance and the trigger gun. This means that the pressure can be adjusted to suit sensitive surfaces - without having to change nozzles or make adjustments to the machine itself. The Vibrasoft rotary nozzle dampens noise and vibrations. Assistance systems and LED status displays provide clear information. The Super Class machine stands out from the crowd with its exquisite craftsmanship and top-quality materials. At its heart is a durable wobble pump with stainless steel pistons and brass cylinder head. The 4-pole low-speed motor with air-water cooling system is powerful and built to last. Integrated aluminum frame carriers form a lightweight chassis, suitable for crane loading. The upright design with vertical motor and pump unit makes the machine compact and portable. It also features an Ultra Guard high-pressure hose with Teflon® coating and plenty of built-in storage for accessories, as well as an automatic hose reel for up to 45° winding and unwinding – even under pressure.
Features and benefits

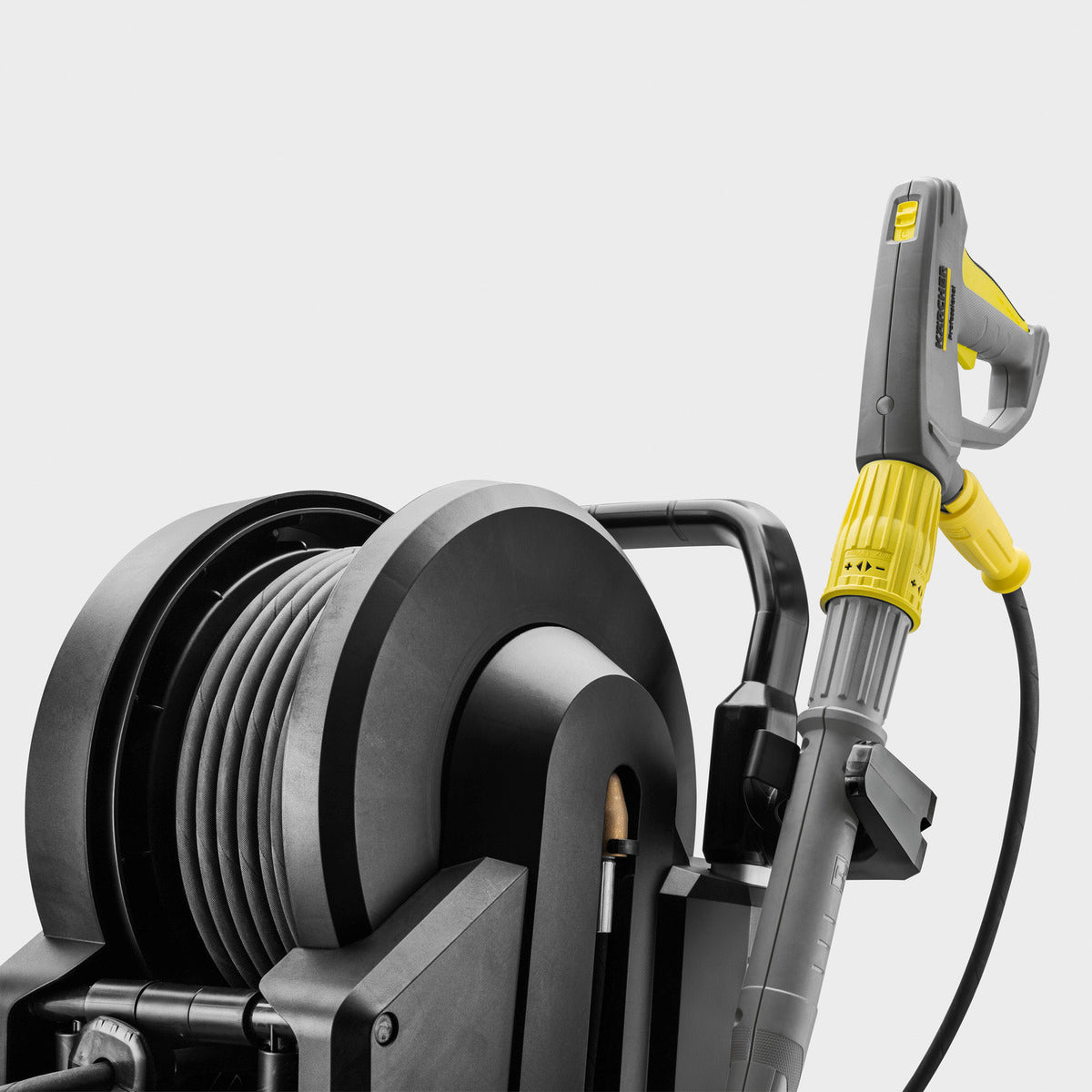

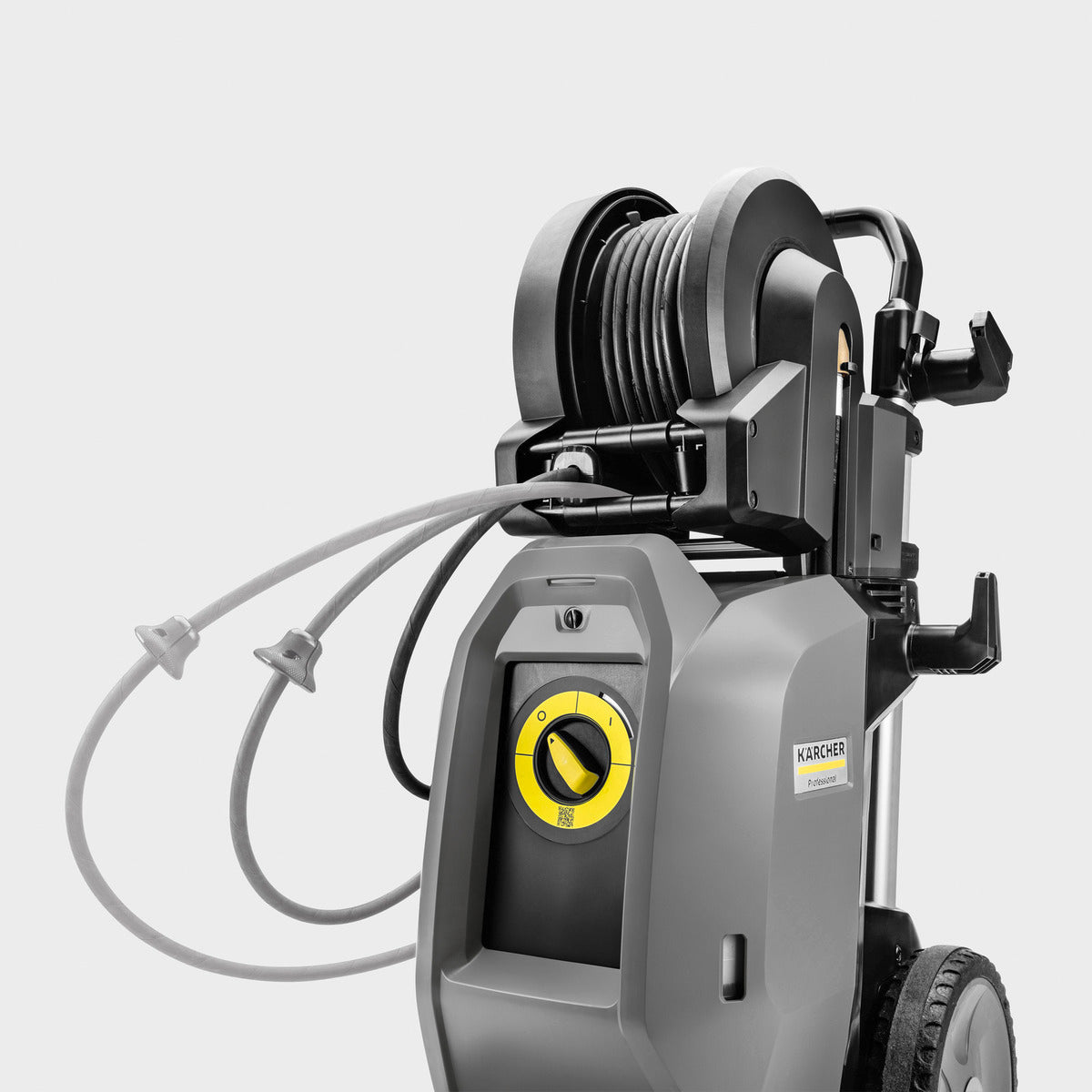

Automatic hose reel
Automatic winding and unwinding up to an angle of 45°, even under pressure. Scratch-resistant and smooth Ultra Guard HD hose with Teflon® coating. Up to twice as fast set-up times.

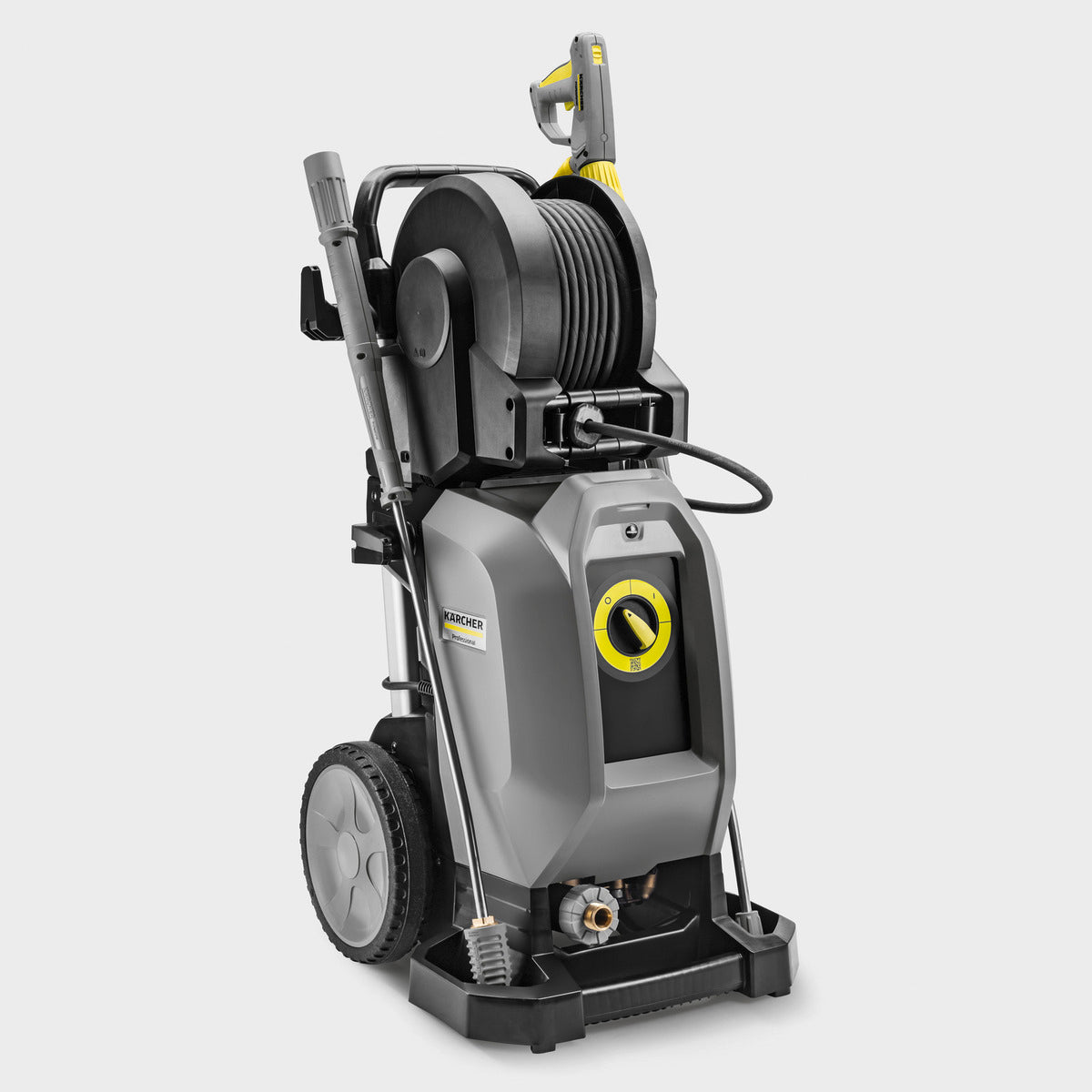

Compact, upright design concept based on vertical placement of motor and pump unit
Small footprint and space-saving proportions. Easy to maneuver and transport. Maximum stability ensures a firm footing for the machine.
4-pole low-speed motor with air-water cooling system, robust pump with stainless steel pistons and brass cylinder head
Long service life and low maintenance costs. High performance and high efficiency. With suction function and water temperature up to 60 °C.Ergonomic Vibrasoft dirt blower
- Reduces vibrations by up to 30%.
- Reduces volume and noise level.
- Rotating nozzle takes the hard work out of extensive cleaning tasks.
Intelligently designed service concept enables fast on-site operations

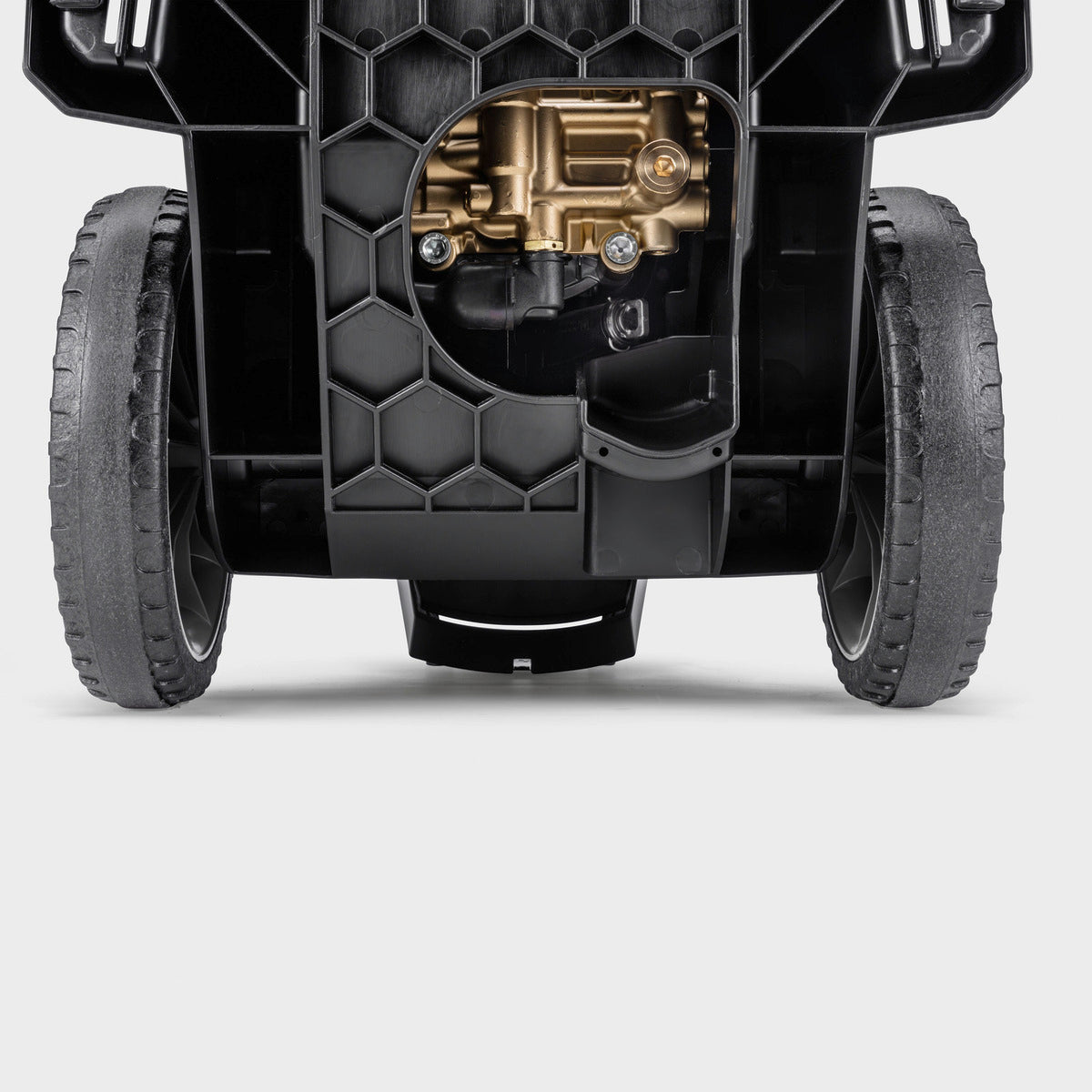

- Swivelling pump head.
- Convenient oil level indicator and oil drain hole integrated into the chassis.
- Modular construction, consisting of pump, motor and control cabinet.

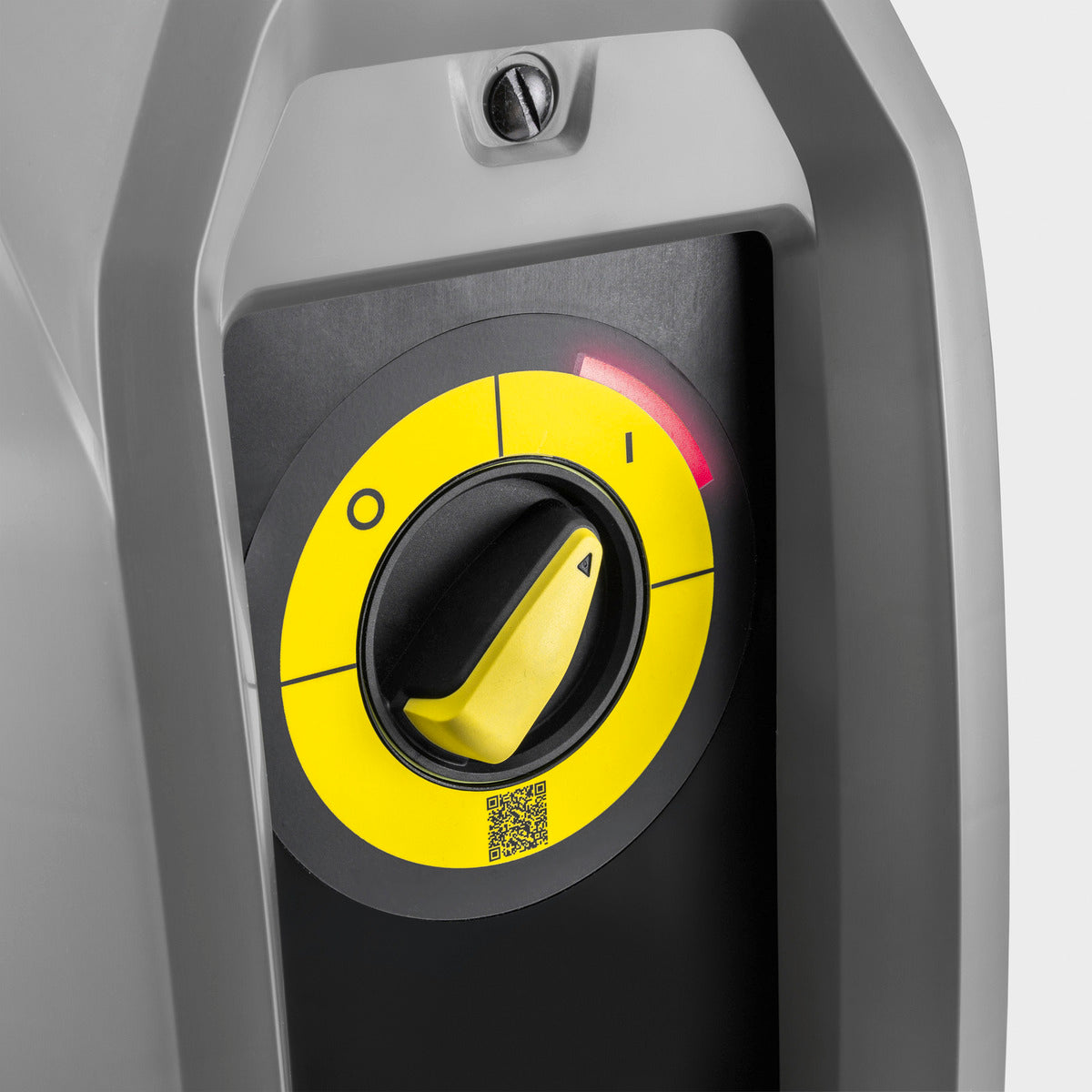

Assistance system and LED status display
- Integrated electronic system for machine monitoring.
- Automatic shutdown in case of low voltage or overvoltage.
- Switches off in the event of leakage or phase failure.
Wide range of accessories with EASY!Lock
- Pressure and water flow can be adjusted with the Servo Control located between the spray lance and the gun.
- EASY!Force Advanced for fatigue-free work without holding force.
- Rotating 1050 mm stainless steel lance.
Multiple storage spaces for accessories integrated into the machine

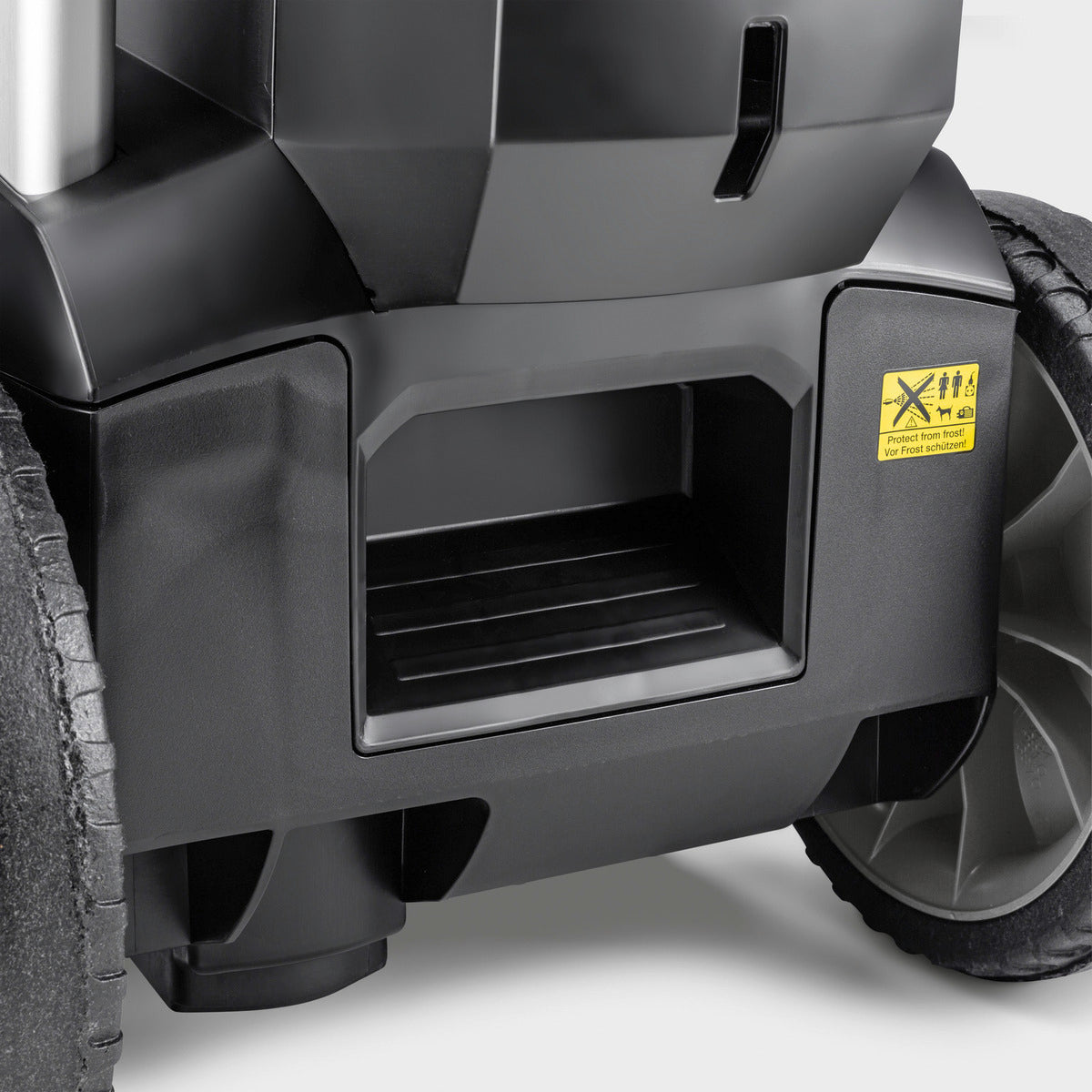

- Storage compartment.

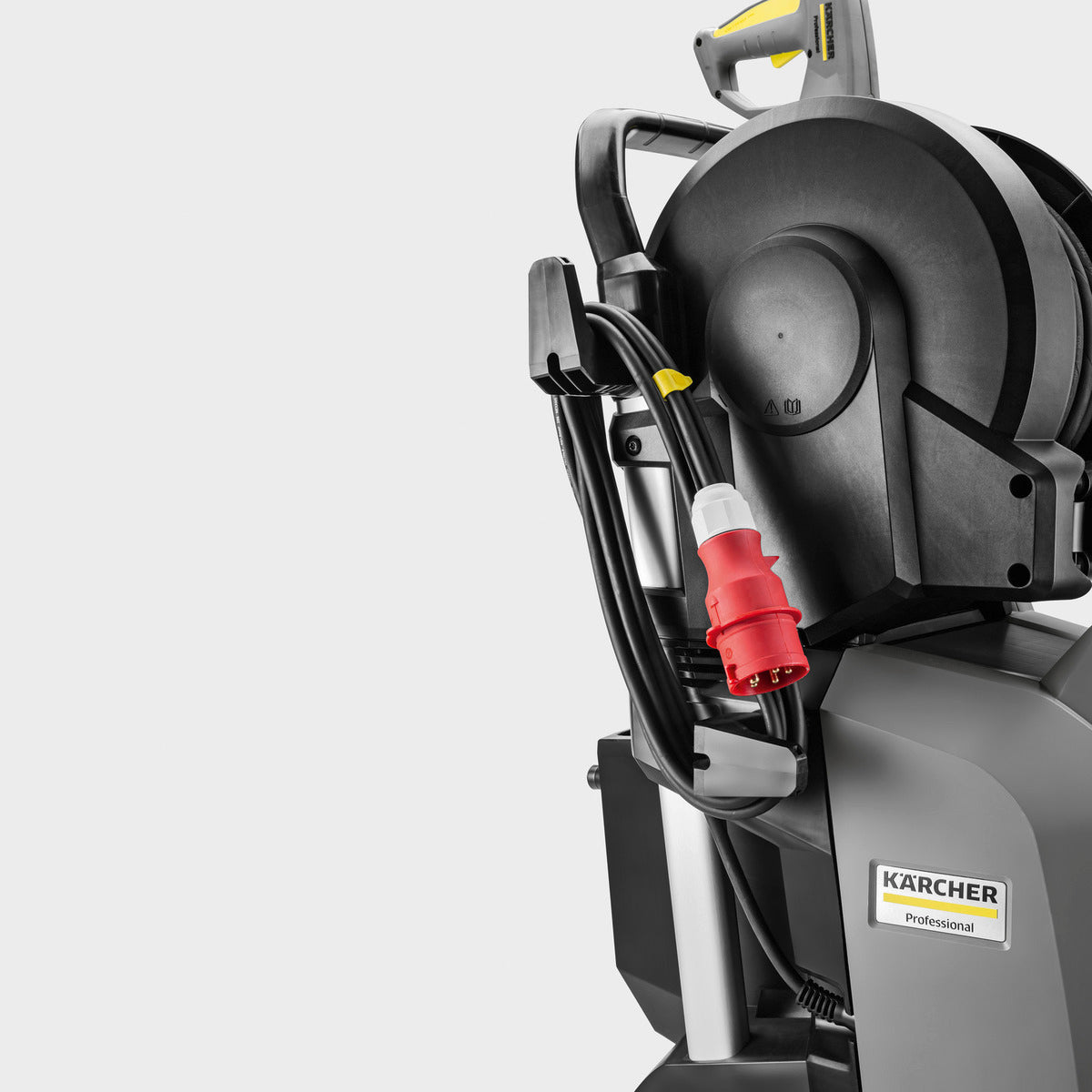

- Adjustable hooks, e.g. for storing a second lance or electric cable.
- Storage for high-pressure hose.
Specifications
Technical data
| Power supply (phase/V/ Hz ) | 3/376–424/50 |
| Flow rate (l/h) | 700–1300 |
| Inlet temperature (°C) | 60 |
| Working pressure (bar) | 50–180 |
| Maximum pressure (bar) | 250 |
| Connected power (kW) | 8.8 |
| Power cable (m) | 5 |
| Nozzle size | 075 |
| Water inlet | 1″ |
| Paint | anthracite |
| Weight (with accessories) (kg) | 81.9 |
| Weight incl. packaging (kg) | 90.2 |
| Dimensions (L × W × H) (mm) | 607 x 518 x 1063 |
Scope of delivery
- Spray gun: EASY!Force Advanced
- Spray gun with soft grip padding
- High pressure hose length: 20 m
- High pressure hose type: Ultra Guard
- Spray pipe: 1050 mm
- Power nozzle
- Dirt blower
- Servo control
Equipment
- 4-pole three-phase motor with air and water cooling
- 3-piston axial pump: with stainless steel pistons
- Pressure shut-off
- Integrated fine water filter
- Motor protection electronics with LED display
- Oil level sight glass
- Brass water inlet
Document
Videos
Areas of use

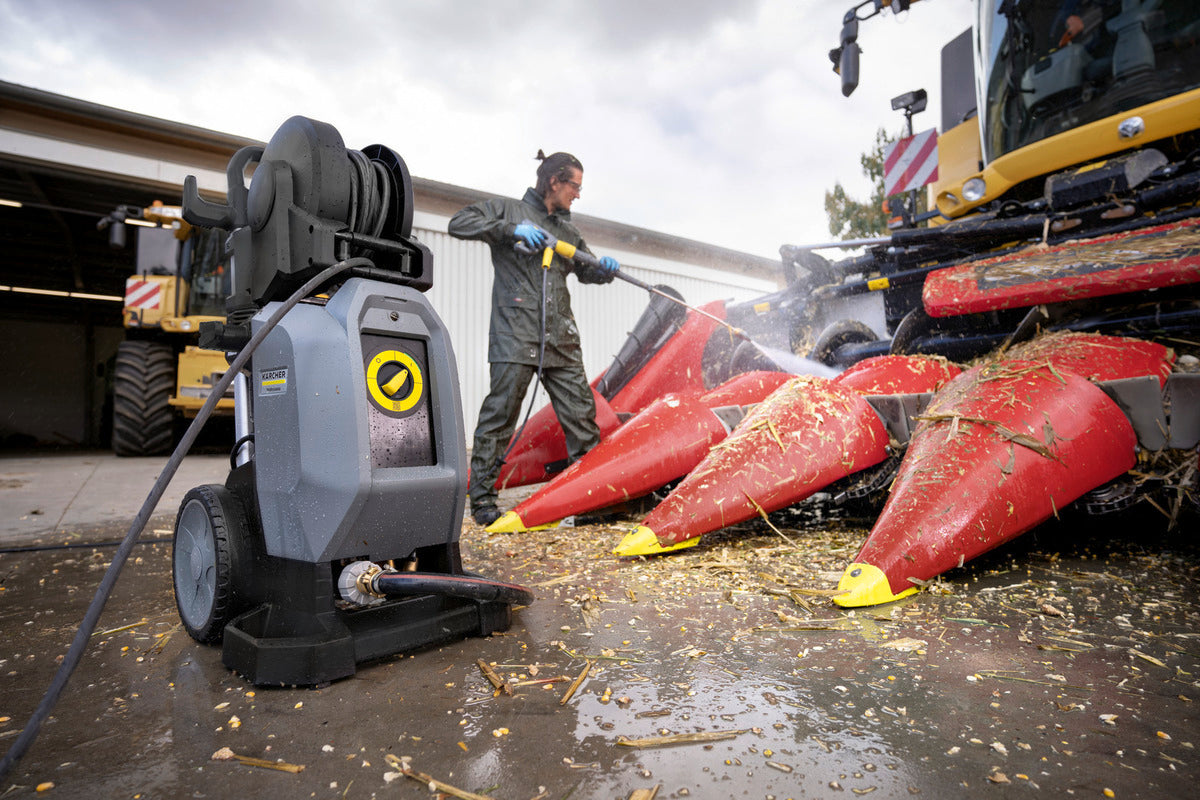

- Cleaning of tractors, machinery and agricultural equipment

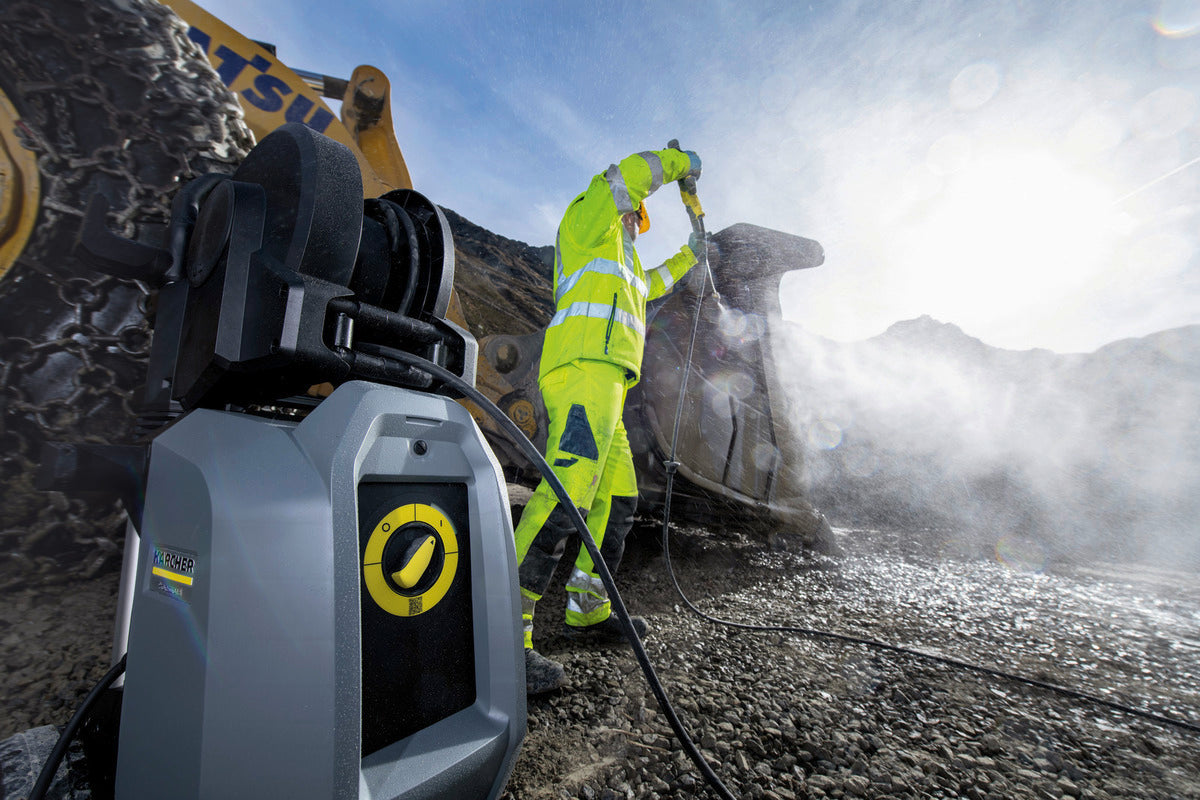

- Cleaning of machinery and equipment on the construction site, such as cement mixers, scaffolding, wheel loaders, excavators or concrete pumps
- Cleaning of production machines in industry, such as in paint shops, food production or the manufacturing sector
- Cleaning of vehicles in the transport sector, such as trucks, ships, airplanes or buses
- Cleaning of common areas such as squares, driveways, fountains or parking lots
