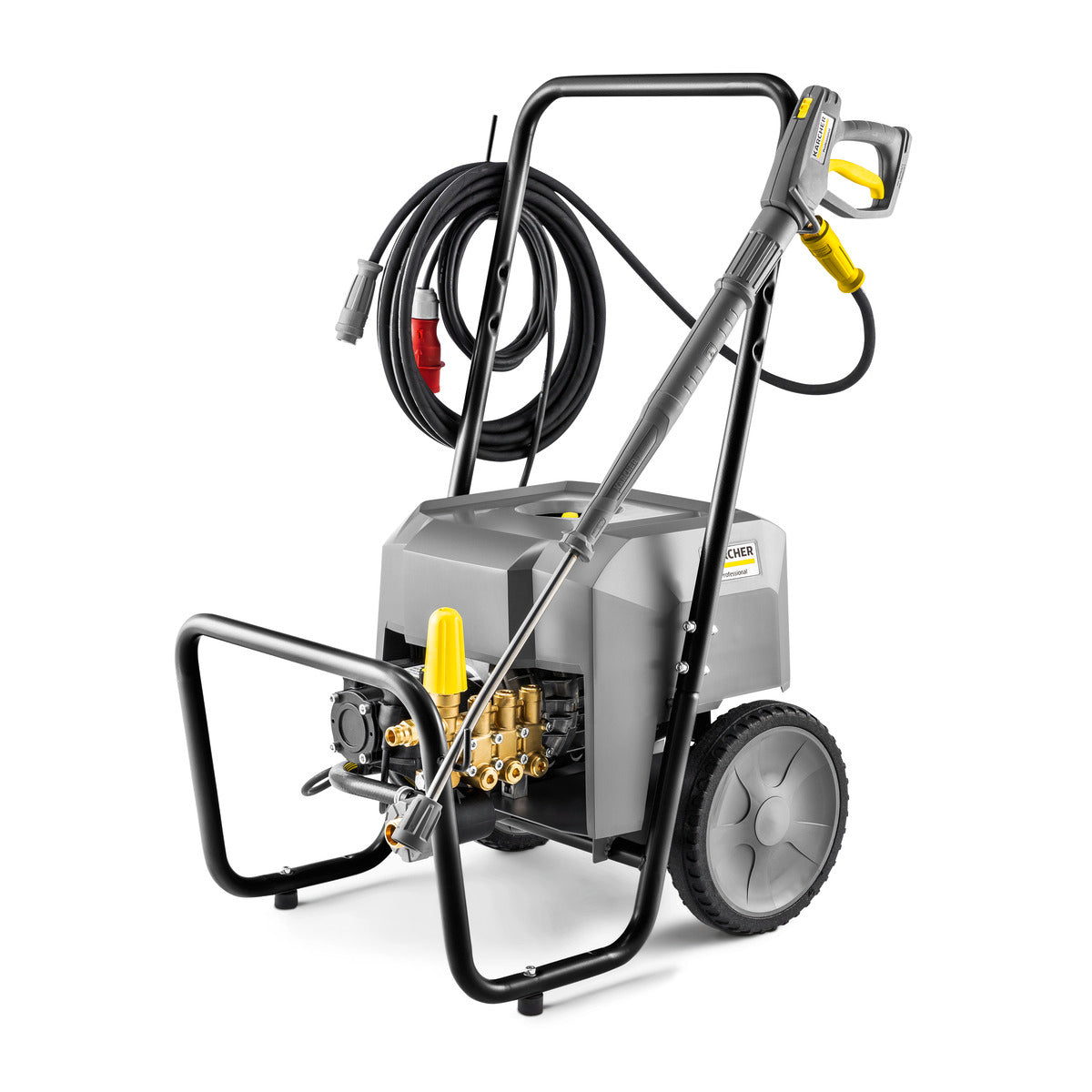

The robust cold water cleaner HD 13/18-4 S Classic is made for tough jobs, day in and day out. Super class in every respect: extreme power for reliable cleaning results.
The HD 13/18-4 S Classic cold water high-pressure cleaner is designed for daily use in tough conditions and always impresses with its extreme power. It stands out from the crowd with its solid construction and robust steel frame. It is simple and intuitive to install, and quick and trouble-free to use. All important parts are quickly and easily accessible. The Super Class high-pressure cleaner is equipped with the Classic high-pressure gun for machines in the HD Classic series. It also has a premium EASY!Lock quick-release coupling. This makes it five times faster to assemble and put away, saving time and effort. An integrated water filter reliably protects the high-pressure pump from dirt particles and contaminants, extending the service life of the machine. A powerful crankshaft pump and durable materials are the backbone of the high-pressure cleaner: with a brass cylinder head and pistons with ceramic sleeves. The pressure can be adjusted on the pump as required. The 4-pole low-speed motor with air-water cooling system for long-term and reliable operation.
Features and benefits

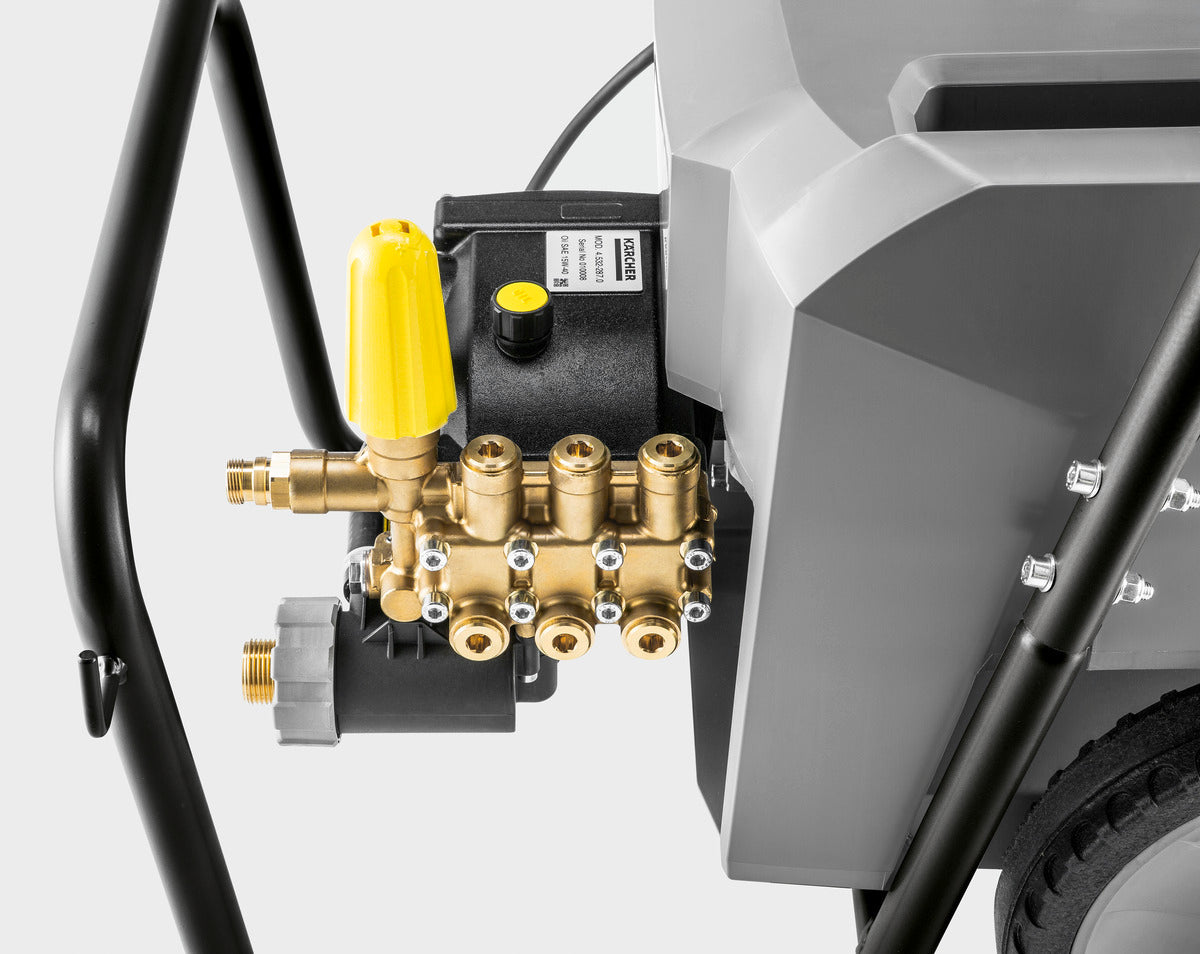

Powerful and robust crankshaft pump with brass head and pistons with ceramic sleeves
High performance and high efficiency. Long service life and low maintenance costs. With suction function and water temperature up to 60 °C.
Robust steel frame with large wheels for maximum portability
Protects the machine even in adverse conditions. Easy and convenient to transport. Integrated storage space for accessories.

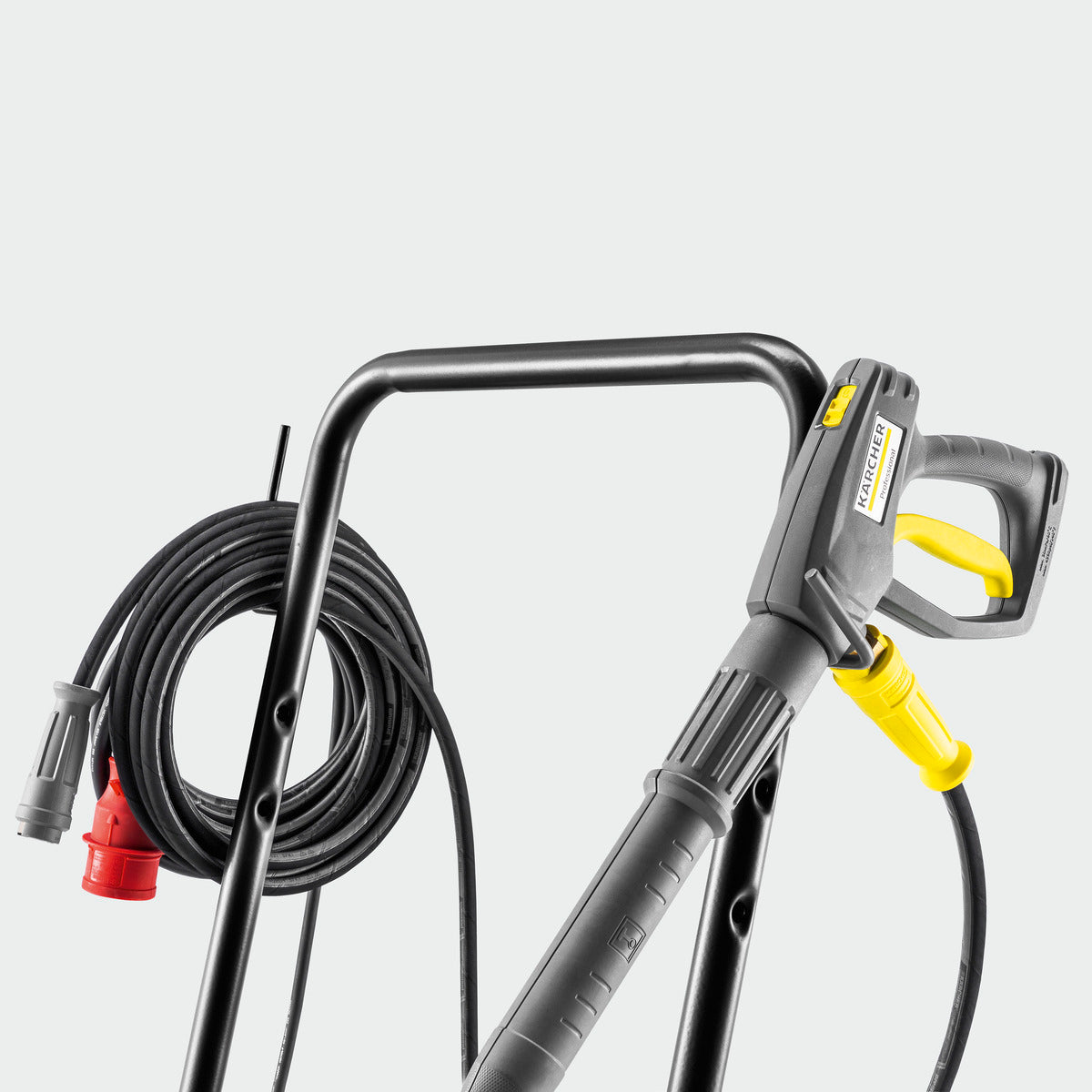

Classic accessories with EASY!Lock couplings
Quick installation and packing, and easy accessory changes. Robust and durable accessories. Simple and intuitive to use.Clear machine design
- The integrated water filter can be removed and cleaned without tools.
- Pressure and water volume can be adjusted on the pump itself.
- Oil level and oil quality can be easily checked using the sight glass and dipstick.
4-pole low-speed motor with air-water cooling system
- Long service life and low maintenance costs.
- Combines efficient water cooling with a robust air cooling system for maximum cooling effect even at varying ambient and water temperatures.
- Compact design for maximum portability.
Specifications
Technical data
| Power supply (phase/V/ Hz ) | 3/376–424/50 |
| Flow rate (l/h) | 700–1300 |
| Inlet temperature (°C) | 60 |
| Working pressure (bar) | 50–180 |
| Maximum pressure (bar/MPa) | 240 / 2.4 |
| Connected power (kW) | 8.8 |
| Power cable (m) | 5 |
| Nozzle size | 075 |
| Water inlet | 1″ |
| Paint | anthracite |
| Weight (with accessories) (kg) | 68 |
| Weight incl. packaging (kg) | 75.9 |
| Dimensions (L × W × H) (mm) | 720x637x1060 |
Scope of delivery
- High pressure hose length: 10 m
- High pressure hose specification: DN 8, 315 bar
- Spray tube: 840 mm
- Power nozzle
Equipment
- Crankshaft pump with ceramic pistons
- 4-pole three-phase motor with air and water cooling
- Pressure shut-off
- Integrated fine water filter
- Oil level sight glass
- Brass water inlet
Document
Areas of use
- Cleaning of animal stables in agriculture

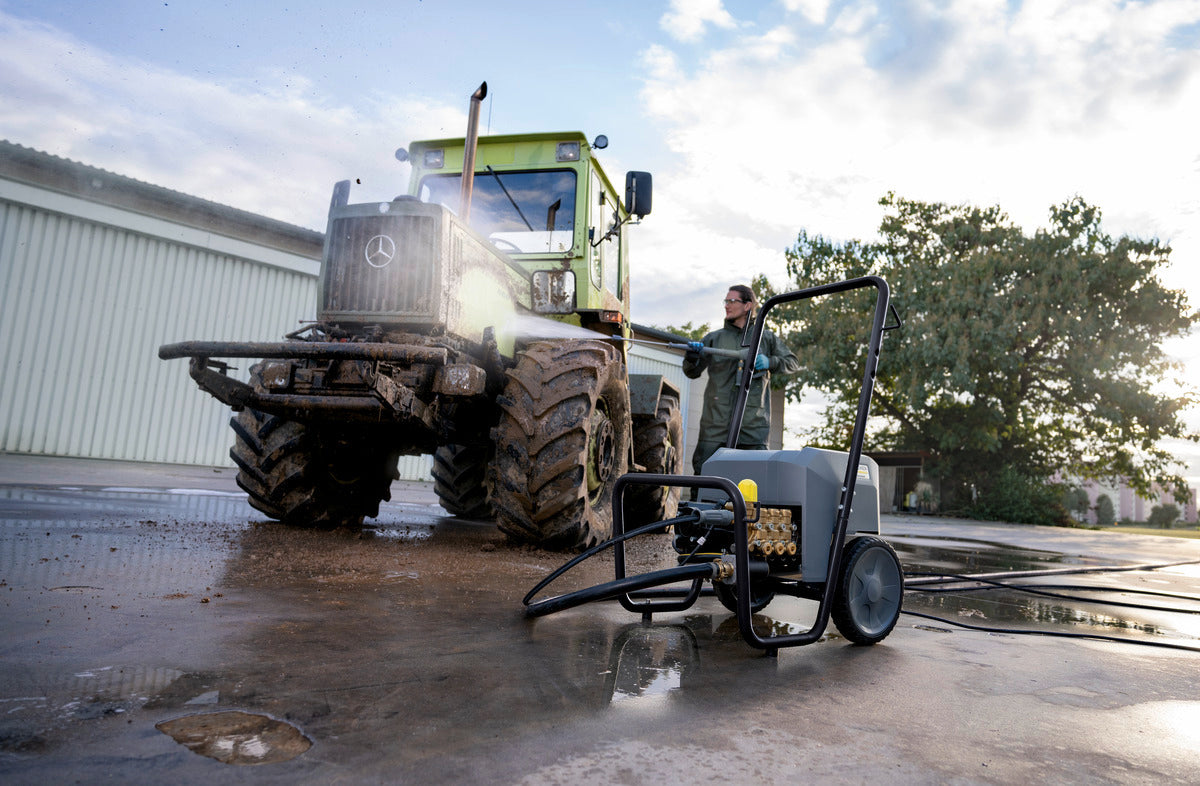

- Cleaning of tractors, machinery and agricultural equipment
- Cleaning of facade cladding and concrete strips in the construction sector

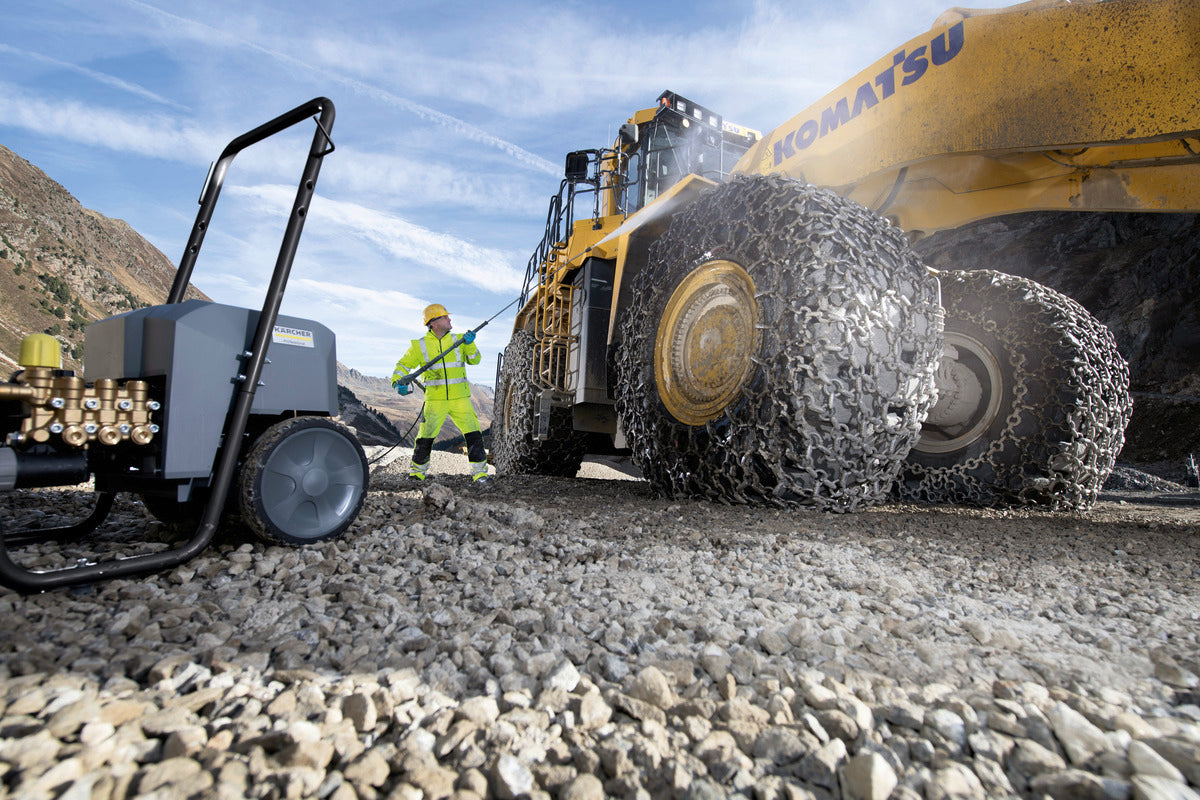

- Cleaning of machinery and equipment on the construction site, such as cement mixers, scaffolding, wheel loaders, excavators or concrete pumps
- Cleaning of production machines in industry, such as in paint shops, food production or the manufacturing sector
- Cleaning of vehicles in the transport sector, such as trucks, ships, airplanes or buses
- Cleaning of common areas such as squares, driveways, fountains or parking lots
