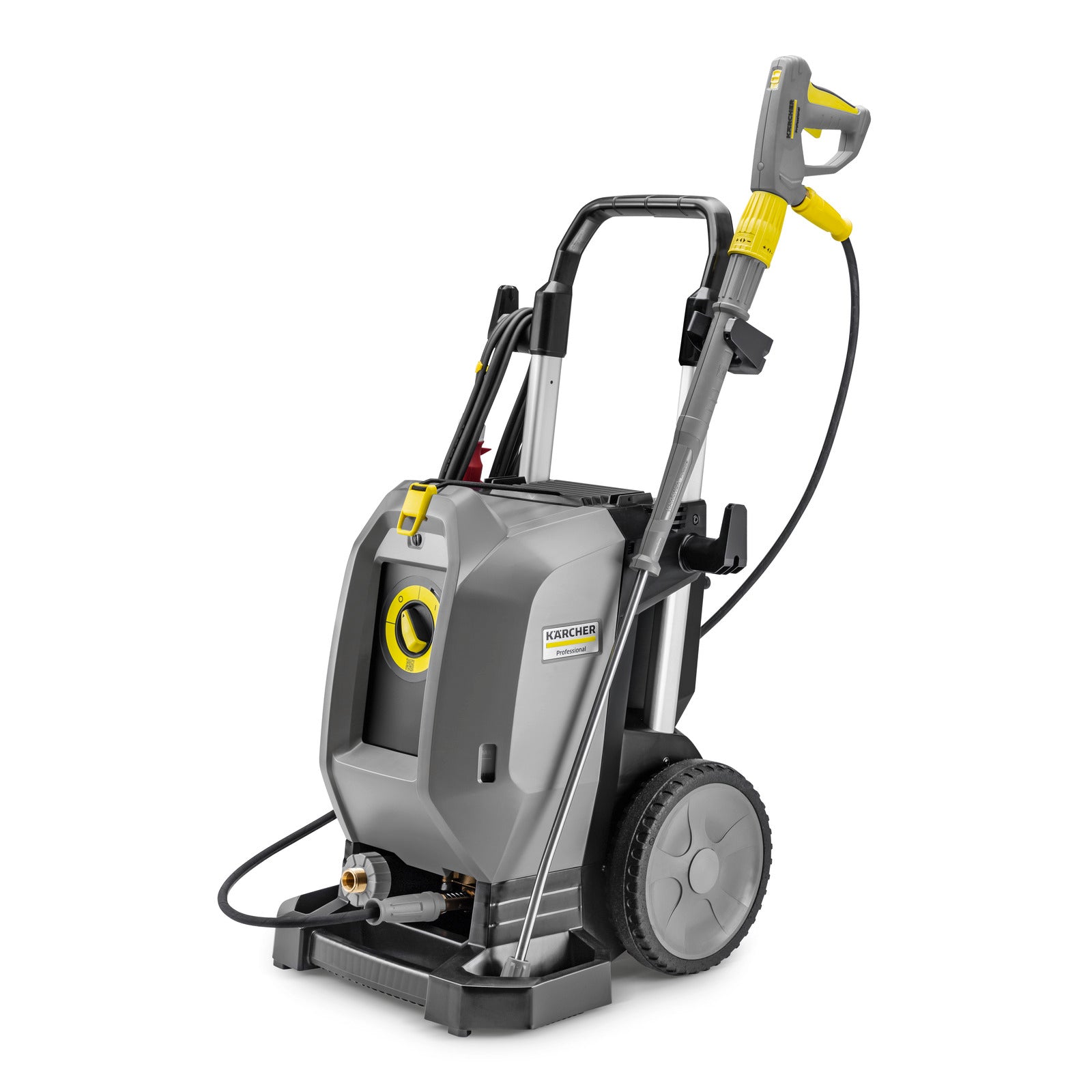

Kärcher High-pressure washer HD 10/25-4 S
Couldn't load pickup availability
A cold water high-pressure washer of the absolute highest quality, high performance and lots of integrated user-friendly features. Designed for ergonomic work and maximum flexibility.
The Kärcher HD 10/25-4 S high-pressure cleaner delivers impressive ergonomics and premium quality. Effortless use thanks to EASY!Force Advanced handle that requires no gripping force. A rotatable 1050 mm stainless steel lance allows for maximum efficiency. Pressure and water flow are adjusted via the Servo Control knob. Support system and an LED status display provide clear operating information. The highest level of engineering and material quality make this probably the most outstanding model in its class on the market. The vertically mounted motor and pump unit that combines a very durable pump with stainless steel pistons and a copper cylinder keeps the machine stable and reliable while being compact and mobile. It has a 4-pole low-speed motor with an air-cooled system and an aluminum frame creating a light yet robust chassis construction suitable for lifting with, for example, a crane.
Features and benefits
Compact upright design based on vertical mounting of motor and pump unit
Takes up little space during use and storage Easy to handle and transport Maximum stability creates safety during use
4-pole low-speed motor with air cooling, robust pump with stainless steel pistons and copper cylinder head
Long life with low maintenance costs High efficiency and level of performance With suction function and up to 60 degrees inlet water temperature

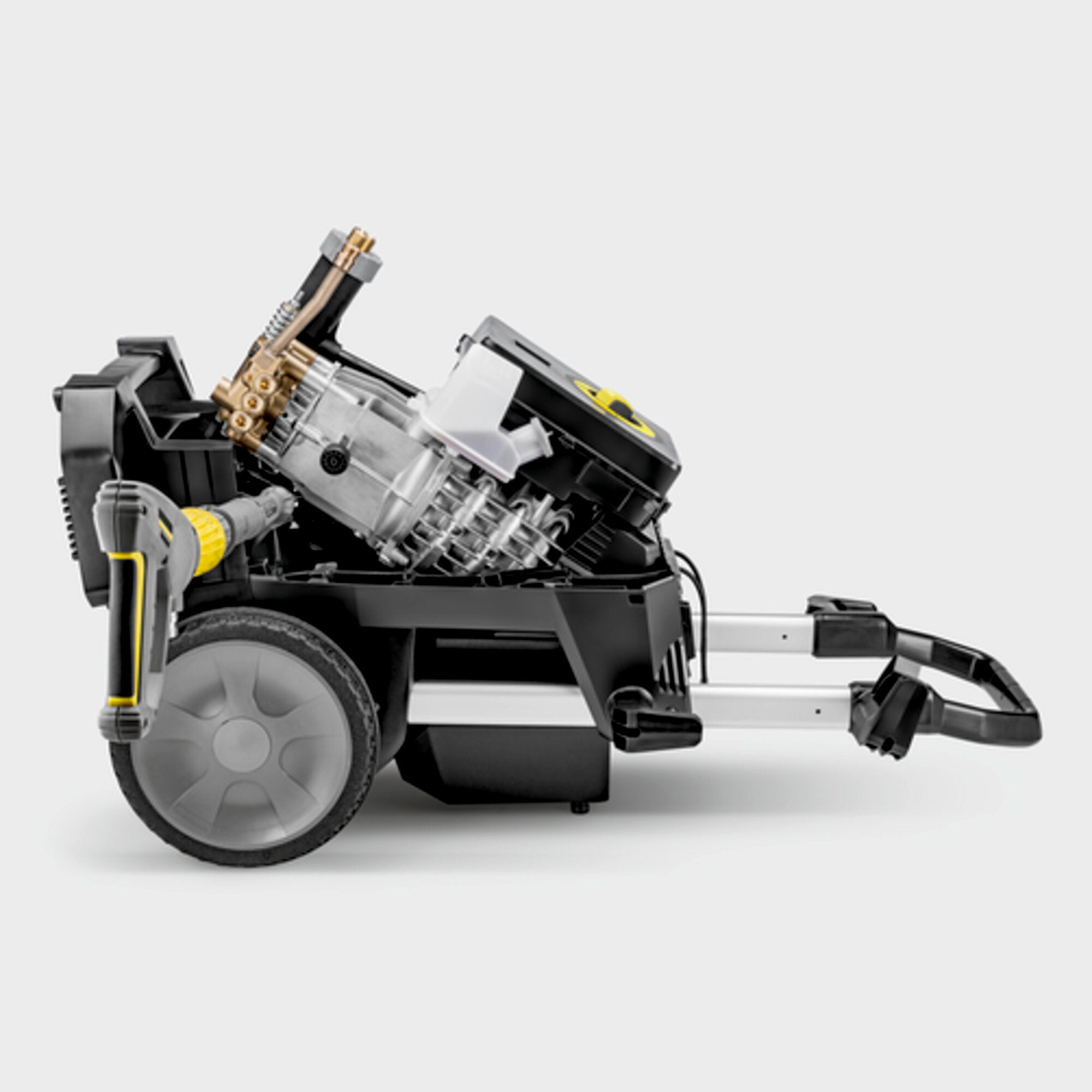

Intelligently designed service concept enables very fast service even carried out on site
Simple oil fill display and oil drain integrated into the chassis Modular design that includes pump, motor and control unitAssistance system and LED status display
- Integrated electronics for monitoring the device.
- Automatic undervoltage and overvoltage protection.
- Disconnection in case of leakage or phase failure.
Wide range of accessories with EASY!Lock
- Water pressure and flow can be adjusted with the Servo Control knob located between the lance and the gun.
- EASY!Force Advanced for working without strain from gripping the handle
- Rotating 1050mm stainless steel lance
Extensive range of accessories and mounting kits
- Storage space
- Adjustable hooks for storing a second lance or an extension cord, for example
- High-pressure hose storage
Specifications
Technical data
| Mains voltage (Ph/V/ Hz ) | 3 / 376 - 424 / 50 |
| Flow rate (l/h) | 500 - 1000 |
| Inlet temperature (°C) | 60 |
| Working pressure (bar) | 80 - 250 |
| Max pressure (bar) | 280 |
| Power (kW) | 8.8 |
| Power cable (m) | 5 |
| Nozzle size | 047 |
| Water supply | 1″ |
| Paint | anthracite |
| Weight (with accessories) (kg) | 69.8 |
| Weight incl. packaging (kg) | 78.1 |
| Dimensions (L × W × H) (mm) | 607 x 518 x 1063 |
The following is included
- Flush handle: EASY!Force Advanced
- High pressure hose length: 10 m
- High pressure hose type: Premium quality
- High pressure hose specification: DN 8, 315 bar
- Flush pipe: 1050 mm
- Power nozzle
- Servo Control
Standard equipment
- 4-pole three-phase motor with air and water cooling
- 3-cylinder axial piston pump: With stainless steel pistons
- Automatic start/stop

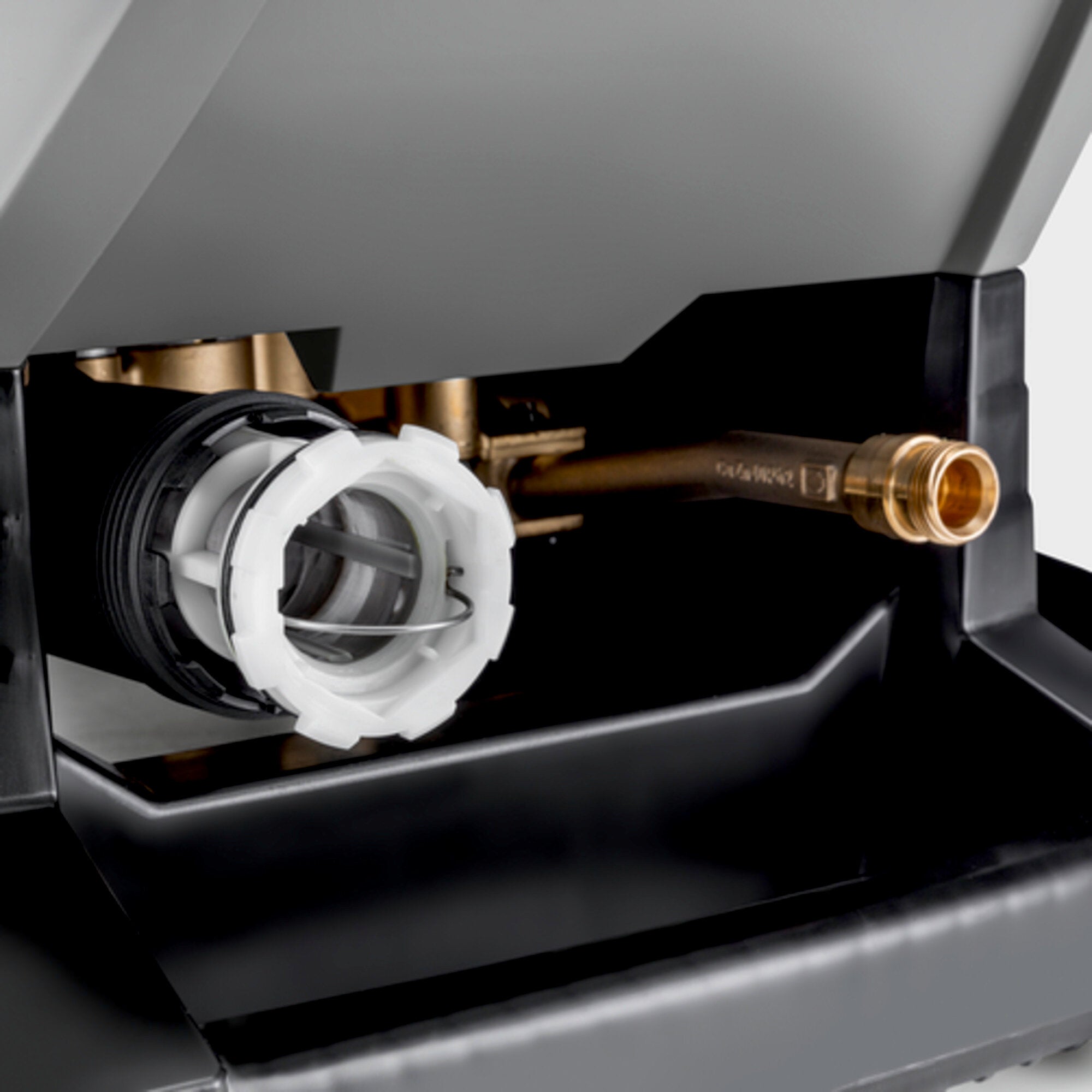

- Integrated fine mesh water filter
- Electronic motor protection with LED display
- Oil level gauge
- Brass pump
Areas of use
- Cleaning of tractors, machinery and accessories in agriculture

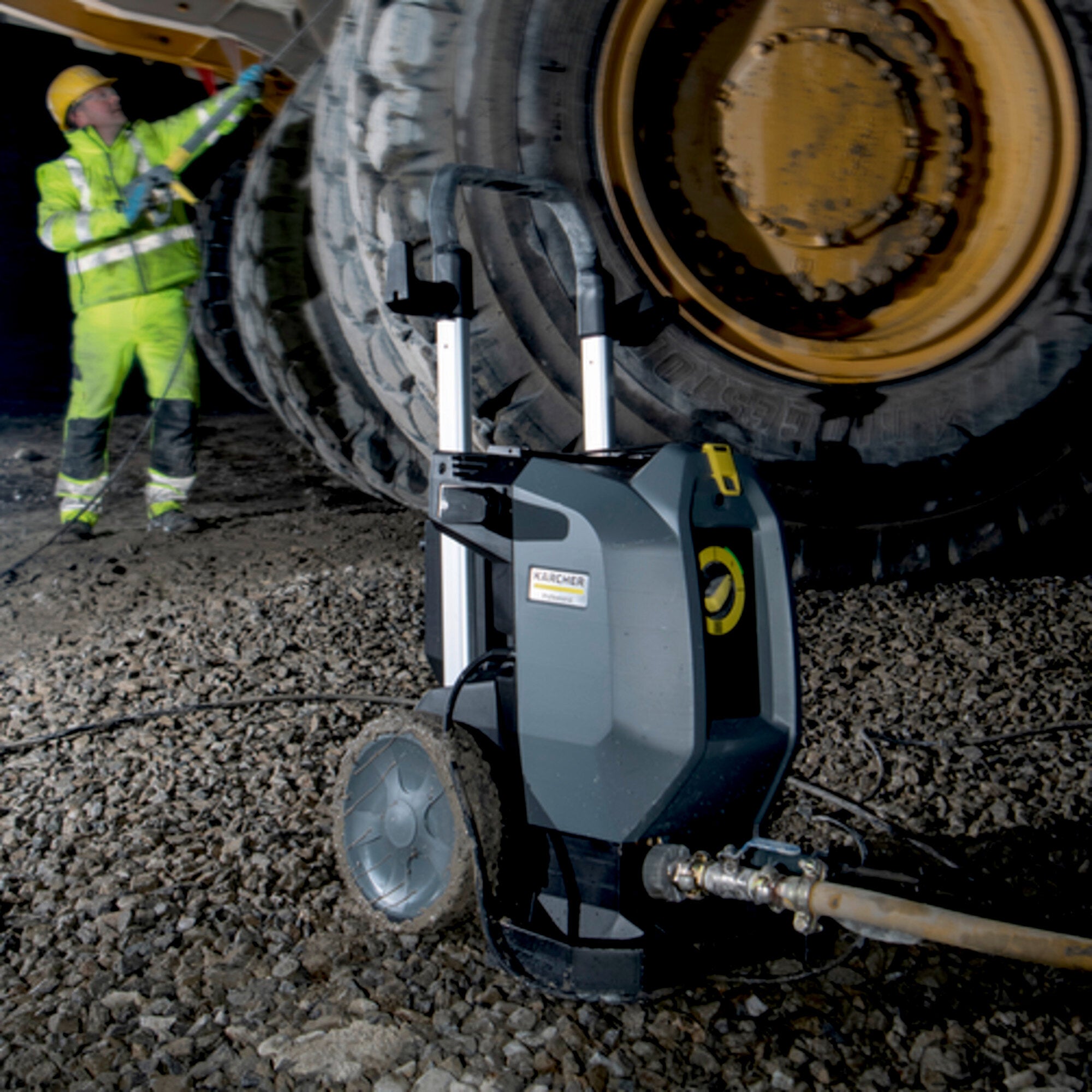

- Cleaning of machinery and equipment on construction sites such as cement mixers, scaffolding, wheel loaders, excavators and cement pumps
- Cleaning of production equipment in industries such as the paint industry, food industry or manufacturing industry
- Cleaning of vehicles in the transport sector such as trucks, ships, airplanes or buses
- Cleaning of municipal areas such as squares, bridge abutments, fountains or parking areas
