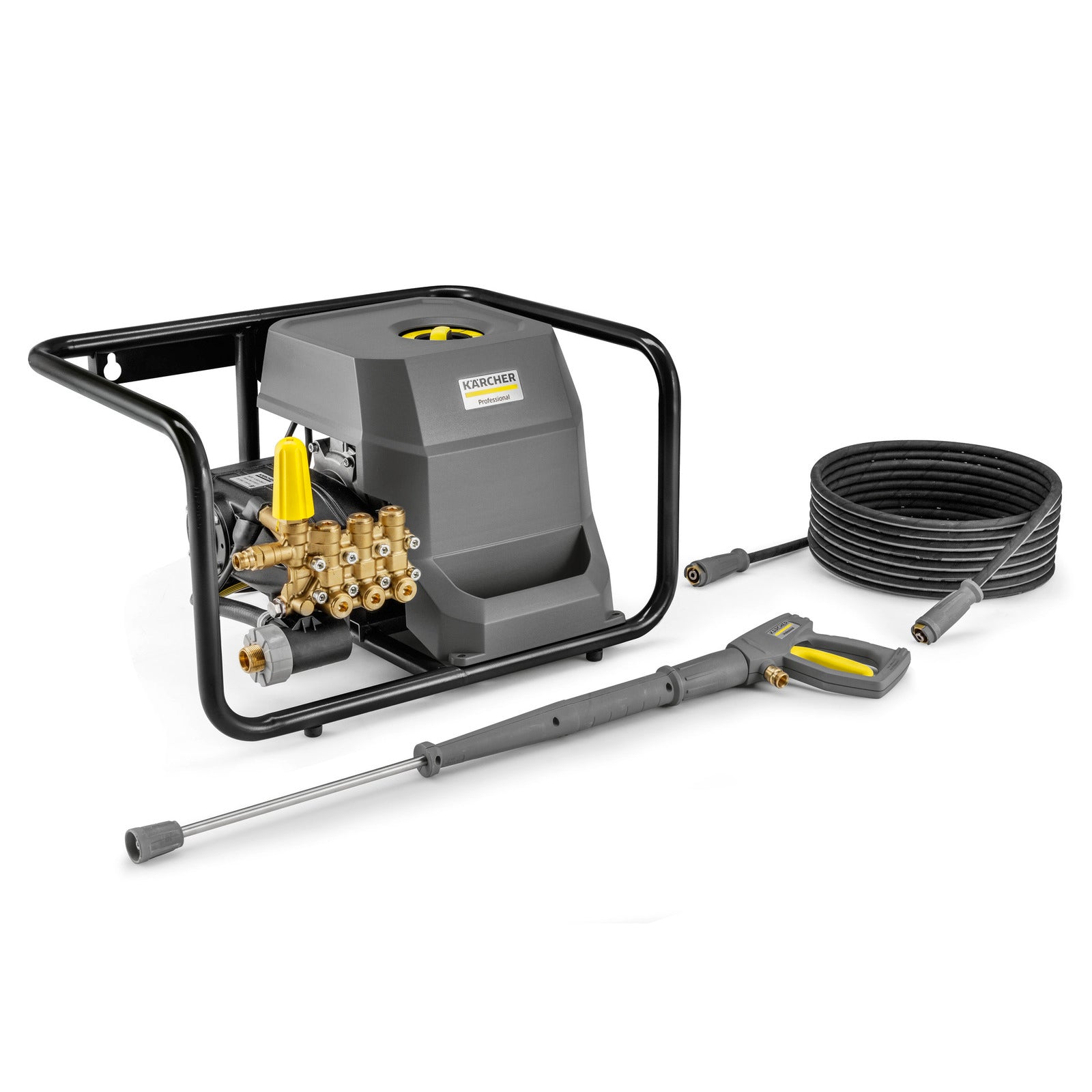

Kärcher High Pressure Washers HD 10/25-4 S
Couldn't load pickup availability
The HD 10/25-4 S cold water high-pressure cleaner delivers premium quality, high performance and practical assistance systems. Designed for ergonomic working and maximum portability.
The HD 10/25-4 S cold water high-pressure cleaner takes ergonomic work to the next level. The practical EASY!Force Advanced gun makes it easy to use without holding force. A rotating 1050 millimeter stainless steel lance provides maximum efficiency. The servo control allows the user to control the pressure and water volume directly from the gun/lance. Assistance systems and an LED status display also enhance the user-friendly design. You can rely on Kärcher to use the best materials to guarantee the highest and most long-lasting quality. Inside the machine is a durable wobble pump with stainless steel pistons and a brass cylinder head. The HD 10/25-4 S is powered by a 4-pole low-speed motor with air-water cooling system. Integrated aluminum frame carriers reduce weight and provide a lightweight yet durable chassis, making crane loading an option. The upright structure, where the motor and pump unit are installed vertically, offers maximum portability in practice. The compact design also features smart storage for accessories, such as a storage compartment and adjustable hooks.
Features and benefits
Compact, upright design concept based on vertical placement of motor and pump unit
Small footprint and space-saving proportions. Easy to maneuver and transport. Maximum stability ensures a firm footing for the machine.
4-pole low-speed motor with air-water cooling system, robust pump with stainless steel pistons and brass cylinder head
Long service life and low maintenance costs. High performance and high efficiency. With suction function and water temperature up to 60 °C.
Intelligently designed service concept enables fast on-site operations
Practical oil level indicator and oil drain hole integrated into the chassis. Modular design, consisting of pump, motor and control cabinet.Assistance system and LED status display
- Integrated electronic system for machine monitoring.
- Automatic shutdown in case of low voltage range or overvoltage.
- Switches off in the event of leakage or phase failure.
Wide range of accessories with EASY!Lock
- Pressure and water flow can be adjusted with the Servo Control located between the spray lance and the gun.
- EASY!Force Advanced for fatigue-free work without holding force.
- Rotating 1050 mm stainless steel lance.
Wide range of accessories and mounting kits
- Storage compartment.
- Adjustable hooks, e.g. for storing a second lance or electric cable.
- Storage for high-pressure hose.
Specifications
Technical data
| Power supply (phase/V/ Hz ) | 3/376–424/50 |
| Flow rate (l/h) | 500–1000 |
| Inlet temperature (°C) | 60 |
| Working pressure (bar) | 80–250 |
| Maximum pressure (bar) | 280 |
| Connected power (kW) | 8.8 |
| Power cable (m) | 5 |
| Nozzle size | 047 |
| Water inlet | 1″ |
| Paint | anthracite |
| Weight (with accessories) (kg) | 69.8 |
| Weight incl. packaging (kg) | 78.1 |
| Dimensions (L × W × H) (mm) | 607 x 518 x 1063 |
Scope of delivery
- Spray gun: EASY!Force Advanced
- High pressure hose length: 10 m
- High pressure hose type: Premium quality
- High pressure hose specification: DN 8, 315 bar
- Spray pipe: 1050 mm
- Power nozzle
- Servo control
Equipment
- 4-pole three-phase motor with air and water cooling
- 3-piston axial pump: with stainless steel pistons
- Pressure shut-off
- Integrated fine water filter
- Motor protection electronics with LED display
- Oil level sight glass
- Brass water inlet
Document
Areas of use
- Cleaning of tractors, machinery and agricultural equipment
- Cleaning of machinery and equipment on the construction site, such as cement mixers, scaffolding, wheel loaders, excavators or concrete pumps
- Cleaning of production machines in industry, such as in paint shops, food production or the manufacturing sector
- Cleaning of vehicles in the transport sector, such as trucks, ships, airplanes or buses
- Cleaning of common areas such as squares, driveways, fountains or parking lots
