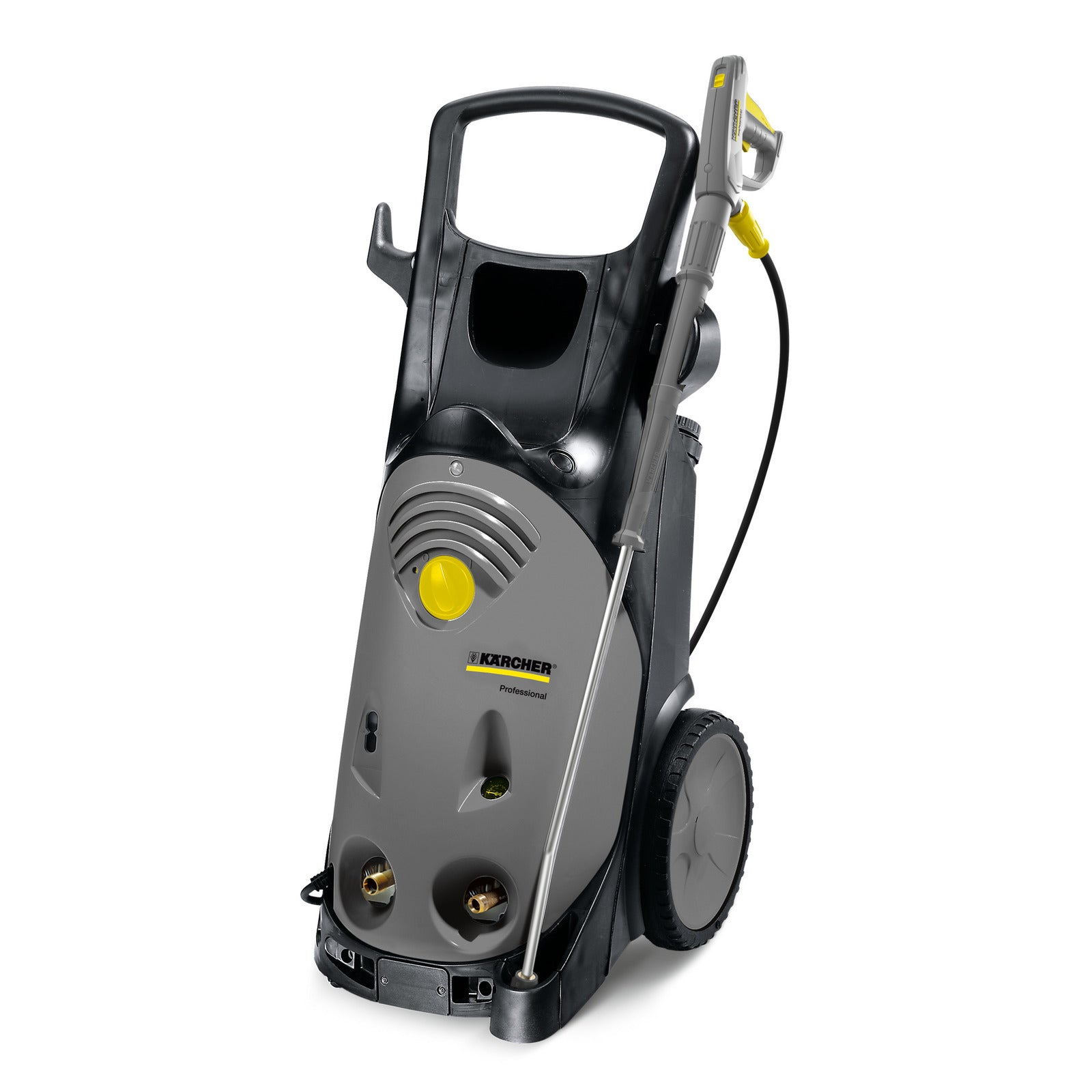

The HD 10/21-4 S cold water washer in upright design impresses with EASY!Force spray handle, pressure control and a rotatable stainless steel spray pipe lance.
The HD 10/21-4 S cold water cleaner with three-phase operation combines high user-friendliness with an impressive power of 210 bar and a maximum water flow of 1,000 l/h. Thanks to its upright design, the machine requires less space than conventional models and is easier to maneuver, especially around obstacles. The large, rubber-coated wheels also make transport easy, even on uneven surfaces. Storage solutions are included to keep accessories organized – for example, a separate nozzle compartment for safe storage of unused nozzles. Innovative functions simplify handling and save time during both setup and disassembly. EASY!Force The spray gun uses the recoil force of the high-pressure jet to eliminate the need to hold the trigger, while EASY!Lock Quick-release couplings make assembly five times faster than traditional screw couplings, without compromising durability or service life. The HD 10/21-4 S is designed for daily use in harsh environments. A detergent-resistant brass cylinder head and stainless steel pistons with ceramic coating ensure a long service life.
Features and benefits
Save time and effort: The flush handle EASY!Force for high pressure and EASY!Lock quick connectors.
Finally – clean without getting tired with EASY!Force flush handle EASY!Lock Quick-release couplings: durable and robust. They are also five times faster than screws.
Proven Kärcher quality
4-pole water-cooled electric motor Robust brass cylinder head and ceramic pistons. Reinforced chassis
Fine mesh water filter
Fine-mesh water filter protects the high-pressure pump against dirt particles.Excellent mobility
- Large rubber tires to cope with uneven surfaces, stairs and landings.
- Proven principle for easy, ergonomic transport.
Specifications
Technical data
| Mains voltage (Ph/V/ Hz ) | 3 / 400 / 50 |
| Flow rate (l/h) | 1000 |
| Inlet temperature (°C) | up to 60 |
| Working pressure (bar/MPa) | 210 / 21 |
| Max. pressure (bar/MPa) | 231 / 23.1 |
| Power (kW) | 8 |
| Paint | anthracite |
| Weight (with accessories) (kg) | 62.8 |
| Weight incl. packaging (kg) | 68.8 |
| Dimensions (L × W × H) (mm) | 560 x 500 x 1090 |
The following is included
- Flush handle: EASY!Force Advanced
- Soft-grip flush handle
- High pressure hose length: 10 m
- Flush pipe: 1050 mm
- Power nozzle
Standard equipment
- 4-pole three-phase motor with air and water cooling
- 3-cylinder axial piston pump: With ceramic piston
- Automatic start/stop
- Integrated fine mesh water filter
- Oil level gauge
- Brass pump
Download
Instructions for use, including safety information
