Kärcher High-pressure washer HD 10/19-4 St H
Couldn't load pickup availability

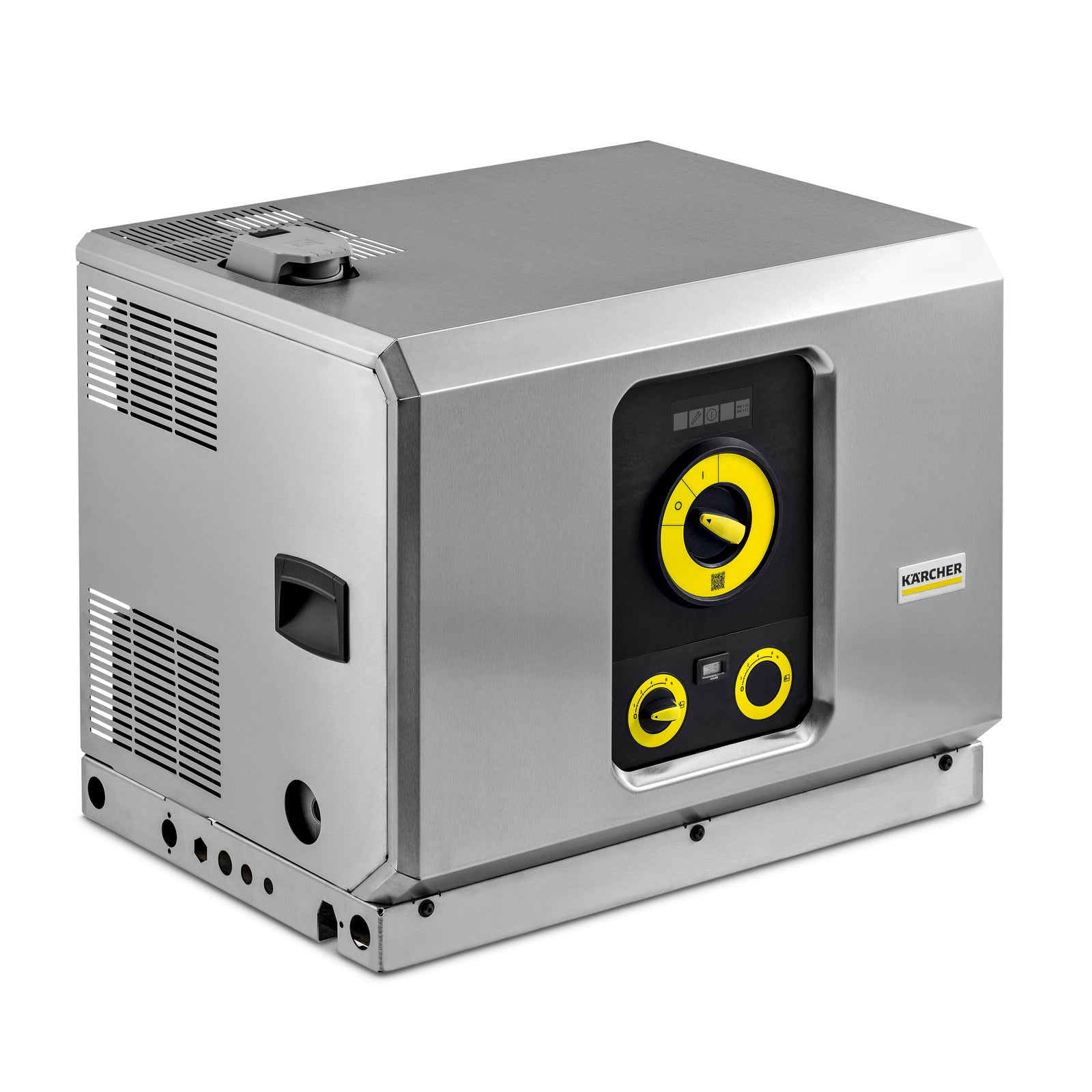

Easy-to-use stationary high-pressure washer with a high capacity of 1,000 l/h. Robust and high-quality equipment – ideal for agriculture or the food industry.

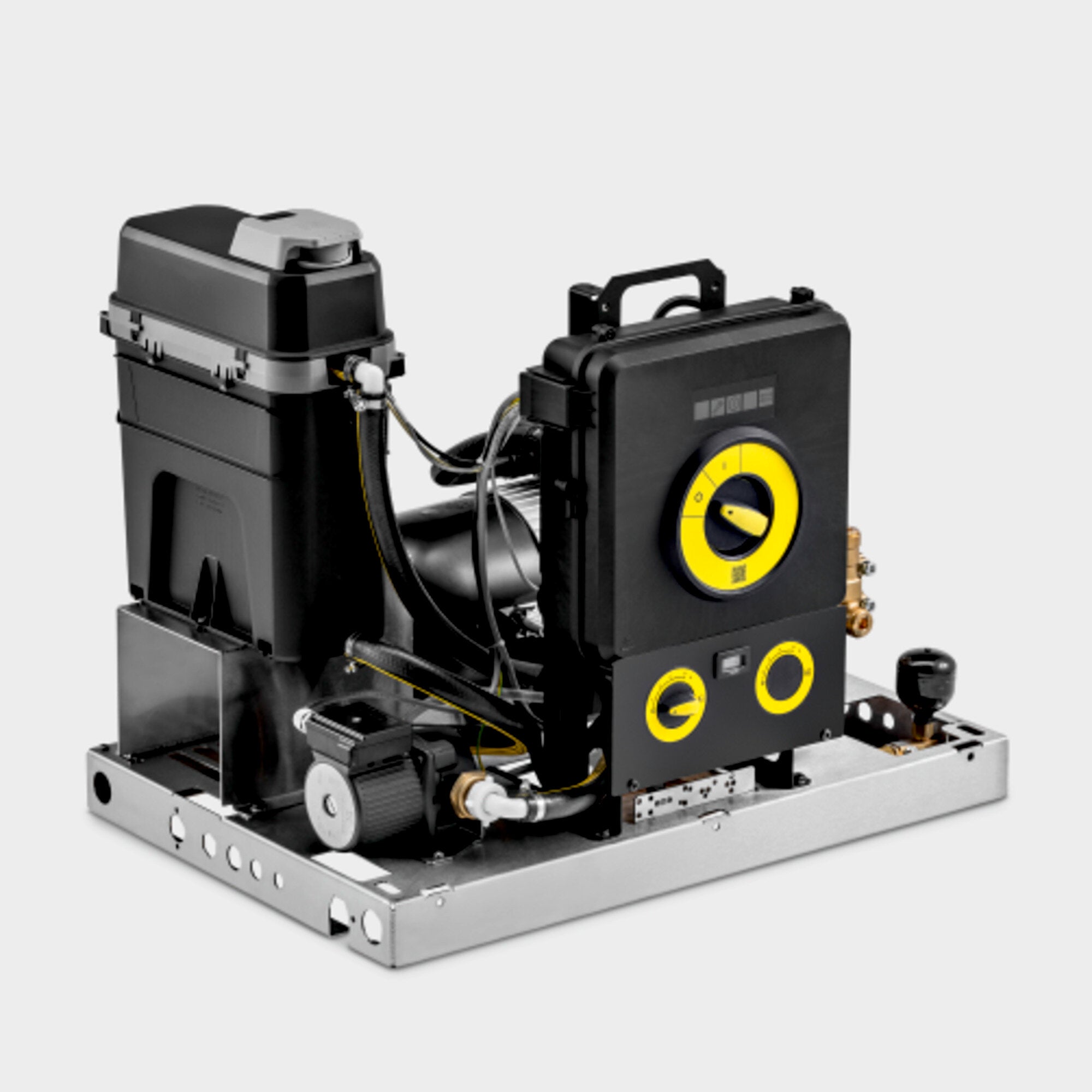

This stationary cold water cleaner impresses with its easy operation, a flow rate of 1,000 l/h, a pressure of 190 bar and an inlet temperature of up to 85 °C. The pump is protected by a large water filter. Installation, operation and maintenance are simple and user-friendly. Electronic monitoring and error indicators ensure high operational reliability. Thanks to the 4-pole, low-speed electric motor, the machine has a long service life, while the crankshaft pump with brass cylinder head and stainless steel housing make it particularly durable. The high-pressure cleaner has a water tank with dry-running protection and limescale protection, where the level of limescale protection is displayed. Detergent can be sucked in and dosed via a valve, and here too there is an empty indicator. The machine is supplied without accessories, but these can be selected as required: pressure gauge, hour meter, inlet for a second detergent, automatic pressure relief and various remote controls.
Features and benefits
High quality equipment
Water tank with valve, limescale protection and dry-running protection Very robust frame and housing made of stainless steel Ready for connection of remote controls
Durable and robust

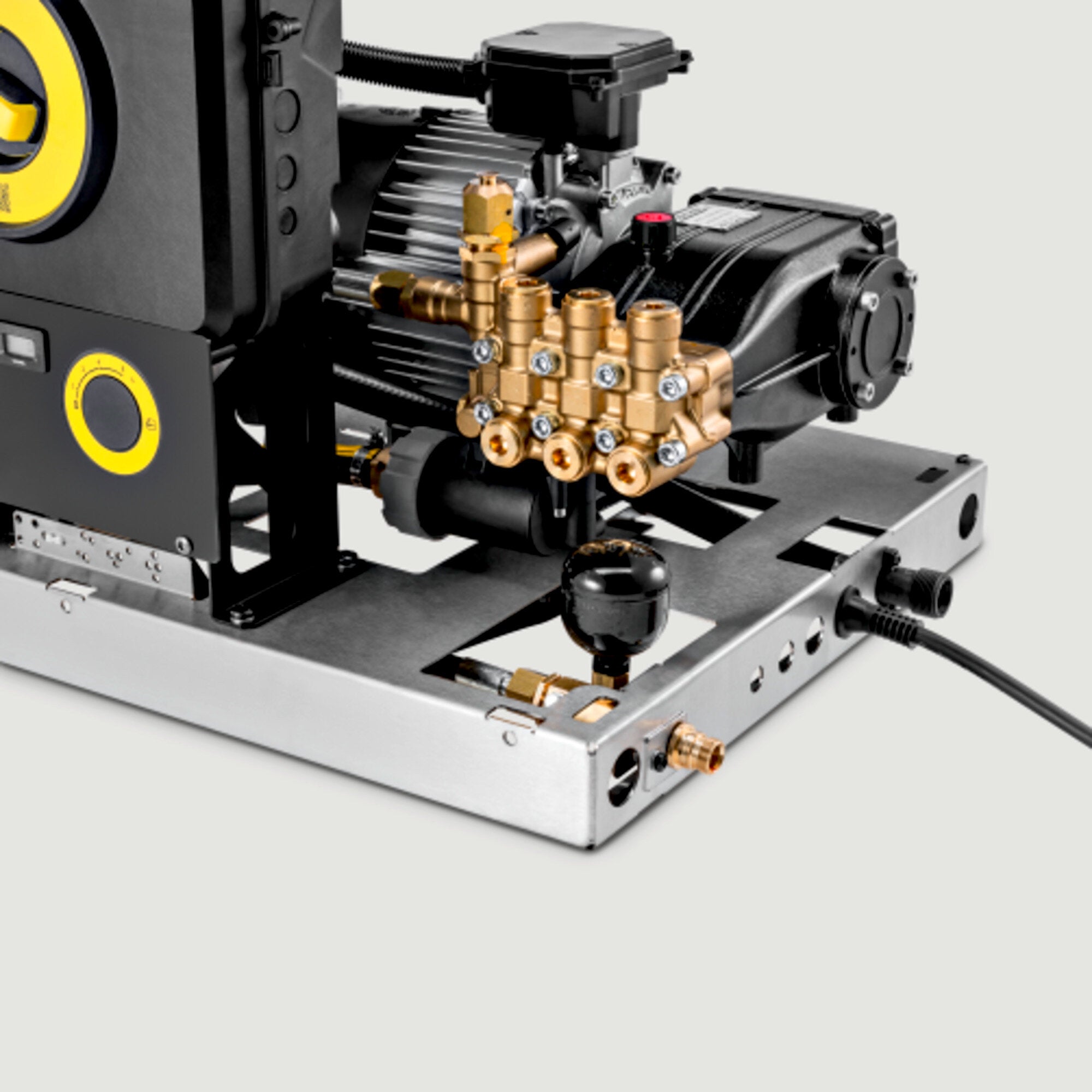

Very robust frame and housing made of stainless steel. 4-pole, low-speed electric motor guarantees a long working life. Kärcher's reliable and durable high-performance crankshaft pump ensures optimal pressure.
Electronic monitoring for increased operational reliability.
Shutdown in case of lack of water, LED indicators: standby, service, error. Automatic undervoltage and overvoltage protection. Disconnection in case of leakage or phase failure.User-friendly
- Just one rotary switch ensures easy use of all functions without long training times.
- Particularly user-friendly thanks to self-explanatory symbols. No need for time-consuming learning

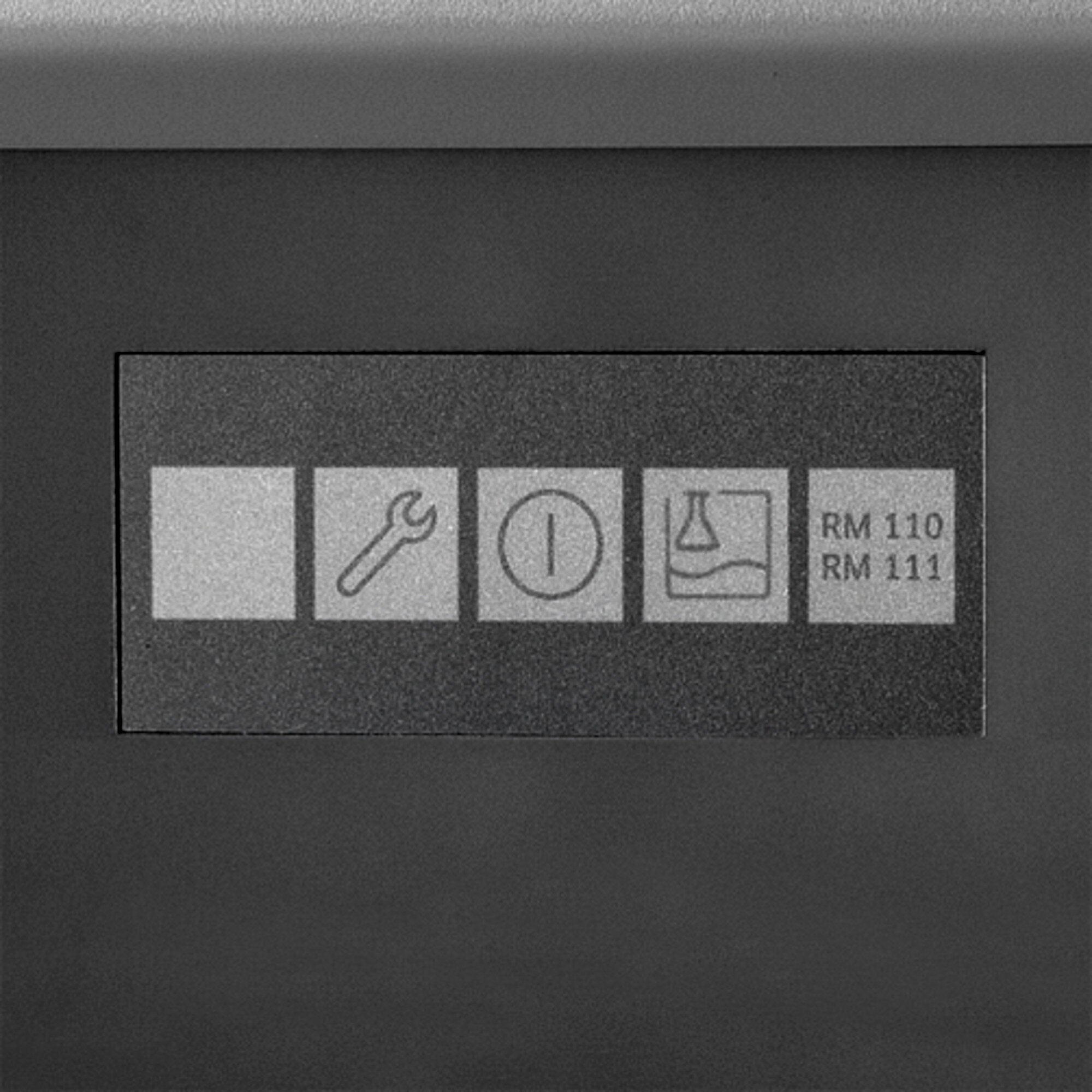

- LED lights indicate important operating statuses
Extensive range of accessories and mounting kits
- Pressure gauge and hour meter available as options
- Automatic pressure relief is available as an option
Chemical inlet with valve and empty indicator
- Chemical inlet system with dosing valve and empty indicator included as standard
- Optional: second inlet with valve and empty indicator
- Detergent dosing unit on the suction side.
Robust construction for demanding working conditions
- Built for everyday use
- Longer life, less maintenance and lower costs. Perfect for industrial use.
- Using hot water significantly increases cleaning efficiency
Large integrated water filter
- Large water filter for maximum pump protection
- Easy to use, easy to clean.
- Ensures long service life for all high-pressure components
Easy installation and maintenance
- Quick and easy access to all components for maintenance.
- Time and cost-saving on-site installation.
- Extensive service network with highly trained technicians
Ready for use in a short time
- Ready to use at the touch of a button, without setup times and transportation of mobile machines.
- The pump starts when the spray handle is used, making it easy to work from different locations.
- Permanent installation without risks: no contamination or loose hoses
Specifications
Technical data
| Mains voltage (Ph/V/ Hz ) | 3 / 400 / 50 |
| Flow rate (l/h) | 500 - 1000 |
| Working pressure (bar/MPa) | 50 - 190 / 5 - 19 |
| Max. pressure (bar/MPa) | 250 / 25 |
| Inlet temperature (°C) | 85 |
| Power (kW) | 7 |
| Protection (A) | 16 |
| Power cable (m) | 5 |
| Water supply | 1″ |
| Number of users | 1 |
| Mobile | Stationary |
| Weight (with accessories) (kg) | 89 |
| Weight incl. packaging (kg) | 98.8 |
| Dimensions (L × W × H) (mm) | 800 x 605 x 600 |
The following is included
- Servo Control
- Power nozzle
- Frame and casing: Stainless steel
- Prepared for Servo Control
- Prepared for chemical inlet
Standard equipment
- Crankshaft pump with ceramic pistons
- Pressure pump
- Scale inhibitor
- Dry running protection
- Large water filter
- Water tank with float valve
- Prepared for remote control
- RM1 dosage
- Oil level gauge
- Oil dipstick
- Air-cooled engine
Areas of use
- Perfect for cleaning in the food industry
- Suitable for use in the food, cosmetics and chemical industries
- Suitable for industrial environments, e.g. cleaning of production facilities
- Cleaning of vehicles and machinery in the automotive industry, industry and agriculture
- Cleaning of animal stables in agriculture
- Suitable for use in production halls, warehouses, logistics buildings and heavy industry facilities
- Agriculture
- High-pressure cleaning of machinery and equipment in the construction, agricultural and municipal sectors.
- Optimal for car repair shops, car rentals, car washes, property services, craftsmen, smaller construction companies, small garages and agriculture
- Industry
