SKU: 14422502

Tool carrier MIC 42


BESKRIVNING

The MIC 42 implement carrier with quick-change system, comfort cabin with all-round visibility, intuitive operating concept and an engine that already exceeds the minimum requirements for the upcoming STAGE V.

The modern diesel technology with economical common rail direct injection and diesel particulate filter used on the 42 hp engine of our MIC 42 implement carrier reduces the emission values ​​far below the STAGE V emission limits. The machine is therefore not only suitable for applications in urban environmental zones, but it also scores well for its extremely high efficiency. The high-quality components also contribute to this and allow very long maintenance intervals of 500 or 1000 hours. Access to all maintenance-related areas without the need for tools is also part of the smart overall concept, as are the many options for integrating the implements. For example, the front implements are mounted via a standard CAT 0 coupling triangle, while the rear implements can be changed using the hydraulic tilt frame with minimal effort thanks to our quick-change system. An optional multi-coupling system guarantees quick and drip-free connection of the hydraulics. The driver also benefits from a very large cabin with clearly laid out control elements and many other useful details such as a lockable storage compartment.

Features and benefits
Tool carrier MIC 42: Economical and environmentally friendly to use
Economical and environmentally friendly to use
Common rail direct injection and diesel particulate filter provide lower emission values ​​than STAGE V. For use in green areas in urban areas. Lower fuel consumption protects the environment and reduces operating costs.
Tool carrier MIC 42: Integrated quick-change system
Integrated quick-change system
Front implements are mounted with a triangular tool holder in the municipal category. Rear implements are changed with a quick-change system with a hydraulic tilt frame. An optional multi-coupler is available for quick and drip-free connection of the hydraulics.
Tool carrier MIC 42: Maximum working comfort
Maximum working comfort
Largest cab in its class (1.45 m³ air volume), 360° panoramic view, ergonomic and clearly designed. Windows on both sides, lockable storage compartment, USB charging socket and bottle holder.
Extremely easy to maintain
  • The high-quality components allow for very long maintenance intervals of 500 hours.
  • All maintenance components are accessible without tools, for example via the swinging engine hood.
  • The cooler can be placed in a special maintenance mode for cleaning.
Specifications

Technical data

Drive Diesel
Drive motor All-wheel drive function
Engine make Yanmar
Engine power (kW) 32
Cylinder capacity (cm³) 1568
Cylinder 3
Exhaust emission standard STEP V
Fuel tank (l) 41
Driving speed (km/h) 25
Working speed (km/h) 25
Wheelbase (mm) 1500
Permissible total weight (kg) 2500
Weight without accessories (kg) 1400
Weight incl. packaging (kg) 1400
Dimensions (L × W × H) (mm) 3200x1400x2230

Standard equipment

  • Particle filter
  • Air conditioning system
  • Warmer
  • Rotating warning light
  • Year-round use
Tool carrier MIC 42
Tool carrier MIC 42
Tool carrier MIC 42
Tool carrier MIC 42
Download

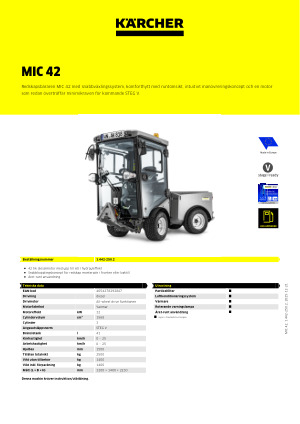

Product information
