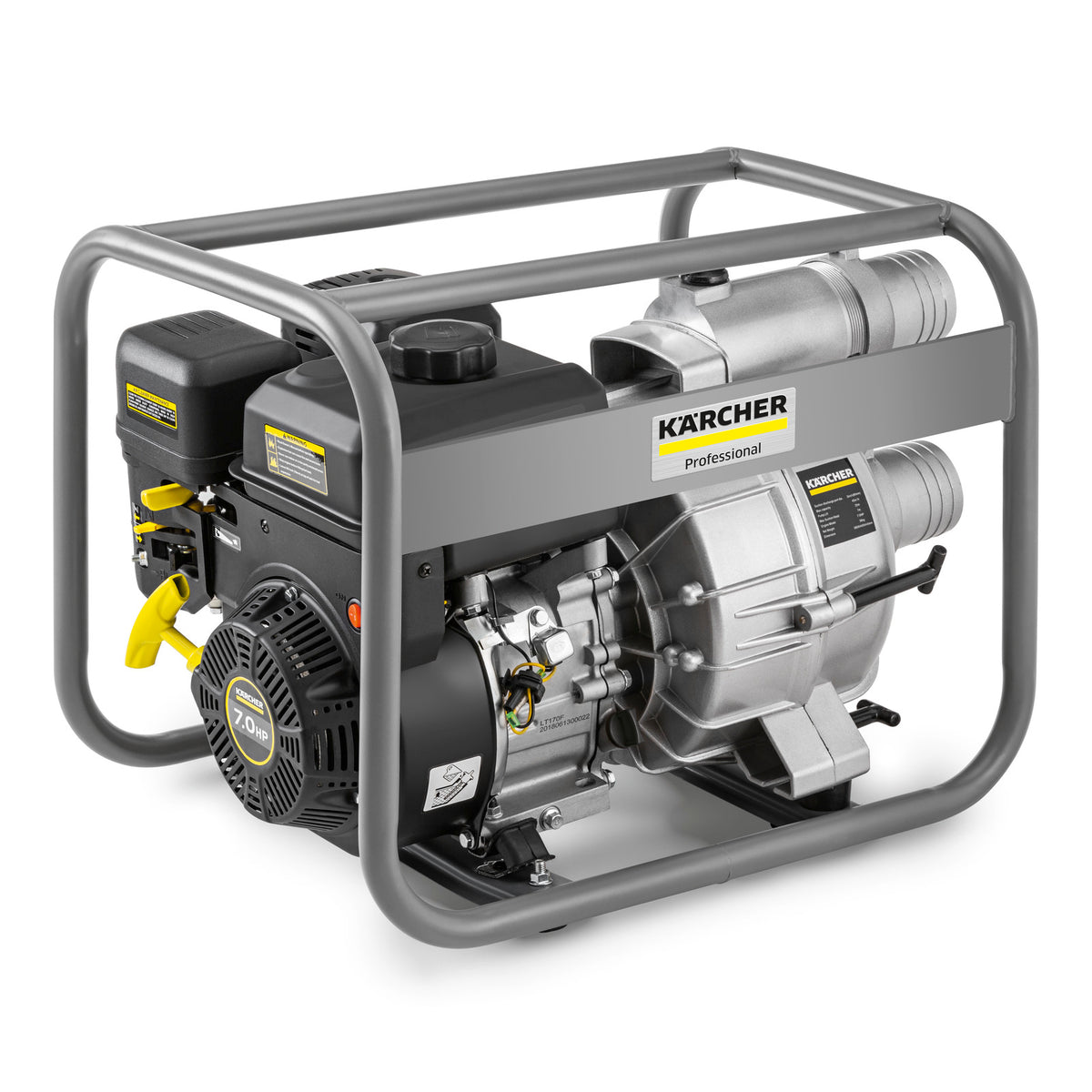

Waste water pump WWP 45
BESKRIVNING
The WWP 45 dirty water pump with a powerful petrol engine and a pump capacity of up to 45 m3 of water per hour is very advantageous in situations where external power supply is lacking. Sturdy 3" hose connections for good capacity.
Flooded basements and shaft pits are typical areas of application for our highly mobile WWP 45 sewage pump with a robust steel tube frame designed for demanding situations. The pump can be used completely independently of an external power supply thanks to a powerful petrol engine that enables a capacity of up to 45 m3 of water per hour (750 litres every minute). It easily handles very coarse particles with diameters of up to 30 mm. If necessary, the pump can also be used for other applications, e.g. for agricultural water supply.
Features and benefits
Developed for demanding applications
A robust steel tube frame protects the machine from damage. Easily handles coarse dirt particles up to 30 mm.
Very powerful
Continuous pumping up to 100 m For rapid pumping of very large volumes of water (750 l/min or 45 m³/h).
Large number of uses

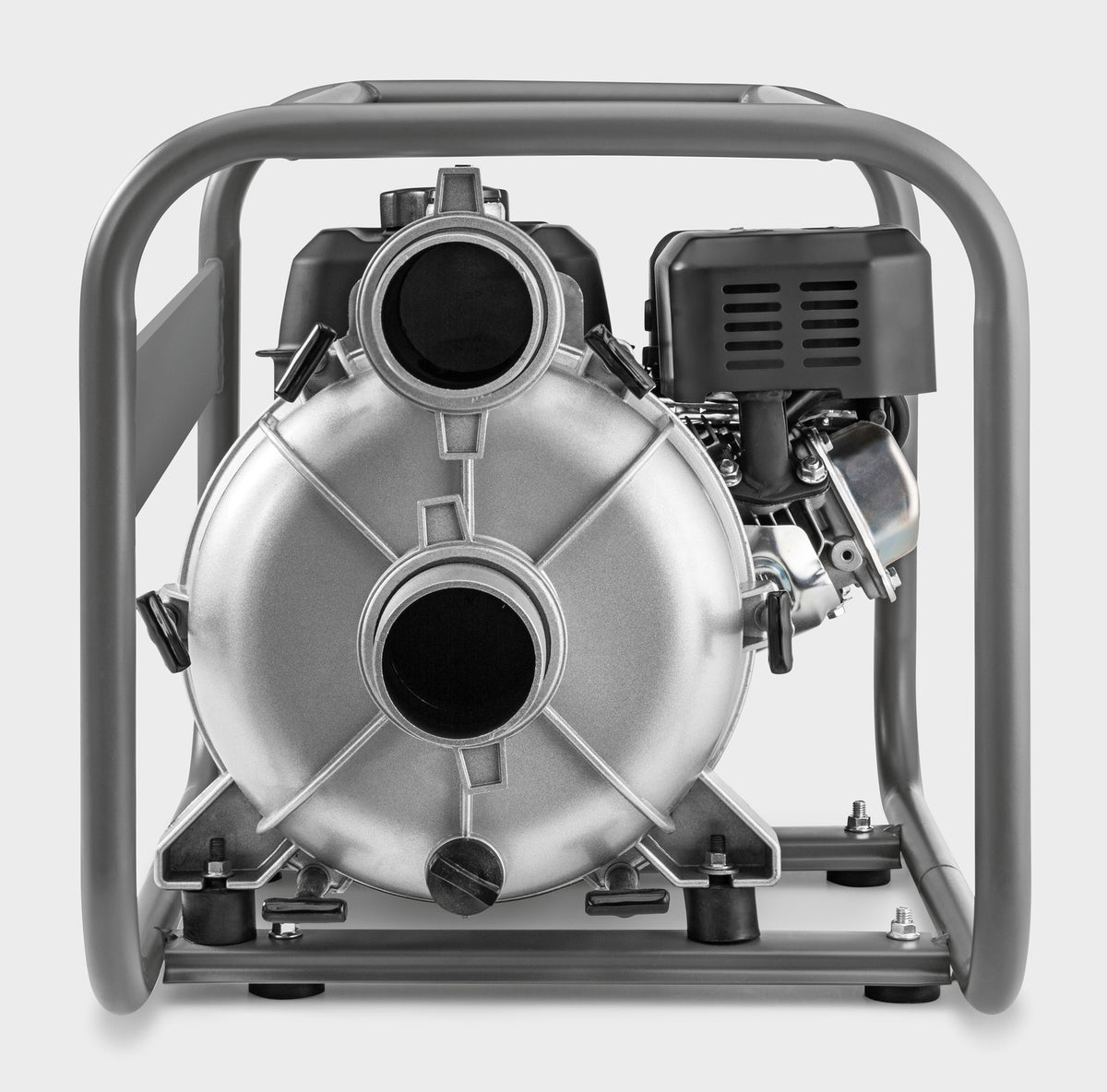

Fast filling of HD/HDS Trailer or IB containers. Can be used for pumping in shaft pits, underground parking garages and pedestrian tunnels.User-friendly

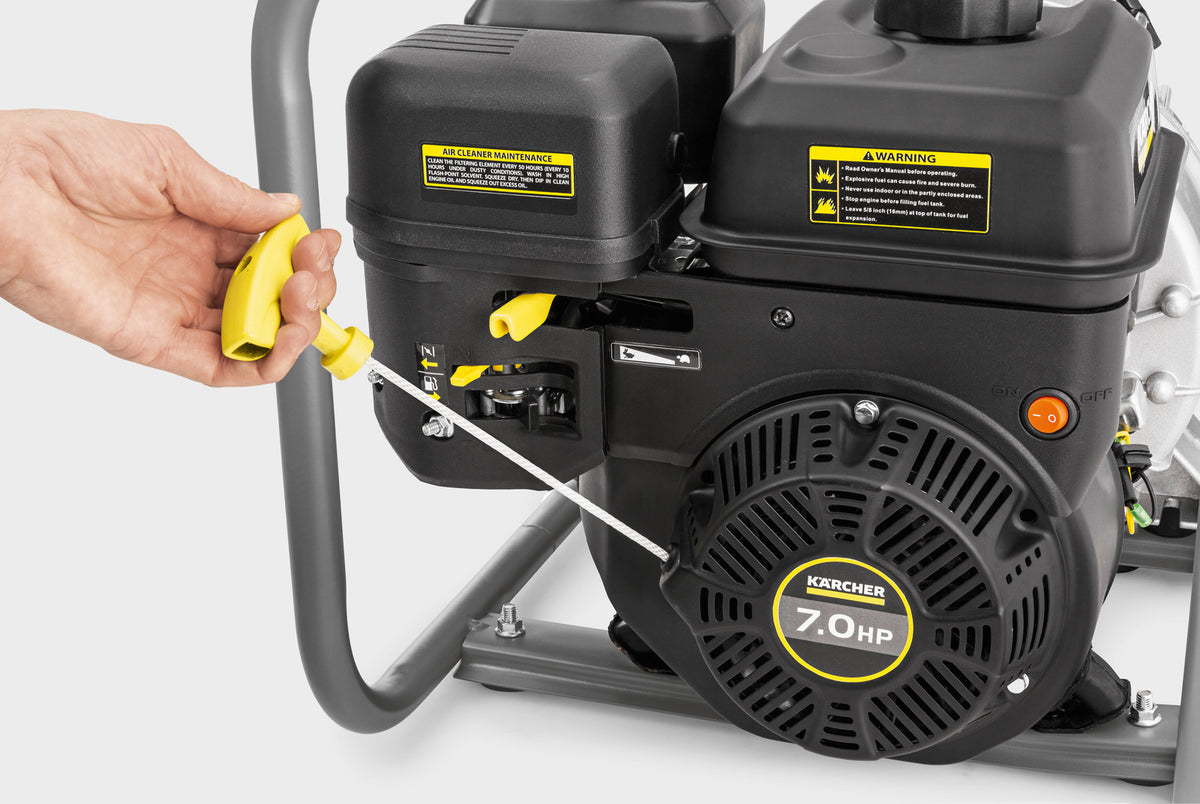

- Powerful petrol engines according to EU STAGE V with recoil start and manual choke.
- Great mobility and easy transport thanks to compact size and low weight.
- All service-relevant components are easy to access.
Specifications
Technical data
| Flow rate (m³/h) | <= 45 |
| Suction height, max (m) | Max. 7 |
| Delivery height (m) | Max. 25 |
| Max. particle size (mm) | Max. 30 |
| Drive | Petrol |
| Cylinder capacity (cm³) | 196 |
| Engine power (kW/hp) | 5.1 / 6.9 |
| Tank capacity (l) | 3.6 |
| Weight without accessories (kg) | 35.7 |
| Weight incl. packaging (kg) | 40.8 |
| Dimensions (L × W × H) (mm) | 629 x 425 x 445 |
The following is included
- Manual choke

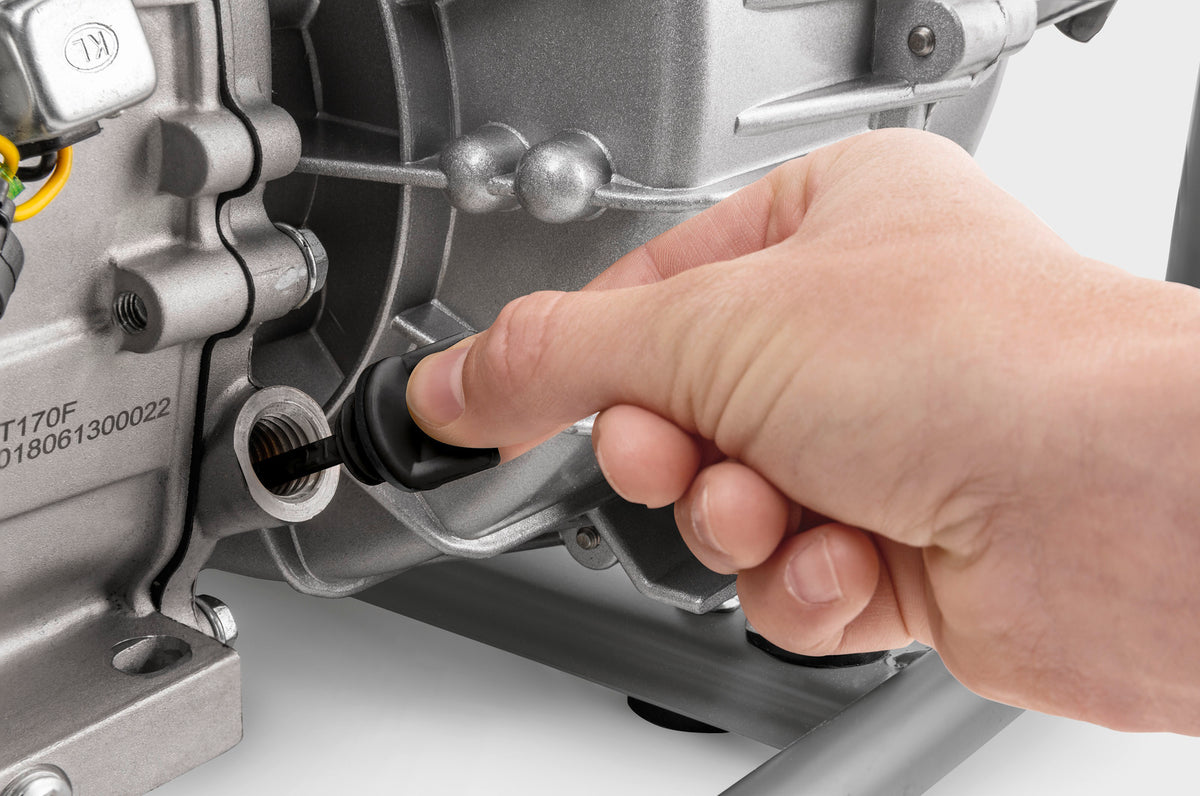

- Oil dipstick
- Suction basket
- Hose clamp: 3 Part(s)
- Hose coupling: 2 Part(s)
Download
Instructions for use, including safety information
Areas of use

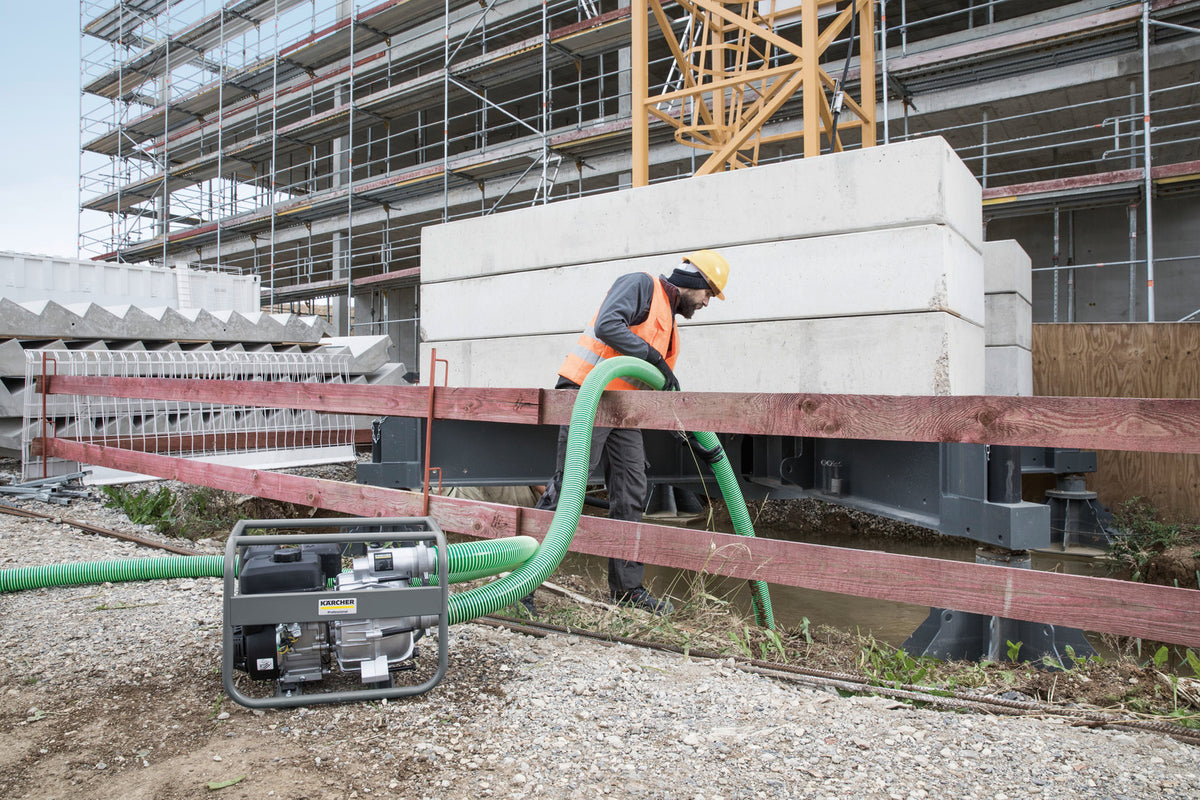

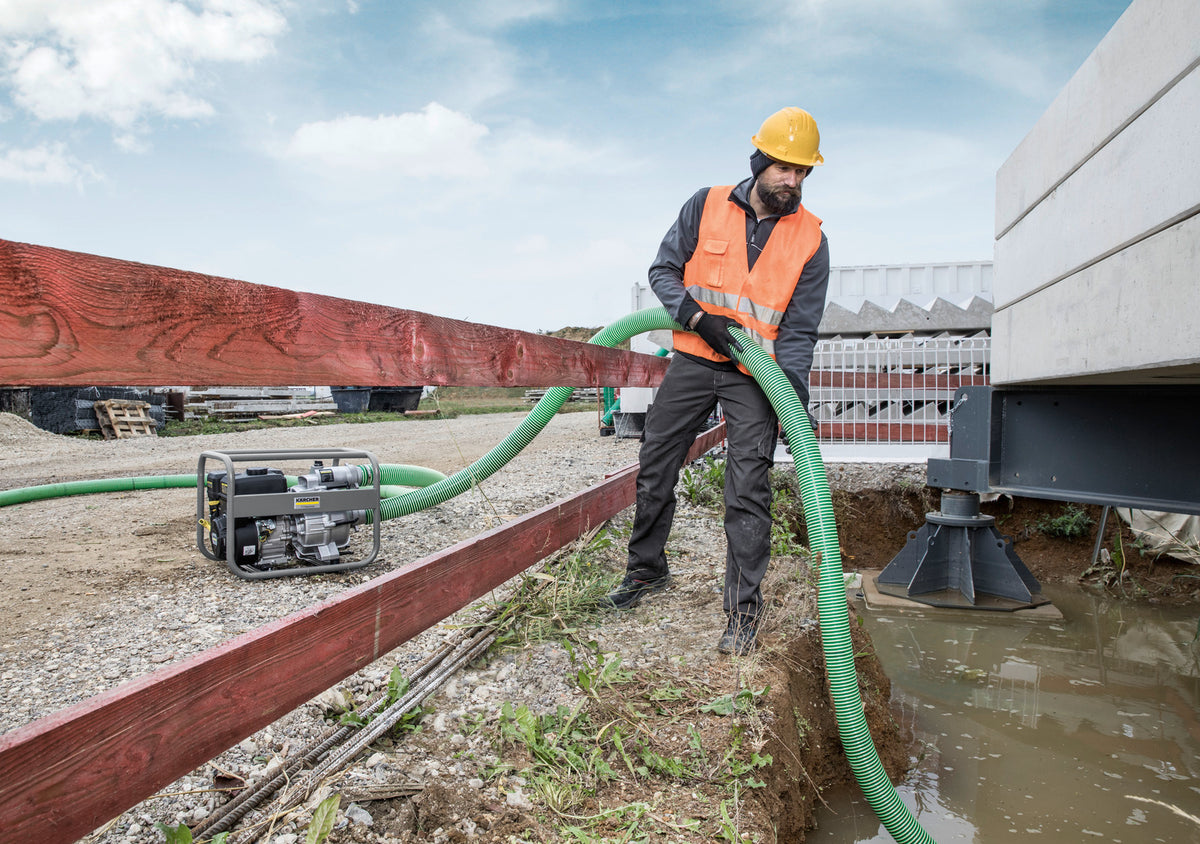

- Pumping large volumes of water on construction sites, e.g. in flooded excavation pits
- Pumping large volumes of water in municipal operations, e.g. in flooded basements
- Pumping of large volumes of water in agriculture, e.g. for water supply

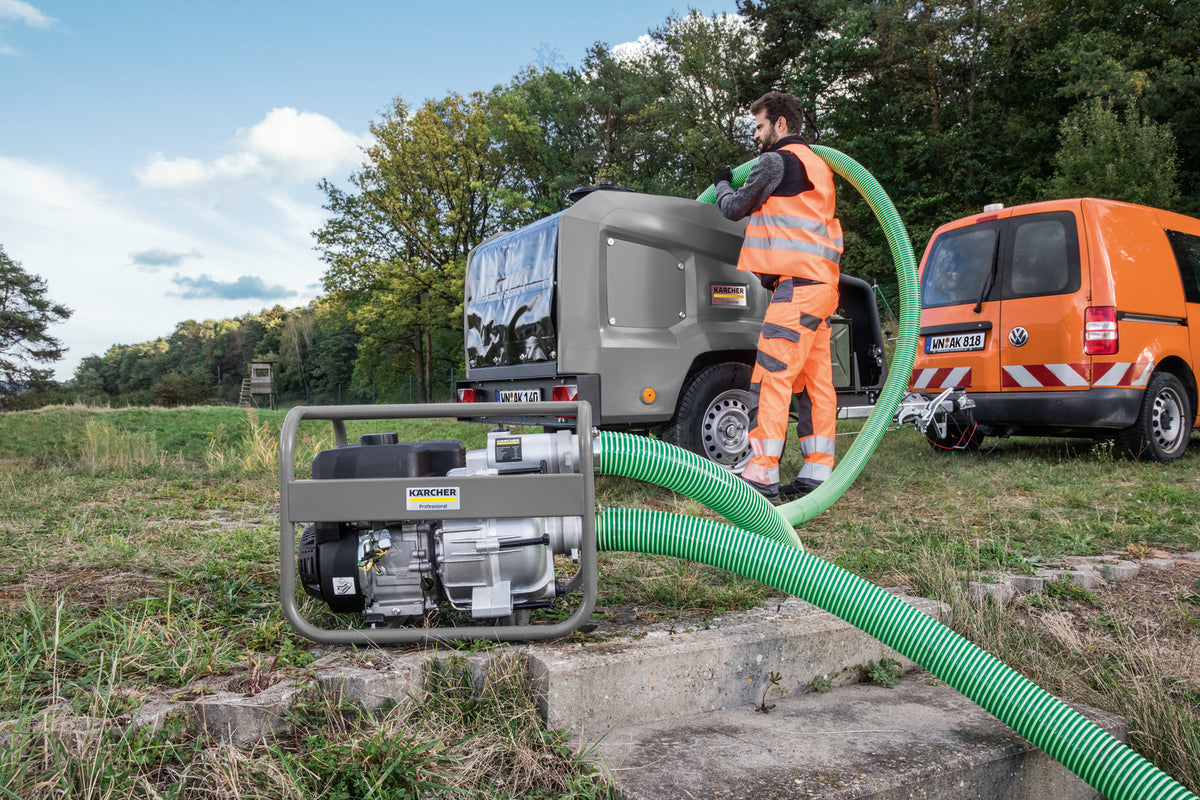

- Can also be used for quick filling of water tanks, e.g. on HD Trailer
