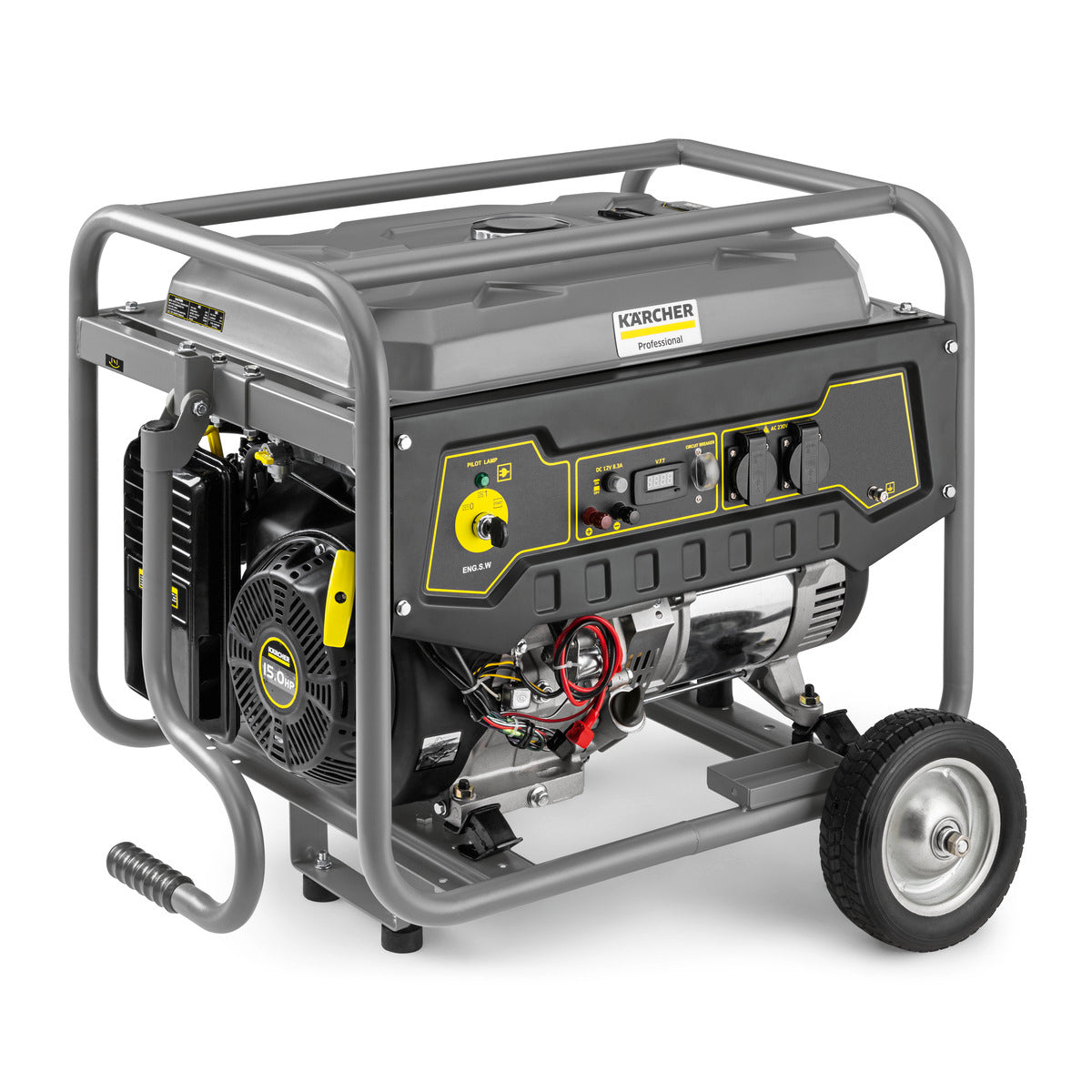

Electric generator PGG 3/1
BESKRIVNING
Petrol-powered, rated output of 2.8 kW, puncture-proof tires and a tank volume of 15 liters: the PGG 3/1 synchronous generator for up to 12 hours of operation regardless of the availability of external power sources at many workplaces.
The compact, highly mobile and at the same time powerful synchronous generator PGG 3/1 with a rated output of 2.8 kW for independent power supply, e.g. on construction sites, in agriculture or when working in public areas. The reliable 4-stroke petrol engine enables safe operation thanks to constant power and sophisticated safety technology with overload and low oil level protection. The user-friendly machine is also easy to transport thanks to puncture-proof tires and a foldable push handle. The two grounded AC sockets are equipped with automatic voltage regulator (AVR) and are therefore suitable for operating sensitive electronic equipment. With an operating time of up to 12 hours (6.5 hours at full load) with a 15-liter tank, it easily manages a whole working day.
Features and benefits
Outstanding ease of use

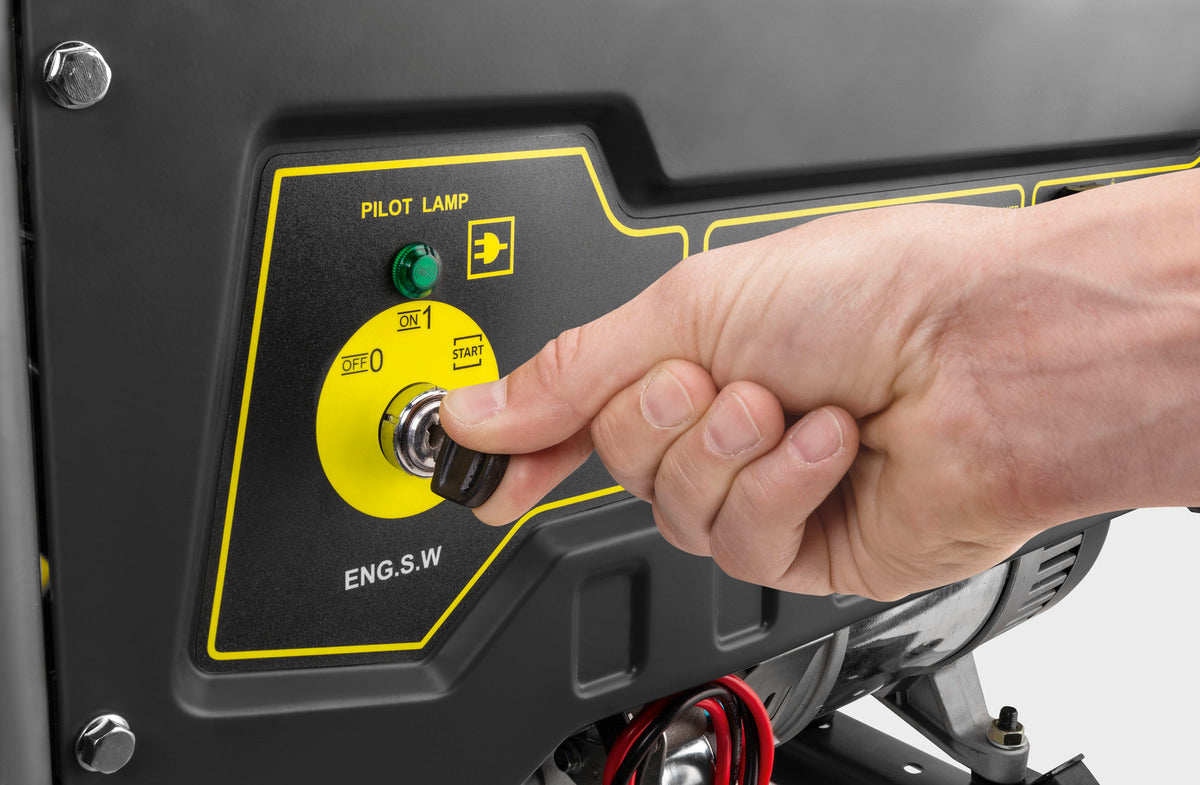

High mobility thanks to the foldable push handle and puncture-proof tires. Electric start for quick and convenient starting of the petrol engine
Optimal reliability and safety
Overload and low oil level protection and steel tube frame for maximum safety. Automatic voltage regulator (AVR) for operation of sensitive electronic equipment.
Using Kärcher high-pressure cleaners
Specifications
Technical data
| Mains voltage (Ph/V) | 1 / 230 |
| Sound pressure level (dB(A)) | 74 |
| Nominal performance (kW) | 2.8 |
| Power (kW) | 3 |
| Drive | Petrol |
| Cylinder capacity (cm³) | 208 |
| Engine power (kW/hp) | 4 / 5.4 |
| Fuel consumption (l/h) | 2.3 |
| Tank capacity (l) | 15 |
| Operating time at 50% power (h) | 12 |
| Operating time at 100% power (h) | 6.5 |
| Weight incl. packaging (kg) | 56.1 |
| Weight without accessories (kg) | 51.7 |
| Dimensions (L × W × H) (mm) | 645 x 622 x 549 |
The following is included
- Operating mode display
- DC output (12 V)
- Safety class IP 23
- Overload and low oil level protection
- Fuel gauge
- Single-phase socket type F (Schuko)
- Automatic voltage regulation (AVR)
Download
Compatible machines
Current products
- HD 5/13 EX EB+ Foam Classic Anniversary Edition
Areas of use
- Independent power source for work in public environments, e.g. for vacuum cleaners

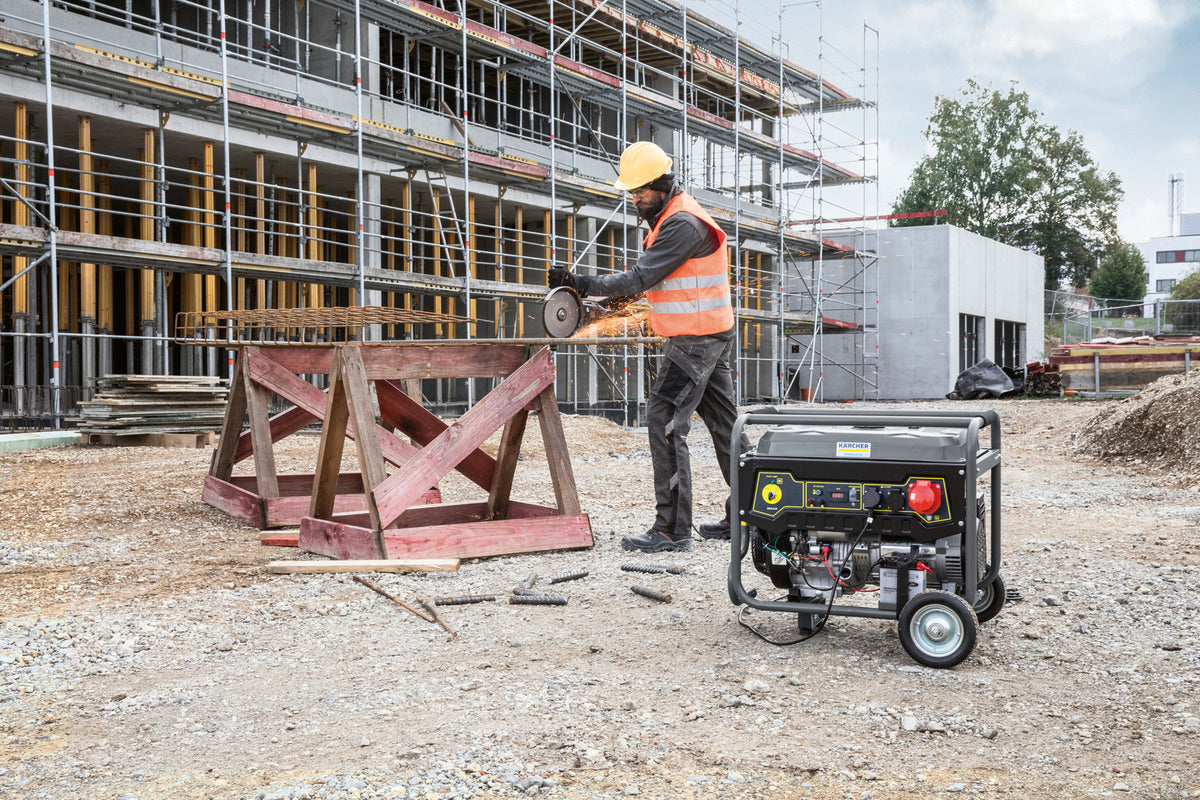

- Independent power source for construction work, e.g. for angle grinders

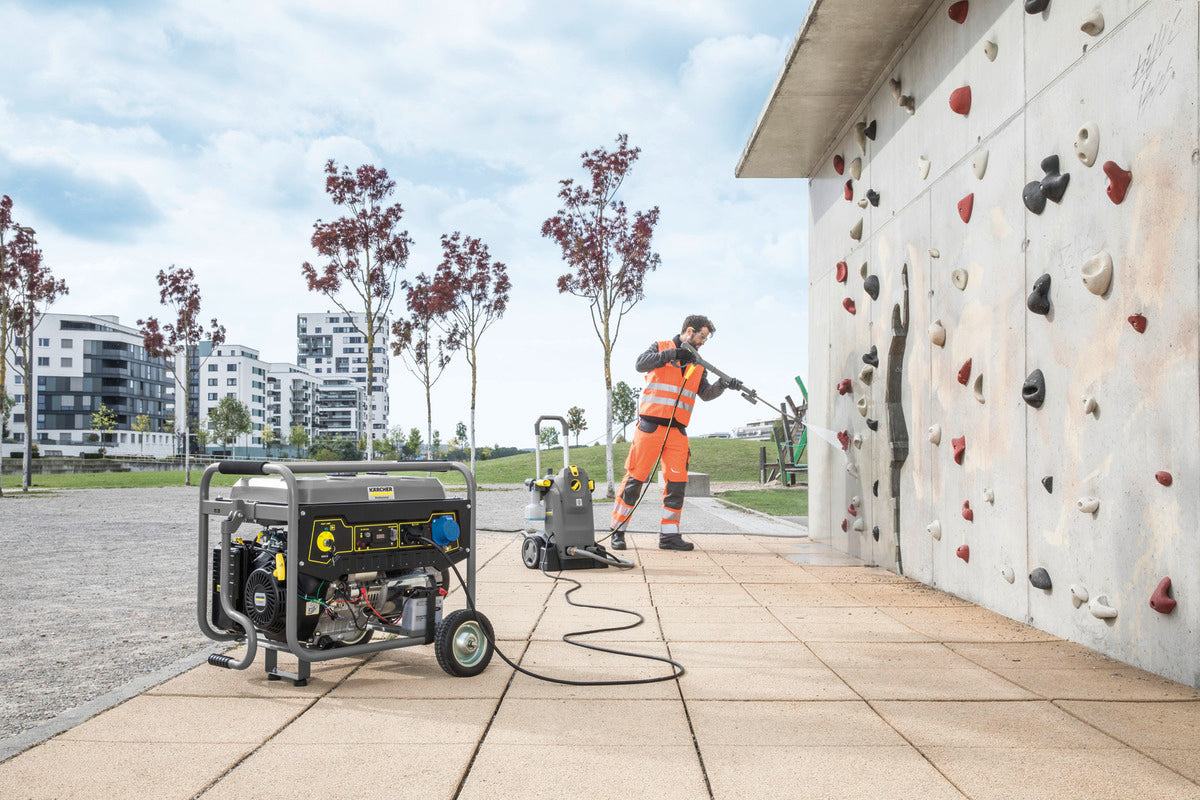

- Independent power source in agriculture, e.g. high-pressure cleaners
