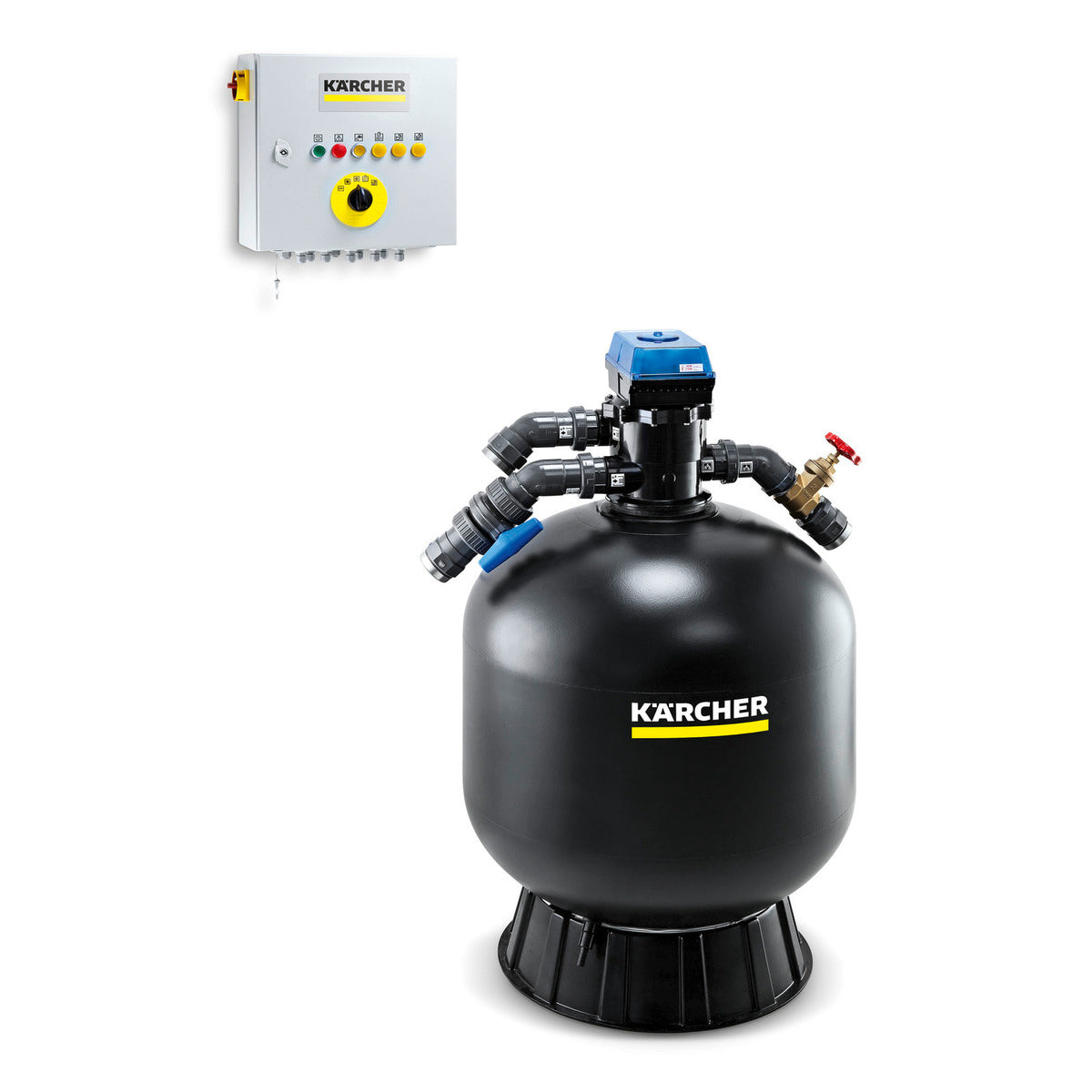

Wastewater treatment plant / Water recycling - Vehicle wash WRP 8000
BESKRIVNING
The WRP 8000 wash water recycling system has a flow performance of up to 8,000 l/h and reduces fresh water consumption efficiently and cost-effectively by up to 85%.
The WRP 8000 saves up to 85% fresh water. With a flow rate of up to 8,000 l/h, the water recycling system enables efficient and cost-effective recycling of oil-free wastewater, and all without the addition of flocculating chemicals. Thanks to proven sand filtration, all particles larger than 20 µm can be safely removed. The recycled water can be reused for all of the system's vehicle washing processes. Depending on legal regulations, excess water can be discharged either directly to the drain via the overflow from the pumped storage tank or via an oil separator. The wastewater can also be discharged into the drain directly from the recycled water tank. Through continuous circulation and good ventilation, unpleasant odors can be largely avoided. The modular system offers the optimal solution for every location.
Features and benefits
Chemical-free solution
- Low operating costs.
- Robust filtration process.
- Faster amortization of investment costs.
Modular concept
- Site-specific and tailored solutions.
Fresh water savings of up to 85%
- Lower costs for fresh water.
- High profitability.
Easy to assemble
- Low installation costs thanks to short installation times.
Z-83.3-29 type approval as proof of the greatest possible circulation
- Simplified approval procedure with the local water authority.
Specifications
Technical data
| Mains voltage (Ph/V/ Hz ) | 1 / 230 / 50 |
| Power (kW) | 1.3 |
| Capacity (l/h) | 8000 |
| Dimensions (L × W × H) (mm) | 700x620x1600 |
Areas of use
- Water recycling for car washes
- Water recycling for commercial vehicle washrooms
