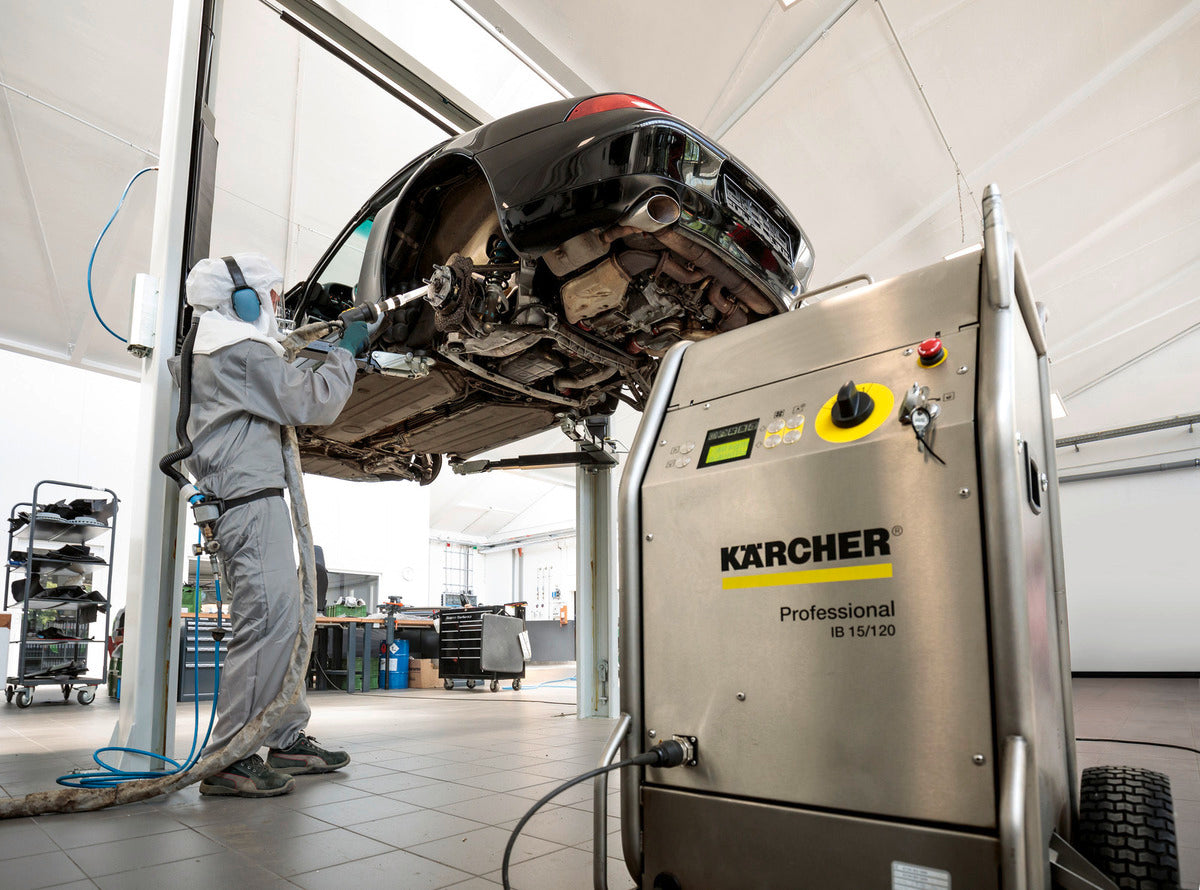

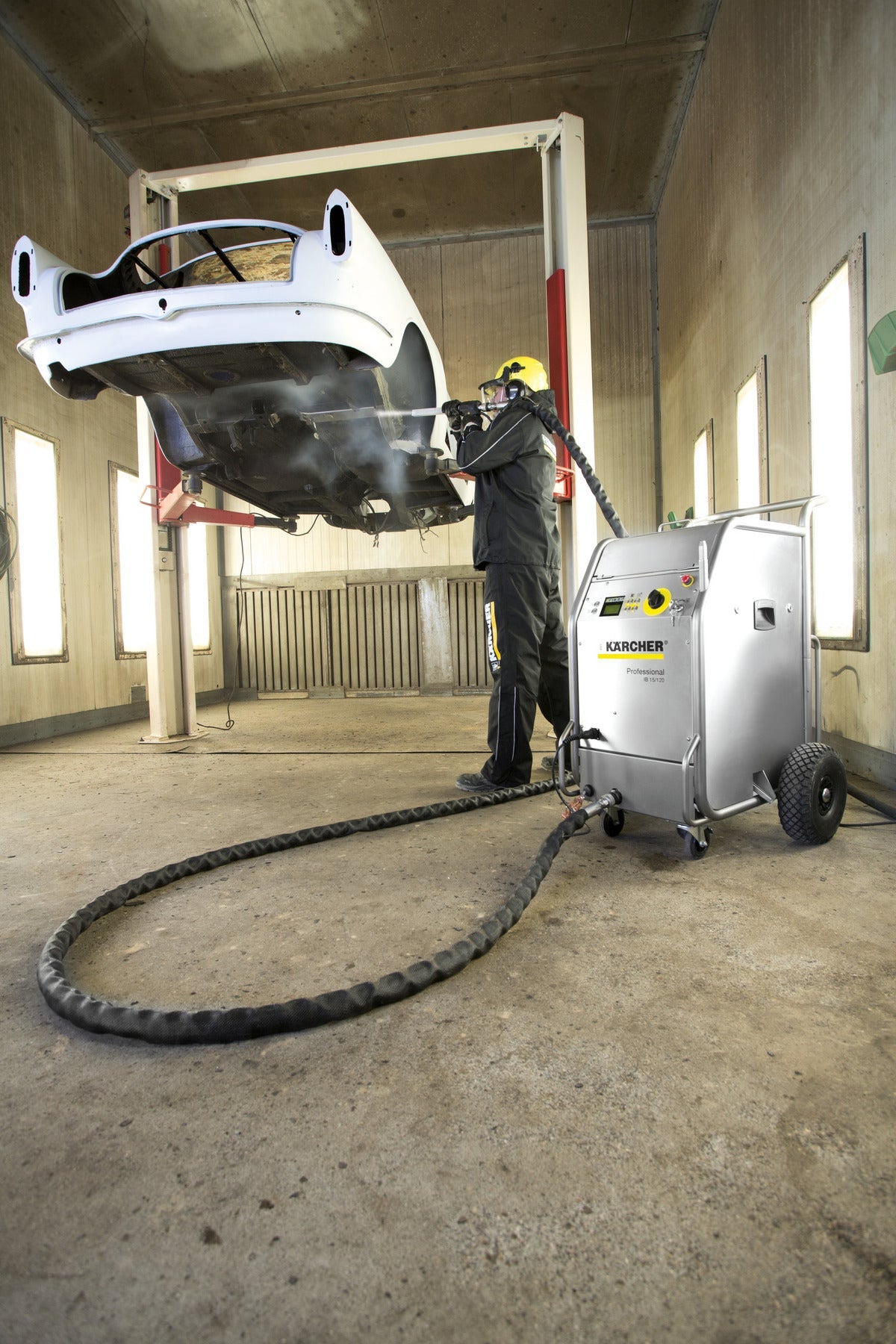

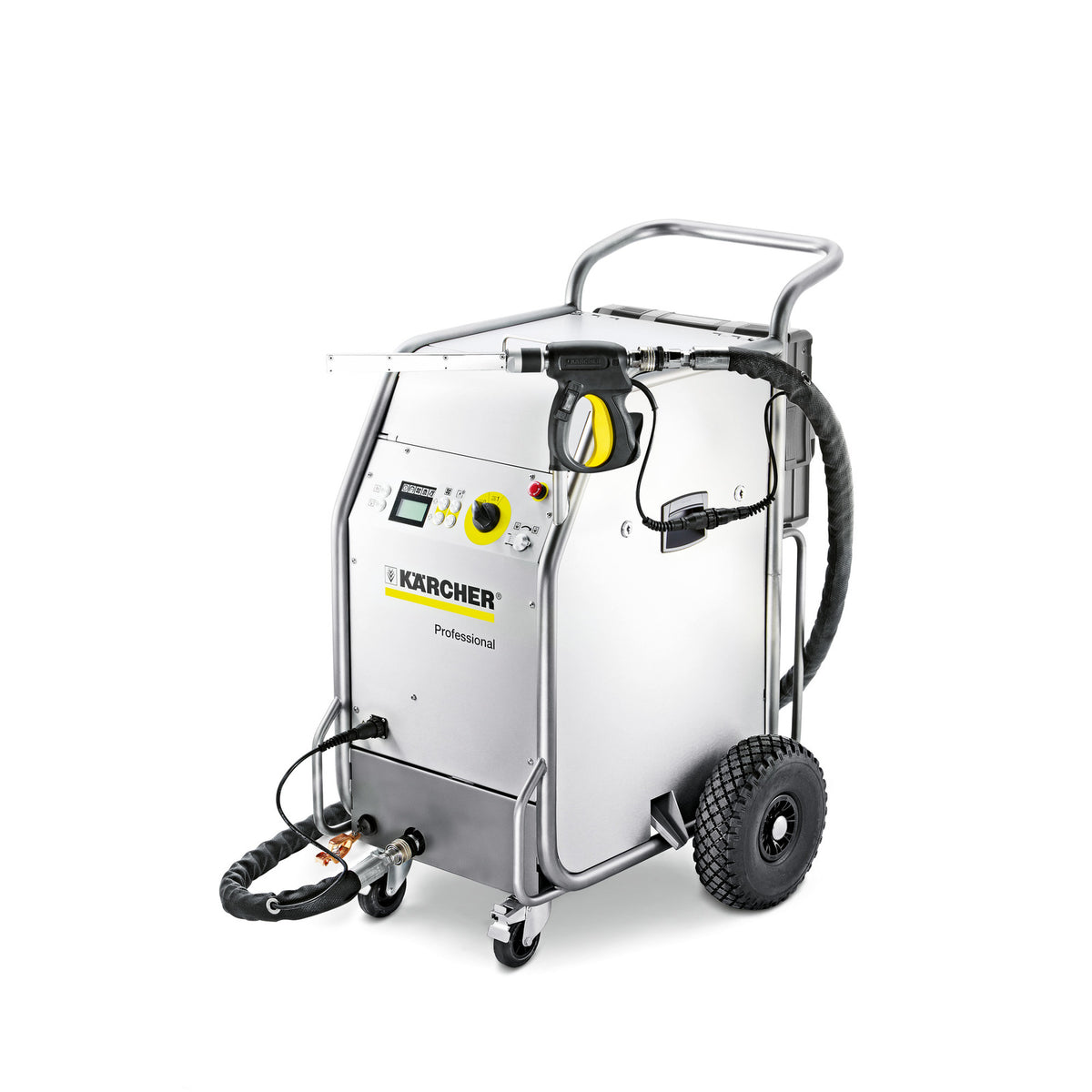

Dry ice blaster IB 15/120
BESKRIVNING
The IB 15/120 dry ice blaster is one of the most powerful dry ice blasters on the market. It impresses with its robustness, truly reliable technology and the best results in dry ice cleaning.
The IB 15/120 ice blaster is powerful, robust and extremely reliable. Intelligent, detailed solutions such as the tool bag, ice discharge, mounting bracket and storage compartments further enhance the positive impression, improve user comfort and make dry ice blasting a more pleasant experience. And from a technical perspective, the solution lies in the details. That's why we have made significant improvements to the airflow in the machine, hose, blasting handle and nozzle. The result: outstanding cleaning performance. Despite its size, the IB 15/120 is very mobile and can be easily carried by one person, for example up stairs. In short: dry ice blasting at its best!
Features and benefits
Holder for nozzle storage
Flush nozzles and tools are easily accessible from all parts of the machine. Nozzle storage is located on the side of the machine to keep it protected from contamination.
Outstanding mobility
Optimally balanced machine for comfortable maneuvering over uneven surfaces. Handles at the front and back of the machine make it easy to carry up stairs.
Automatic emptying of remaining ice
Remaining ice is emptied from the container with the push of a button after work is finished, which prevents the machine from freezing. The machine does not freeze.Fiberglass reinforced plastic dry ice container
- Optimal insulation of the dry ice.
- No condensation.
- No ice formation on the machine.
Efficient airflow in the machine
- The dry ice is transported from the machine to the nozzle without damaging it.
- Maximum cleaning performance with the nozzle.
Integrated grounding braid
- Simple grounding of the coil object.
- Protection against lightning strikes from the user to the object.
- Improved flushing comfort.
Integrated oil and water separator
- No ice formation on the unit.
Sophisticated flush handle
- The flush handle is always stored safely.
- Ideal position (e.g. for changing nozzles).
Integrated storage space for nozzles and tools
- Everything is easily accessible directly from the machine.
Specifications
Technical data
| Power (kW) | 0.6 |
| Casing/frame | Stainless steel (1.4301) |
| Cable length (m) | 7 |
| Air pressure (bar/MPa) | 2 - 16 / 0.2 - 1.6 |
| Air quality | Dry and oil-free |
| Airflow (m³/min) | 2 - 12 |
| Sound pressure level (dB(A)) | 125 |
| Dry ice capacity (kg) | 40 |
| Dry ice pellets (diameter) (mm) | 3 |
| Dry ice consumption (kg/h) | 30 - 120 |
| Number of phases (Ph) | 1 |
| Frequency ( Hz ) | 50 - 60 |
| Voltage (V) | 220 - 240 |
| Weight without accessories (kg) | 91 |
| Weight (with accessories) (kg) | 101.5 |
| Dimensions (L × W × H) (mm) | 1000 x 800 x 1300 |
The following is included
- Tool bag with foam insert
- Grease for nozzle thread
- Flat jet nozzle
- Flat nozzle insert: 8 mm
- Fixed key for die change: 2 Part(s)
- Round spray nozzle, XL, long
- Blasting hose with control cable and quick couplings
- Blasting handle (ergonomic)
Standard equipment
- Switch on the gun for "air only" or "air & dry ice"
- Electric control
- With integrated ground cable reel
- Oil and water separator

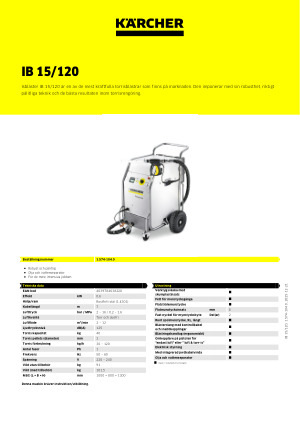

Download

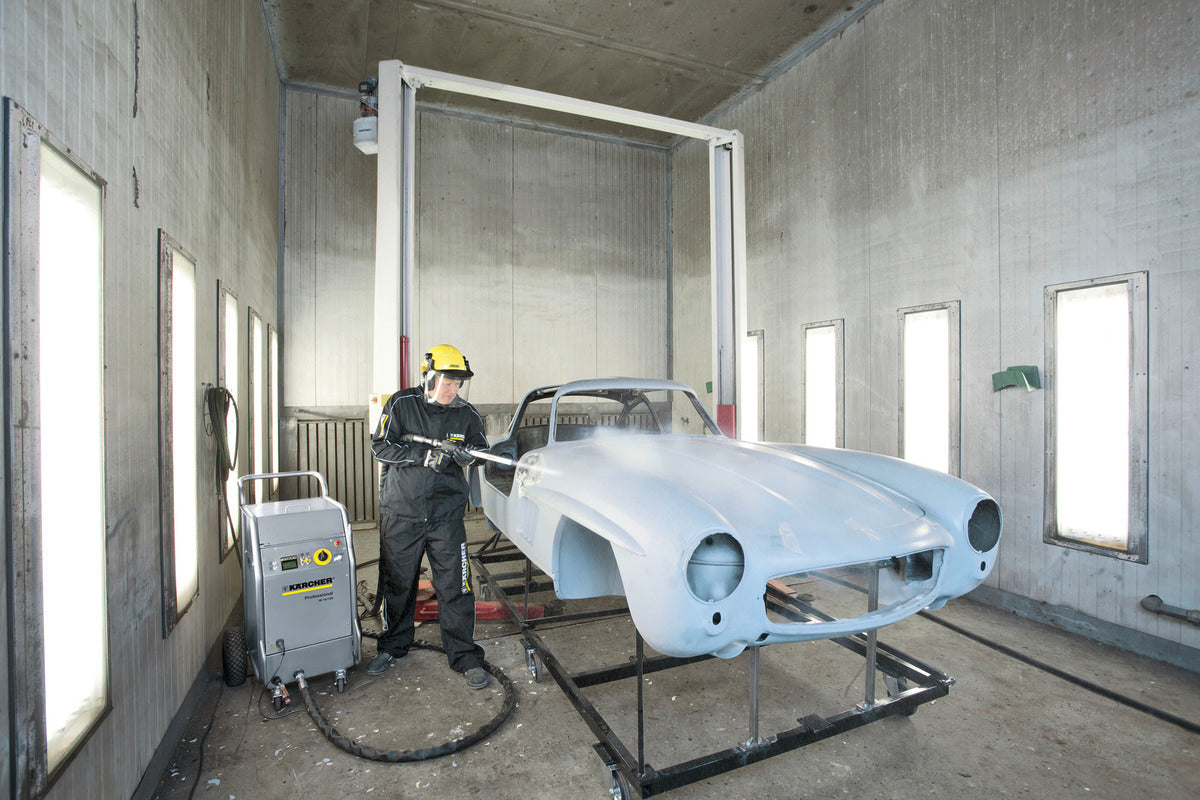

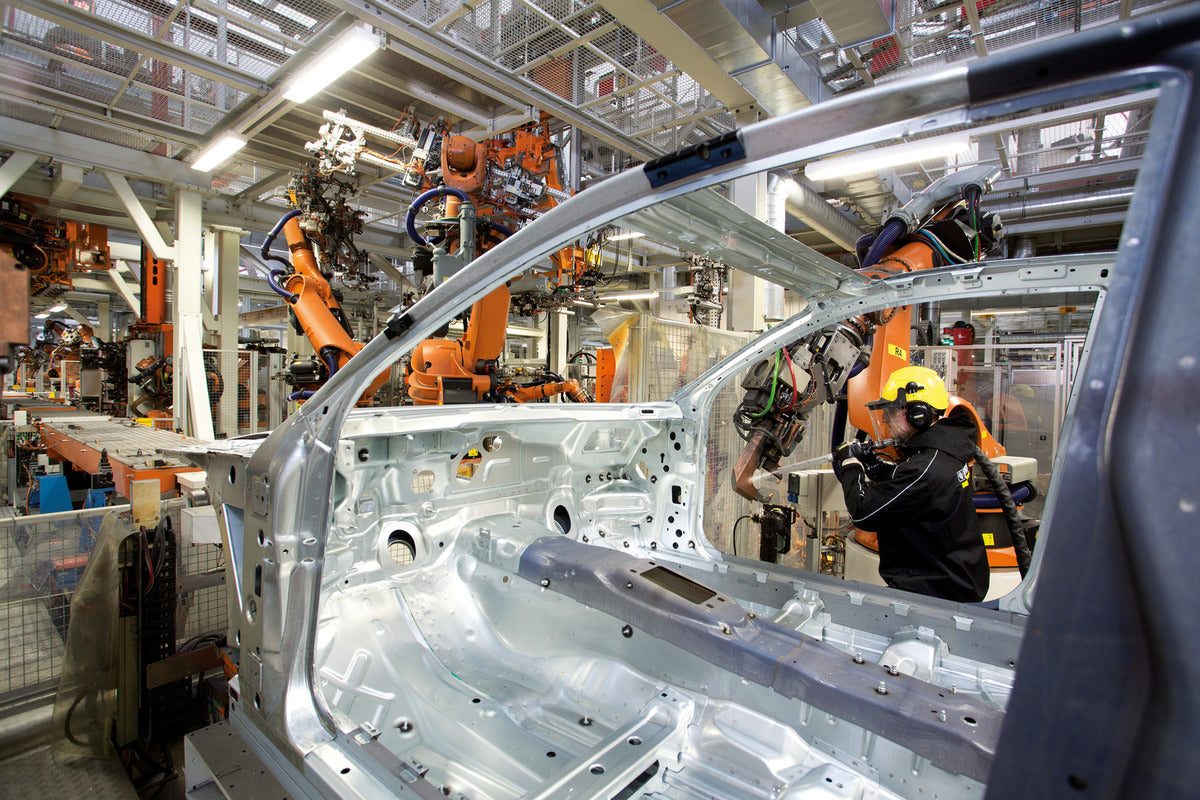

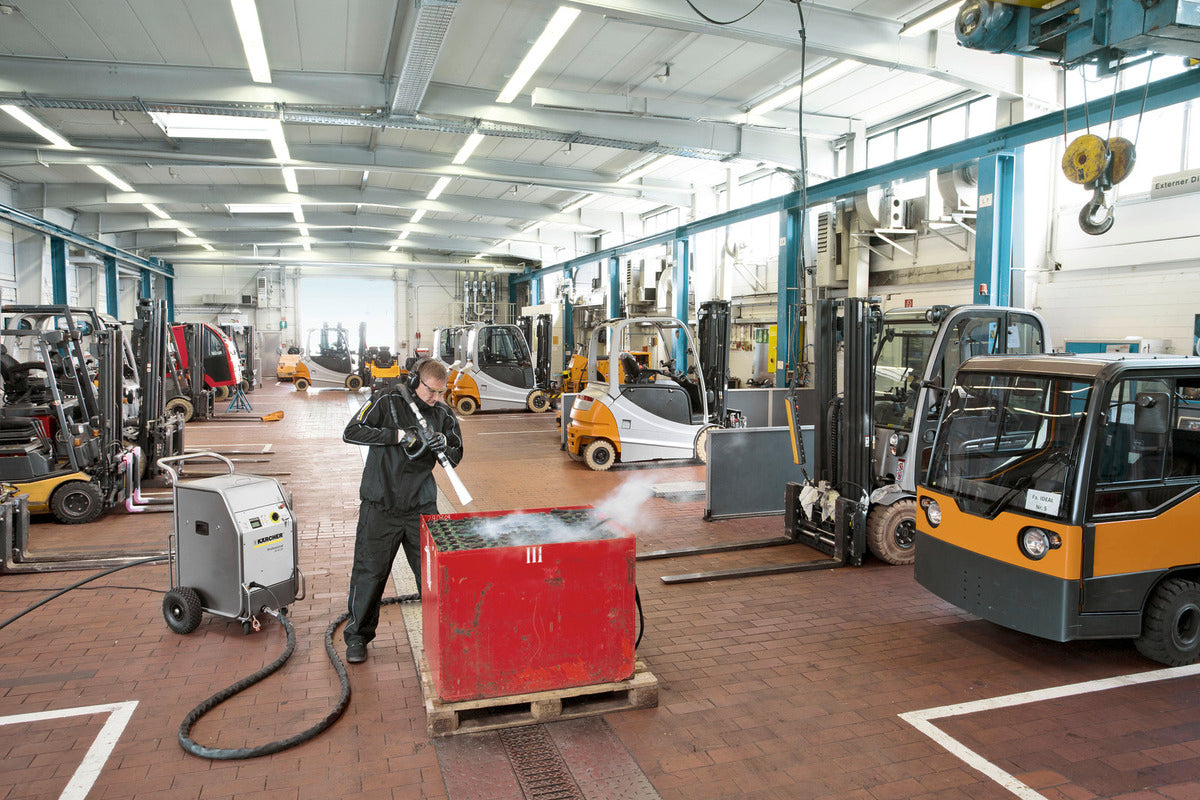

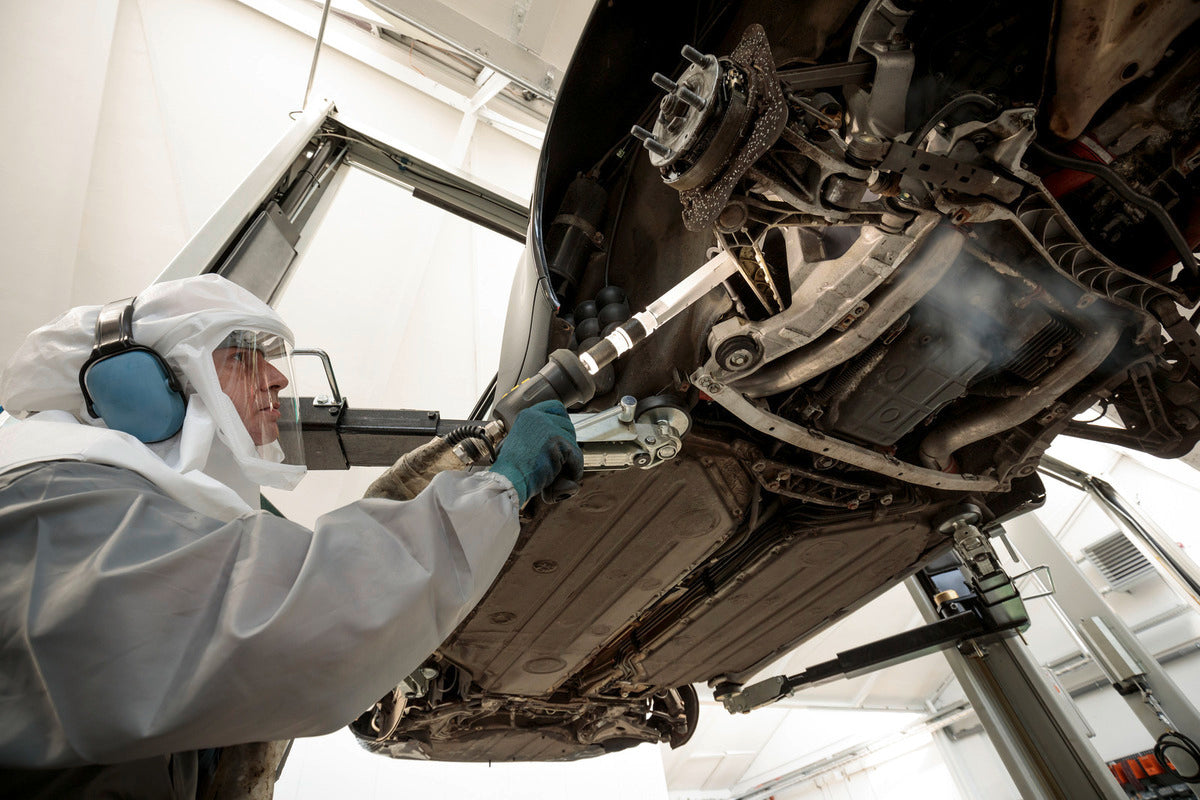

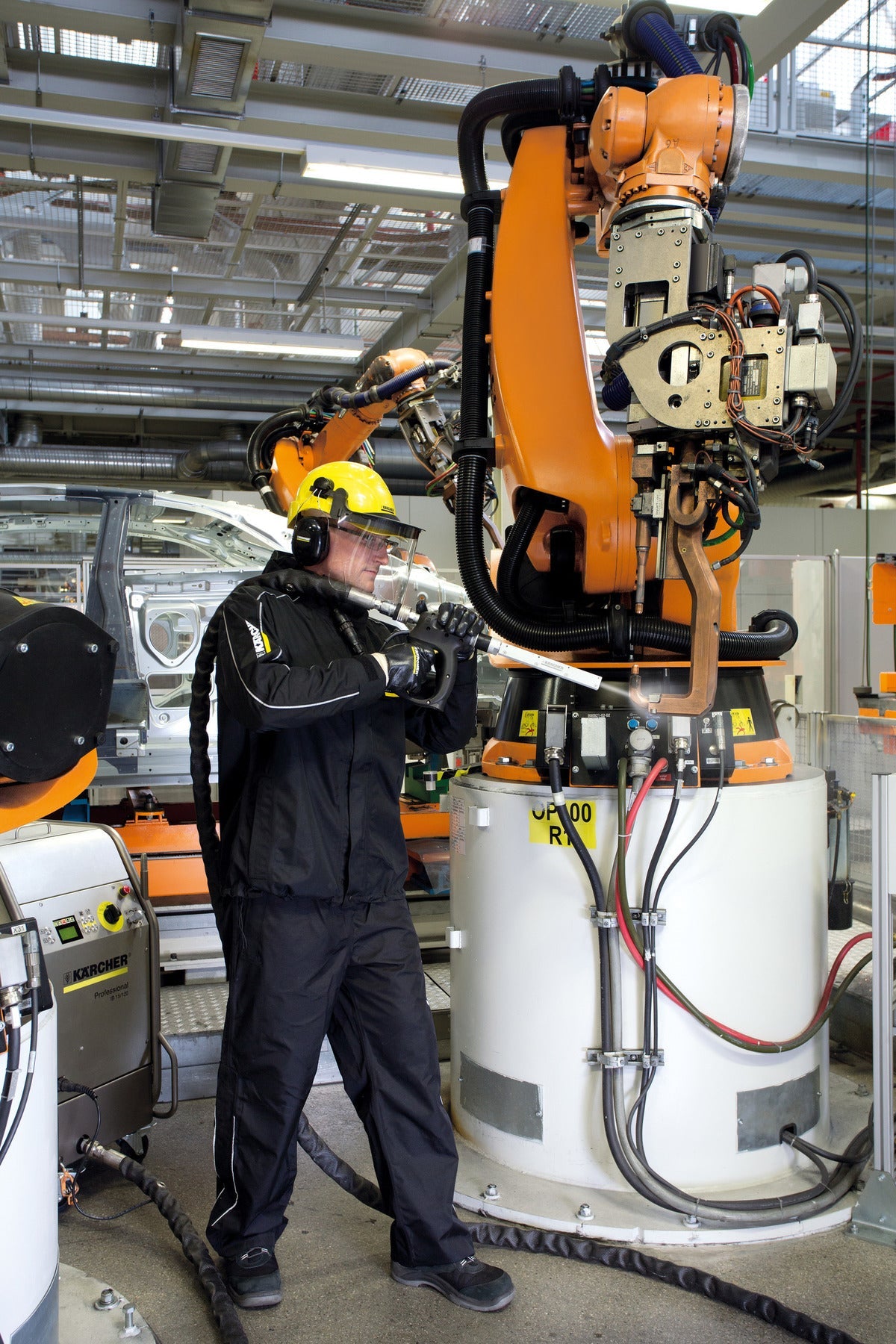

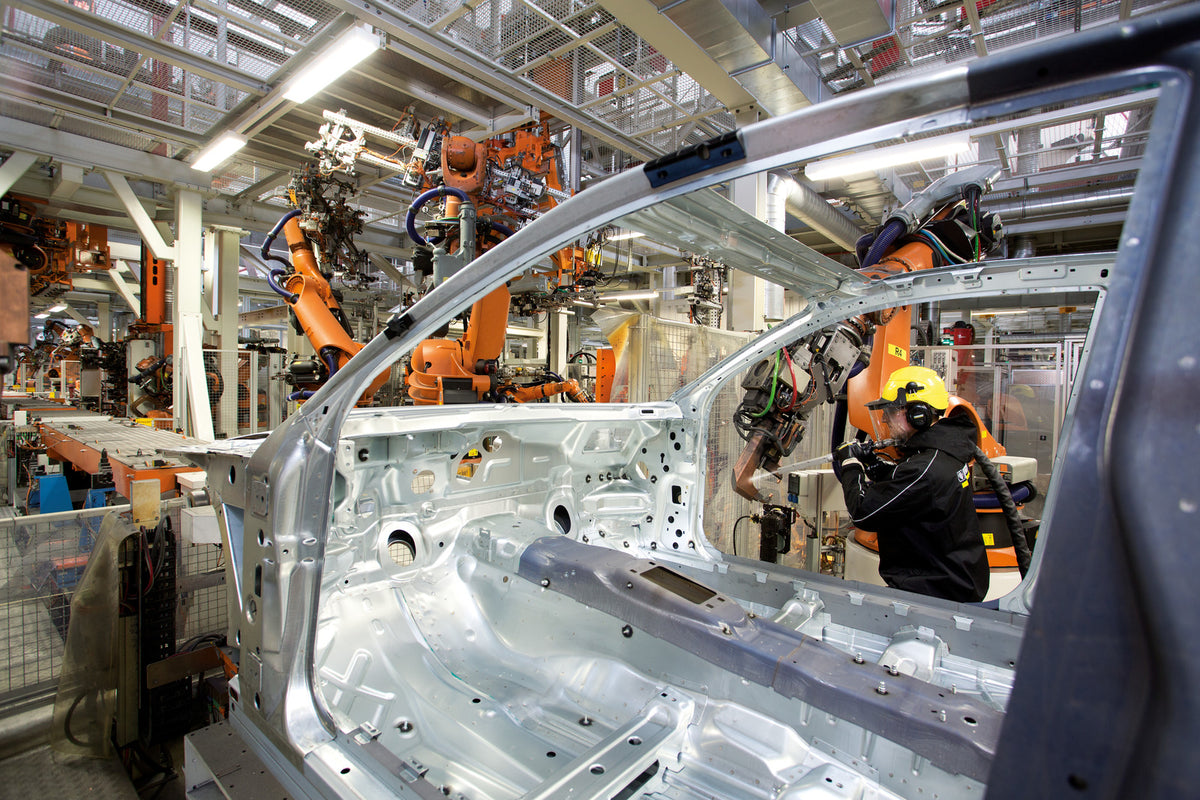

Areas of use
- Cleaning of casting molds and casting tools
- Deburring of plastic parts
- Cleaning of forging tools
- Cleaning of filling systems and mixing plants

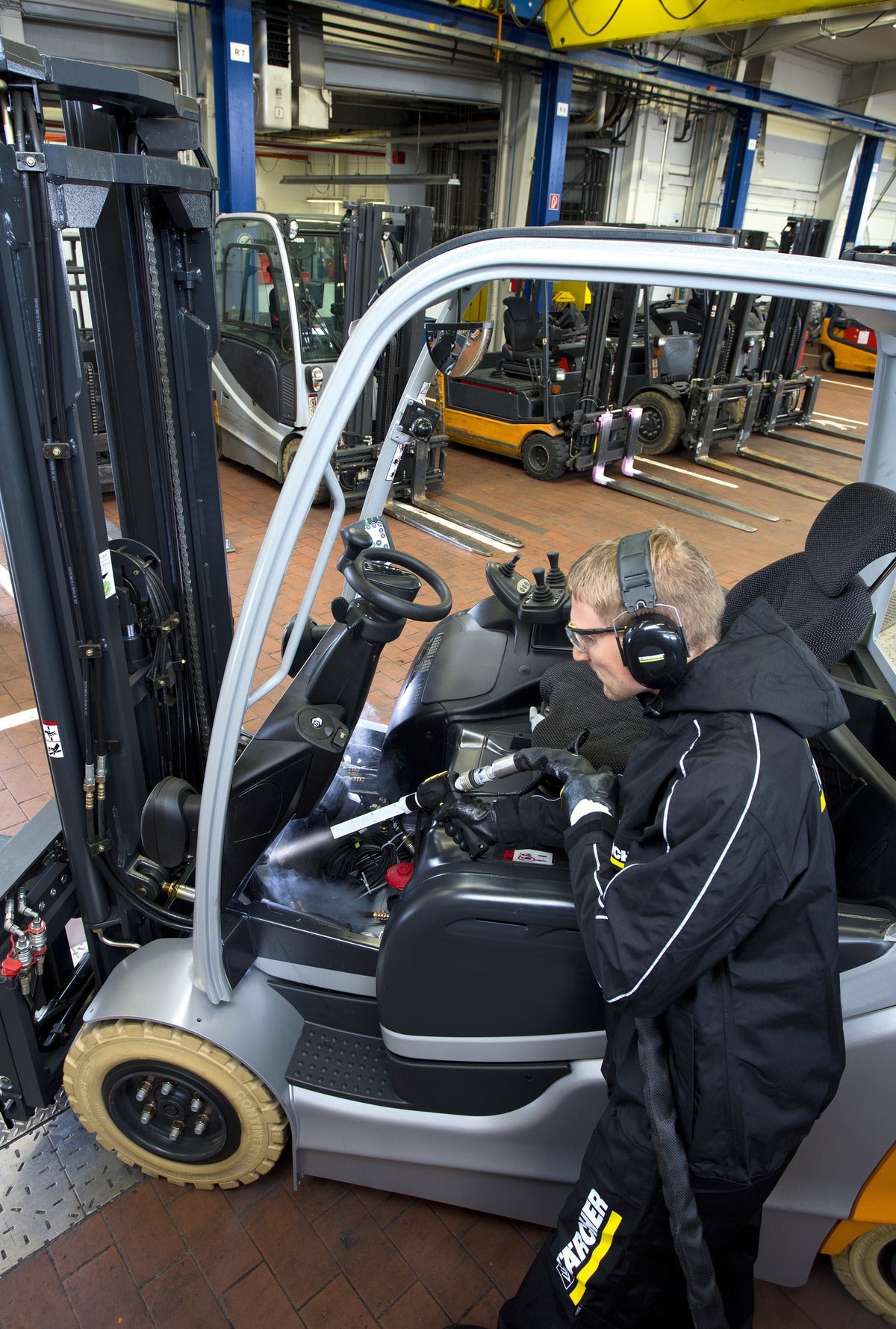

- Cleaning of conveyor, transport and operating systems
- Cleaning of ovens
- Cleaning of printing presses and peripheral equipment
- Cleaning of woodworking machines
- Cleaning of generators, turbines, switchboards and heat exchangers
