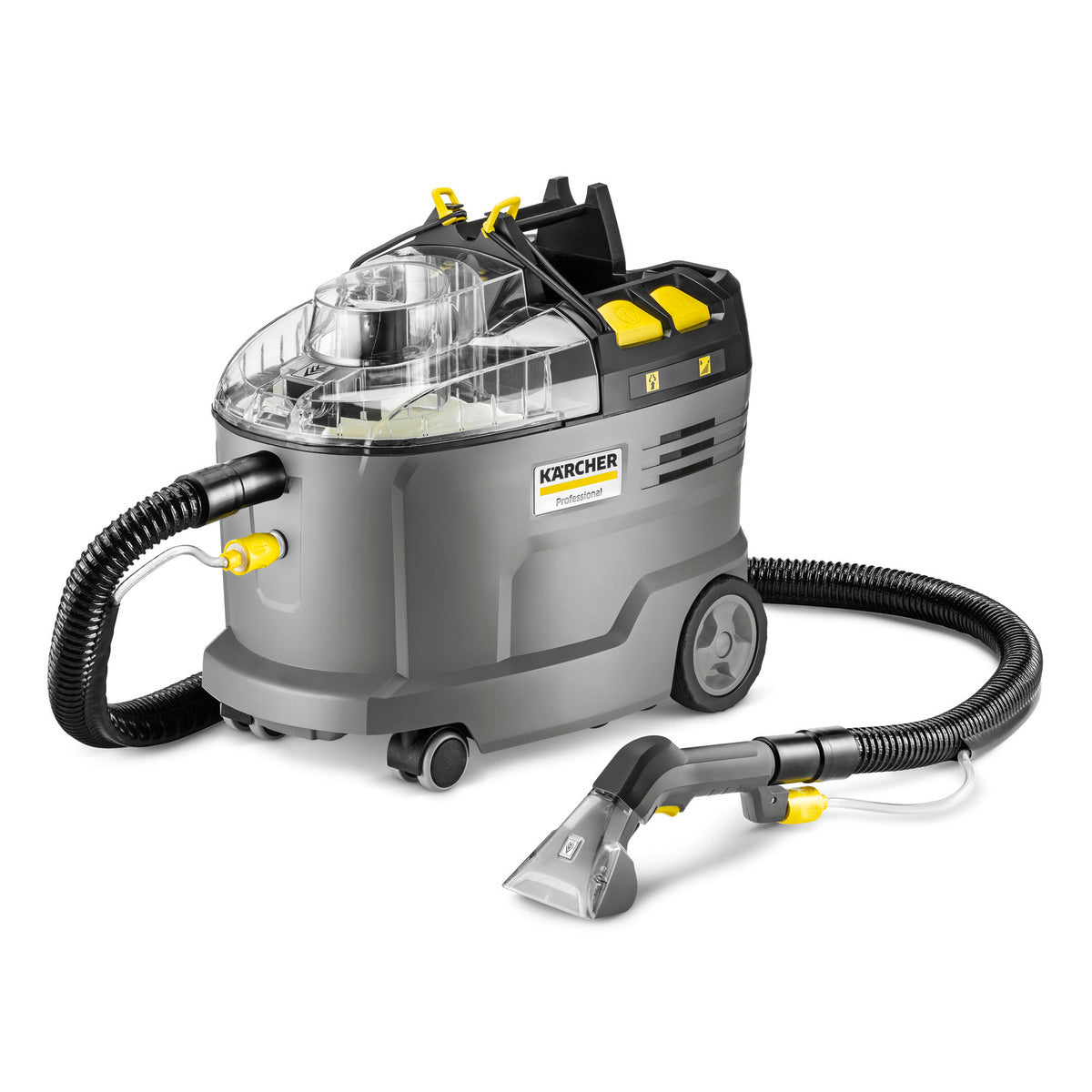

Puzzi 9/1 Bp
BESKRIVNING
The battery-powered Puzzi Bp provides maximum flexibility for deep cleaning of textile surfaces. A hand nozzle is also included. Battery and charger not included.
Unique in the world with robust durability and cordless flexibility. Our cordless Puzzi 9/1 Bp textile cleaner. It is the only professional battery-powered model on the market and it never ceases to impress with its exceptional performance and maximum freedom of movement when cleaning cushions or textile floor surfaces in all types of industries, hotels, schools, public buildings or in car rental companies or on buses, trains or pretty much anywhere. Despite being so powerful, it is extremely quiet compared to equivalent mains-powered models, making it perfect for work in public areas. The ergonomic design means that it can be easily carried around with just one hand. To achieve the best deep cleaning in textile fibers, the cleaning solution is sprayed out under pressure right into the material and then sucked up again with the dissolved dirt. A short hand nozzle for maximum accessibility, spray/suction hose, 2-in-1 container for clean and dirty water and integrated accessory storage are included as standard accessories. When ordering this particular model, remember that the powerful 36V Kärcher Battery Power+ battery and corresponding quick charger must be ordered separately.
Features and benefits
Powerful Kärcher Battery Power+ 36 V battery
The freedom of cordless working Real-time technology with LCD battery display: remaining operating time, remaining charging time and battery capacity. Compatible with all machines in the Kärcher 36V Battery Power+ battery platform
Durable and robust design
Long life of motors provides high efficiency Robust and durable pump Two large buttons that can be operated comfortably with the hand or foot
Ergonomic design and extra compact hand nozzle

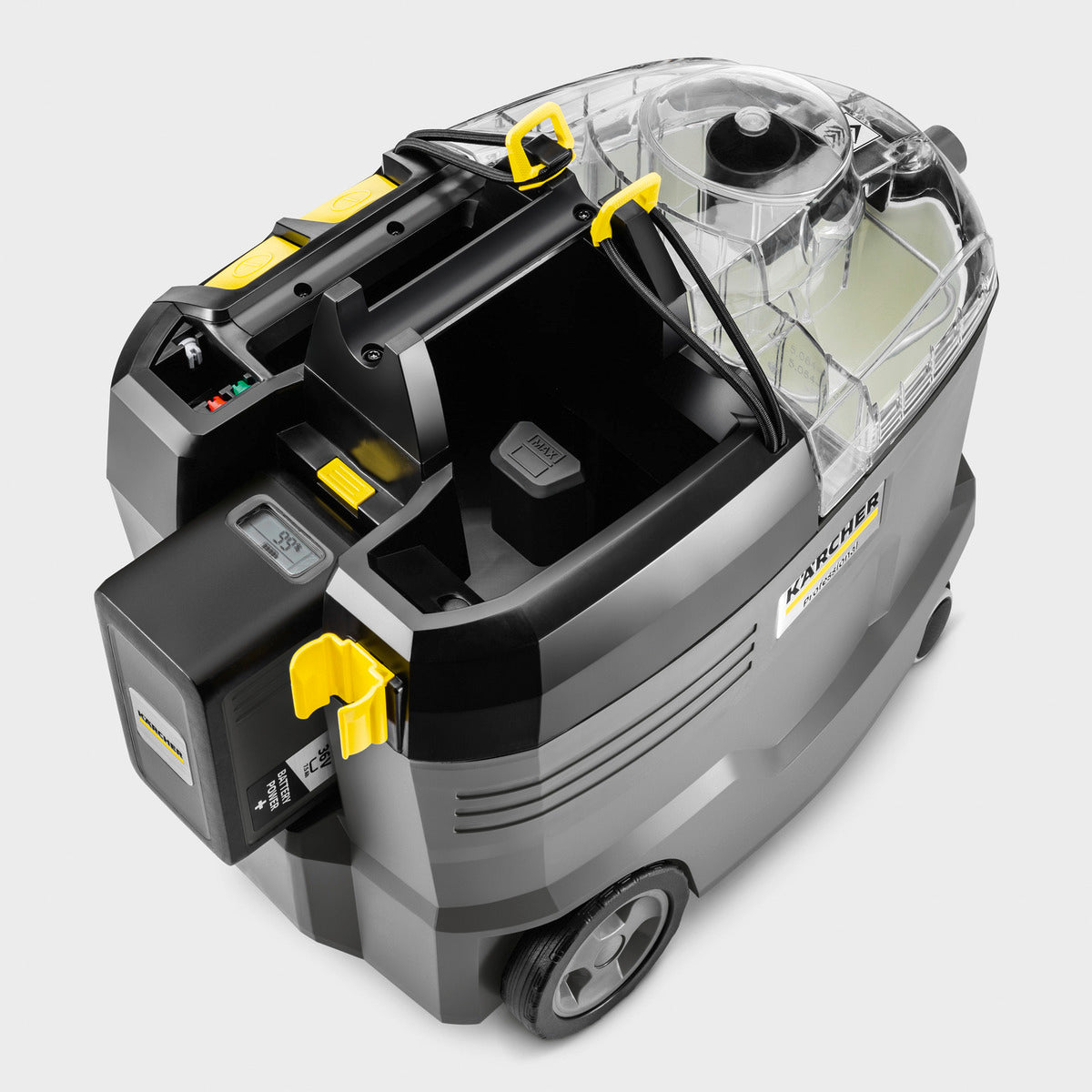

Removable smart 2-in-1 container
- Easy and quick refilling of clean water
- Convenient and easy emptying of dirty water
- Quick-start included for increased ease of use
Ergonomic carrying handle
- Convenient transport with just one hand
- Comfortably well-balanced machine
- The straw is integrated into the carrying handle for safe and convenient transport

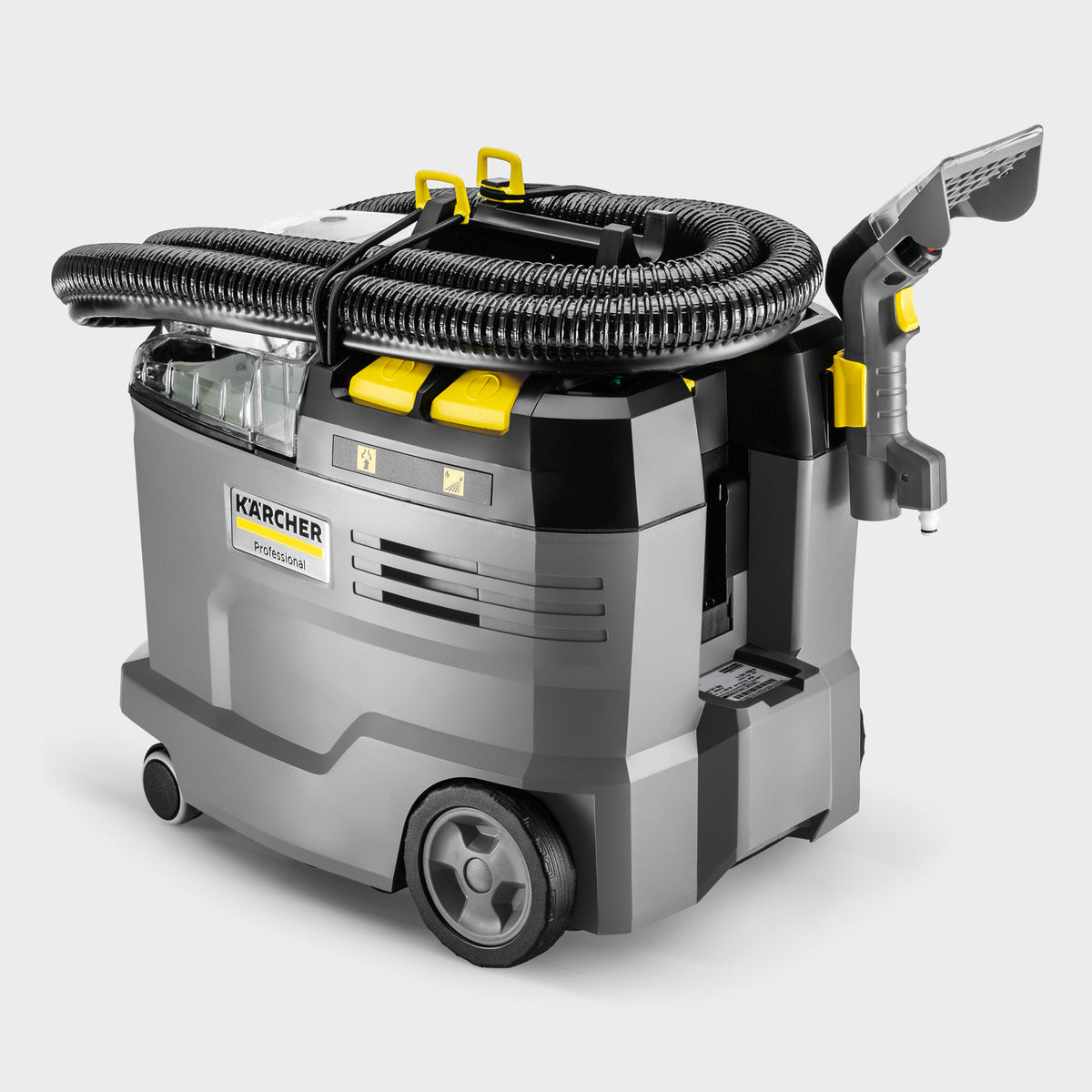

Practical accessory storage
- All accessories are conveniently stored on the machine and are therefore always close at hand.
- Practical built-in storage for cleaning tablets
- Safe storage, even during transport
Low weight
- Convenient to move, even with one hand, up stairs and the like
- Designed for extended use without tiring the user
- Entry-level model in lightweight
Low noise level
- Also suitable for cleaning in noise-sensitive environments or during night work
- Increases user comfort
- Very quiet model in the entry-level segment
2-in-1 system with integrated spray and suction tube.
- The cleaning solution is sprayed deep into the fibers under pressure
- Thorough suction of cleaning solution and dirt
- Quick-drying
Specifications
Technical data
| Battery platform | 36 V Battery Platform |
| Surface capacity (m²/h) | 12 - 18 |
| Clean/dirty water tank (l) | 9 / 7 |
| Airflow (l/s) | 57 |
| Vacuuming (kPa) | 15 |
| Spray volume (l/min) | 0.5 |
| Spray pressure (MPa) | 0.16 - 0.22 |
| Turbine power (W) | 550 |
| Pump capacity (W) | 4 |
| Connection power (W) | 575 |
| Sound pressure level (dB(A)) | 70 |
| Default accessory ID ( ) | ID 32 |
| Number of batteries required (Piece(s)) | 1 |
| Operating time per battery charge (min) | 35 (7.5Ah) / 27 (6.0Ah) |
| Battery charging time with fast charger 80%/100% (min) | 58 / 81 |
| Output power (A) | 6 |
| Battery charger power supply (V/ Hz ) | 100 - 240 / 50 - 60 |
| Paint | anthracite |
| Weight without accessories (kg) | 7.6 |
| Weight incl. packaging (kg) | 11.2 |
| Dimensions (L × W × H) (mm) | 540 x 332 x 460 |
The following is included
- Variant: Battery not included
- Spray and suction hose: 2.5 m
- Motor protection filter
- Pure water filter
- Short furniture nozzle with handle
- Storage compartment for cleaning tablets
- Removable 2-in-1 container
- Detergent: RM 760 Tabs, 2 Tablets
Standard equipment
- Transport lock for hose
- Practical accessory storage
Download
Instructions for use, including safety information
Areas of use
- For intensive deep cleaning of textile surfaces and furniture
- For periodic cleaning and spot cleaning of carpets
- For cleaning all textile surfaces - including car interiors
- For deep cleaning of textile fibers
- For deep spot cleaning of smaller textile floor surfaces
