Tool carrier C 70 TC Tool carrier
BESKRIVNING
The C 70 TC is a powerful all-rounder for year-round work with implements and is characterised by incredible grip and high efficiency. The 2-person cabin means more possible applications.
The C 70 TC is a utility machine with a spacious 2-person cab and impresses with incredible grip and maximum inclination. The main components of the dual drive are 4 powerful wheel motors, intelligent hydraulic steering and traction electronics that automatically switch between four-wheel drive and two-wheel drive as well as between different operating programs, depending on the driving situation. The result is an extremely dynamic driving experience and low fuel consumption that saves both time and money. You also get classic and appreciated Holder functions: frame steering, hydraulic load compensation on the wheels, mechanical differential locks, the mechanical front PTO shaft and the 3-dimensional front linkage enable year-round use at the highest professional level. The additional seat offers several advantages and more possibilities in use - having an extra person on board can save an extra vehicle in many situations, thus increasing efficiency. The passenger can also carry out smaller tasks with handheld devices while the driver can concentrate on steering the vehicle.
Features and benefits
Flexible options for vehicle types, design and expansion
Flexible in use with a wide range of powerful optional attachments. Two large attachment areas at the front and rear and a third for articulated attachments. The quick-release system allows 1 person to change attachments alone without any tools.
Ergonomic and comfortable cab
Perfect environment in the wheelhouse regardless of the weather with AC, heater and rotating air fans. Cabin for 2 people with plenty of space for the passenger. 360° panoramic view provides a clear view of the work area and allows you to maneuver safely.
Very easy service
The engine cover can be tilted hydraulically and can therefore be used for tilting with articulated machines. The tanks can be swung out on both sides, which facilitates cleaning and service.Specifications
Technical data
| Drive | Diesel |
| Drive motor | All-wheel drive function |
| Engine make | Kubota |
| Engine power (kW) | 48 |
| Cylinder capacity (cm³) | 2615 |
| Cylinder | 4 |
| Exhaust emission standard | STEP V |
| Fuel tank (l) | 65 |
| Driving speed (km/h) | 40 |
| Working speed (km/h) | 20 |
| Wheelbase (mm) | 1870 |
| Permissible total weight (kg) | 3500 |
| Weight without accessories (kg) | 2089 |
| Dimensions (L × W × H) (mm) | 3301 x 1360 x 2213 |
Standard equipment
- Particle filter
- Air conditioning system
- Warmer
- Rotating warning light
- Year-round use
Download

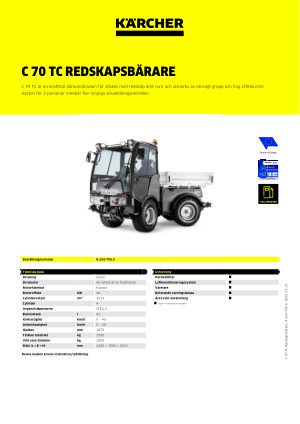

Product information
