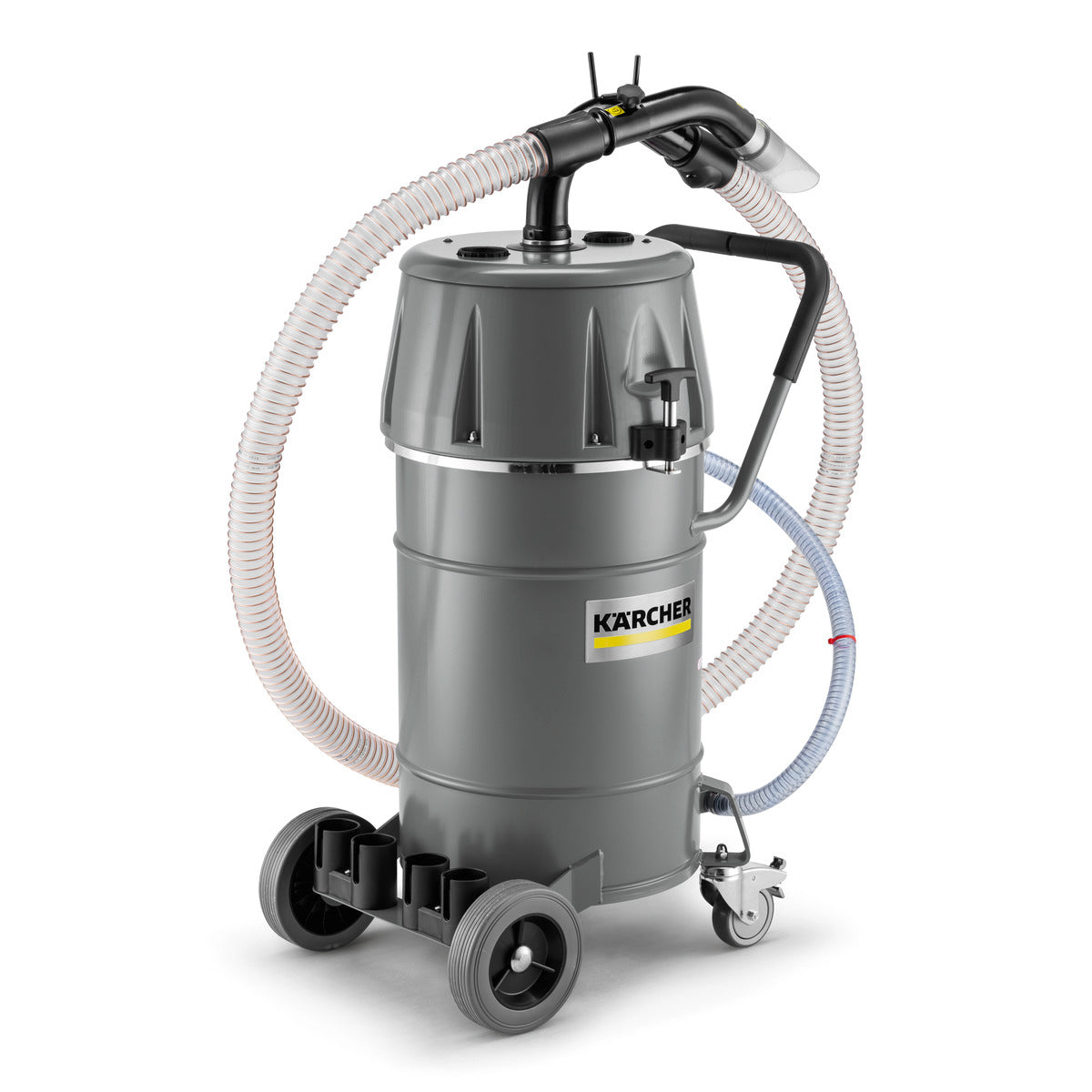

Industrial vacuum cleaner IVR-L 65/24-2 with accessories
BESKRIVNING

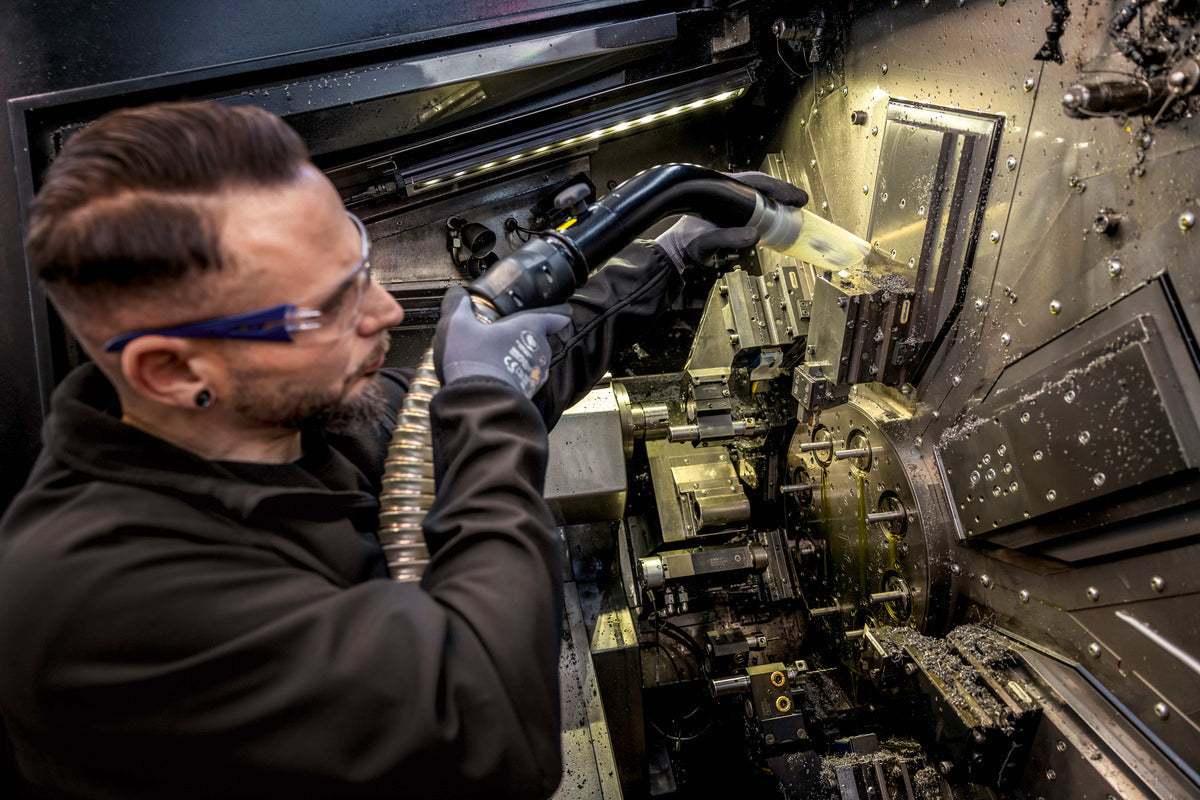

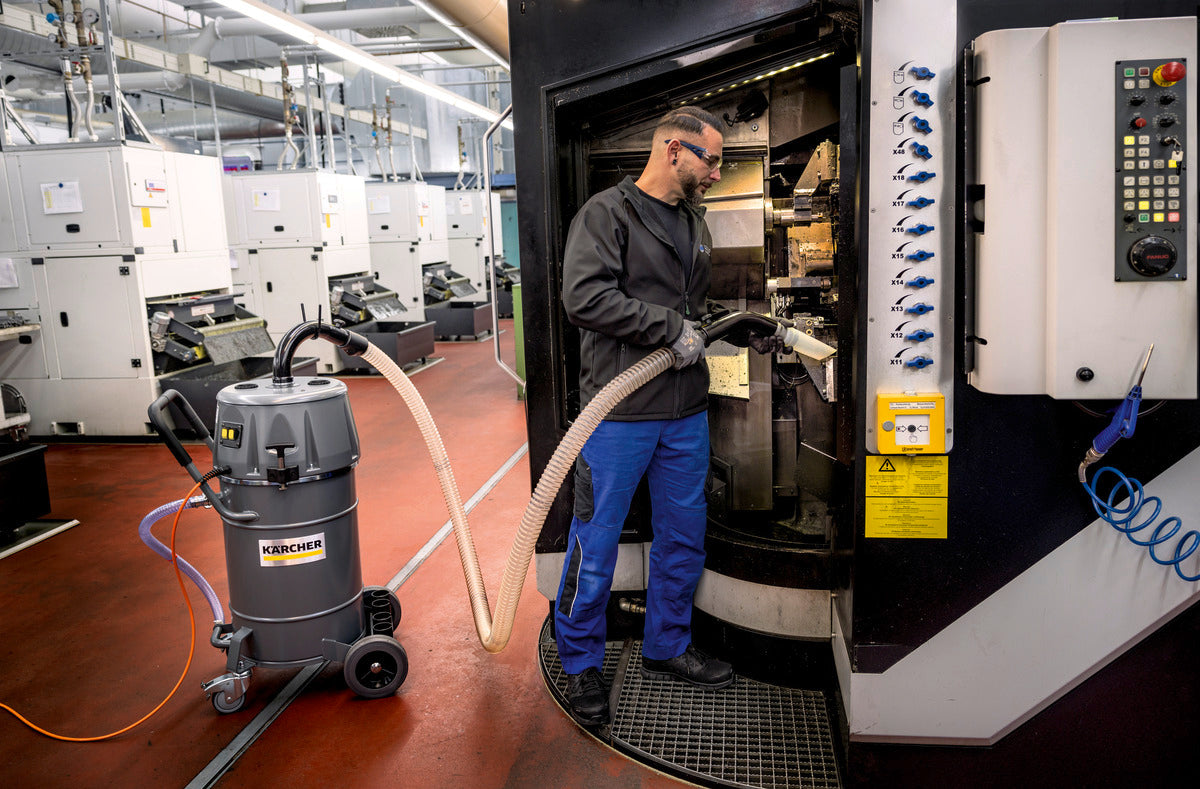

Ideal for the metalworking industry: The compact industrial vacuum cleaner IVR-L 65/24-2 with accessories is suitable for vacuuming and separating liquids and solid particles, such as chips.
With two exceptionally quiet blower motors for outstanding suction power and low operating noise, the small industrial vacuum cleaner IVR-L 65/24-2 and its accessories deliver impressive performance when vacuuming and separating smaller quantities of liquids and solids, such as oils, coolant emulsions or coarse, abrasive chips. This means that the IVR-L 65/24-2 can be used in a wide range of applications, but it is particularly suitable for the metal industry. The compact, space-saving design and robust chassis also make it easy to transport the vacuum cleaner between different locations. A nozzle, a 3-meter long PU hose, a DN 50 handle and a 20-liter filter insert made of high-quality stainless steel (V2A) are included as standard. The drive head is partly made from recycled material.
Features and benefits
Reliable overfill protection
- A float effectively prevents overfilling of the collection container
- Transparent hose for checking the aspirated liquid content
- The hose is also used for easy emptying
High robustness, flexibility and modularity
- Very robust machine and chassis with high material thickness
- Rotatable hose connection with up to 360° rotatable pipe bend
Specifications
Technical data
| Mains voltage (Ph/V/ Hz ) | 1 / 220 - 240 / 50 - 60 |
| Airflow (l/s/m³/h) | 144 / 520 |
| Vacuuming (mbar/kPa) | 235 / 23.5 |
| Tank capacity (l) | 65 |
| Container material | Steel |
| Connection power (kW) | 2.4 |
| Type of suction | Electrical |
| Nominal diameter of connection | ID 50 |
| Nominal diameter of accessories | ID 50 ID 40 |
| Main filter for dust | L |
| Filter area for main filter (m²) | 0.25 |
| Weight without accessories (kg) | 46 |
| Weight (with accessories) (kg) | 46.5 |
| Weight incl. packaging (kg) | 46.5 |
| Dimensions (L × W × H) (mm) | 711 x 523 x 960 |
Standard equipment
- Accessories included in delivery: yes
- Automatic refill shut-off
Areas of use
- For small amounts of coarse and abrasive chips
- For small amounts of liquids, such as oils or coolant emulsions
