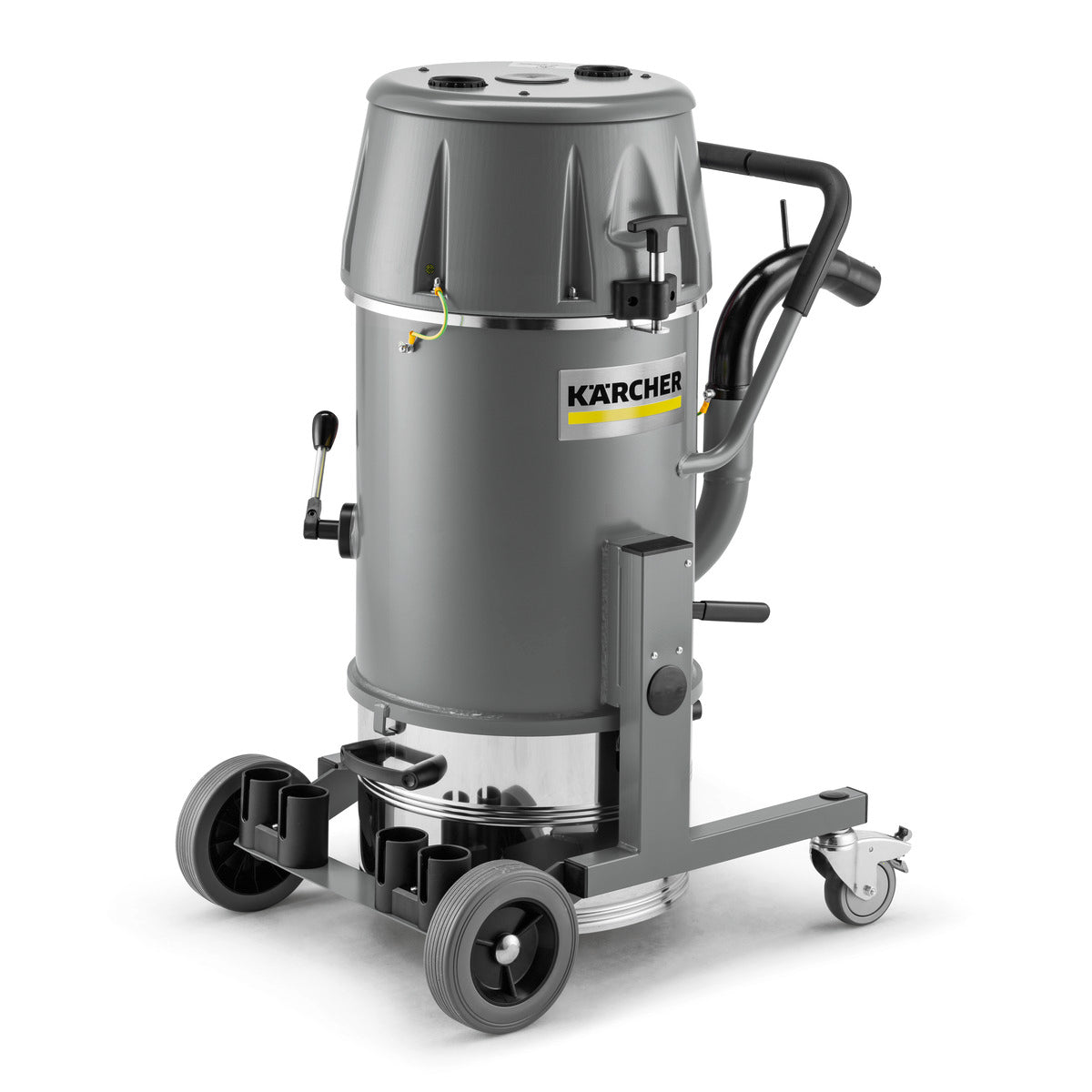

Industrial vacuum cleaner IVR 35/24-2 Sc Me
BESKRIVNING
Powerful IVR 35/24-2 Sc Me M ACD industrial vacuum cleaner for fine dust applications. Ideal for maintenance cleaning in workshops and production halls.
Extra low and compact entry-level IVR 35/24-2 Sc Me M ACD industrial vacuum cleaner with dust class M filter technology, which ensures safe vacuuming of small amounts of fine chips as well as combustible and hazardous dust (OEL ≥ 0.1 mg/m³). The robust design and the small footprint of the vacuum cleaner ensure a long service life in tough daily operations in industrial environments. With two powerful bypass motors, the machine is ideal for maintenance cleaning in workshops or production halls. An internally reinforced pocket filter with a large filter surface (1.4 m²) and effective filter cleaning, as well as a cyclone-like pre-separation system, ensure reliable pick-up of fine dust. The stainless steel collection tank is connected to the vacuum cleaner using a practical and easy-to-operate lowering mechanism. The intelligent sound attenuation reduces operating noise without compromising performance. Thanks to high-quality wheels and small dimensions, the IVR 35/24-2 Sc Me M ACD impresses with superb maneuverability and maximum versatility.
Features and benefits
ACD – Applied for Combustible Dust
For safe and economical extraction of respirable dust Complies with IEC 60335-2-69 standard
Particularly robust, particularly flexible
With practical, removable suction hose port/pipe bend. Despite its very compact design, it has many options for carrying accessories. Very robust machine and chassis with high wall thickness
Equipped with two very quiet fan motors
For powerful suction power and optimal cleaning performance The turbines can be switched on separately for individual suction power as desired Very quiet drive head ensures even exhaust of the cooling airConvenient, manual filter cleaning
- Easy operation using an ergonomically placed lever when needed.
- Extends the life of the filter and thus reduces maintenance work.
- Identical cleaning results, regardless of how much force is used.
Equipped with large pocket filter
- For safe vacuuming of solids and dust in dust class M
- For safe and economical extraction of respirable dust
- The special geometry of the filter prevents sucked-in particles from getting stuck.
Specifications
Technical data
| Mains voltage (Ph/V/ Hz ) | 1 / 220 - 240 / 50 - 60 |
| Airflow (l/s/m³/h) | 144 / 520 |
| Vacuuming (mbar/kPa) | 235 / 23 |
| Tank capacity (l) | 35 |
| Container material | Stainless steel |
| Connection power (kW) | 2.4 |
| Type of suction | Electrical |
| Nominal diameter of connection | ID 50 |
| Nominal diameter of accessories | ID 50 ID 40 |
| Sound pressure level (dB(A)) | 68 |
| Main filter for dust | M |
| Filter area for main filter (m²) | 1.4 |
| Weight without accessories (kg) | 53 |
| Weight incl. packaging (kg) | 54.2 |
| Dimensions (L × W × H) (mm) | 740 x 580 x 1105 |
Areas of use
- For vacuuming small amounts of flammable and hazardous dust (OEL ≥ 0.1 mg/m³)
