Kärcher Scrubbers B 110 R Bp Pack 170Ah AGM+R75+DOSE+SSD
Couldn't load pickup availability
BESKRIVNING

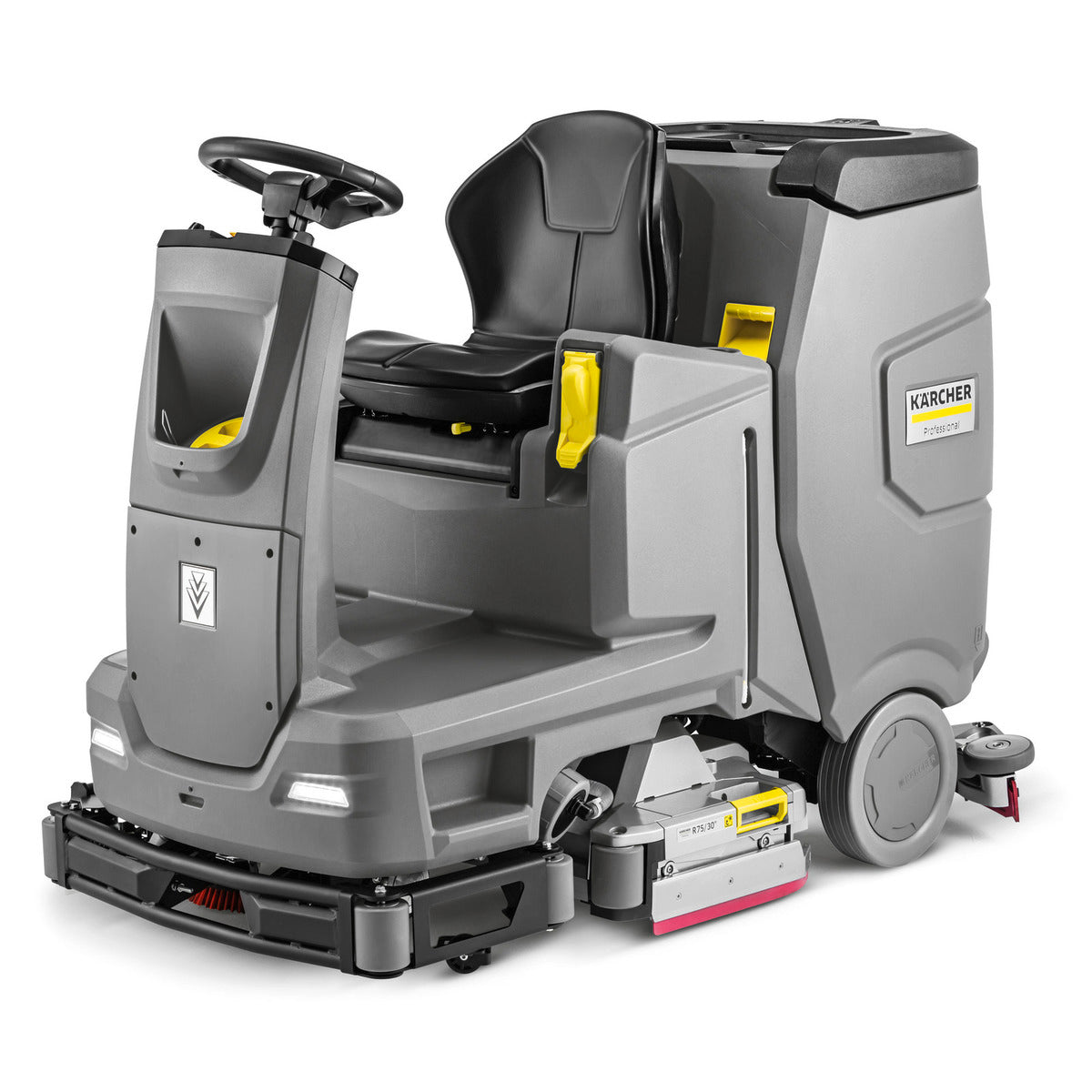

Reliable ride-on scrubber dryer B 110 R with 170 Ah battery, integrated battery charger, side scrubber deck and DOSE detergent dosing system. Surface capacity: 5100 m2/hour.
Equipped with a powerful 170 Ah battery and an integrated battery charger as standard, the compact B 110 R ride-on scrubber dryer cleans up to 5,100 m² per hour with its 110-litre tanks. This is achieved with the roller brush head with a 75-centimetre working width and sweeping unit, as well as the side scrubber deck to extend the working width by 10 centimetres to enable cleaning close to edges, even under shelves. The following functions are also included as standard: speed-dependent water dosing and the DOSE detergent dosing system to save resources, the Auto Fill function for time-saving refilling of the fresh water tank and the tank rinsing system for quick cleaning of the dirty water tank. All functions are convenient, user-friendly and can be controlled in 30 languages on the large colour display or with the EASY Operation button. The integrated KIK key system enables individual assignment of access rights for important machine functions, which effectively helps to avoid operating errors. Daytime running lights are also integrated to increase passive safety.
Features and benefits
Roller brush head with integrated sweeping unit
Made of die-cast aluminum with large bumper wheels. Saves time with integrated pre-sweeping of coarse dirt. Very smooth and quiet running for use in noise-sensitive areas.
Time and cost saving side scrubber deck
Enables cleaning of walls or shelves close to edges. Swings under the machine when encountering obstacles, thus avoiding damage. Cost savings by avoiding manual reworking in edge areas.
Height-adjustable seat
Perfect seating position regardless of the driver's height. Excellent seating comfort while driving. Enables longer, fatigue-free work intervals.Speed-controlled water dosing
- Reduces water supply in curves or during slow travel.
- The water saving feature increases the performance of the area.
- Faster drying of the soil and lower risk of residual water in bends.
Robust rubber scraper made of die-cast aluminum
- With tear-resistant, durable Linatex® suction lips for excellent vacuuming results.

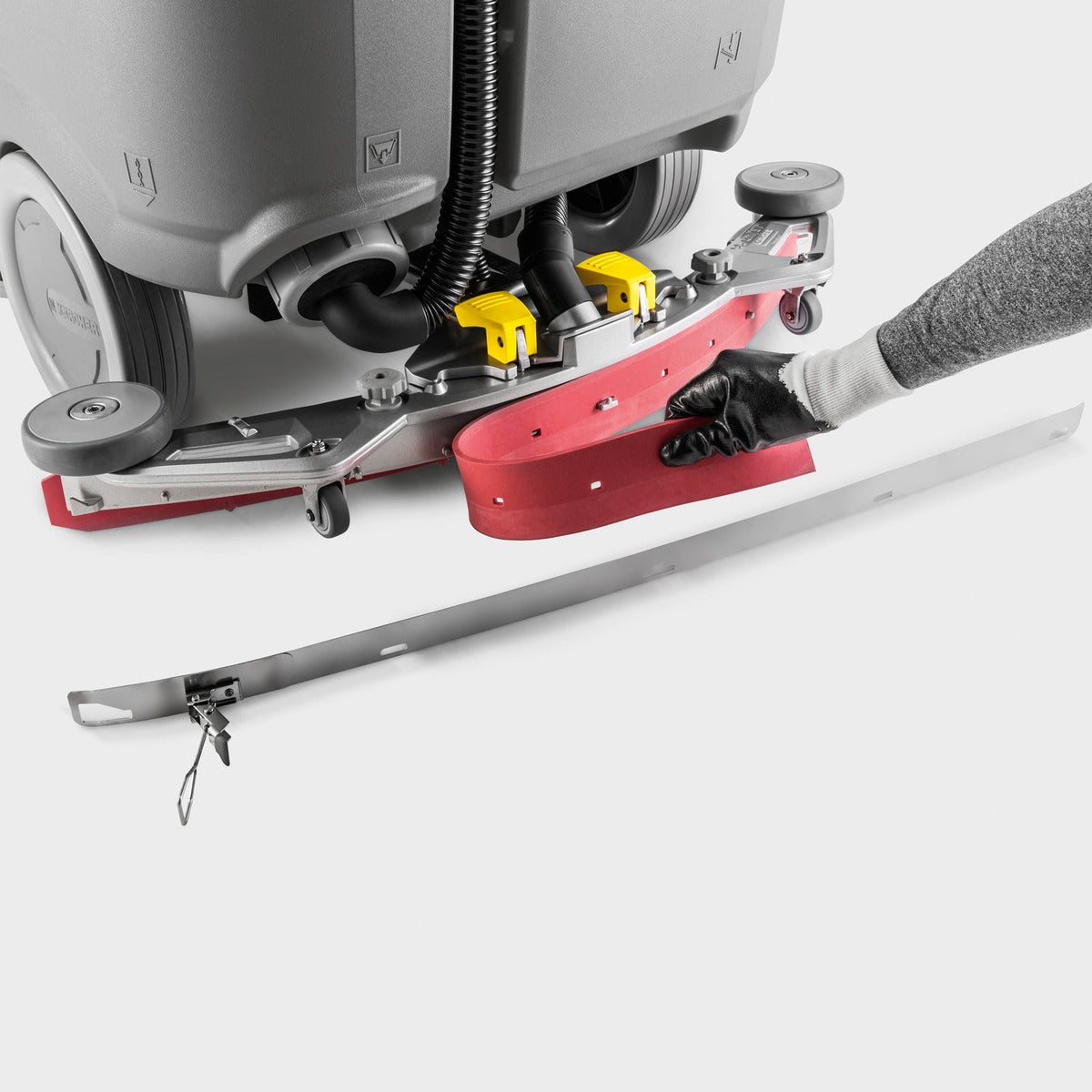

- Quick and easy replacement of the suction lips.
- Swivels upon contact with the wall, thus avoiding damage.
Specifications
Technical data
| Drive type | Battery |
| Traction drive | traction motor |
| Working width, brushes (mm) | 750 |
| Working width, vacuuming (mm) | 950 |
| Fresh/waste water tank (l) | 110 / 110 |
| Theoretical surface performance (m²/h) | max. 5100 |
| Practical surface performance (m²/h) | 3600 |
| Battery (V/Ah) | 24/170 |
| Battery life (hours) | max. 2.5 |
| Battery charging time (h) | 7 |
| Battery charger power supply (V/ Hz ) | 100–230 / 50–60 |
| Climbing ability (%) | 10 |
| Brush speed (rpm) | 1200 |
| Brush contact pressure (kg) | 75 |
| aisle turning width (mm) | 1750 |
| Water consumption (l/min) | max. 5.7 |
| Sound pressure level (dB(A)) | 59 |
| Nominal input power (W) | up to 2350 |
| Permissible total weight (kg) | 650 |
| Weight without accessories (kg) | 380 |
| Dimensions (L × W × H) (mm) | 1695 x 975 x 1315 |
Scope of delivery
- Battery and built-in charger included
- Scraper, curved
- Side scrubber deck
- robust suction rod made of die-cast aluminum
- detergent dosing container with closed system
Equipment

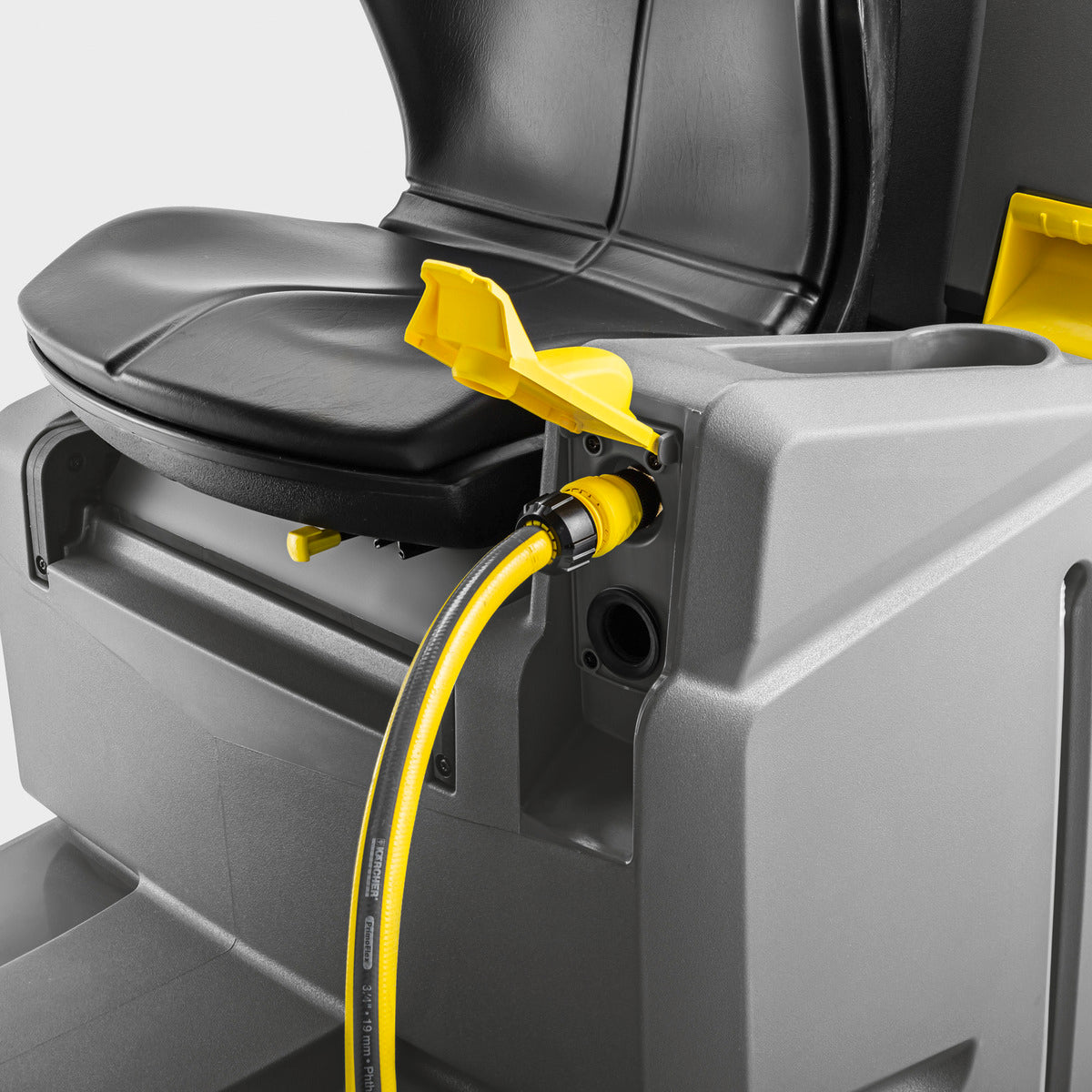

- Automatic filling
- Patented tank rinsing system
- Powerful traction
- Automatic water stop
- DOSE
- Parking brake
- Integrated sweeping mechanism
- Solenoid valve
- Two-tank system
- Height-adjustable seat
- Fresh water level indicator: Via water pressure

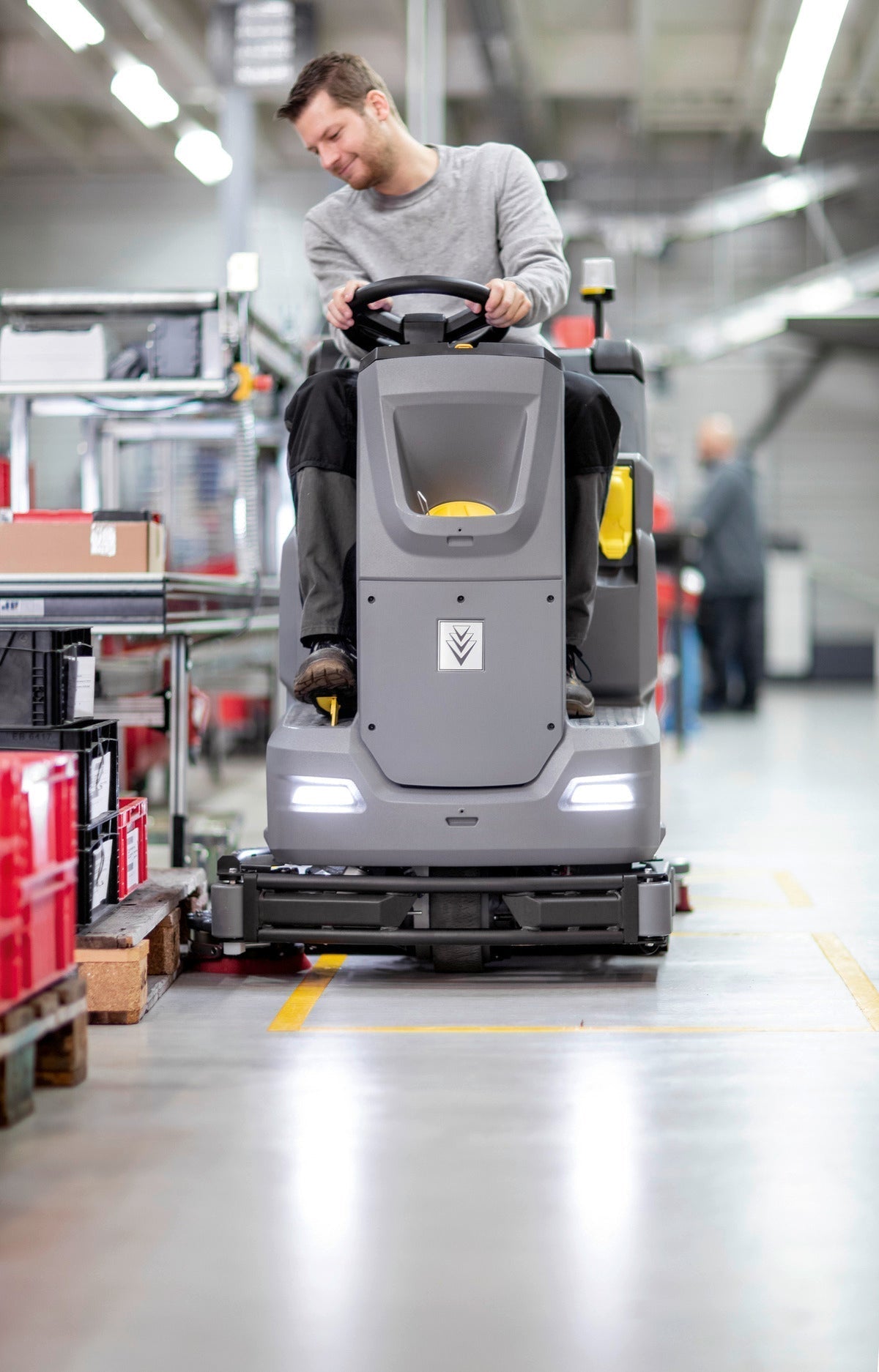

- standard daytime running lights
- small dosing unit for detergent up to 0.25%
- Robust front bumper
- with speed-dependent water dosing
- Software updates and loss assessment can be done remotely via Kärcher fleet management
- Kärcher color and user concept
- Kärcher Intelligent Key System (KIK) with over 30 user languages and individual user rights
- Extremely quiet roller brush head for noise-sensitive areas
- Possibilities to attach Home Base for mop or similar
- electrical and mechanical float switch
- Simple operation switch

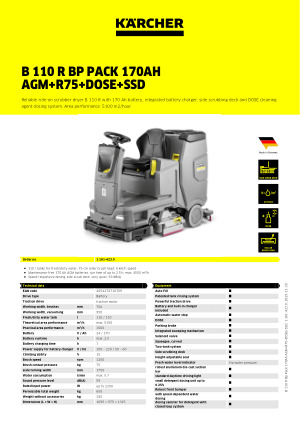

Document
Videos
Areas of use
- Perfect for use in supermarkets, shopping malls or hospitals

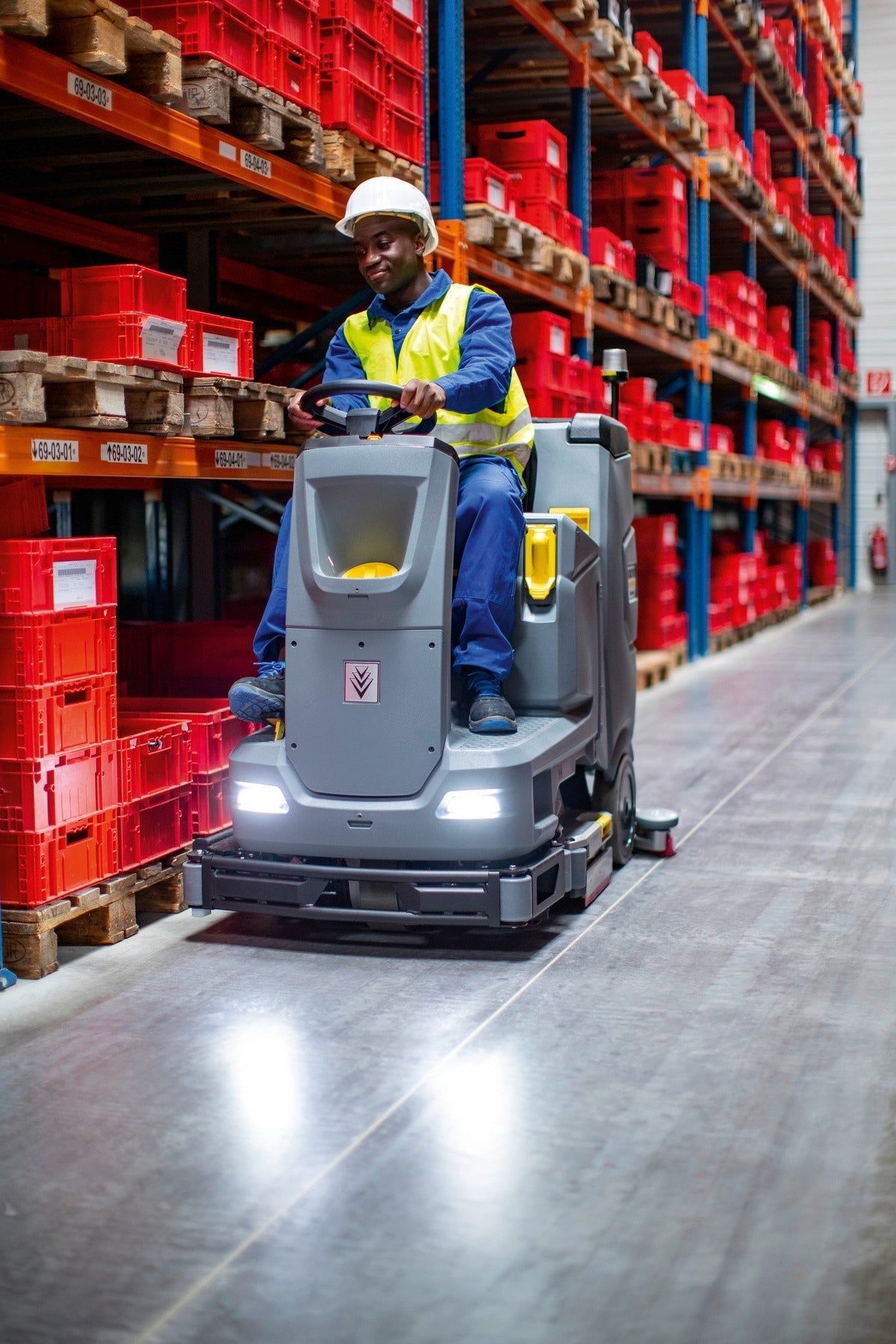

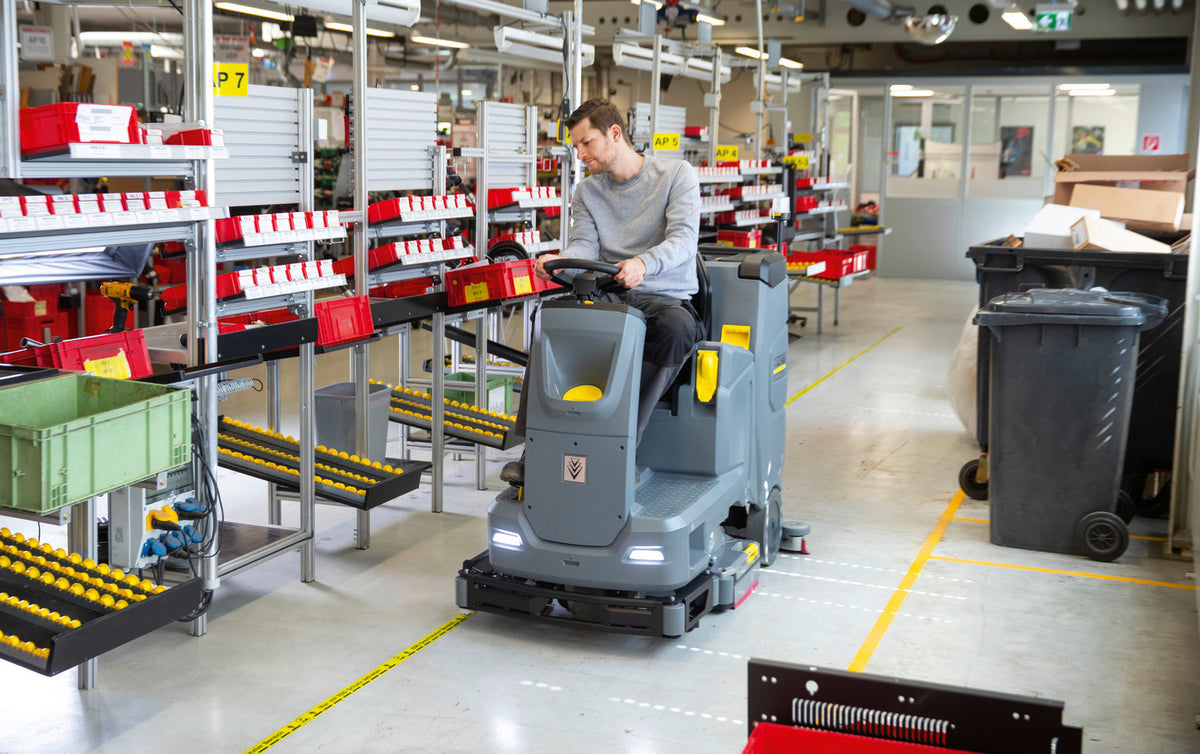

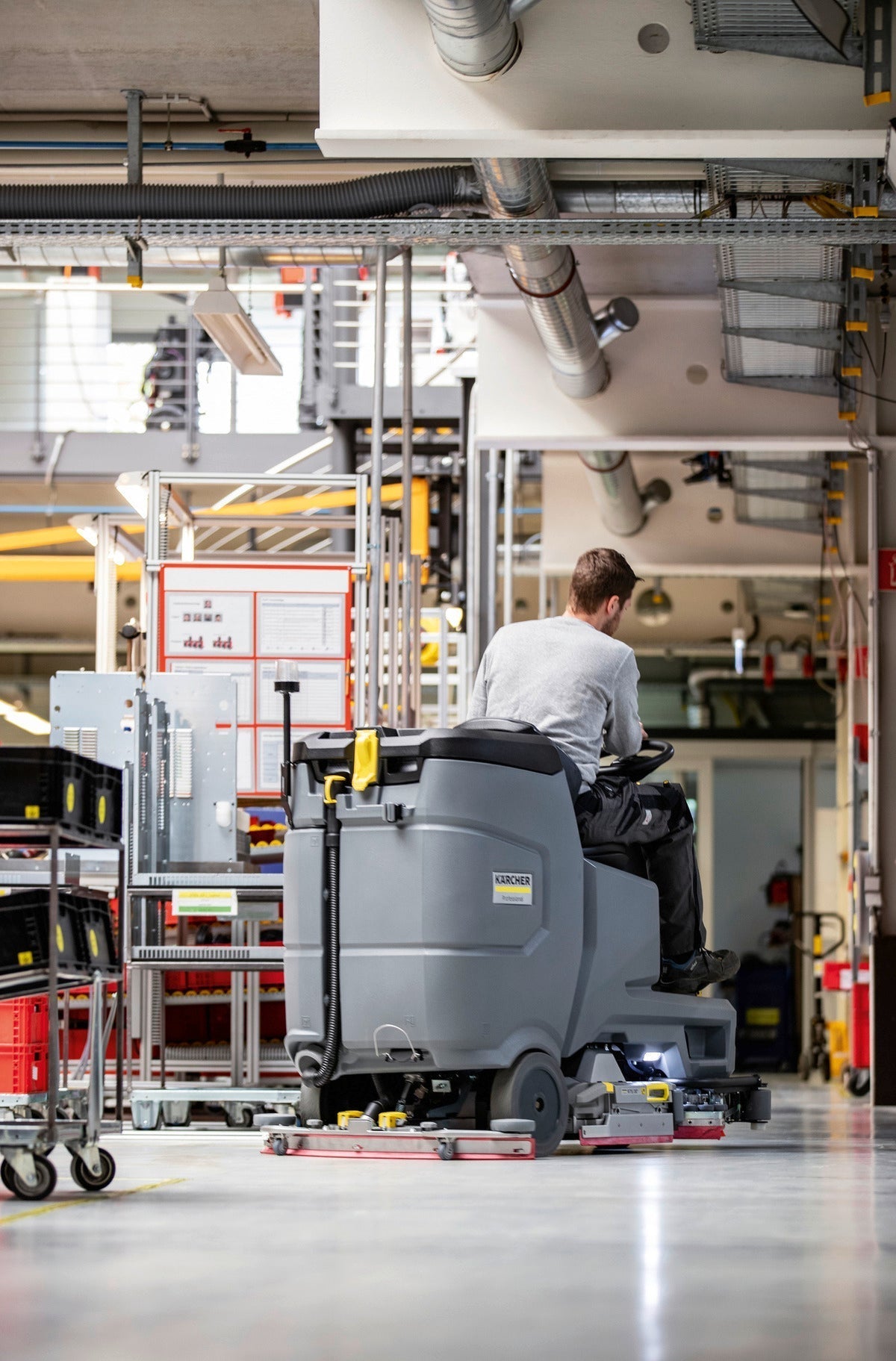

- Also suitable for cleaning production areas and warehouses
